Westcott Flex Cine Dimmer

SKU 46222
  • Description
  • Additional Information
Westcott Flex Cine Dimmer

Next Gen Flexible LED Controller
The intuitive Flex Cine Dimmer is designed to control Flex Cine Bi-Color and Daylight mats up to 1x2’. It’s also backwards compatible with original Flex 1x1’ and 1x2’ LED mats with a legacy adapter cable.

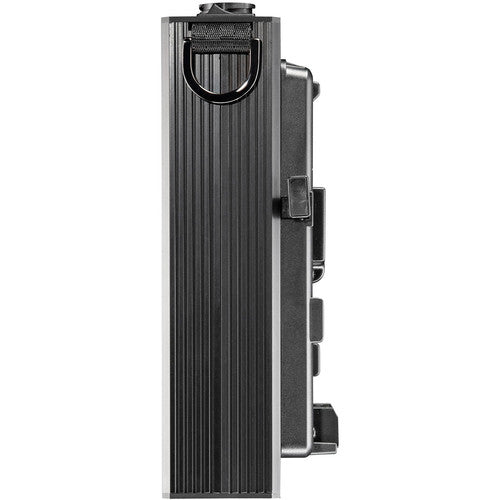

Durable Lightweight Aluminum Enclosure
This compact flexible LED dimmer is constructed with a heavy-duty, lightweight aluminum enclosure for secure use and travel. It can be mounted to a stand via the built-in 1/4"-20 thread or hung with the removable d-ring shoulder strap.

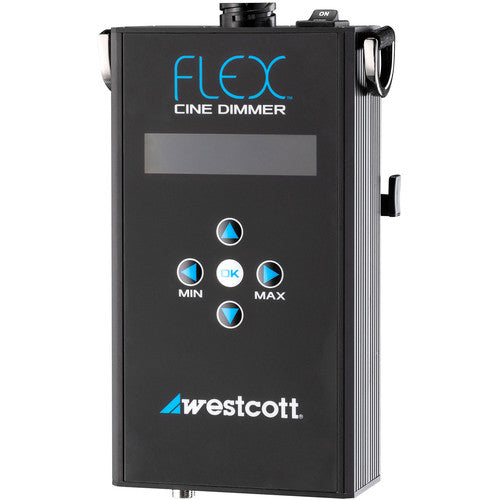

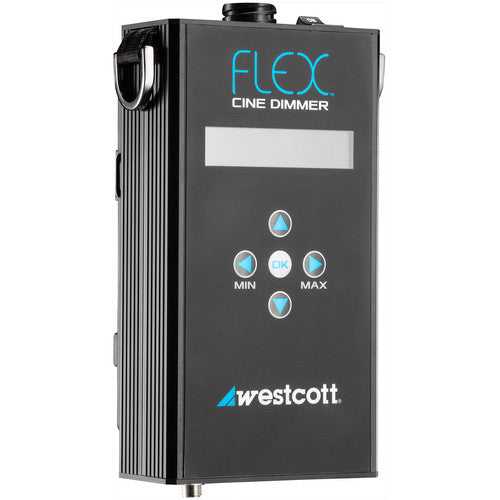

Intuitive Light Controls
The Flex Cine Dimmer offers on-board controls for adjusting light intensity from 0-100% output. When paired with flexible bi-color LED mats, the dimmer adjusts color temperature from 2800-6000K and offers 4 convenient customizable presets.

AC/DC, V-Mount, and D-Tap Power Options

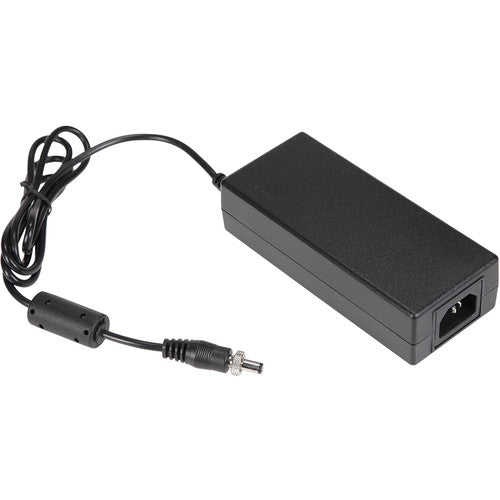

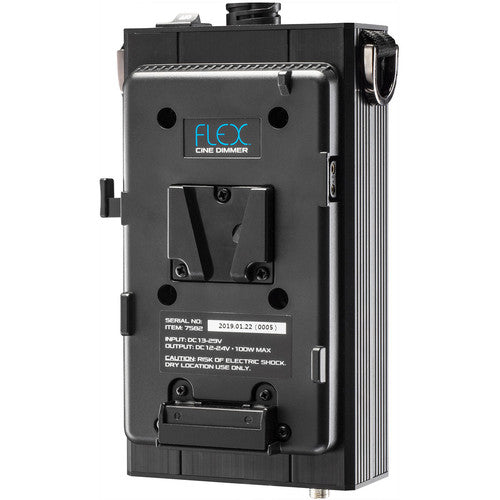

This dimmer can be powered with the included in-line AC Adapter, Flex Cine Wireless DMX Dimmer AC Adapter, 14.4-26V V-mount battery, or D-Tap battery via D-Tap to D-Tap cable.

Smart Firmware & WiFi Capable
Mat Sensing Technology detects which Flex LED mat is connected to the dimmer, specifies the required voltage, and customizes the available dimmer controls. A built-in USB-C port allows for future firmware updates. The dimmer is also WiFi capable, allowing remote adjustments via future dedicated mobile app.

Glazer's SKU 46222
Manufacturer Westcott
Product Specs

Westcott 7582

Material of Construction Aluminum
Voltage AC/DC Powered
AC Adapter Input Voltage: 100-240 VAC, 50/60 Hz
Dimmer Watts: 100 W
Input Voltage: 14.4-26 V
Output Voltage: 12-24 V
Battery Compatibility 14.4/14.8 V V-Mount Li-Ion Battery
26 V V-Mount Li-Ion Battery
Dimming 0-100%
Color Temperature Variable in Bi-Color Models
Connections Power Connection: Barrel Plug
Outer Dimension: 0.21" / 5.5 mm
Inner Pin: 0.09"/ 2.5 mm
Mat Connector: TE9-Pin Male
Cooling Fan
Control Local on Fixture
Wi-Fi via Free App
Mount 1/4"-20 Female Threads
Cable Length: 16.4" / 41.6 cm
Operating Temperature 14-113°F / -10-45°C
Certifications AC Adapter: CE, FCC, US-UL-C
Dimensions 7.28 x 3.66 x 2.52" / 18.5 x 9.3 x 6.4 cm
Weight 5.34 lb / 2.4 kg
