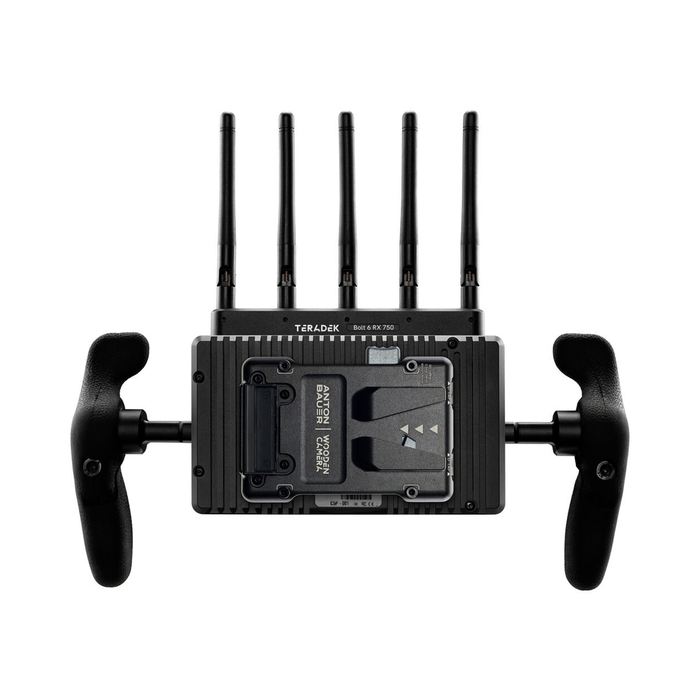

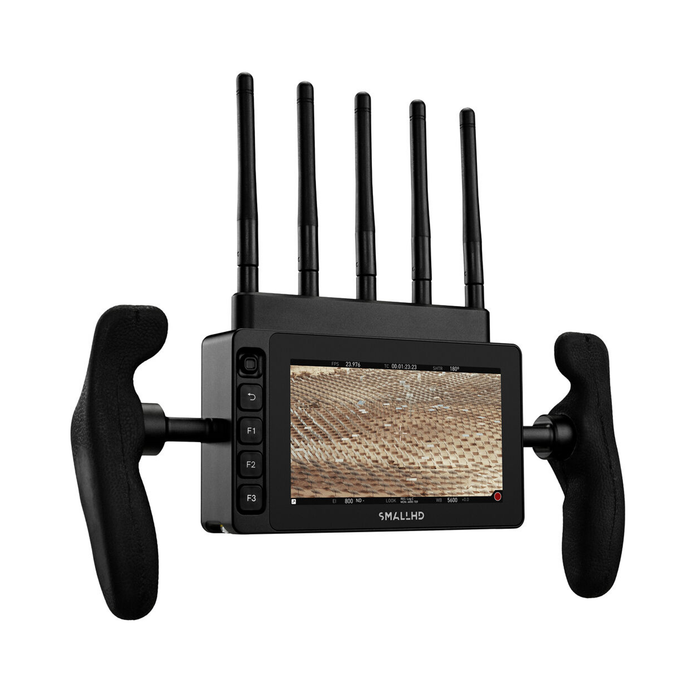

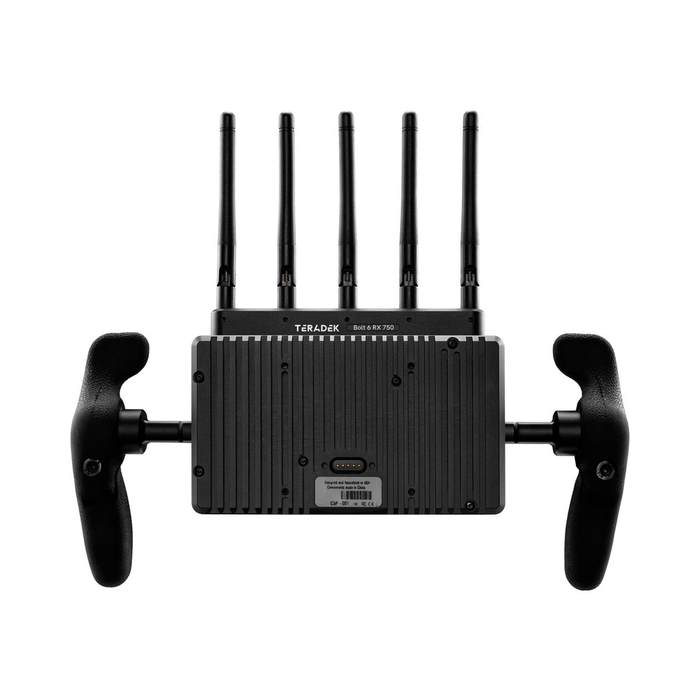

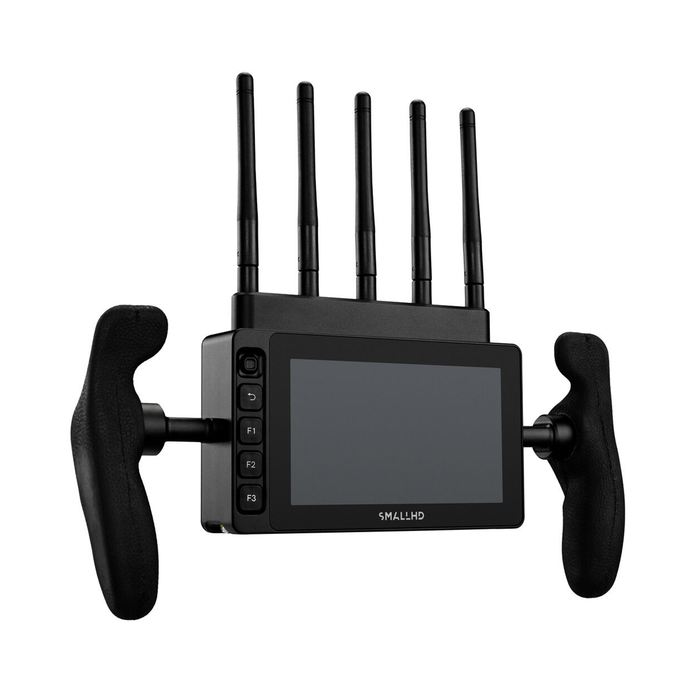

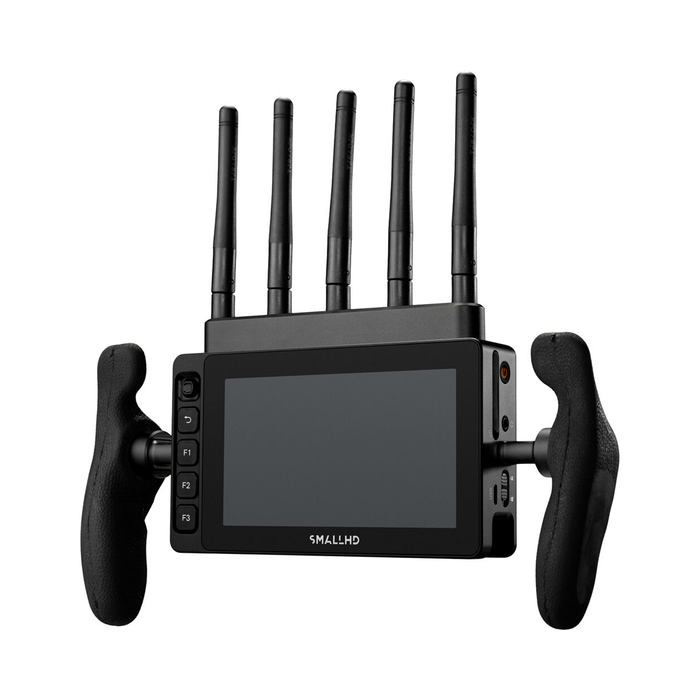

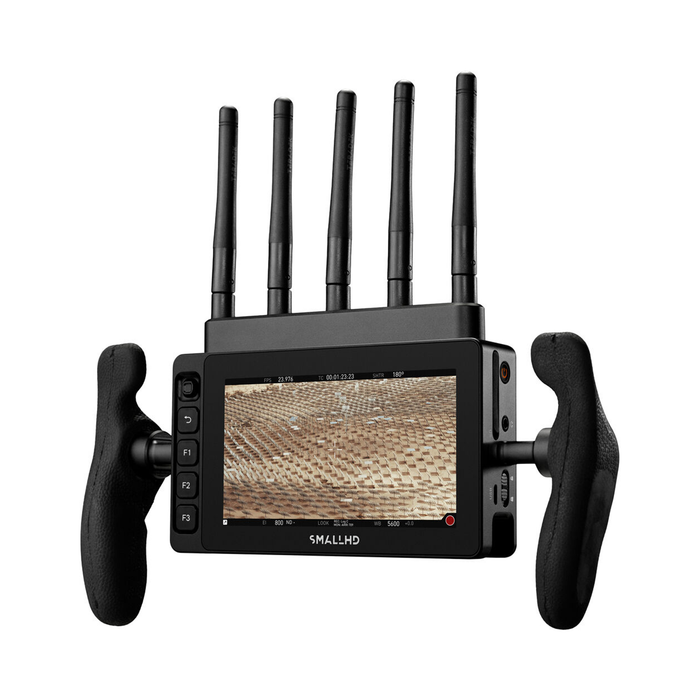

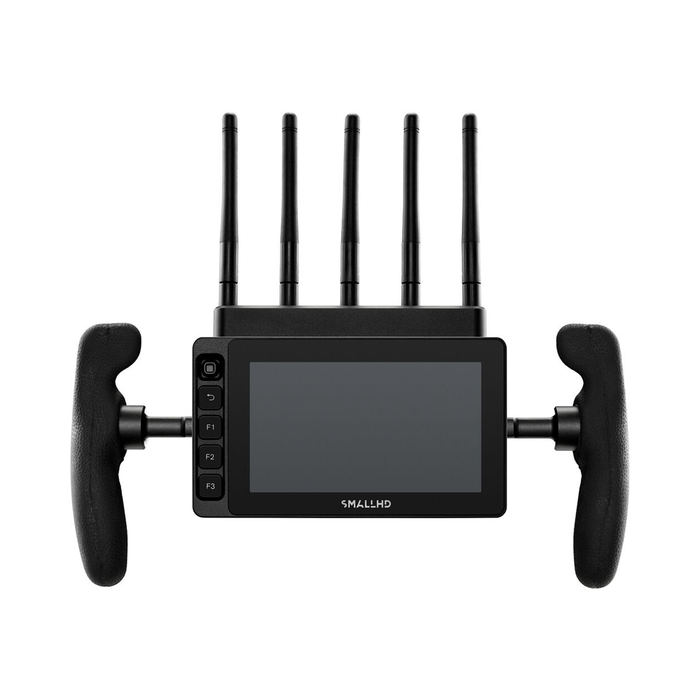

Bringing together SmallHD’s field-ready Ultra 5 monitor with Teradek’s wireless transmission technology, the Ultra 5 Bolt 6 RX 750 integrates a Bolt 6 750 Receiver directly inside, allowing you to view the image from your camera up to 750 feet away.
About Ultra 5
Powerful, portable, and adaptable, the Ultra 5 offers a dazzling 3000nits brightness and a full suite of large front-facing custom-function buttons for maximum control in all conditions. along with P3 color-accuracy. Experience all your favorite PageOS 5 tools, functions, and settings pages on a fully-loaded 5-inch touchscreen monitor.
Ultra 5 is designed for the user who wants it all, including optional Gold or V-Mount Micro Battery Plates for a compact power solution and an Ethernet port to enable ARRI and Sony VENICE Camera Control (Camera Control license and cable sold separately).
About the Teradek Bolt 6 750 RX
The Bolt 6 RX is a real time wireless video receiver that supports video signals up to 4Kp30 via HDMI with no image delay. This RX allows you to receive color accurate, True HDR images in less than 0.001 seconds. Reliably receive your videos with advanced hardware and minimal image break-up.
Camera Control for ARRI, RED, and Sony VENICE
Transform your touchscreen into the central command hub of your camera. SmallHD’s proprietary software enables unfettered access to ARRI, RED DSMC2, KOMODO, V-RAPTOR, and Sony VENICE camera functions and project settings such as Start/Stop Record, FPS, Shutter Speed, ISO, Color Temperature/White Balance, Clip Playback, and more.
*Individual Camera Control software licenses are sold separately.
Features:
Daylight-viewable, 5" touchscreen on-camera monitor with 3000 cd/m² brightness
Buttons around the monitor allow you to use the monitor in any conditions
The PageOS 5 toolset with EL Zone Exposure Assist, best-in-class waveform, false color, Look-Around Camera Control (sold separately), advanced Teradek RT overlays, and more
Four 1/4"-20 mounting threads on the left, right, bottom, and back of the monitor
Power using a 2-pin power input
Optional RED camera control via the micro-USB port
Optional ARRI/Sony VENICE camera control via the Ethernet port
Durable aluminum chassis
Compatible With:
Ultra Clear Screen Protector for Smart 5 Monitors
Ultra Matte Screen Protector for Smart 5 Monitors
Camera Control Kit for RED RCP2 (Cine 5, Ultra 5, Ultra 7)
Camera Control Kit for RED DSMC2 (Cine 5, Ultra 5, Ultra 7)
Sunhood for Ultra 5 / Ultra 5 TX & RX
Monitor Handles + Neck Strap
12V-4.5A US 2-Pin Power Supply
6GHz V Antenna
Monitor Hinge (SmallHD Smart 5 and Ultra 7, 3/8"- 16)
Monitor Hinge (SmallHD Smart 5 and Ultra 7, ARCA)
Monitor Hinge (SmallHD Smart 5 and Ultra 7, Canon C Series Cameras)
CS Desk Mat with Magnetic Strip
Specifications:

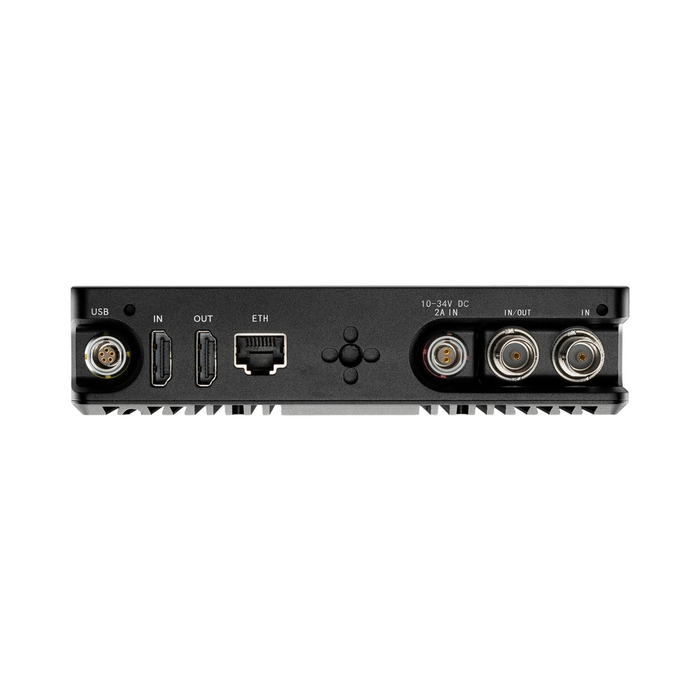

Model: 16-0528 Display: 5-inch Touchscreen, 1920x1080, 440 PPI Input: 1x 3G-SDI [IN], 1x HDMI 2.0 (4Kp30) [IN] Output: 1x 3G-SDI [IN/OUT], 1x HDMI 2.0 (4Kp30) [OUT], 1x 3.5mm Stereo Headphone Jack Power Input: 2-pin Locking Power Input (10-34V DC, 2.4A) Data I/O: 1x SD Card Slot, 1x RJ45 Ethernet, 1x Micro USB, 1x Locking USB
