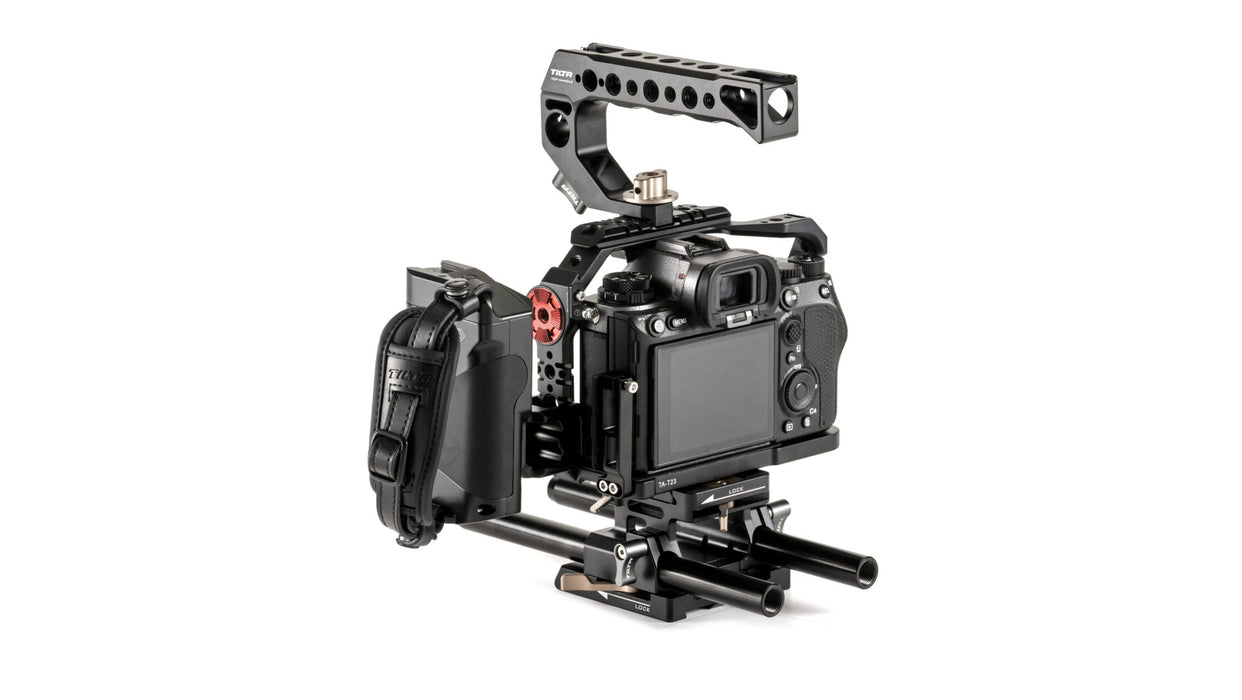

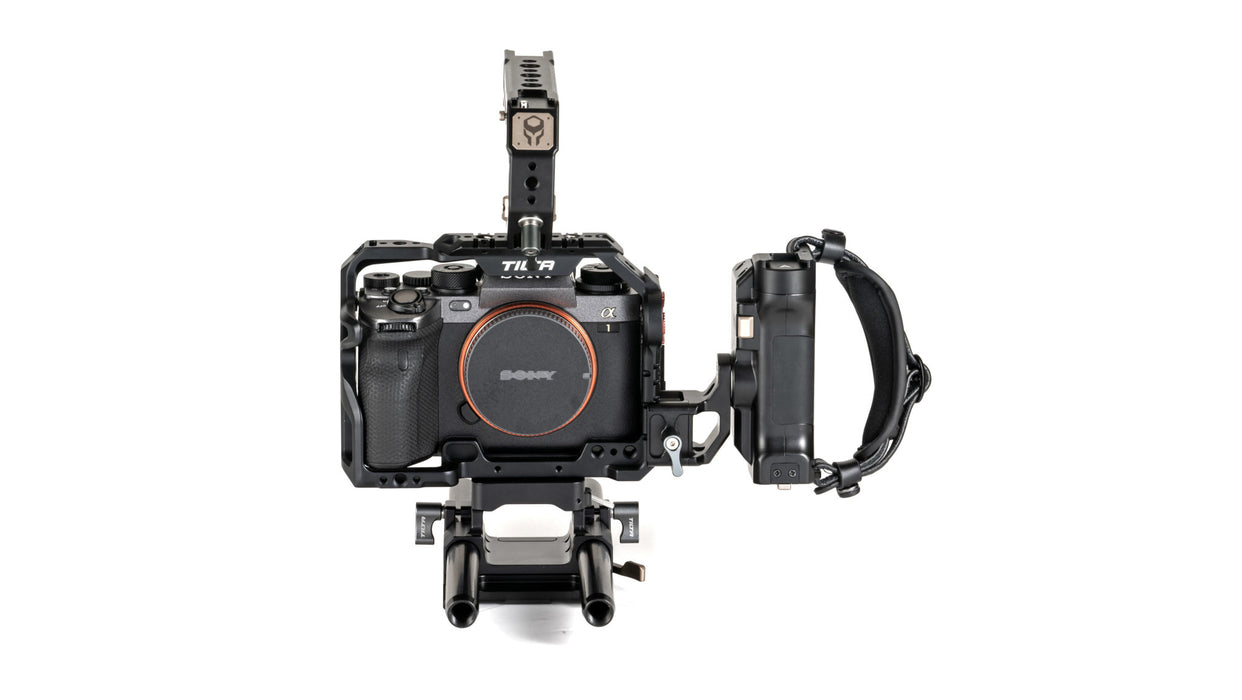

The Pro Kit provides protective armor for the Sony a1, a7S III, a7R III, a7R IV, a7 III and includes many relevant accessories to greatly improve the camera’s functionality.

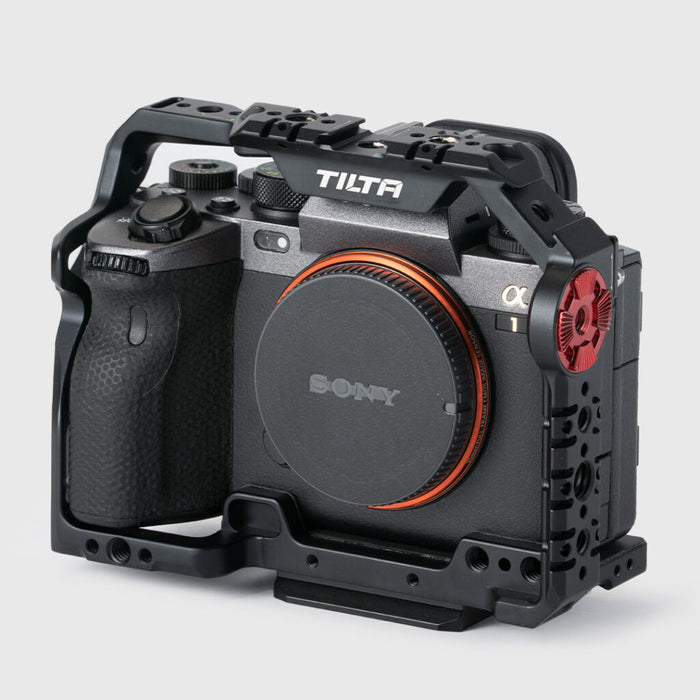

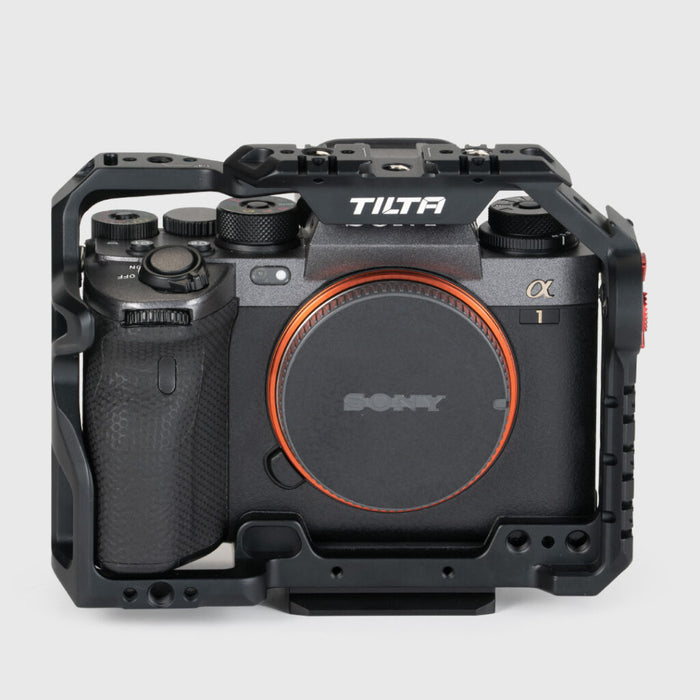

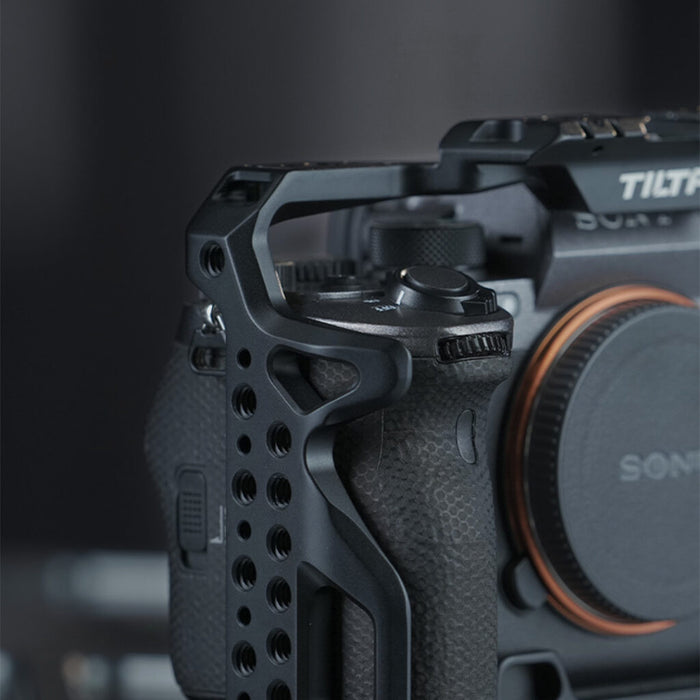

The Full Cage features several 3/8″-16 and 1/4”-20 threads with locating pins, cold shoe receivers, and a NATO Rail for Type IV and VI Side Handles.

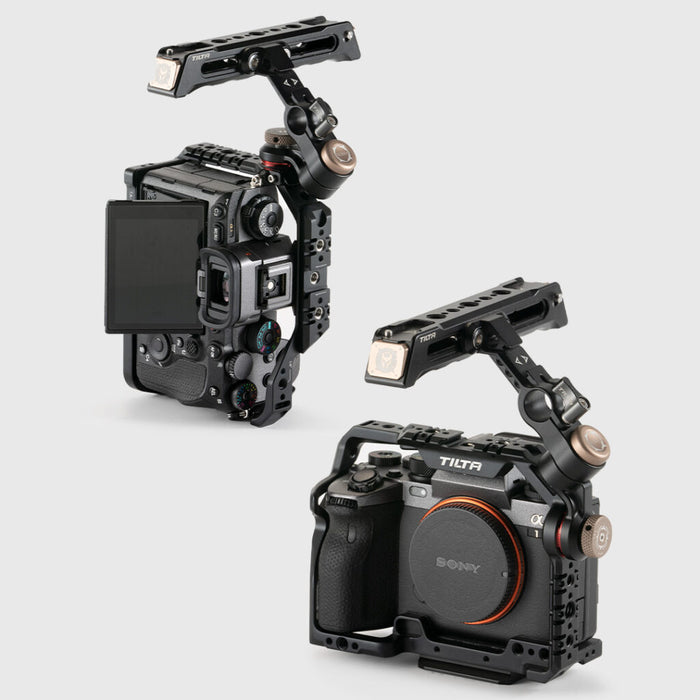

It also features an ARRI Compatible Rosette Connection as well as Rod Attachment Ports for our optional Single Rod Holders. The rosette is specifically designed for our Adjustable Top Handle for more flexible operating and handling.

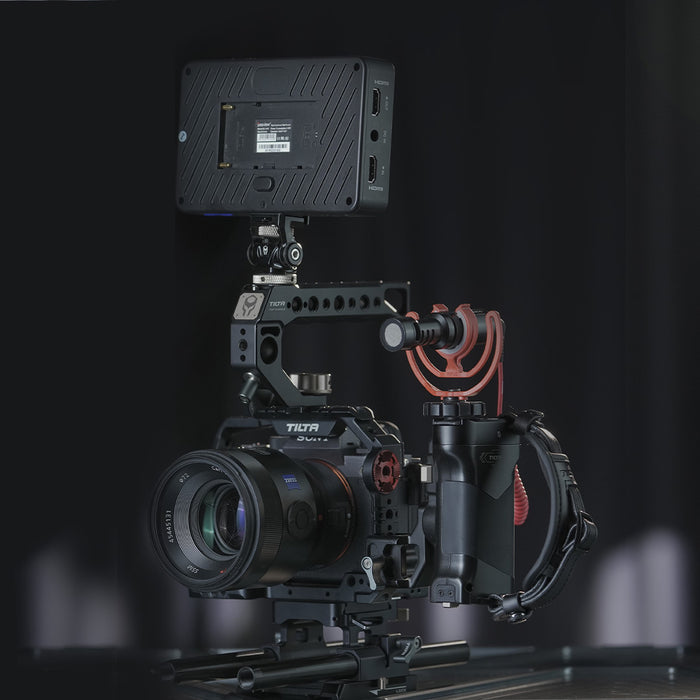

The included Quick Release Top Handle can be attached to the cage to provide different ways to comfortably operate your camera setup. The top handle includes two cold shoe receivers which can be used to mount an external monitor via our Cold Shoe Accessory Mounting Bracket. This handle also features a 15mm rod holder that can secure a rod perpendicular to the handle for EVFs or monitor mounts that utilize a 15mm rod.

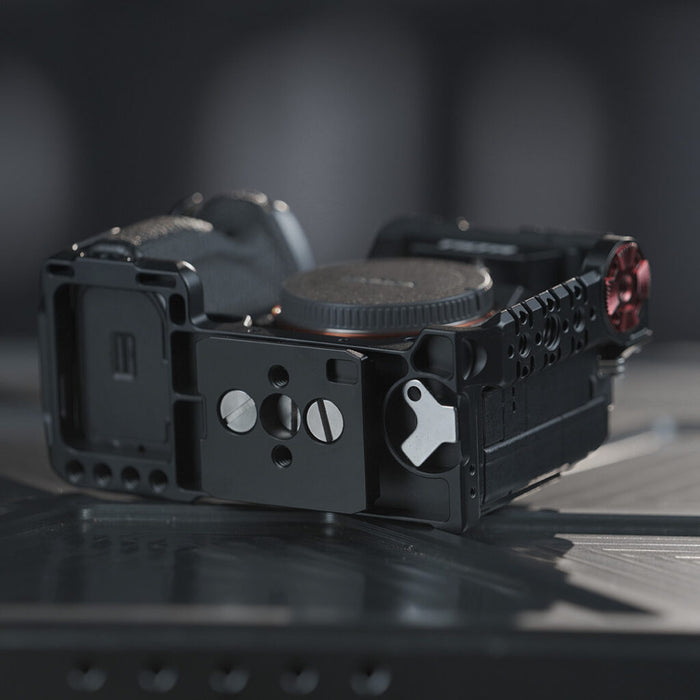

The Bottom Plate provides 1/4″-20 threads for attaching your camera to various quick release plates and also connects to the included 15mm baseplate.

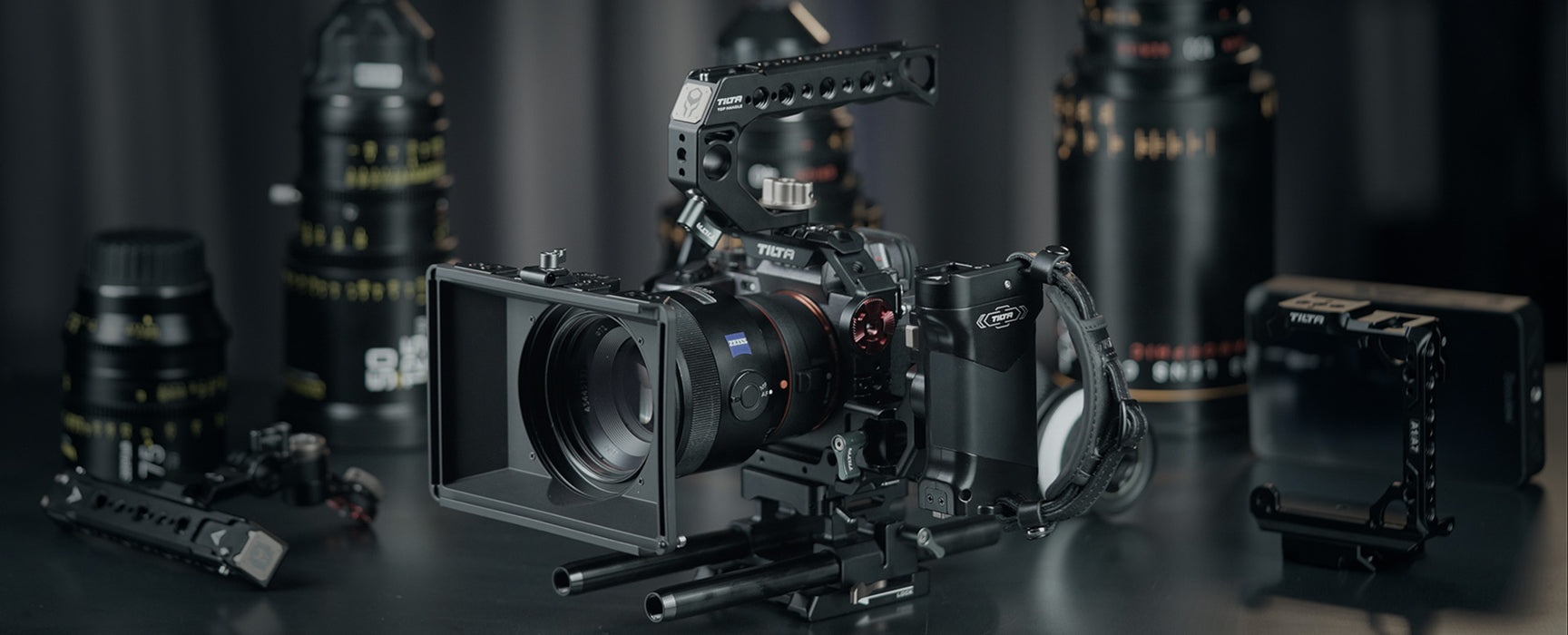

The 15mm LWS Baseplate Type II adds 15mm rod support to the system and allows you to mount rod based accessories such as matte boxes and follow focus systems. The bottom of the baseplate natively connects to our Tilta Standard Dovetails and also supports various quick release plates via 1/4″-20 and 3/8″-16 threads.
The included Advanced Power Handle mounts to the left side of the cage via a NATO Rail connection. This handle features a 12V Micro DC Port (3.5/1.35mm) and an 8V USB-C port for powering your camera body or other accessories like our Nucleus Nano Wireless Lens Control System.
The handle is also able to control Run Stop via an included Run Stop Cable. The rotation of the handle and additional hand strap allows for comfortable and flexible operation of your camera system when shooting handheld.
The HDMI clamp attaches to the side of the cage and allows you to securely fasten the included HDMI Male to HDMI Female Cable your system. This clamp can help prevent your HDMI cable from coming loose while shooting and can help protect the port on your camera body. This can be especially helpful when using an external recorder.
Features:
-
Provides protective armor for Sony a1, a7S III, a7R III, a7R IV, a7 III
- Mount accessories via NATO Rail, arri compatible rosette, cold shoe receivers, 3/8"-16 and 1/4"-20 threads with locating pins
- Quick release top handle provides more flexibility when operating and handling
- Power and record via the advanced power handle and run stop cable
- 15mm LWS baseplate supports rod based accessories and mounts to tilta dovetails
Compatible With: Sony a1
In The Box:
Tilta Tiltaing Pro Camera Kit for Sony a1 - Black
1 x Full Camera Cage for Sony a1 – Black(TA-T23-FCC-B)
1 x TILTAING Quick Release Handle-Black version(TA-QRTH-B)
1 x HDMI Cable Clamp Attachment for Sony a1 Full Cage – Black(TA-T23-CC1-B)
1 x HDMI Male to HDMI Female Cable (17cm)（TCB-HDM-HDF-17）
1 x Tiltaing Left Side Advanced Power Handle with Run/Stop (F570 Battery) – Black(TA-LRH-57-B)
1 x Tiltaing Advanced Left Side Handle Attachment Type VI – Black (TA-AHA6-L-B)
1 x Advanced Side Handle Run/Stop Cable for Sony a6/a7/a9 Series(RS-TA3-SYA)
2 x Aluminum rod 15*200mm-Black version(R15-200-B)
1 x TILTAING 15mm LWS Baseplate Type II – Black version(TA-BSP2-15-B)
