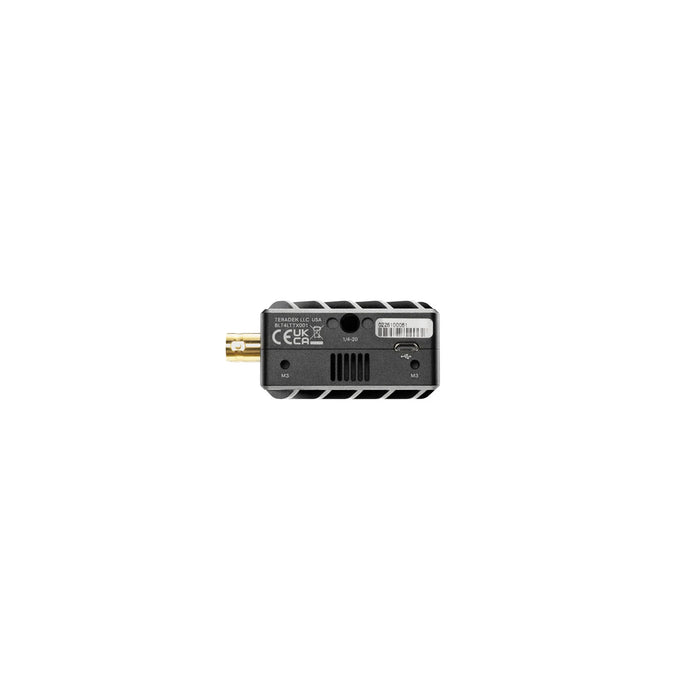

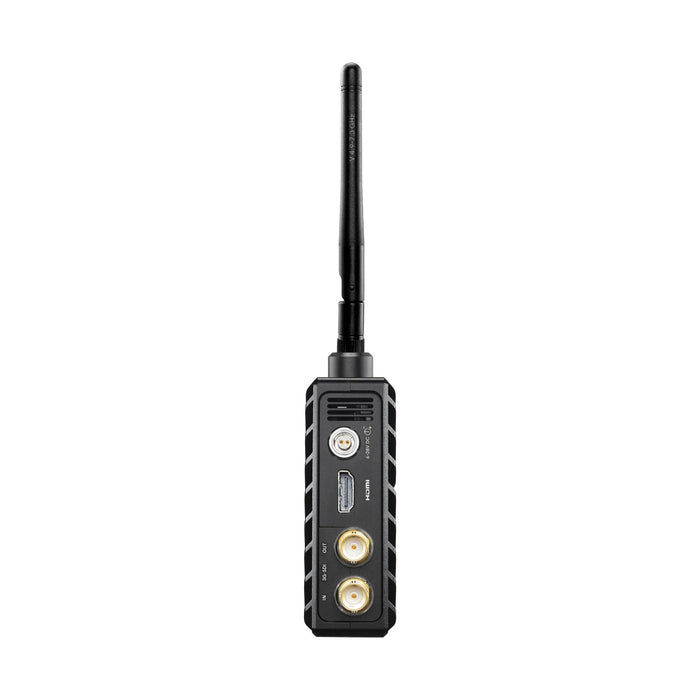

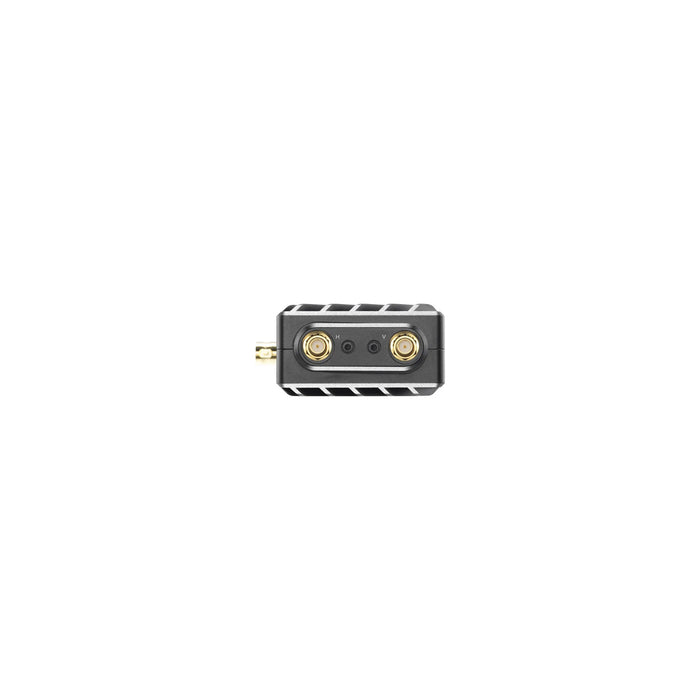

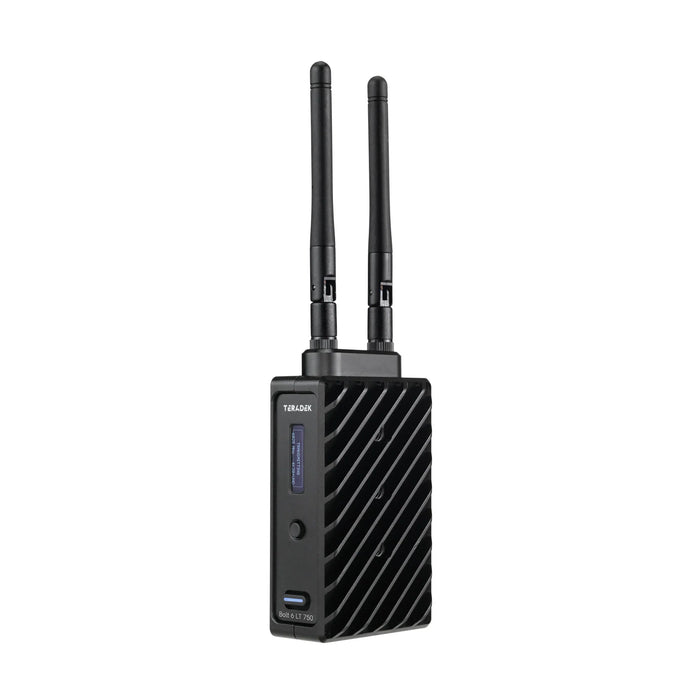

Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter

by Teradek
Sold out
Original price $0.00 - Original price $0.00
Original price $0.00
$1,890.00 - $1,890.00
Current price $1,890.00
SKU 88116
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .

The Teradek Bolt 6 LT TX is a real-time wireless video transmitter that supports 4K video with Teradek’s patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. Bolt 6 LT can send color-accurate, True-HDR videos in under 0.001 milliseconds.

Key features of the Bolt 6 LT TX include range options designed for a variety of production needs, fast reconnection times, an intuitive, easy setup with the Bolt Manager App for iOS or Android, and consistent, stable connectivity. The Bolt 6 LT series utilizes the 6GHz band to give users better image quality and reduced interference. And when used in high-traffic areas, 6GHz wireless frequency gives Bolt 6 LT users more options for frequency adjustments with 12 new channels. Bolt 6 can also pass metadata, timecode, and start/stop flags from most camera manufacturers.

Bolt 6 also offers new tools for high-end users, including better visibility over connections and signals, adding confidence to the workflow no matter how challenging the environment. It additionally gives you access to our new Long Range Mode, offering better video quality at longer distances. A 5-pin USB adapter, sold separately, allows for effortless and wireless camera-control setup when using SmallHD Smart Monitors.

The Transmitter, our most compact design ever, is cross-compatible with the entire Bolt 4K Family – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

Bolt 6 LT offers three line-of-sight options: 750 ft., 1500 ft., and the MAX Kit, which can be configured for up to 5,000+ ft. Additionally, you can upgrade your kit to include Gold or V-Mount Battery plates. And while the Bolt 6 LT Kit has both 4K HDMI and 1080p SDI input and outputs, you can also select the Bolt 6 LT HDMI model if your production needs require HDMI only.

About 6GHz
Wifi routers, cell phones, IOT devices, and competitor wireless video systems are among the many devices that use the 5GHz frequency to communicate wirelessly, making it a highly crowded space where you’ll likely encounter frequent interference and even video dropouts. Bolt 6 uses the newly opened 6GHz wireless frequency for a dramatically quieter wireless environment (though it can still be set up in 5GHz Mode for backwards compatibility). In 6GHz Mode, Bolt 6 users will access faster connections and less interference for a better wireless experience. 6GHz frequency is now available in the US and Canada under UNII-5 government specifications. More countries will open the 6GHz frequency in 2023.


  • Zero Delay
  • 6GHz Wireless Frequency Access
  • Bolt 4K Cross-Compatibility
  • Improved Long Range Mode
  • Inputs: HDMI, 3G-SDI
  • Outputs: HDMI, 3G-SDI

In The Box:
1 x Bolt 6 LT 750 TX
1 x (Bit 118) 2pin Conn. to PowerTap - 18in/46cm Cable
1 x SDI - BNC to BNC Cable, 10in
1 x Ultra Thin HDMI Male Type A (Full) - HDMI Male Type A (Full) 18in/46cm Cable
1 x PSU 2pin Conn. to 18W AC Adapter (Int) - 6ft Cable
1 x USB Male Type A (Full) - USB Male Type B (Micro) -3ft Cable

Glazer's SKU 88116
Manufacturer Teradek
MFG SKU 10-2261
Product Specs


Video Inputs3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
1 x HDMI 1.4b Type-A receptacle
Video Outputs3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
Sdi Ancillary Data SupportSupports reading metadata, timecode, and start/stop flags from most camera manufacturers.
Color SamplingSDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit
Delay Tx To Rx<0.001sec
Input Cross ConversionYes, HDMI to SDI (4Kp23.98-30 HDMI input is scaled and looped out as 1080p23.98-30 on SDI loopout)



Supported Resolutions

Supported Resolutions4Kp23.98/24/25/29.97/30 (HDMI only)
480p59.94 576p50


Video Processing

Video CompressionVisually Lossless
Color CorrectionNone



Audio Compression

48kHz 24-bit PCM


Audio Input

Embedded SDI/HDMI Audio Input (2 Channel)





Dimensions60mm x 103mm x 33mm
Weight206g (7.3oz)
ConstructionMilled Aluminum(Chassis) and regulation-compliant PCB
MountabilityMultiple mounting options with 1/4"x20 and M3 holes
Dimensions60mm x 103mm x 33mm
Weight206g (7.3oz)




Configuration InterfacesOSD with Menu, Joystick Navigation
SwitchesOn/Off Switch
Mobile AppBolt App
Desktop AppBolt Manager application for OSX & Windows
Usb Interface FunctionalityUpgrade via Micro-USB
Bluetooth2.4 GHz




Network2 External 2dBi antennas (included)
WirelessNon-DFS Frequencies:
5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz
DFS Frequencies:
5.270 ~ 5.670 GHz
Rf Channel SelectionAuto, Manual
EncryptionAES-256, RSA-1024 key exchange
Rf Power23 dbm EIRP
RangeUp to 750 ft, line of sight
Unicast MulticastCan connect one Transmitter to up to 6 Receivers
Noise RejectionCan coexist with WiFi and 5GHz cordless phones
Can operate up to 6 sets in same location
InteroperabilityCan transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device)




Power Input2-Pin Circular locking Connector 6-28 VDC
BatteryNone, optional Sony/Canon dual battery plate
Nominal Power Consumption

9 Watts




Operating Temperature0-40℃


Compare Chart

Ghz Support✔️
Compatible With Bolt4k✔️
Available Ranges750 ft / 1500 ft / 5000+ ft
Maximum Sdi Resolution1920x1080p60
Maximum Hdmi Resolution3840x2160p30
Smallhd Wireless Camera Control PortRequires Adaptor
Transmitter Weight7.3 oz / 206 g
Receiver Connectivity6/Unlimited*
