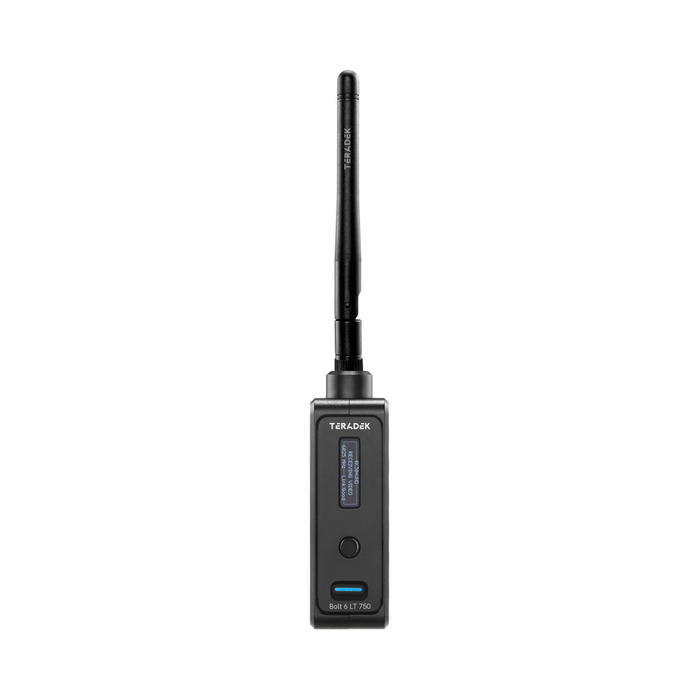

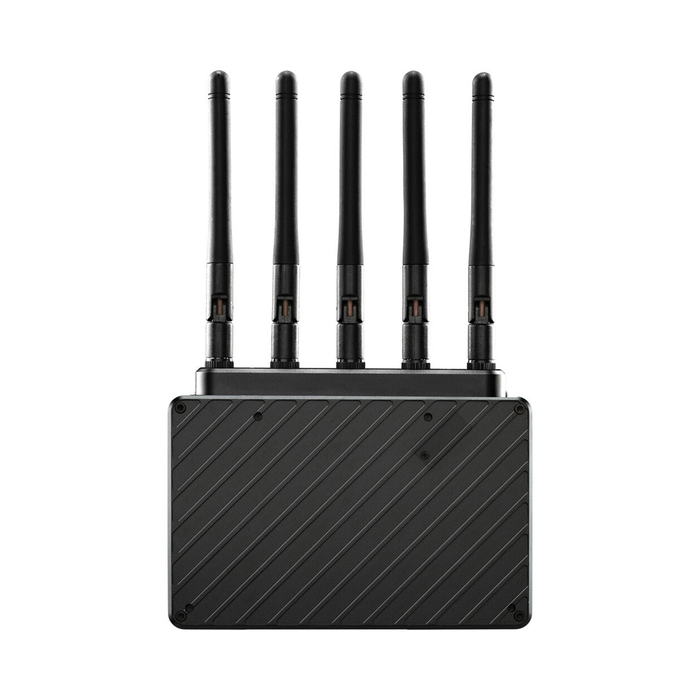

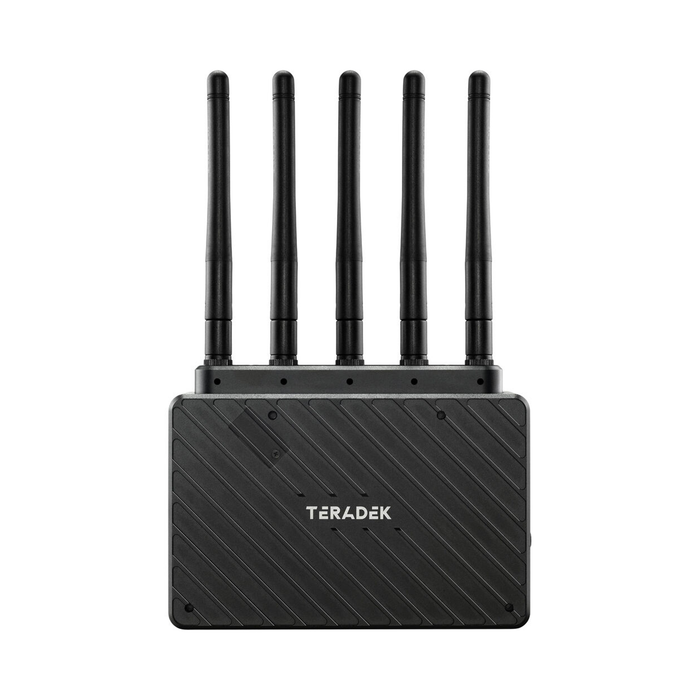

Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Receiver
Bolt 6 LT RX is a wireless video receiver that supports up to 1080p60 10-bit 422 HDR video over 3G-SDI, or 4K30 over HDMI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.
Bolt 6 LT RX offers three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates.
The Receiver is cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

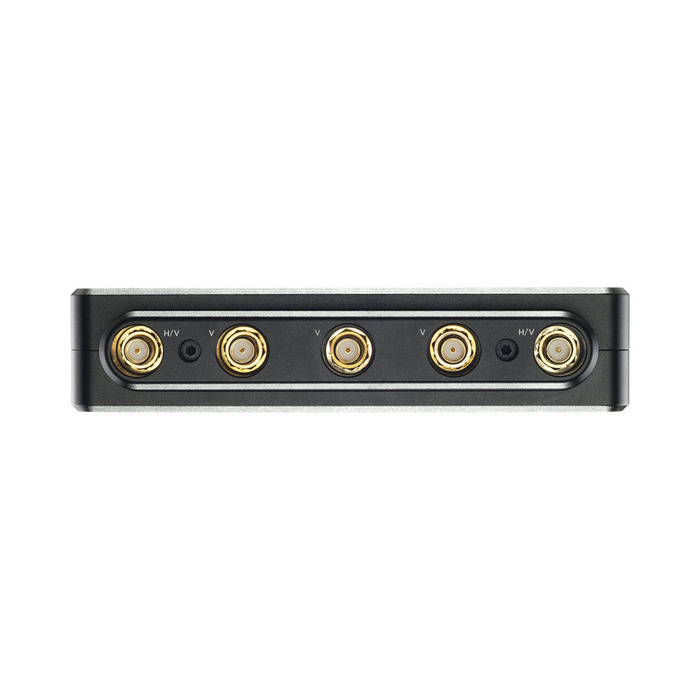

The 750 model includes V (vertical) Antennas. 1500 and MAX models include both V Antennas and H (horizontal) antennas. H Antennas are designed to maximize signal robustness in the most challenging RF environments.
Optionally, the 750 model of Bolt 6 LT RX can include internal antennas to allow for reliable zero-delay transmission in a more compact and durable form factor.
Highlights:
- Up to 4K30 10-bit 422 HDR Video with Zero-Delay over 5GHz and 6GHz Frequencies
- 6GHz is available in the US, EU, Canada, Japan, and Australia/New Zealand
Features:
- Supports New 6 GHz Frequency Band
- Transmit Video up to 750' Line-of-Sight

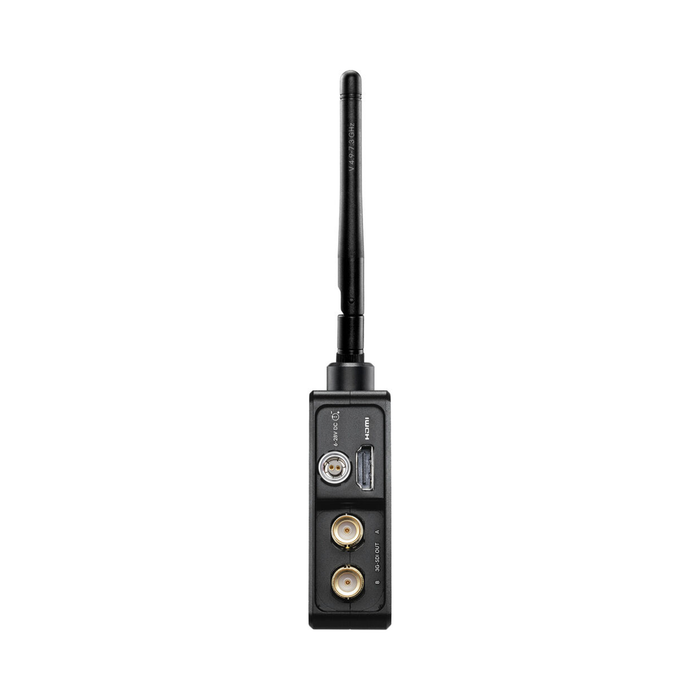

- HDMI and 3G-SDI Inputs and Outputs
- Transmit up to 4K30 Video
- Gold Mount RX Battery Plate
- 10-Bit 4:2:2 Support, No Delay
- Compatible with Bolt 4K LT TX/RX Units
- AES-256 Encryption, 7 x Antennas
- Bluetooth Mobile App, Spectrum Analyzer
- Includes Carry Case
Compatible With:
- Bolt 6 series devices using the newly available 6 GHz frequency band
- Cross-compatible with all Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module series devices over the 5 GHz signal spectrum
FAQ:
Is there any functional difference between the Internal Antenna Bolt 6 and the External Antenna Bolt 6?
The only difference between Internal and External Antenna Bolts is the respective invisibility/visibility of their antennas. All specs and functionality are identical. Internal Antennas are permanently integrated into the 750ft model of your choice: LT (TX or RX) or Monitor Module (RX).
Are there 1500 or MAX models with Internal Antennas?
Internal Antenna Bolt 6 is only available in a 750ft-range model.
Can I use my Internal Antenna Bolt 6 with External Antenna Bolts?
Yes! We have tuned the Internal Antenna Bolt 6 to work with existing V+V Bolt 4K and Bolt 6 setups and/or H+V Bolt 4K and Bolt 6 setups.
Does the Internal Antenna Bolt 6 work over 6GHz frequencies?
Yes! The Internal Antenna Bolt 6 operates across the same frequency range as all of our other Bolt 6 antennas (4.9 to 7.3 GHz).
What if my Internal Antenna Bolt 6 has physical damage or is no longer functioning?
Please contact our support team at support@teradek.com. We’ll be happy to help.
Can my existing Bolt be converted to an Internal Antenna?
No. The Internal Antenna Bolt 6 is permanently integrated into the device in our manufacturing facility. Internal Antennas cannot be added to existing Bolts, nor can they be converted to External Antenna devices after purchase.
Can I still color-code my setups with the Internal Antenna Bolt 6?
Yes! Bolt 6 Color Bands are compatible with the Internal Antenna Bolt 6. Explore all the colors HERE .
Should I keep my Internal Antenna Bolt 6 away from any other devices since I cannot position the antennas?
We engineered the Internal Antennas to be extremely omnidirectional, but if you’re in an extremely challenging RF environment, it’s best to stand the TX/RX vertically with the longer side of the antenna facing towards the connected RX/TX. As with any Bolt, avoid pointing the bottom of the TX/RX towards its paired device.
How far away should I keep my Internal Antenna Bolt 6 RX from other Internal Antenna RX devices? Can I stack them?
As with any Bolt, you should always keep devices at least 3 feet (1m) apart.
Why should I invest in Internal Antenna Bolt 6 when External Antenna devices are more common?
Internal Antennas offer the most compact, protective form factor to help you streamline your camera rig and/or director’s monitor and safeguard against misaligned or damaged antennas.
Product SKU:
10-2262-V
In The Box:

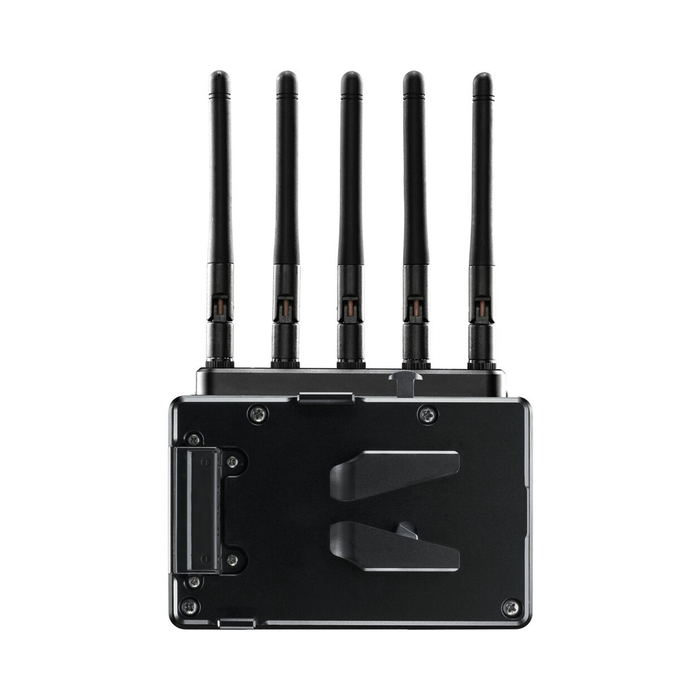

Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Receiver - V-Mount
1 x Bolt 6 LT 750 RX V-Mount
2 x Bolt 4K LT RX Battery Cover
2 x Screw Flat Head Phillips
1 x Ultra Thin HDMI Male Type A (Full) - HDMI Male Type A (Full) 18in/46cm Cable
1 x (Bit 118) 2pin Conn. to PowerTap - 18in/46cm Cable
1 x SDI - BNC to BNC Cable, 10in
1 x PSU 2pin Conn. to 18W AC Adapter (Int) - 6ft Cable
