Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Receiver - Gold Mount

by Teradek
Sold Out
Original price $0.00 - Original price $0.00
Original price $0.00
$2,090.00
$2,090.00 - $2,090.00
Current price $2,090.00
SKU 88109
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .

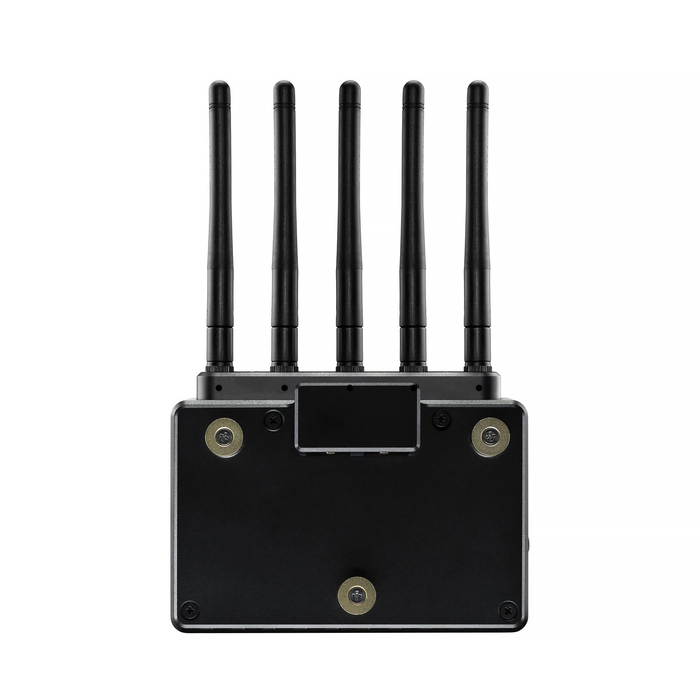

The Teradek Bolt 6 LT RX is a real-time wireless video receiver that supports 4K video with Teradek’s patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. Bolt 6 LT can receive color-accurate, True-HDR videos in under 0.001 milliseconds.

Key features of the Bolt 6 LT RX include range options designed for a variety of production needs, fast reconnection times, an intuitive, easy setup with the Bolt Manager App for iOS or Android, and consistent, stable connectivity. The Bolt 6 LT series utilizes the 6GHz band to give users better image quality and reduced interference. And when used in high-traffic areas, 6GHz wireless frequency gives Bolt 6 LT users more options for frequency adjustments with 12 new channels. Bolt 6 can also pass metadata, timecode, and start/stop flags from most camera manufacturers.

Bolt 6 also offers new tools for high-end users, including better visibility over connections and signals, adding confidence to the workflow no matter how challenging the environment. It additionally gives you access to our new Long Range Mode, offering better video quality at longer distances. A 5-pin USB adapter, sold separately, allows for effortless and wireless camera-control setup when using SmallHD Smart Monitors.

The Receiver is cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

Bolt 6 LT offers three line-of-sight options: 750 ft., 1500 ft., and the MAX Set, which can be configured for up to 5,000+ ft. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates. And while the Bolt 6 LT Set has both 4K HDMI and 1080p SDI input and outputs, you can also select the Bolt 6 LT HDMI model if your production needs require HDMI only.

About 6GHz
Wifi routers, cell phones, IOT devices, and competitor wireless video systems are among the many devices that use the 5GHz frequency to communicate wirelessly, making it a highly crowded space where you’ll likely encounter frequent interference and even video dropouts. Bolt 6 uses the newly opened 6GHz wireless frequency for a dramatically quieter wireless environment (though it can still be set up in 5GHz Mode for backwards compatibility). In 6GHz Mode, Bolt 6 users will access faster connections and less interference for a better wireless experience. 6GHz frequency is now available in the US and Canada under UNII-5 government specifications. More countries will open the 6GHz frequency in 2023.


Features:
  • Zero Delay
  • 6GHz Wireless Frequency Access
  • Bolt 4K Cross-Compatibility
  • Improved Long Range Mode
  • Outputs: HDMI, 3G-SDI
  • Wireless Range up to 750 - 5000+ ft
  • 6GHZ cuts through interference with 12 newly-opened U-NII channels
  • Connects to all Bolt 6 and Bolt 4K devices
  • Lightweight, compact aluminum unibody, with multiple mounting points
  • Integrates with SmallHD Smart 5 and 7 Series Monitors for full wireless control


In The Box:

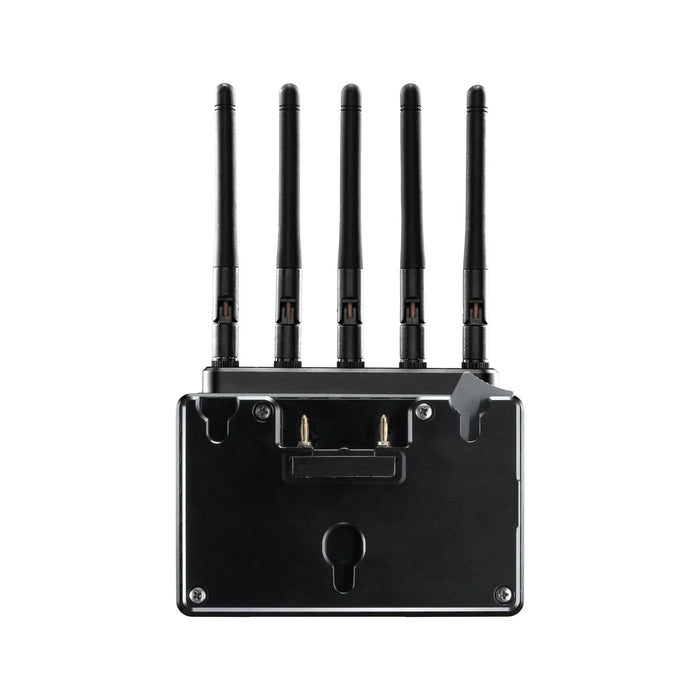

1 x Bolt 6 LT 750 RX Gold Mount
2 x Bolt 4K LT RX Battery Cover
2 x Screw Flat Head Phillips
1 x Ultra Thin HDMI Male Type A (Full) - HDMI Male Type A (Full) 18in/46cm Cable
1 x (Bit 118) 2pin Conn. to PowerTap - 18in/46cm Cable
1 x SDI - BNC to BNC Cable, 10in
1 x PSU 2pin Conn. to 18W AC Adapter (Int) - 6ft Cable
1 x USB Male Type A (Full) - USB Male Type B (Micro) -3ft Cable

Glazer's SKU 88109
Manufacturer Teradek
MFG SKU 10-2262-G
Product Specs

Video

Video Outputs

3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
1 x HDMI 1.4b Type-A receptacle

Sdi Ancillary Data Support

Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.

Color Sampling

SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit

Output Video Scaling

No manual settings, but all signals above 4K30 for HDMI and 1080p60 for SDI are scaled down to 1080p for corresponding output



Supported Resolutions

Supported Resolutions

4Kp23.98/24/25/29.97/30 (HDMI only)
1080p23.98/24/25/29.97/30/50/59.94/60
1080psf23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94/60
480p59.94 576p50
480i(NTSC)/576i(PAL)



Video Processing

Video Compression

Visually Lossless

Test Pattern Generator Support

Yes

Spectrum Analyzer

Yes

Color Correction

17x17x17 3D LUT (supports 10-bit color)



Audio

Audio Compression

48kHz 24-bit PCM

Audio Output

Embedded SDI/HDMI Audio Output (2 Channel)



Physical

Dimensions

122mm x 94mm x 27mm

Weight

292g (10.3oz)

Construction

Milled Aluminum(Chassis) and regulation-compliant PCB

Mountability

Multiple mounting options with 1/4"x20 and 3/8"x16 holes



Interfaces

Configuration Interfaces

OSD with Menu, Joystick Navigation

Switches

On/Off Switch

Mobile App

Bolt App

Desktop App

Bolt Manager application for OSX & Windows

Usb Interface Functionality

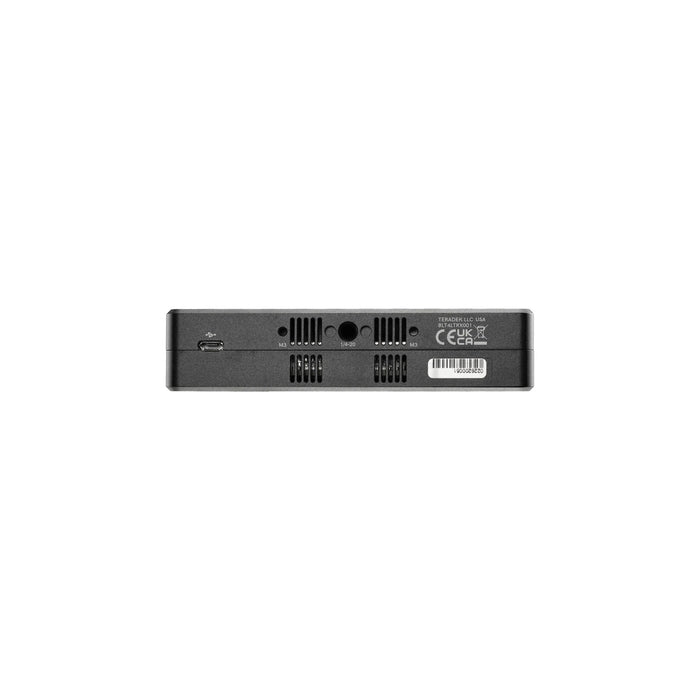

Upgrade via Micro-USB

Bluetooth

2.4 GHz



Network

Antennas5 External 2 dBi antennas (included)
Rf Channel SelectionAuto, Manual
EncryptionAES-256, RSA-1024 key exchange
Rf Power21 dbm EIRP
RangeUp to 750 ft, line of sight
Unicast MulticastCan connect one Transmitter to up to 6 Receivers
Noise RejectionCan coexist with WiFi and 5GHz cordless phones
Can operate up to 6 sets in same location
InteroperabilityCan receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device)



Network

Power Input2-Pin Circular locking Connector 6-28 VDC
BatteryNone, optional Gold or V mount battery plate
Nominal Power Consumption11 Watts



Environmental

Operating Temperature

0-40℃
