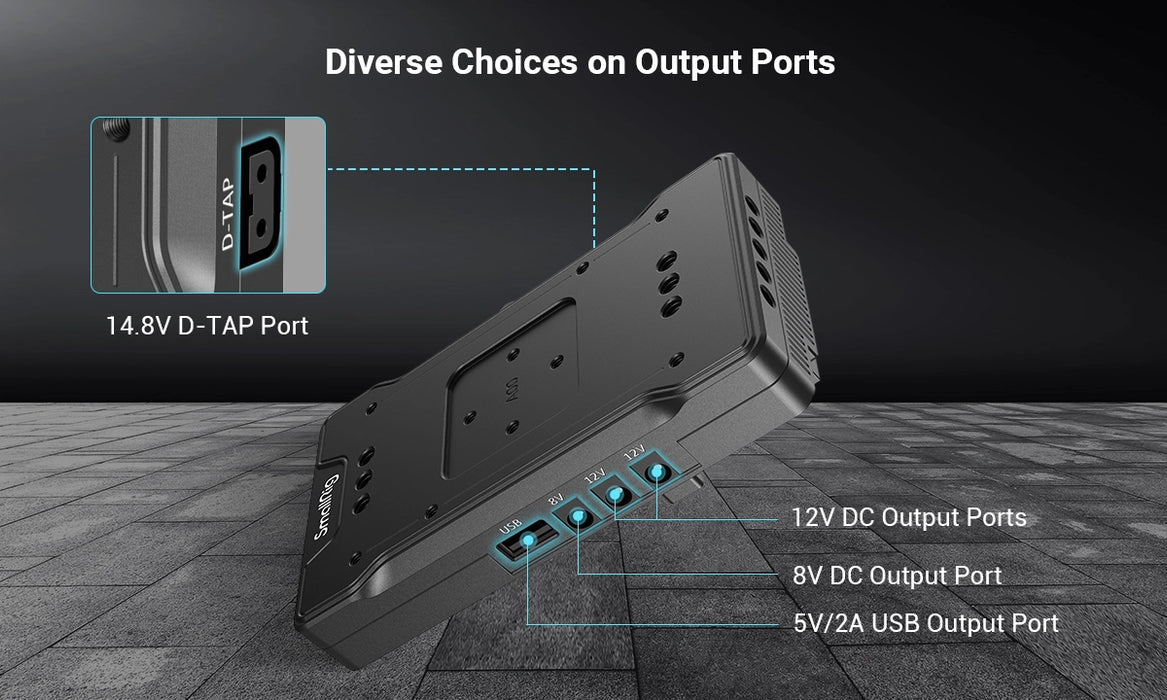

The plate provides different output ports, including an 8V DC output port, two 12V DC output ports, and a 14.8V D-Tap output port.
The plate provides a 5V/2A USB output port to power a phone or a wireless video transmitter via a V-mount battery.

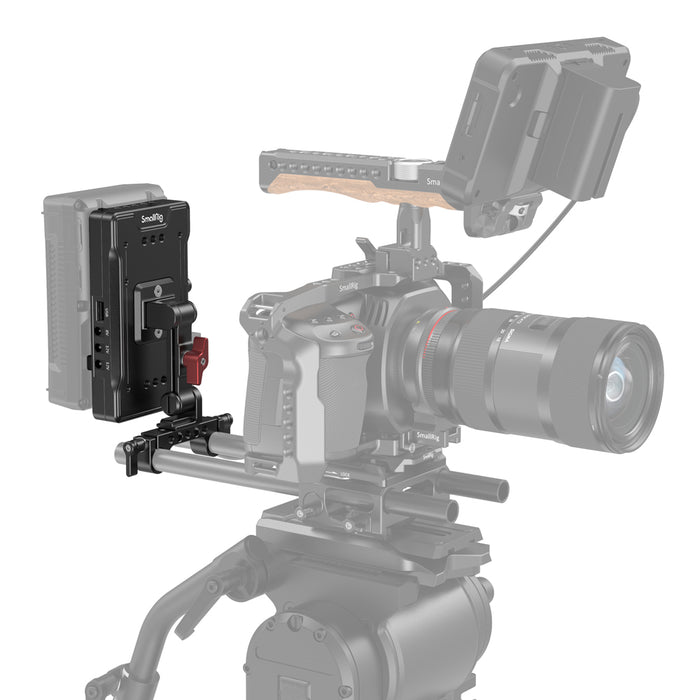

It comes with a dual 15mm rod clamp to help mount the plate to your 15mm LWS rod system.

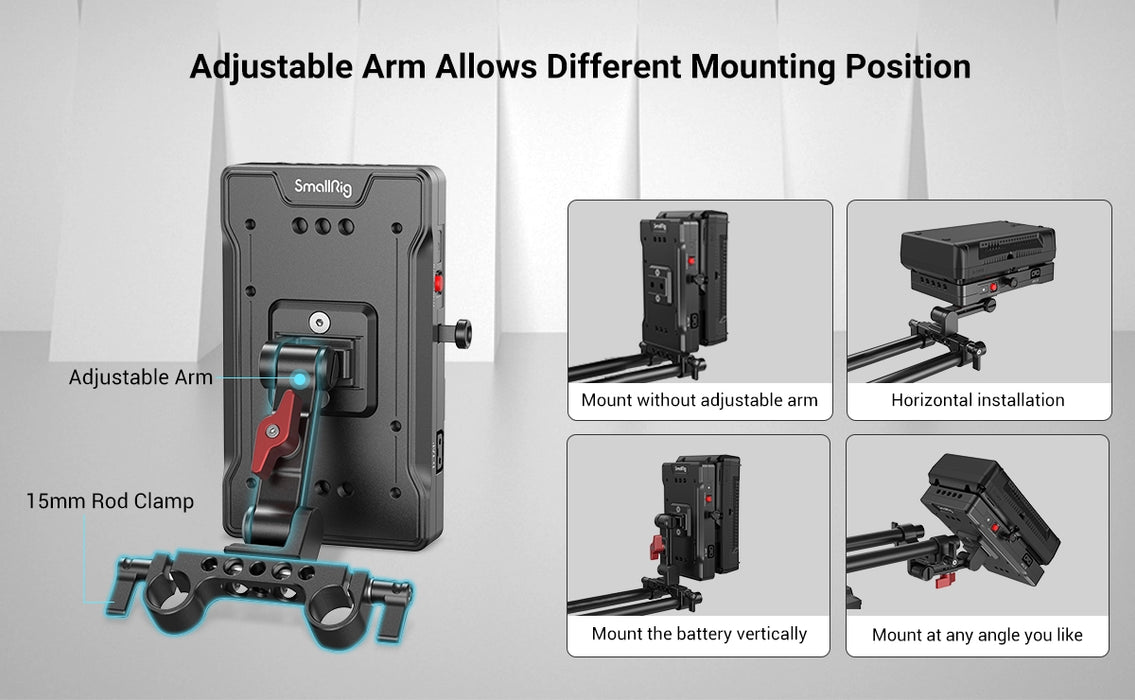

It features an adjustable arm for quick adjustment of the V-mount battery position. Mountain positions include:
- Mount without adjustable arm
- Horizontal installation
- Mount the battery vertically
- Mount at any angle you like
Camera Power Method: Connector
Inputs/Outputs: 1 x D-Tap, 1 x USB-A, 3 x DC Jack

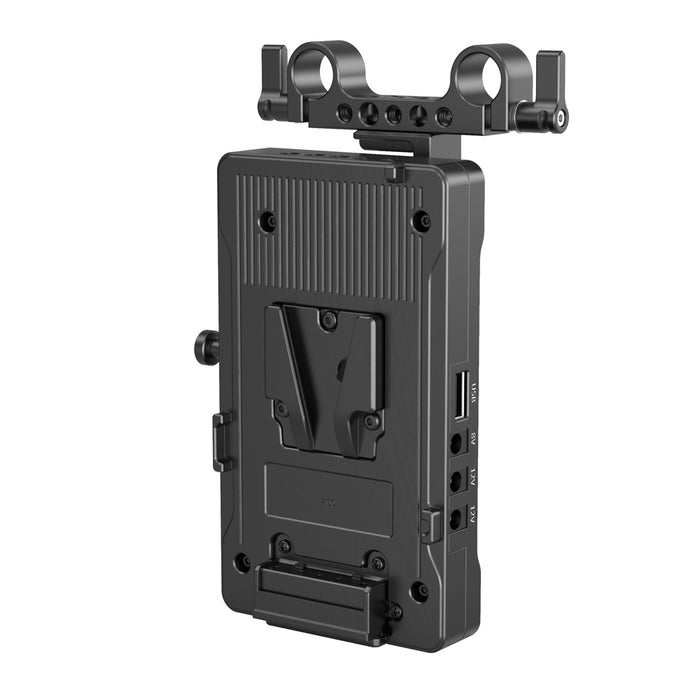

Plate Front / Battery Mount: V-Mount
Plate Rear Mounting: 1/4"-20 Female, 15 mm Rod Clamp

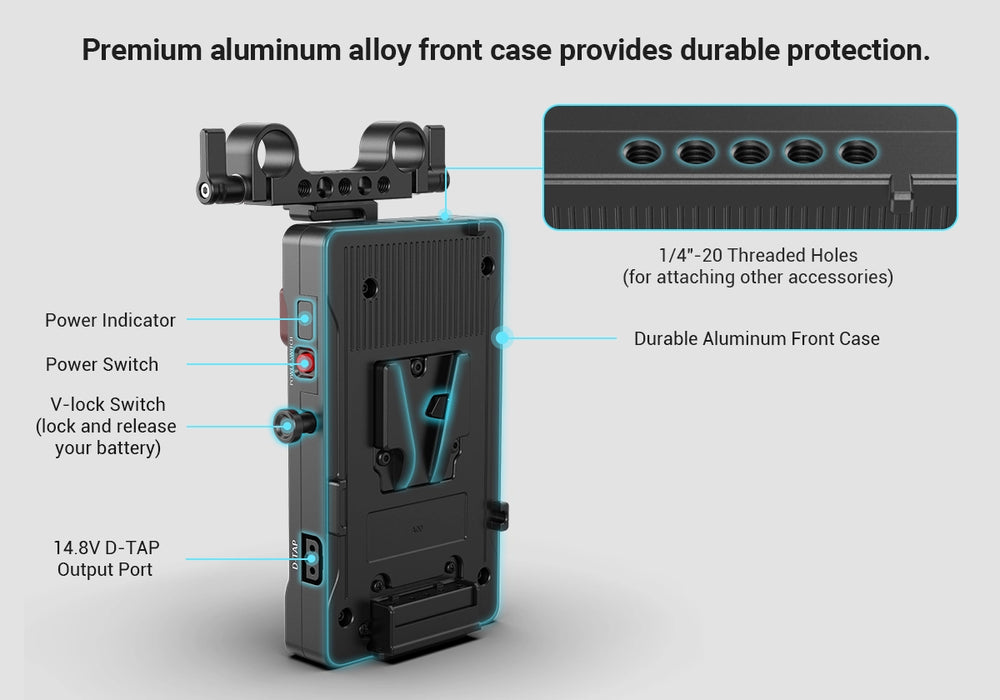

Accessory Mounting: 1/4"-20 Female
Package Dimensions: 106 x 82.5 x 42.5mm
Net Weight: 14.3 oz / 404 g
Material: Aluminum Alloy
Compatible with:The plate fits most V mount batteries but PAGlink series V mount batteries and Patona Premium Battery for BP-190WS.
SmallRig Part Number: 3204
In The Box:
1 x SmallRig V-Mount Battery Adapter Plate
1 x Dual 15mm Rod Clamp with Adjustable Arm
2 x Allen wrench
2 x Mounting Screw
Note: Do not use in damp environment to avoid short circuit.
