SmallRig V-Mount Battery Plate with 15mm Rod Clamp & Adjustable Arm 2991

SmallRig V-Mount Battery Plate with 15mm Rod Clamp & Adjustable Arm 2991

by SmallRig
$0.00 - $0.00
$0.00
$64.99
$64.99 - $64.99
$64.99
SKU 81592
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .
The SmallRig V-Mount Battery Plate with 15mm Rod Clamp & Adjustable Arm utilizing a standard V-mount fits most V-mount batteries to provide greater battery life for your camera rig with your battery's power port(s).

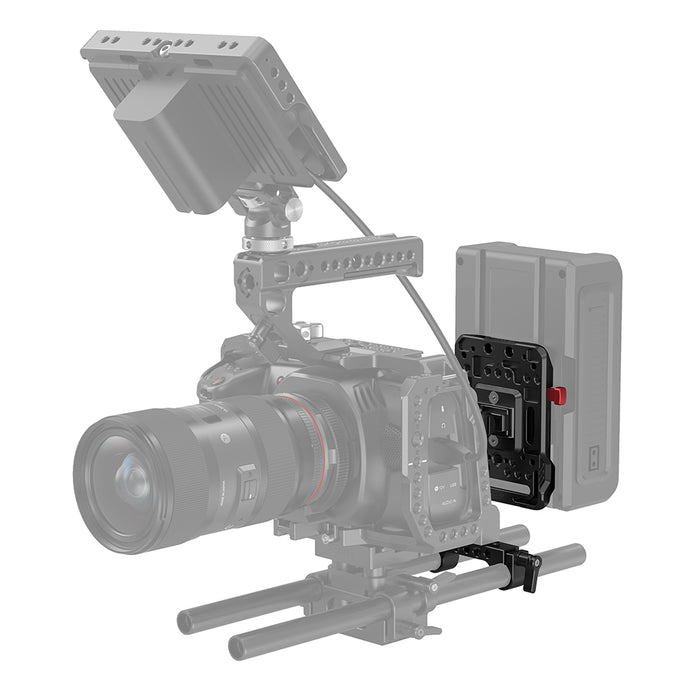

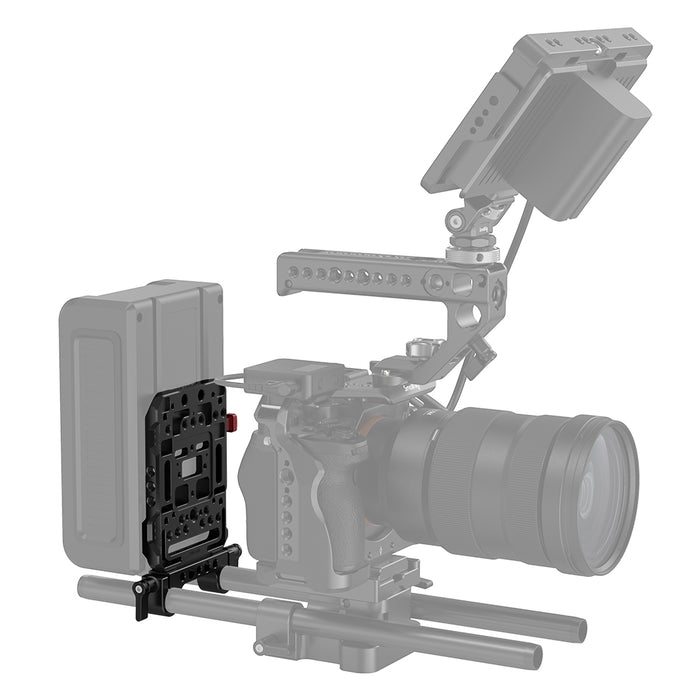

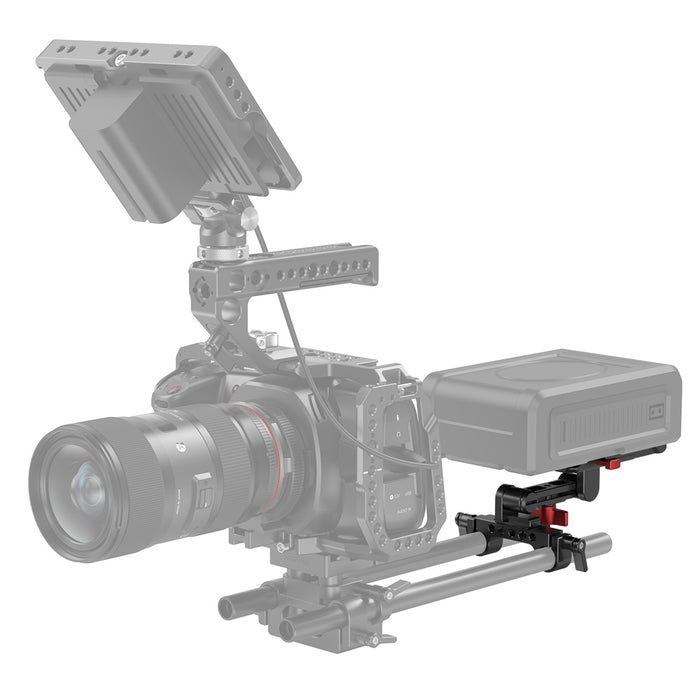

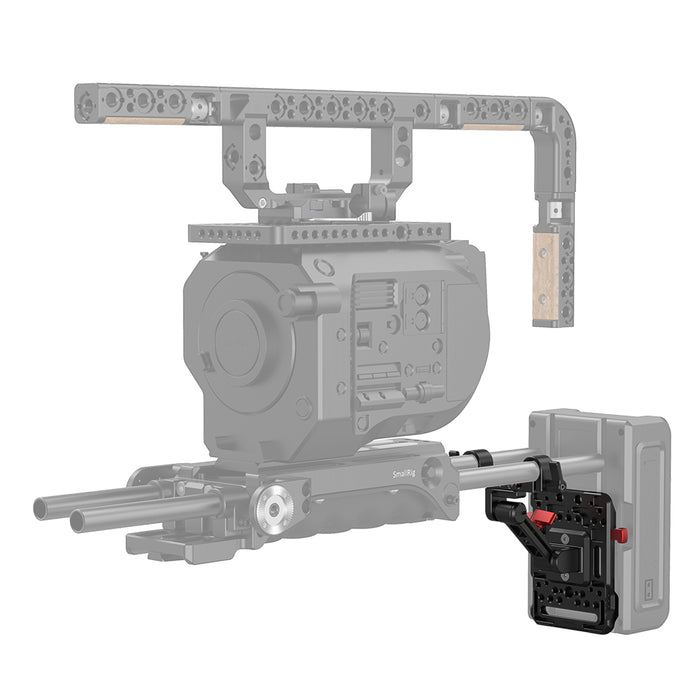

It comes with a dual 15mm rod clamp with an adjustable arm to help mount the plate to your 15mm LWS rod system and adjust the V-mount battery's position as needed.

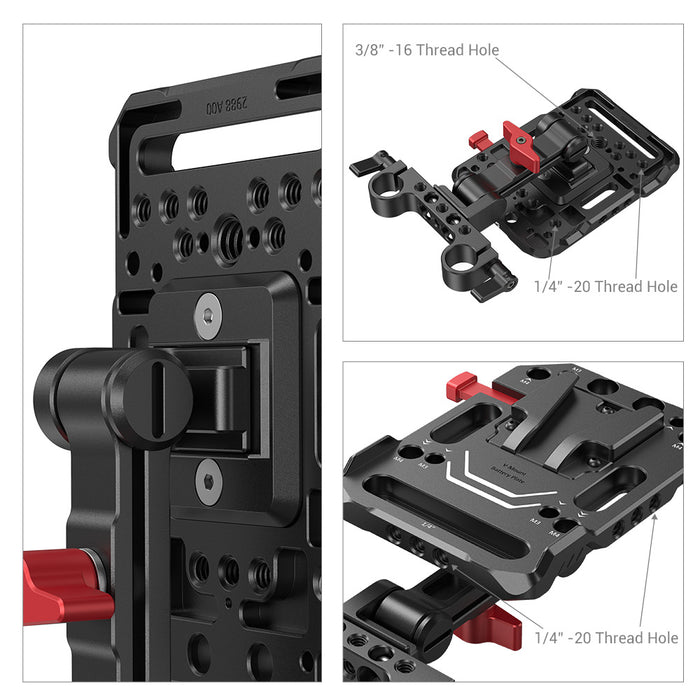

The plate itself features multiple 1/4-20" countersinks, M3 countersinks, M4 countersinks, 1/4-20" thread holes, M4 thread holes, and an ARRI 3/8" -16 thread hole to attach a dual rod clamp, a magic arm, or other accessories.

Two stoppers will prevent the battery from twisting when attached. The plate is also compatible with the Blackmagic URSA mini.

Technical Specs:
SmallRig V-Lock Battery Plate Specs:

Camera Power Method: Connector
Plate Rear Mount:  V-Lock
Number of Battery Bays: 1
Accessory Mounting: 1/4"-20 Female, M3 Female, M4 Female
Product Dimensions: 3.6 x 2.8 x 0.5 in/ 90.5 x 72 x 13.8 mm
Net Weight: 4.9 oz / 140 g
Material: Aluminum Alloy


SmallRig 942 Super Lightweight 15mm LWS Rod Bracket V3 Specs:

Rod System: 15 mm LWS
Mounting Threads: Multiple: 1/4"-20
Product Dimensions: 2.4" / 60 mm, Rod Center to Center
Net Weight: Not Specified by Manufacturer
Material: Aluminum Alloy



Compatible with: Universal, Blackmagic URSA mini

SmallRig Part Number: 2991

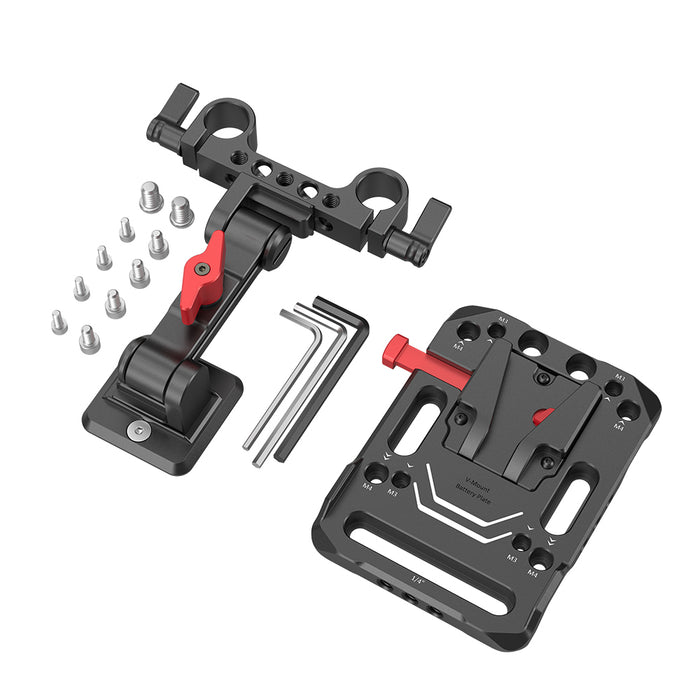

In The Box:
1 x SmallRig V-Mount Battery Plate
1 x SmallRig Dual 15mm Rod Clamp with Adjustable Arm
3 x Allen Wrench
2 x 1/4-20" Screw (short)
2 x 1/4-20" Screw (long)
4 x M4 Screw
4 x M3 Screw

Glazer's SKU 81592
Manufacturer SmallRig
MFG SKU SR_2991
