SmallRig “Black Mamba” Cage for Panasonic LUMIX S5 II / S5 IIX 4023 is designed to protect camera and attach accessories. It locks the camera via one bottom 1/4"-20 screw and two side lock adapters, with rubber pads preventing scratches and features “Black Mamba” style as a whole that gives full access to all top controls.
Among the accessory mounting points, 1/4"-20 holes support Side Handle 2093B; the front 1/4"-20 locating hole suits Rod Clamp 3276 for follow focus system; and the ARRI 3/8"-16 locating hole fits Top Handle 3786 or Monitor Mount 2903B. It also comes with a left NATO rail for Side Handle 3847; cold shoe mounts to attach microphone, LED video light; and a bottom QD socket to install QD shoulder strap. At the bottom there is an Arca-Swiss quick-release plate, suitable for DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro gimbals and Arca-Swiss tripods, as well as a threaded hole for quick-release plate (riser pad) of DJI RS 2 / RSC 2 and Arca-Type Quick Release Plate 3154.
The item also features strap holes on both sides and the bottom, which are compatible with Hand Strap 3848, Shoulder Strap PSC2428, etc. Besides, a magnetic wrench is included for easy disassembly and assembly.
Features:
- Bionically designed, streamlined, and form-fitting full cage that protects camera;
- Gives full access to top bottons
- Anti-twist three-point locking design
- 1/4"-20 threaded holes, ARRI 3/8"-16 locating holes; cold shoe mount, NATO rail, QD socket support handle, microphone, LED video light, monitor, etc.
- Arca-Swiss quick-release plate for Arca-type tripods or DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro gimbals.
Compatible with:
Panasonic LUMIX S5 II
Panasonic LUMIX S5 IIX
Technical Specs:

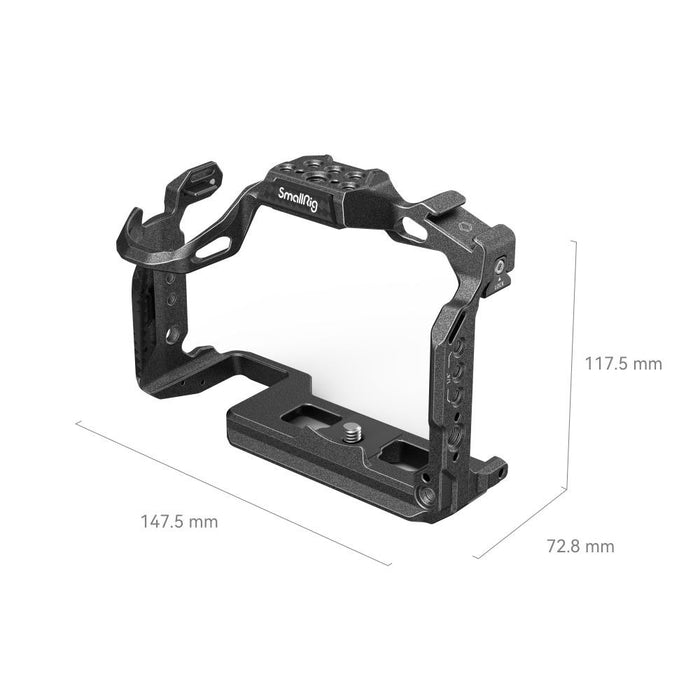

Dimensions: 5.8 x 4.6 x 2.9" / 147.5 x 117.5 x 72.8 mm
Weight: 5.5 oz / 157 g
Material(s): Aluminum Alloy

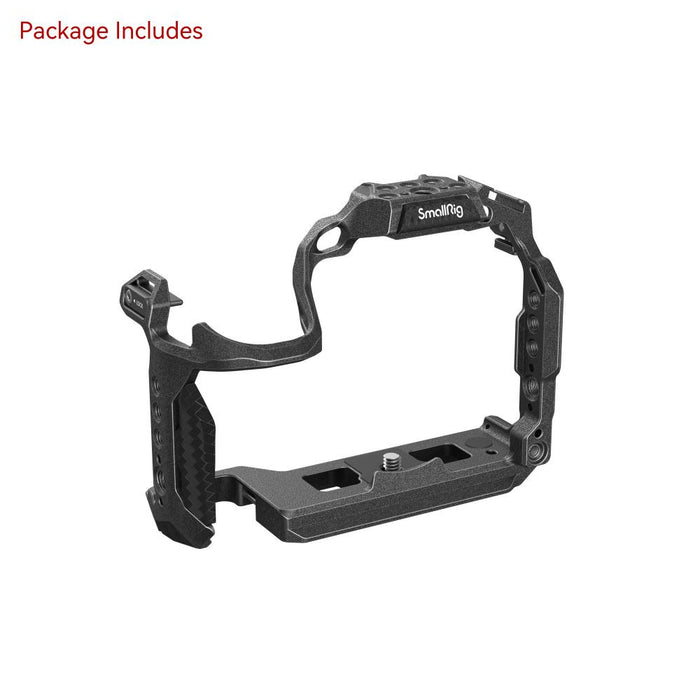

In The Box:
1 x SmallRig “Black Mamba” Cage for Panasonic LUMIX S5 II / S5 IIX 4023
1 x Magnetic Wrench
Note(s):

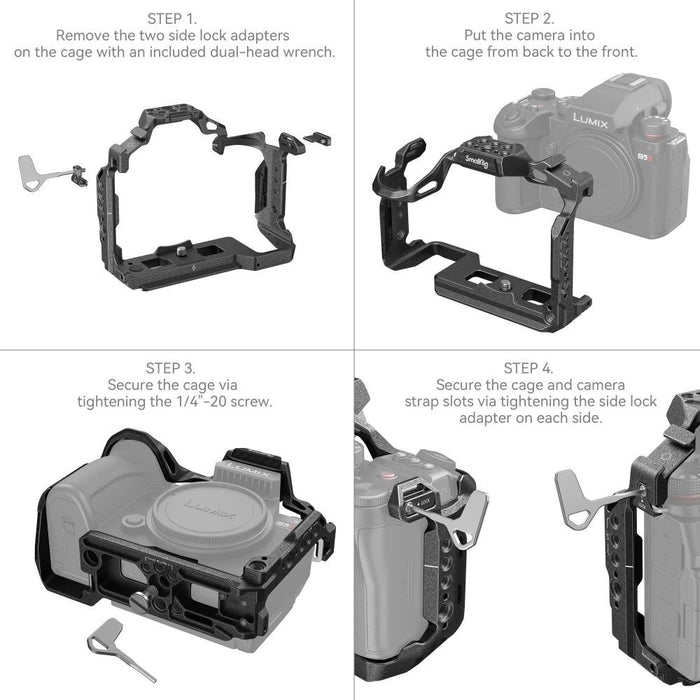

1. Please remove the side lock adapters before installing this cage.
2. This cage is compatible with Panasonic DMW-XLR1, if you need to use it with a top handle, we recommend the Top Lift Handle 3082.
3. For using an HDMI & USB-C cable clamp, SmallRig “Black Mamba” Cage Kit for Panasonic LUMIX S5 II / S5 IIX 4024 is recommended.
