SmallRig V-Mount Battery Adapter Plate (Basic Version) with Dual Rod Clamp 3498

SmallRig V-Mount Battery Adapter Plate (Basic Version) with Dual Rod Clamp 3498

by SmallRig
$0.00 - $0.00
$0.00
$119.99
$119.99 - $119.99
$119.99
SKU 90988
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .

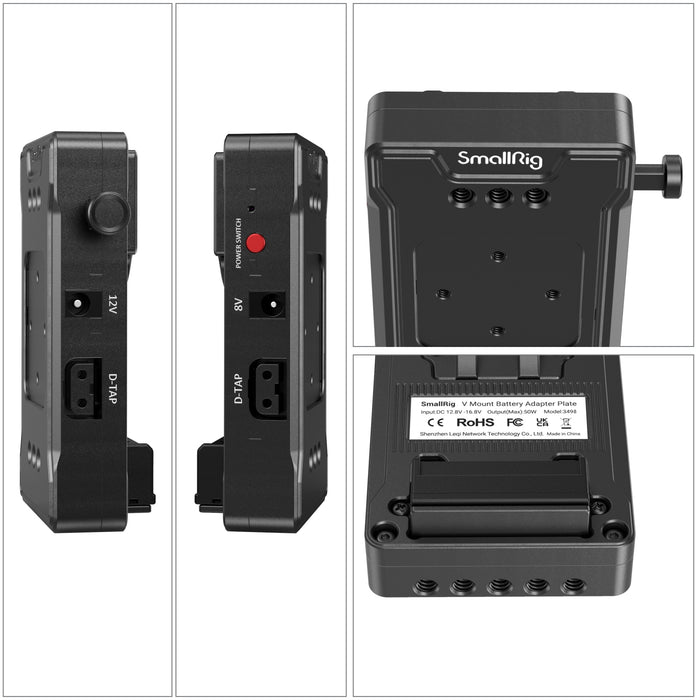

SmallRig V Mount Battery Adapter Plate (Basic Version) with Dual Rod Clamp 3498 is designed to provide greater battery life to your camera rig via a V mount battery. Its standard quick-lock V mount supports most V mount batteries. Output ports, including an 8V DC port, a 12V DC port, and two 14.8V D-Tap ports, work with a V mount battery to power your camera and other equipment (e.g. monitor, transmitter, follow focus, mobile phone, etc.).

It features a power switch that controls all of the output ports more quickly and conveniently and comes with a 15mm dual rod clamp that suits a 15mm rail support system. In addition, multiple 1/4”-20 thread holes allow attaching other accessories such as super clamp mount and magic arm.


Features:

  • Standard V mount fits most V mount batteries.
  • Dual D-Tap output ports and DC output ports.
  • On/off switch for easy use.
  • Dual rod clamp suits 15mm rail support system.
  • Multiple built-in 1/4”-20 thread holes for accessory attachment.

Technical Specs:
Camera Power Method: Connector
Plate Front / Battery Mount: V-Mount
Number of Battery Bays: 1
Accessory Mounting: 1/4"-20 Female

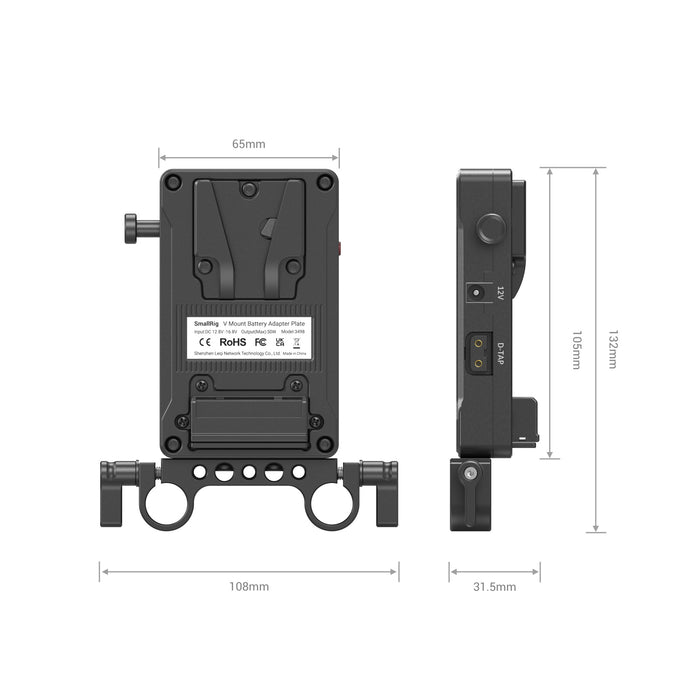

Product Dimensions: 5.2 x 4.3 x 1.2" / 131.5 x 108 x 30.2 mm
Net Weight: 9.2 oz / 260 g
Material: Aluminum Alloy

Compatible with:
The plate fits most V mount batteries but PAGlink series V mount batteries and Patona Premium Battery for BP-190WS.

Note: Do not use in damp environment to avoid short circuits.

SmallRig Part Number: 3498

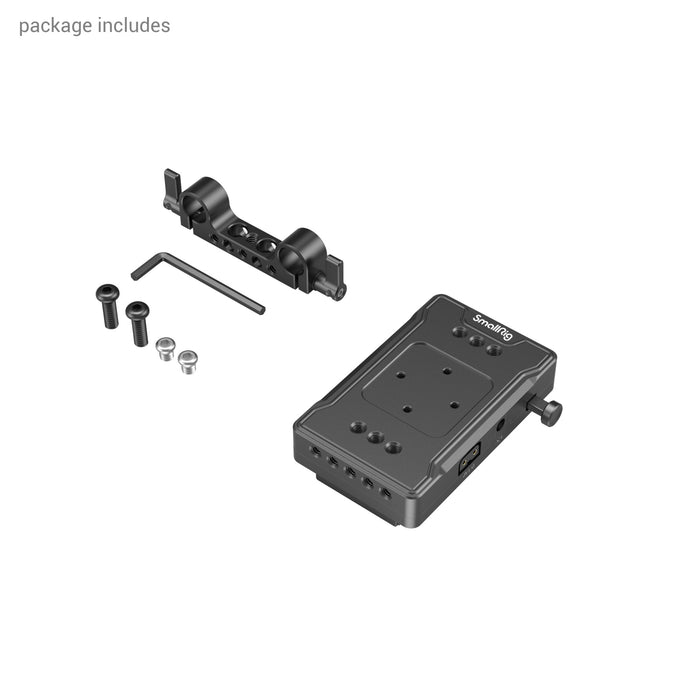

In The Box:
SmallRig V-Mount Battery Adapter Plate (Basic Version) with Dual Rod Clamp 3498
1 x V Mount Battery Adapter Plate
1 x 15mm Dual Rod Clamp
1 x Allen Wrench
4 x Screw

Glazer's SKU 90988
Manufacturer SmallRig
MFG SKU PRO84456
