SmallRig Universal Baseplate with 15mm LWS Rod Support

Sold out
Original price $0.00 - Original price $0.00
Original price $0.00
$89.00 - $89.00
Current price $89.00
SKU 55722
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .

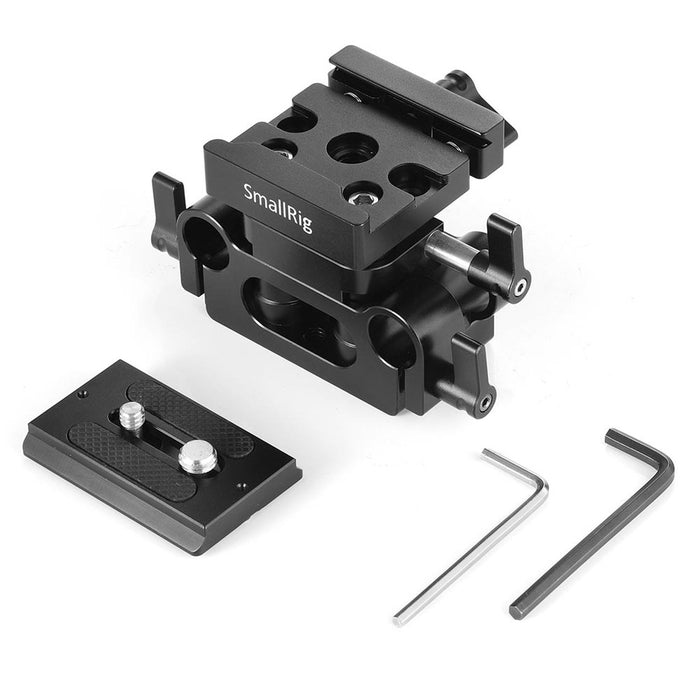

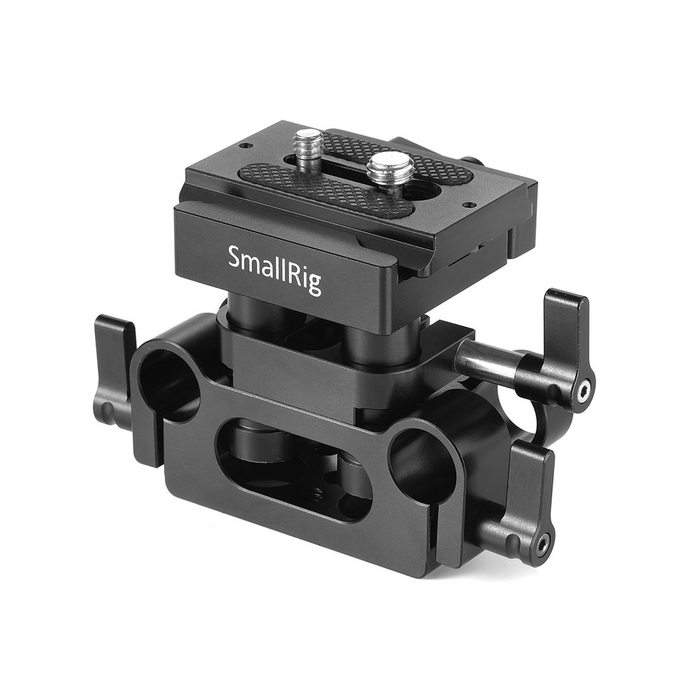

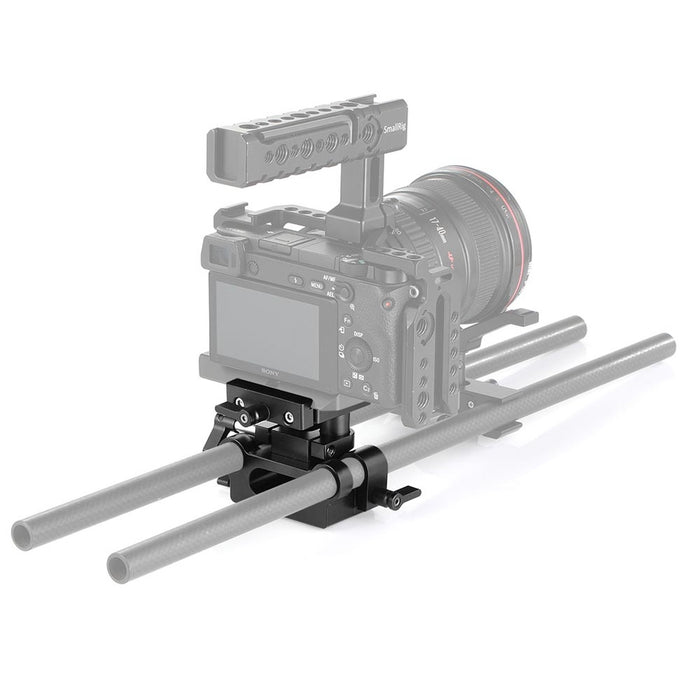

SmallRig Universal 15mm Rail Support System Baseplate 2272 is a dedicated baseplate designed for mirrorless and DSLR cameras. It is height-adjustable to ensure different cameras sit on the baseplate complying with the LWS standard. Simply unscrew the wingnut on the side, adjust the height and tighten the wingnut. On the top are Arca compatible QR plate and receiver; attach the QR plate to SmallRig cage or camera tripod socket, drop it into the receiver and tighten the knob screw. The baseplate holds SmallRig 15mm Rodds 1053, where accessories like SmallRig Lens Support 2152, SmallRig Shoulder Pad 2077, Matte Box and follow focus can be attached. Additionally, there are multiple 1/4’’-20 and 3/8’’-16 threaded holes on the bottom of the baseplate so tripod plates can be attached.


  • For Mirrorless & DSLR Cameras
  • 15mm LWS Rod Support

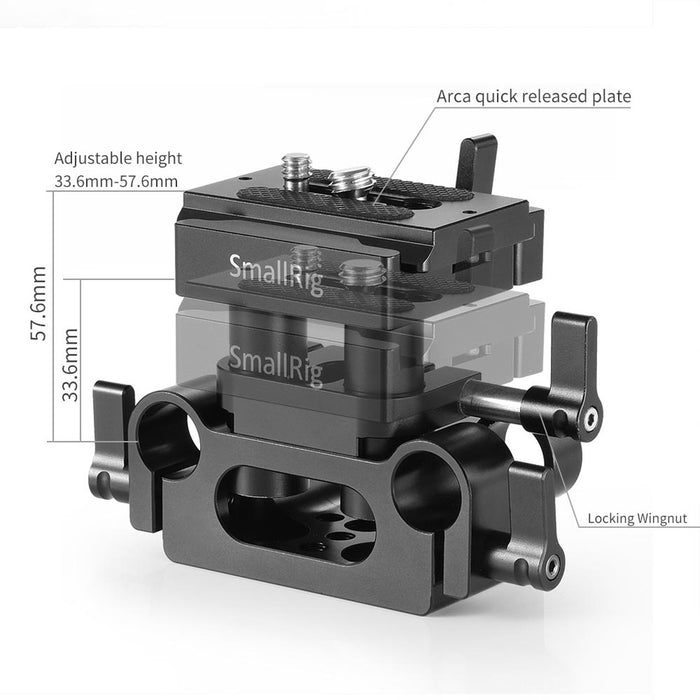

  • 0.94" of Vertical Adjustment
  • Arca-Style Quick Release Plate
  • 1/4"20 & 3/8"-16 Camera Screws
  • 1/4"-20 & 3/8"-16 Tripod Threads
  • Thumbscrew Locking Levers
  • Durable Aluminum Alloy

Compatibility, including but not limited to:

  • Canon: 5D Mark IV, M50, M5, M3, M6, EOS R, EOS RP
  • Fujifilm: X-H1, X-T1, X-T2, X-T20
  • Nikon: Z7, Z6
  • Olympus: E-M1 Mark II
  • Panasonic: GH3, GH4, GH5, G80, GX85, G7, G85, G9
  • Sony: a6000, a6300, a6400, a6500, a7, a7 II, a7S II, a7s III, a7R II, a9, a7 III, a7R III
Glazer's SKU 55722
Manufacturer SmallRig
Product Specs
Support TypeBaseplate, Rod Support System
Grip TypeNone
Camera CompatibilityUniversal, Canon EOS 5D Mark IV, Canon EOS M3, Canon EOS M5, Canon EOS M50, Canon EOS M6, Canon EOS RP, FUJIFILM X-H1, FUJIFILM X-T20, Nikon Z6, Nikon Z7, Panasonic DC-G9, Panasonic DC-GH5, Panasonic DMC-G7, Panasonic DMC-G85, Panasonic DMC-GH3, Panasonic DMC-GH4, Panasonic DMC-GX85, Sony a6000, Sony a6300, Sony a6400, Sony a6500, Sony a7, Sony a7 II, Sony a7R, Sony a7R II, Sony a7R III, Sony a7S, Sony a7S II
Rod Standard15 mm LWS / 60 mm Spacing
Accessory MountingNone
Camera MountingArca-Type Plate with 1/4"-20 Screw, 3/8"-16 Screw
Tripod MountingBaseplate: 1/4"-20 Thread
Baseplate: 3/8"-16 Thread
Rod PortsBaseplate: 2 x 15 mm Rod Port
Shoe MountingNone
Dimensions4.25 x 2.68 x 2.13" / 108 x 68 x 54 mm
Weight9.42 oz / 267 g
