Sony XDCA-FX9 Extension Unit for PXW-FX9 Camera

by Sony
$2,499.99
SKU 66505
  • Description
  • Additional Information

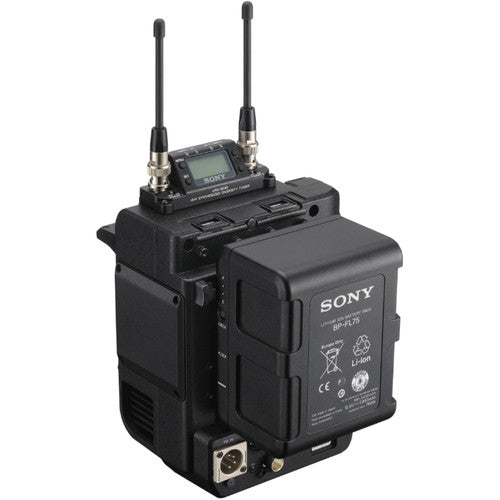

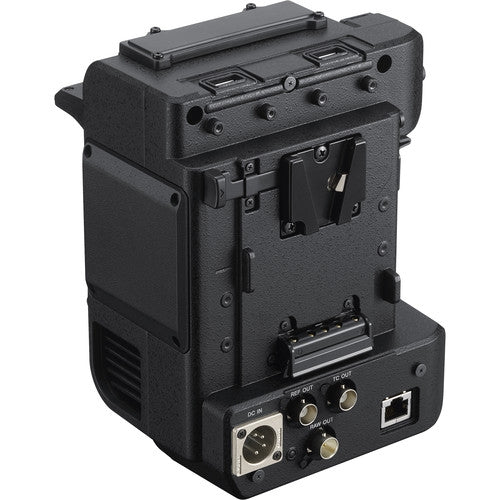

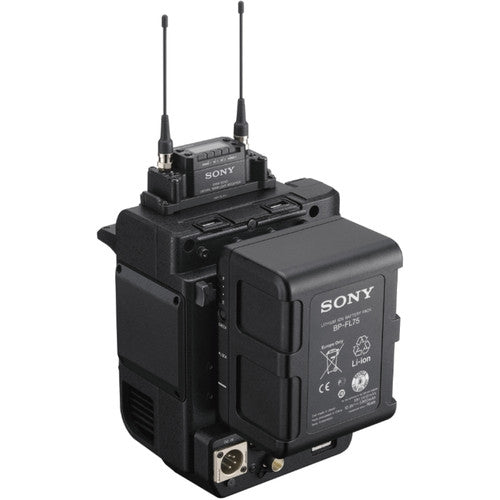

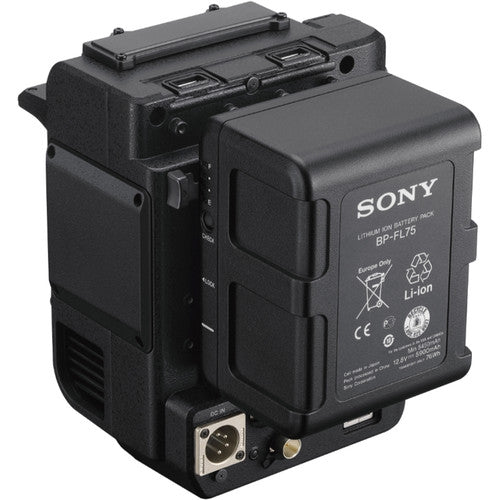

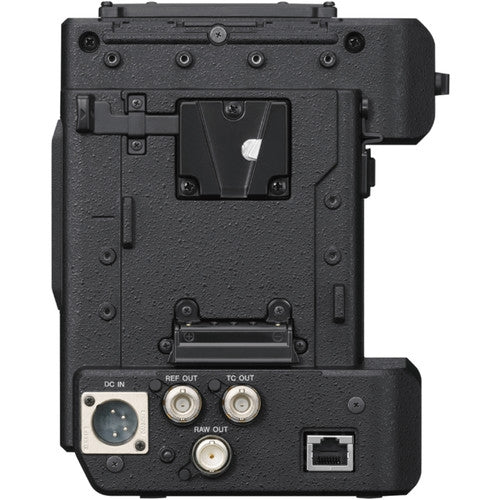

Sony Pxw-fx9 Expansion Module

Add the XDCA-FX9 Extension Unit from Sony to the back of your PXW-FX9 camera to add an ENG-style shoulder mount and additional I/O and power to your camera. The unit features a 4-pin XLR DC power output to power accessories and other equipment, as well as three BNC outputs for raw video, a reference signal, and timecode. A LAN interface and two USB ports provide live streaming and file transfer abilities, as well as compatibility with XDCAM Air streaming playback.

With the latest firmware update, the unit supports 16-bit raw 4K/2K recording output to compatible external recorders, as well as provide functionality to a built-in wireless audio slot for DWX/UWP wireless receivers.

Glazer's SKU 66505
Manufacturer Sony
MFG SKU XDCAFX9
Product Specs

Sony XDCA-FX9 Specs

Camera Interface Multi-Pin Camera Mount
Supported Video Formats 16-Bit Raw Video up to DCI 4K
LAN Connectors 1 x RJ45, 1000/100/10BASE-T
Video Outputs 1 x BNC, Raw
1 x BNC, Reference
1 x BNC, Timecode
Inputs 1 x D-SUB 15-Pin (Wireless Receiver)
Other Connectors 2 x USB Type-A
1 x 2-Pin, 20 VDC Light
Power Input 1 x 4-Pin XLR
Power Output 1 x 4-Pin LEMO-Type
10 to 12.5 VDC, 2 A
Power 12 VDC, 11 to 17 V
Power Consumption 43 to 69 W
Dimensions 6.9 x 6.2 x 5.4" / 177.3 x 157.3 x 136.5 mm
Weight 2.2 lb / 1 kg
