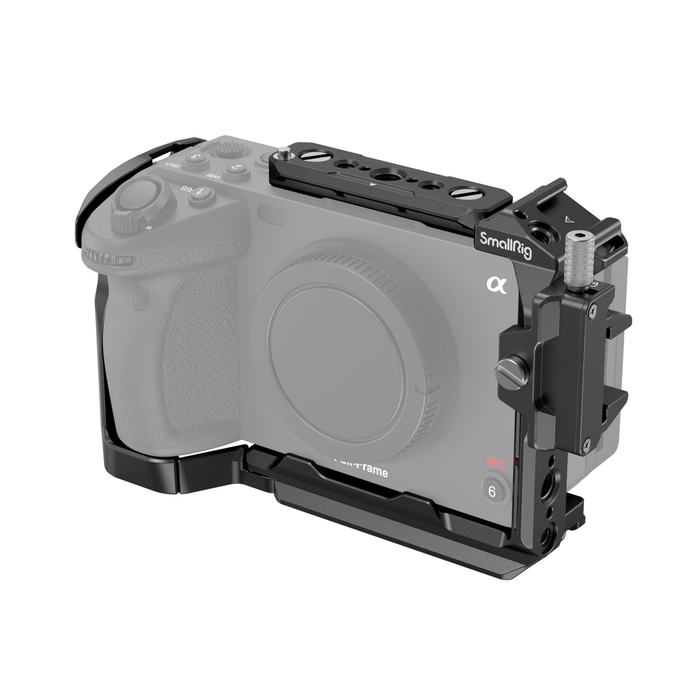

SmallRig Camera Cage for Sony FX30 / FX3 4183 is designed to protect camera and provide accessory mounting points.
The modular cage consists of a NATO rail and a U-shaped cage. The NATO rail is secured on the top via two 1/4"-20 screws and removed to allow installing the original XLR top handle; the U-shaped cage is fixed via 1/4"-20 screws on both sides and at the bottom to prevent twisting, with a cushion against scratches.
At the battery door there is a hinge arm that fits camera curve for improved grip experience for little finger. A dedicated HDMI cable clamp protects interfaces to ensure stable signal transmission.

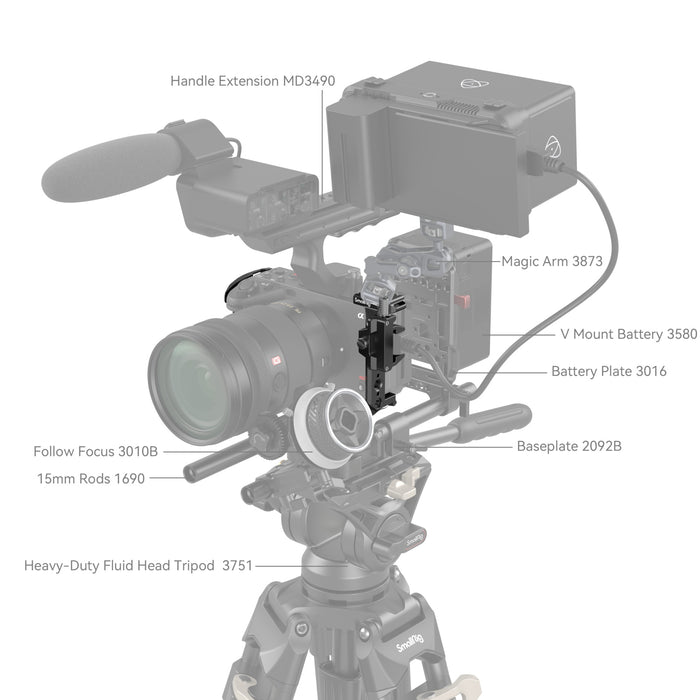

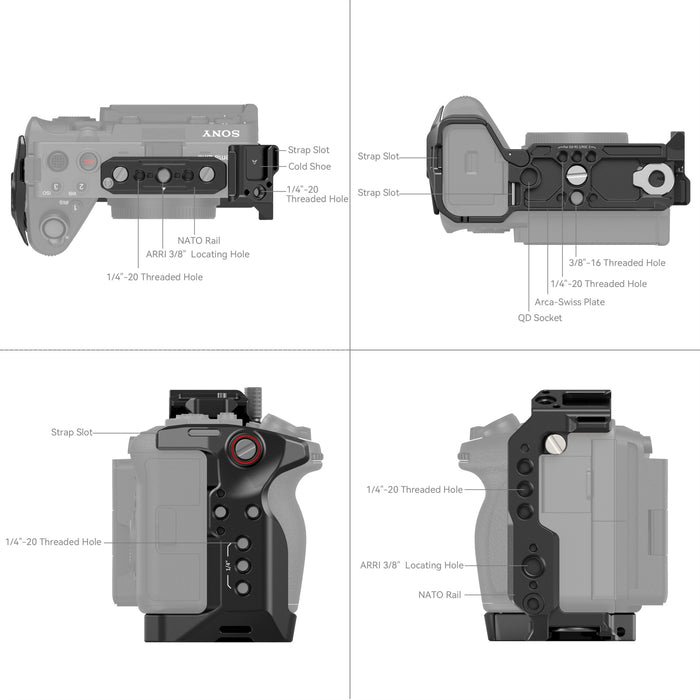

Among its varied accessory mounts, 1/4"-20 holes support Magic Arm 2070; ARRI 3/8"-16 locating holes connect Top Handle 2165C or Monitor Mount 2903B; the top NATO rail supports Top Handle 3322, and the left one, Side Handle 2187B; 1/4"-20 locating holes at the top-left quarter and on the left side attach Rod Clamp 3598 for follow focus; two 1/4"-20 holes on the right side allow being securely mounted onto a quick release plate for vertical shooting; the cold shoe mount supports microphone, LED light; and the QD port at the bottom fits QD strap.
An Arca-Swiss quick release plate at the bottom can attach DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro directly or quick release plate (height increase pad) for DJI RS 2 / RSC 2 gimbal and Arca-Type Quick Release Plate 3154. Both sides and the bottom have holes for Hand Strap 3848 and Shoulder Strap PSC2428.
A magnetic spanner is also included for easy assembly and disassembly.
Features:
-
Designed for Sony FX30 / FX3: The FX30 / FX3 cage features modular design, including a NATO rail module and a U-shaped cage module. The NATO rail is secured on the top via two 1/4"-20 screws and allow connecting the original XLR top handle after disassembly; the U-shaped cage module is fixed via 1/4"-20 screws on both sides and the bottom to prevent twisting. The package comes with a dedicated cable clamp for HDMI to protect the interface and ensure the signal stability during shooting.
-
Classic Bright Black Surface: Classic design features bright black shape, bring you a new sense of fashion. The battery compartment is designed with an hinge arm to fit camera curve for improved grip experience for little finger. Built-in rubber pads preventing scratches.
-
Quick Release Plate for Arca: The QR plate at the bottom is compatible for DJI RS 2, RSC 2, RS 3, RS 3 Pro, quick release plate (height increase pad) and plate for Arca 3154. The cage also features strap holes on both sides and the bottom, which are compatible with Hand Strap 3848, Shoulder Strap PSC2428, etc. The bottom QD socket to install QD shoulder strap, and a magnetic wrench is included for easy disassembly and assembly.
-
Multiple Mounting Points: The cage features 1/4"-20 holes fits Magic Arm 3873; the locating hole for ARRI suits Top Handle 3765; the side NATO rail can attach Side Handle 3813; the 1/4”-20 positioning holes on the upper left corner and left side can attach Rod Clamp 3598 for follow focus; two 1/4”-20 holes on the side can attach quick release plate; built-in cold shoe can attach Microphone 3468, LED Video Light 3286B.
Compatible With:
Sony FX30
Sony FX3
In The Box:
SmallRig Camera Cage for Sony FX30 / FX3 4183
NATO rail
HDMI Cable Clamp
2 x 1/4”-20 Screw
Note:
1. Please remove the top NATO rail before installing the original XLR handle.
2. Top 1/4"-20 holes have hole center distance of 27mm and are therefore incompatible with such accessories with hole center distance of 18mm as Monitor Mount 2904.
