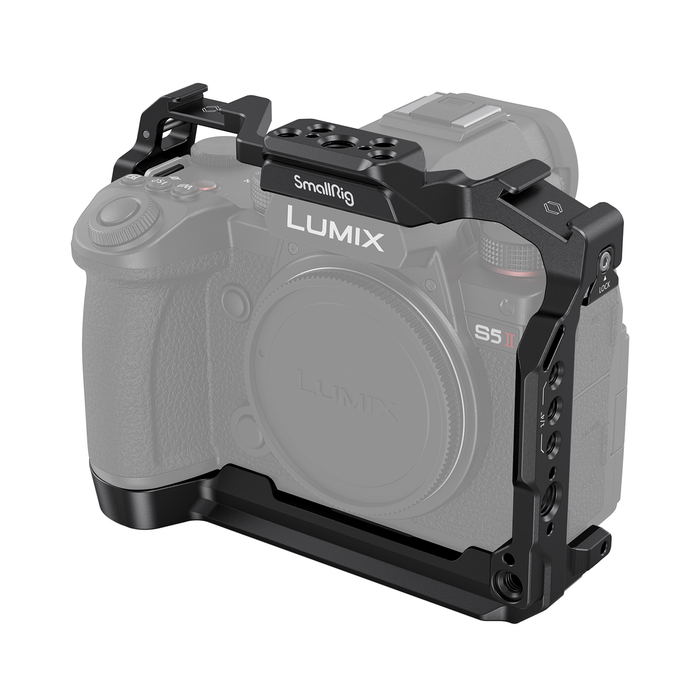

The SmallRig Cage for Panasonic LUMIX G9 II / S5 II / S5 IIX 4022 is designed to attach accessories and protect the camera. It locks the camera via one bottom 1/4"-20 screw and two side lock adapters, with rubber pads preventing scratches.

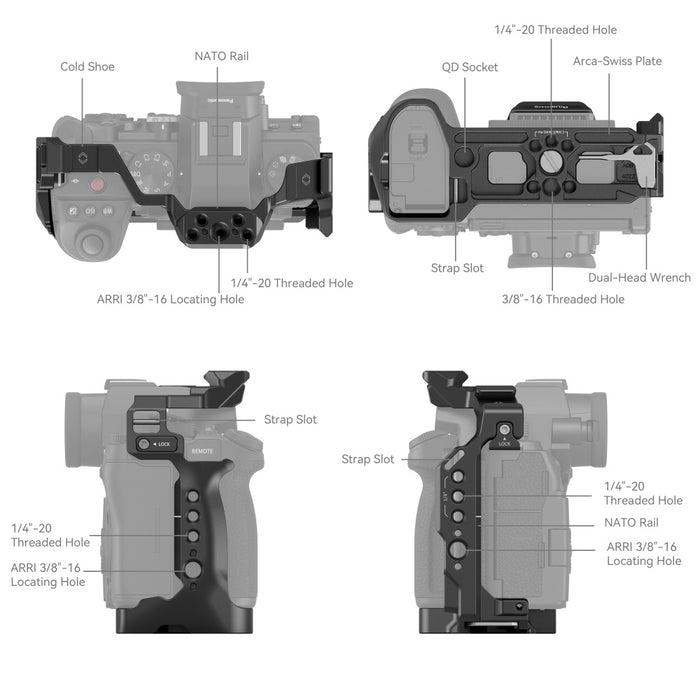

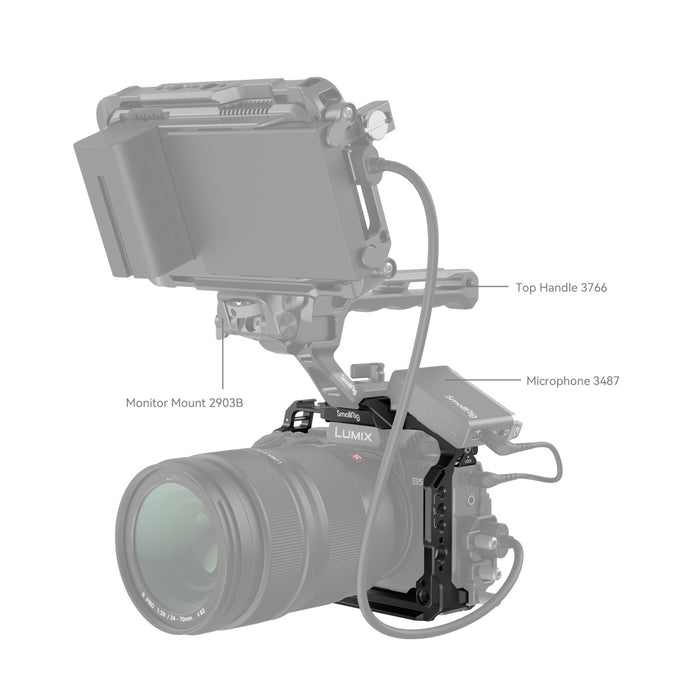

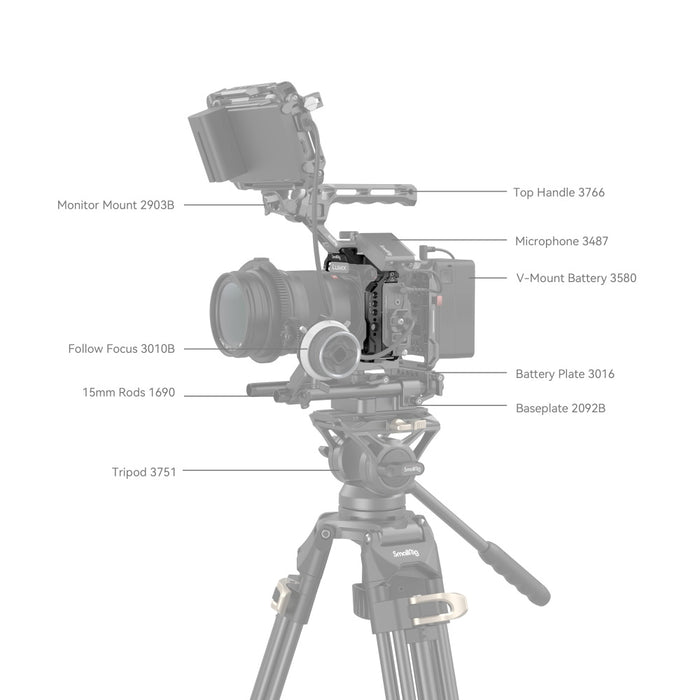

Among its accessory mounting points, 1/4"-20 holes and ARRI 3/8"-16 locating holes support Top Handle 2165C, Side Handle 2093, etc. for easy camera movement and more stability; the front 1/4"-20 locating hole suits Rod Clamp 3276 for follow focus system; and the top ARRI 3/8"-16 locating hole fits Monitor Mount 2903B.
It also comes with two cold shoe mounts to attach microphone, LED video light; a top NATO rail for Top Handle 3322; a left NATO rail for Side Handle 3847; and a bottom QD socket to install QD shoulder strap.

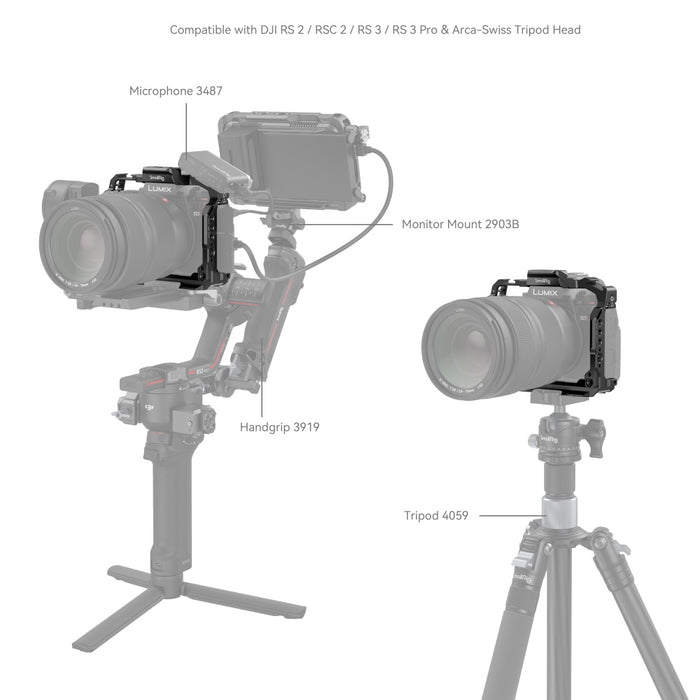

At the bottom there is an Arca-Swiss quick-release plate, suitable for DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro gimbals and Arca-Swiss tripods, as well as a threaded hole for DJI RS 2 / RSC 2 gimbal quick-release plate (height increase pad) and Arca-Swiss Quick Release Plate 3154.
The item also features strap holes on both sides and the bottom, which are compatible with Hand Strap PAC2456, Shoulder Strap PSC2428, etc. Besides, a magnetic wrench is included for easy disassembly and assembly.
- All-in-one full cage protects camera and improves grip experience;
- NATO rails at the top and on the left side;
- Two cold shoe mounts at the top for microphone, LED video light, etc.;
- Anti-twist three-point locking design;
- Arca-Swiss bottom plate supports Arca-Swiss tripod and DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro gimbals.
Panasonic LUMIX G9 II
Panasonic LUMIX S5 IIX
Panasonic LUMIX S5 II

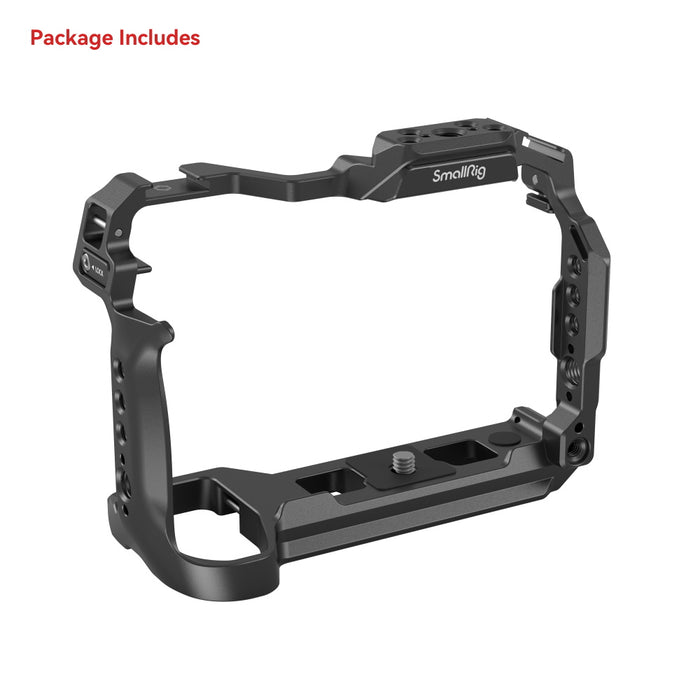

In The Box:
SmallRig Cage for Panasonic LUMIX G9 II / S5 II / S5 IIX 4022

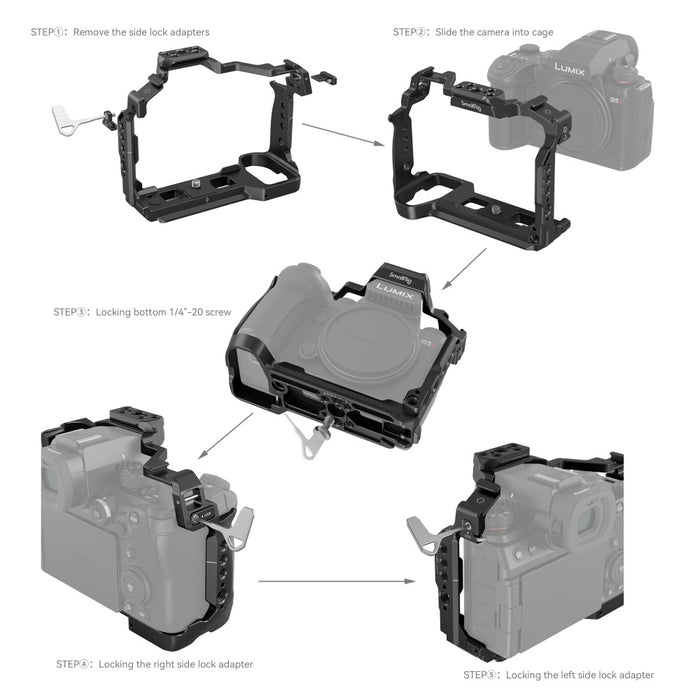

1. Please remove the side lock adapters before installing this cage.
2. This cage is compatible with Panasonic DMW-XLR1, if you need to use with a top handle, we recommend the Top Lift Handle 3082.
3. For using HDMI & USB-C cable clamp, SmallRig Camera Cage Kit for Panasonic LUMIX S5 II / S5 IIX4143 is recommended.
