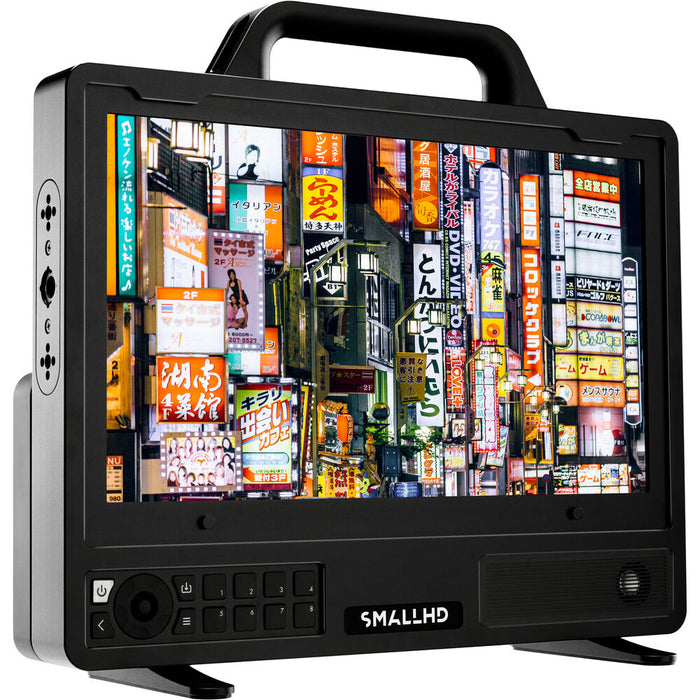

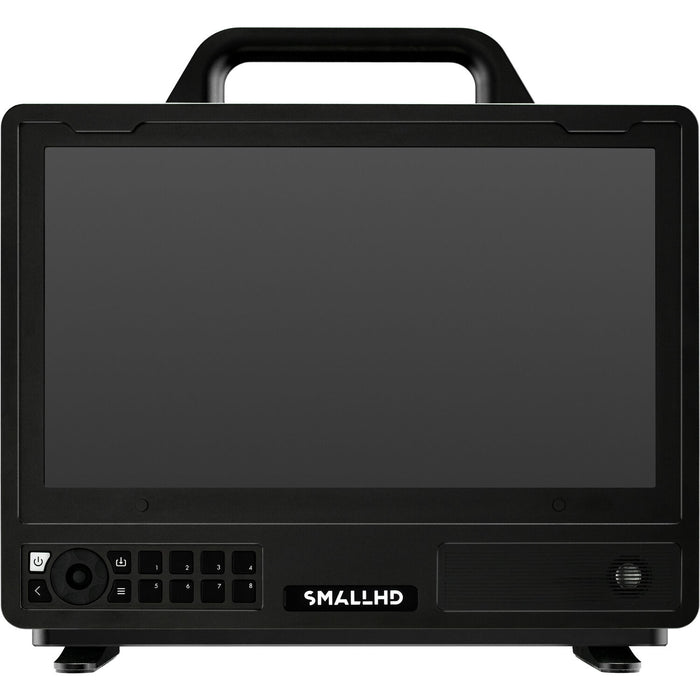

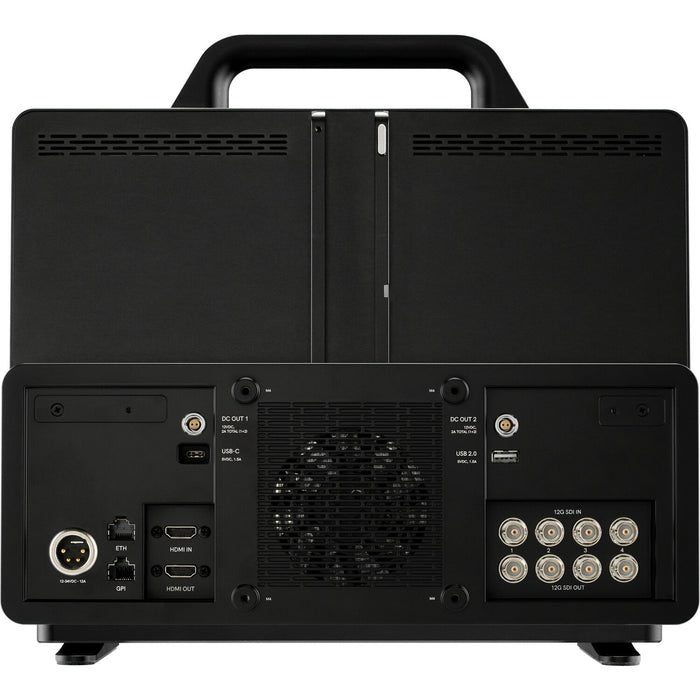

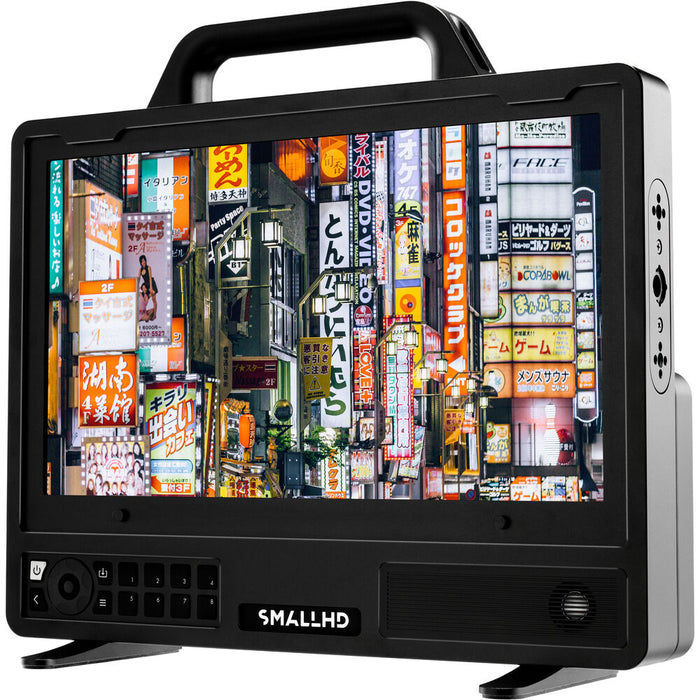

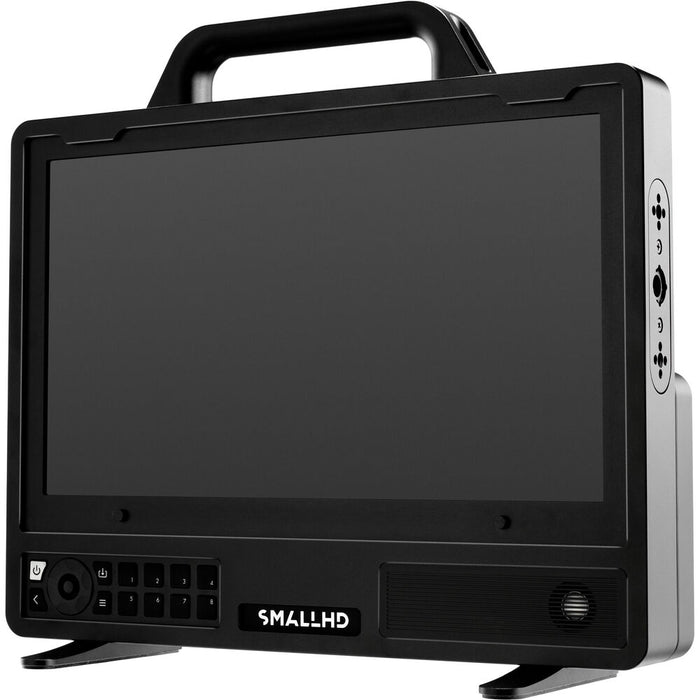

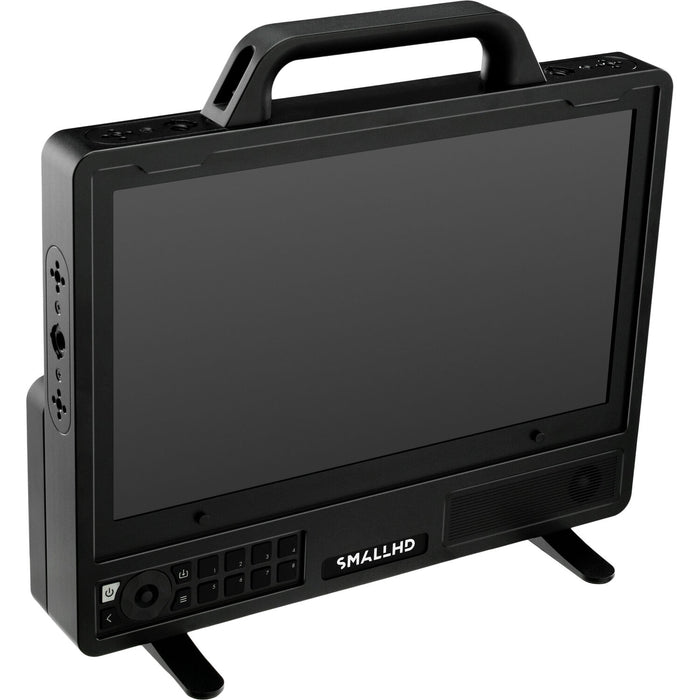

SmallHD Cine 13 UHD 4K High-Bright Monitor

SmallHD Cine 13 UHD 4K High-Bright Monitor

by SmallHD
$0.00 - $0.00
$0.00
$4,699.00
$4,699.00 - $4,699.00
$4,699.00
SKU 71998
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .

SmallHD Cine 13 UHD 4K High-Bright Monitor is SmallHD’s most agile, bright, and pixel-dense 4K production monitor yet. Boasting over 1500nits of brightness and 3840 x 2160 resolution, 4K is now more portable than ever. Low-profile in design, this field companion can be rigged for almost any situation. With brilliant daylight visibility and full 4K clarity, Cine 13 is built for those on-set creatives who require critical focusing capability and a large display.

Features:

  • 13.3" Display, 3840 x 2160 4K Resolution
  • 1300:1 Contrast, 10-Bit Color
  • 1500 cd/m², Edge-Lit Display, PageOS 4
  • 12G-SDI & HDMI 2.0 Inputs/Outputs
  • 3D LUT Support, SD Card Slot
  • Dual Hot-Swappable Power Input
  • 2 x 2-Pin & 3 x USB Type-A Power Outputs
  • Dual and Quad View, 100% Rec.709 Color
  • Waveform, False Color, Focus Assist
  • Peaking, Pixel Zoom, Pages, Page Tabs



Glazer's SKU 71998
Manufacturer SmallHD
MFG SKU MON-CINE-13
Product Specs
Panel TypeLCD
Display Size13.3" / 33.8 cm
Resolution3840 x 2160
Aspect Ratio16:9
TouchscreenNo
Maximum Brightness1500 cd/m2
Dynamic Contrast Ratio1300:1
Bit Depth / Color Support10-Bit (1.07 Billion Colors)
HDR CompatibilityNone
Pixels Per Inch (ppi)331 ppi
Color Gamut100% Rec. 709
Image ControlsFalse Color, Focus Assist, Focus Peaking, Pixel Zoom, Waveform
Video

1 x HDMI Type A (HDMI 2.0) Input

4 x BNC (12G-SDI/6G-SDI/3G-SDI/HD-SDI) Input

1 x HDMI Type A (HDMI 2.0) Output

4 x BNC (12G-SDI/6G-SDI/3G-SDI/HD-SDI) Output

Embedded Audio

HDMI

SDI

Audio1 x 1/8" / 3.5 mm Headphone Output
Built-In SpeakerNone
Power

1 x 4-Pin XLR (12 A / 34 VDC) Input

2 x 2-Pin LEMO (2 A / 12 VDC) Output

1 x USB Type-A (2.4 A / 5 VDC) Output

1 x USB Type-A (1.5 A / 5 VDC) Output

1 x USB Type-C (1.5 A / 5 VDC) Output

Other I/O

1 x GPI (RJ45) Input/Output

1 x LAN (RJ45) Input/Output

Media/Memory Card SlotSingle Slot: SD/SDHC
Wi-FiNone
Video Format

HDMI

DCI 4K: 60

SDI

UHD 4K: 60

Gamma CurveRec709
DC Input Power12 to 34 VDC at 18 A
Battery Type2 x V-Mount, Gold Mount (Interchangeable Mount)
Power Consumption210 W (Maximum)
Dimensions23.25 x 17.5 x 2" / 59.05 x 44.5 x 5.1 cm
Weight6.8 lb / 3.1 kg
