Sirui ST-224 Quick Release Carbon Fiber Tripod with VH-10 Video Head

by Sirui
Original price $0.00 - Original price $0.00
Original price $0.00
$419.00 - $419.00
Current price $419.00
SKU 84039
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .

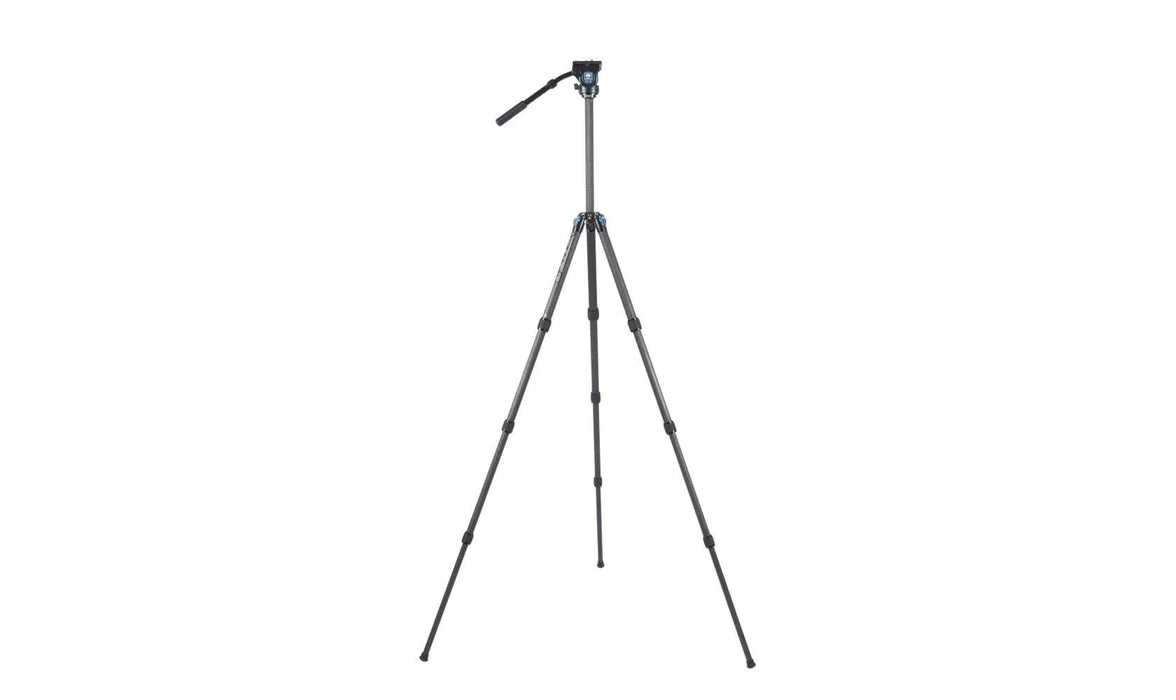

The Sirui ST-224 Quick Release Carbon Fiber Tripod with VH-10 Video Head is a compact carbon fiber tripod system weighing just 5.7 lb. The four-section tripod legs and fluid video head hold a payload of 13.2 lb. Fold the legs down to a minimum working length of 20.7", or extend the legs and the removable center column to reach the maximum height of 72.6".

The aluminum VH-10 fluid video head supports midsize cameras and DSLR/mirrorless models, all balanced by sliding the long plate. It includes 1/4"-20 and 3/8"-16 mounting screws, with a 3.5" back and forth flexibility on the head. With counterbalance support of 4.4 lb, the pan drag has friction control, and the panning base features four grades of drag dialed from 0 to 3. A single-stage pan handle is included with the head, and a carrying bag for the full system is also part of this package.

  • More stable
  • Carbon fiber triangular center column
  • Quick release system
  • Waterproof

Compared to the ST-124 tripod in the same lineup,ST-224 tripod is taller, stronger, and more stable to hold larger and heavier setups.

Constructed with carbon fiber, the center column and the legs are lightweight, sturdy, and corrosion-resistant. The triangular center column gives the tripod a fairly compact size when collapsed.

Press the quick-release button to quickly remove the center column for a lighter kit and a lower shooting angle.

Reverse the center column and insert it directly into the tripod for quick setup. Compared to a column locking knob, a quick-release button is more handy and simple to use.

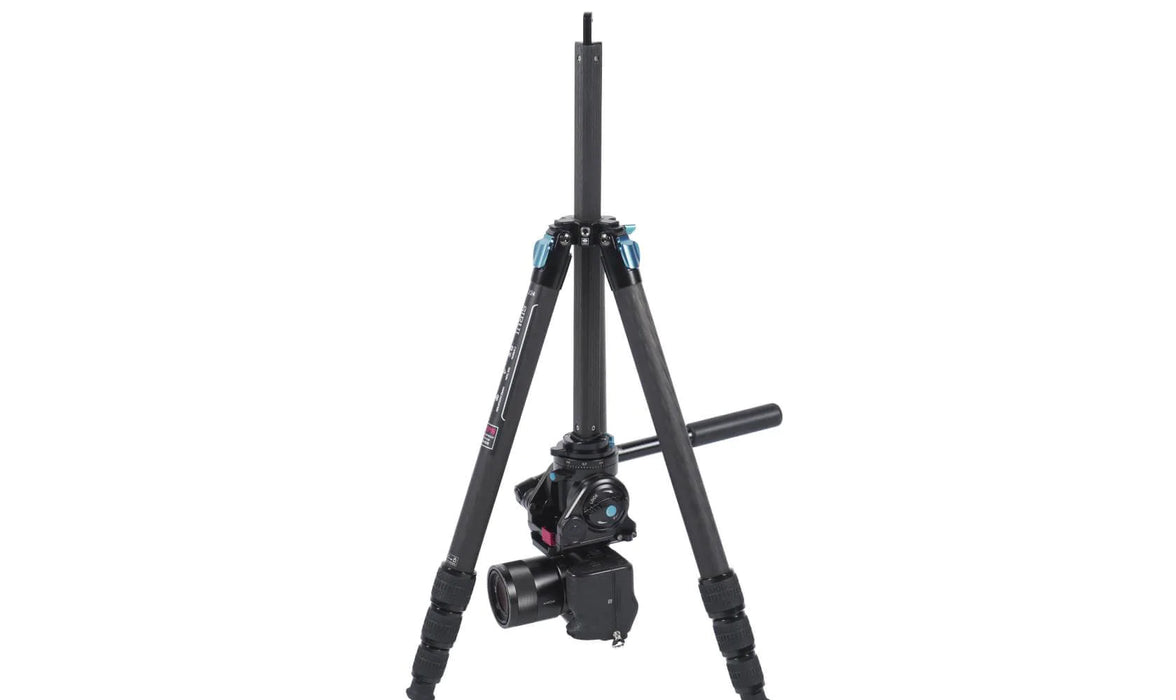

Mount the ST-Z short center column to the tripod for low-angle shots.

Press the quick-release button to quickly switch between the 1/4" and 3/8" threaded stud.

The twist leg locks are tightly sealed to prevent water,dirt, and dust from entering the tube.

A wide range of accessories can be attached to the tripod via the 1/4" and 3/8" accessory ports.

Rubber feet and metal spikes are included to handle many different surfaces. Retract the rubber feet to reveal the spikes.

The fluid damping system allows you to pan and tilt the head smoothly for an ideal shooting angle. The handle is made telescopic for additional flexibility. Mount the handle on the left or right side for convenient operation. Has two bubble levels and one 1/4" and one 3/8" screw.

Technical Specs:
Camera Plate

Camera Plate Features: Quick Release, Sliding Balance Plate
Camera Plate Type: VP-90
Camera Mounting Screw: 1 x 1/4"-20 Male
1 x 3/8"-16 Male
Balance Plate Sliding Range: 3.5" / 8.9 cm
Safety Lock: Yes


Base Mount: Quick Release, Sliding Balance Plate
Counter Balance: Fixed (4.4 lb / 2 kg)
Pan Handle Fittings: 1 x Rosette
Included Pan Handle Length: 11.8 to 18.5" / 30 to 47 cm
Bubble Level: 2
Accessory Mounting: 1 x 1/4"-20 Female Thread
1 x 3/8"-16 Female Thread

Pan & Tilt

Drag Control: Pan: Stepped 4-Step Plus 0
Drag Type: Fluid
Vertical Tilt: +90° to -70°
Panning Range: 360°
Independent Pan Lock: Yes
Independent Tilt Lock: Yes


Load Capacity: 13.23 lb / 6 kg
Maximum Working Height: 72.64" / 184.51 cm
Minimum Working Height: 20.67" / 52.50 cm
Closed Length: 24.2" / 61.5 cm
Materials: Aluminum, Carbon Fiber
Weight: 5.07 lb / 2.3 kg


Leg Lock Type: Twist Lock
Leg Positions Locking: 3 Positions and Continuously Adjustable
Leg Sections: 4
Feet Features:
Rubber, Spiked
Spreader: None

Center Column

Center Column Features: Removable
Center Column Sections: 1
Center Column Extension Type: Rapid

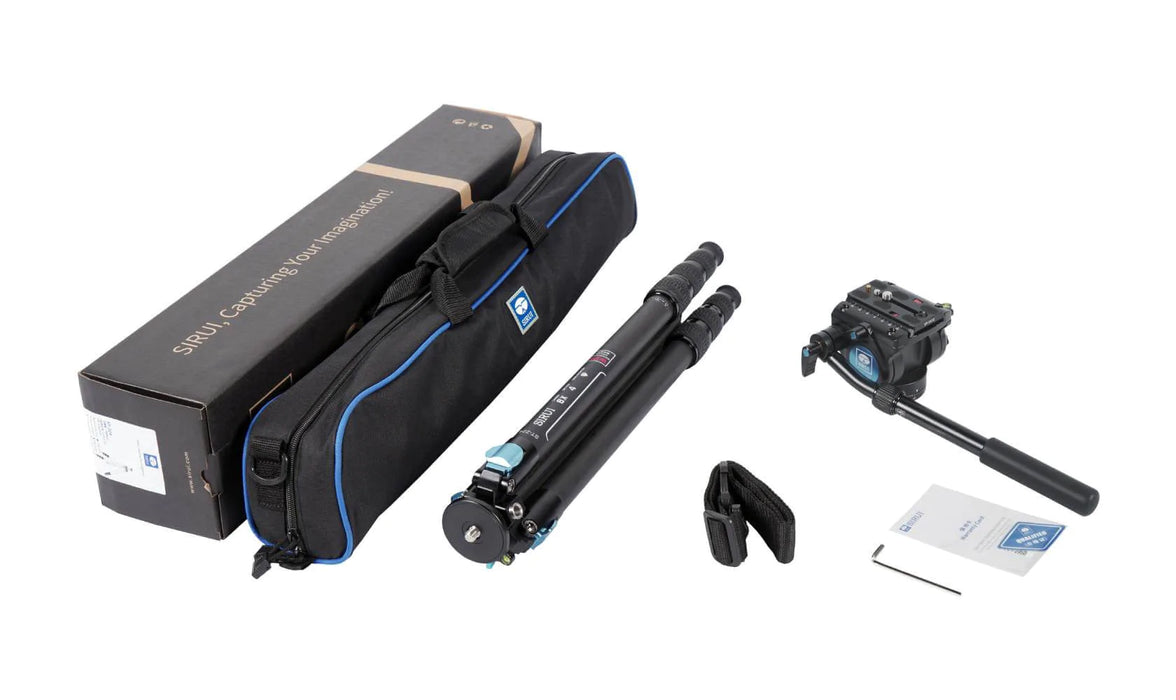

In The Box:
1 x Sirui ST-224 Quick Release Carbon Fiber Tripod with VH-10 Video Head
1 x QR Plate
1 x 1/4"-20 Screw
1 x 3/8"-16 Screw
1 x Pan Handle
1 x Carrying Bag
1 x Limited 6-Year Warranty

Glazer's SKU 84039
Manufacturer Sirui
