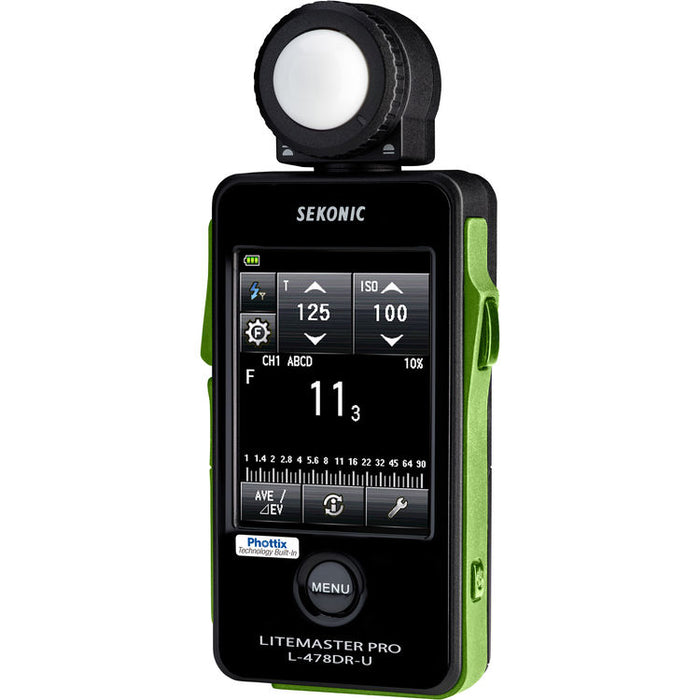

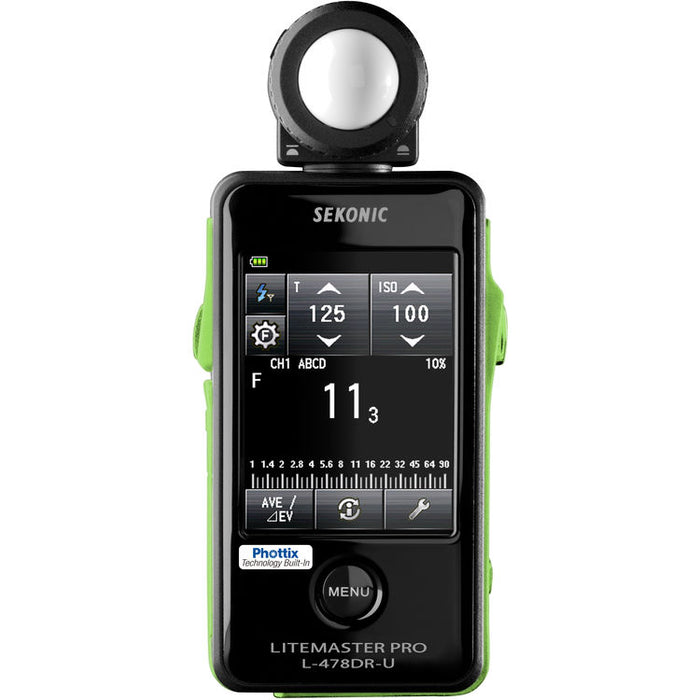

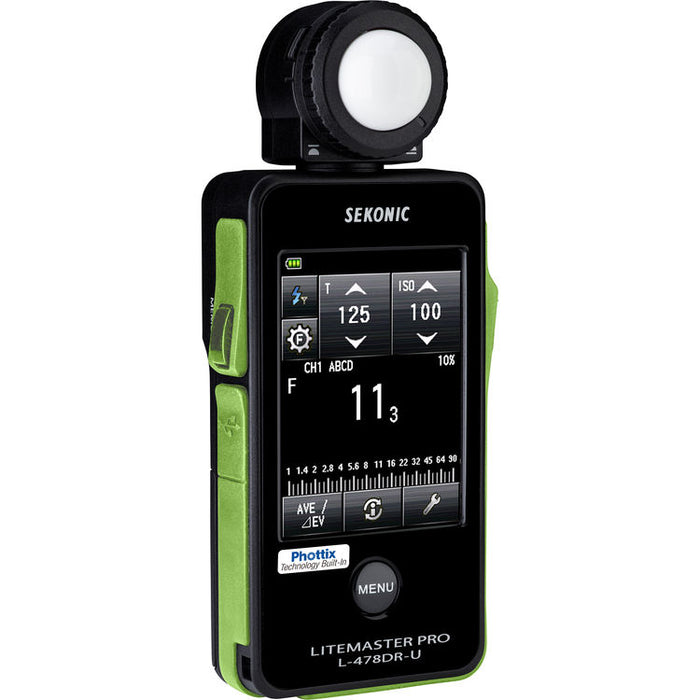

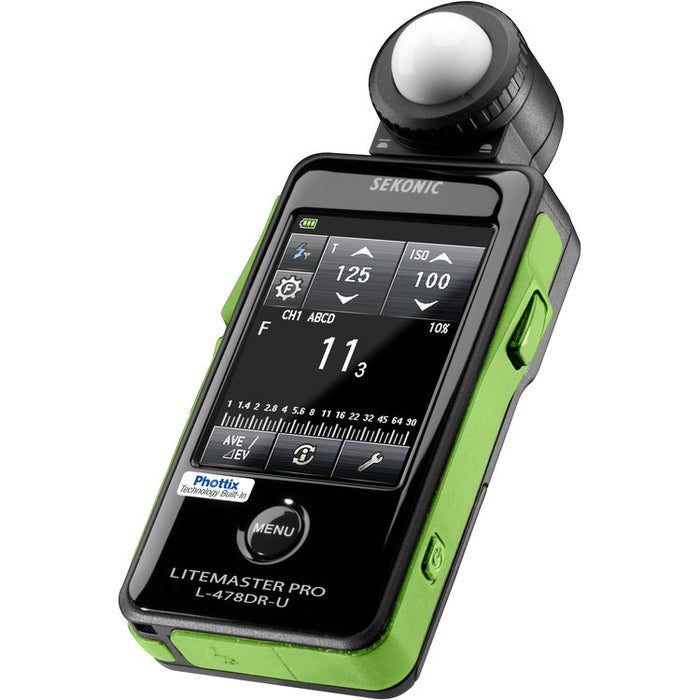

Sekonic LiteMaster Pro L-478DR-U-PX Series Light Meter for Phottix Strato II System

by Sekonic
Sold Out
Original price $449.00 - Original price $449.00
Original price
$449.00
$449.00 - $449.00
Current price $449.00
SKU 55487
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .
Sekonic Pro L-478d F/ Phottix

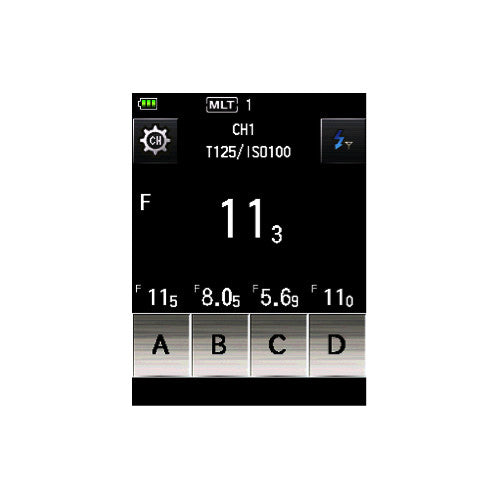

Notable for the L-478 light meter series is the large color touchscreen, which allows for fast control over settings for both ambient and flash metering. The meter is quite capable as well, able to function within a range of -2 to 22.9 EV at ISO 100. And, for the current crop of hybrid shooters this model expands on its standard stills functions with two distinct video modes: Cine and HD Cine. These settings give access to frame rate selection from 1-1,000 fps as well as shutter angle settings from 1-358° as well as ISO 850 for Canon cinema cameras.

Guaranteeing the best possible performance is a suite of functions and features that will ensure users have the best tools available to them. Among these is a flash analyzing function that uses ambient and flash simultaneously to allow for shooters to dial in their preferred mix. Also, using the included Data Transfer Software users will be able to do Exposure Profiling for their camera by using the optional 5° viewfinder, showing dynamic range limits and knowing that you will have an accurate exposure. Alongside this is a Filtration Compensation Mode that allows for the meter to account for filter factor, which can now be done at up to 12 EV for landscape shooters using high-density ND filters. Other features include a contrast function for comparing brightness, a memory mode for 9 readings, and illuminance or luminance measurement.

- Lumisphere receptor head rotates 90° right and 180° left and retracts for conversion to a flat diffuser
- Optional 5° viewfinder for spot metering
- Ambient light measuring modes include aperture priority, shutter speed priority, TF priority, CINE, HD Cine, illuminance, and luminance
- Flash can be measured with PC sync terminal connection, cordless, or radio triggering
- Measuring range at ISO 100 of -2 to 22.9 EV with incident light or 3 to 22.9 EV with reflected light
- ISO range of 3 to 409,600 in 1/3 steps, including 850 for Canon cinema cameras
- Other functions: exposure profile, mid tone function, exposure compensation, filter compensation, multiple cumulative function, memory/clear/recall function, average function, contrast function, auto power off, touch panel lock
- Runs on 2 AAA batteries
- Firmware upgradeable via mini-USB port
Glazer's SKU 55487
Manufacturer Sekonic
MFG SKU 401-476
Product Specs

Sekonic L-478DR-PX Specs

Type Digital light meter for flash and ambient light
Radio Frequency 2.4 GHz (Phottix Strato II)
Receptor Element 2 x Silicon photo diodes
Receptor Head Incident Light: Lumisphere convertible to flat diffuser, rotates 90° right & 180° left
Reflected Light: Optional 5° viewfinder
Measuring Modes Ambient Light: Aperture priority, shutter speed priority, TF priority, EV metering, HD Cine (shutter priority, FPS metering, lux or fc), Cine (FPS metering, shutter angle setting, lux or fc), illuminance (lux or fc), luminance (cd/m² or fl)
Flash Light: Cord (PC sync terminal), cordless, wireless radio triggering
Measuring Range Ambient Light (ISO 100): Incident: -2 EV to 22.9 EV; Reflected: 3 EV to 22.9 EV
Flash Light (ISO 100): Incident: f/1.0 to f/128.9; Reflected: f/2.8 to f/128.9
Illuminance: 0.1 to 180,000 fc / 0.63 to 2,000,000 lux
Luminance: 0.29 to 290,000 fl / 1.0 to 980,000 cd/m²
Repeat Accuracy ±0.1 EV or less
ISO Range 3 to 409,600 in 1/3 steps, plus 850
Shutter Speed Ambient Light: 1/64,000 sec to 30 min, plus 1/200 & 1/400 sec, in 1, 1/2, and 1/3 steps
Flash Light: 1/1,000 sec to 30 min, plus 1/75, 1/80, 1/90, 1/100, 1/200, & 1/400 sec, in 1, 1/2, and 1/3 steps
Aperture f/0.5 to f/161.2 in 1, 1/2, and 1/3 steps
Frame Rate 1-1,000 fps
Shutter Angle 1-358°
EV Range -27.9 EV to 55.8 EV (only ambient light)
Memory Function 9 readings
Groups 4 groups
Connections 1 x PC sync terminal
1 x Mini-USB port
Screen 2.7" / 6.9 cm color touchscreen LCD
Power Source 2 x AAA batteries (alkaline, manganese, lithium, nickel hydride, or nickel)
Operating Temperature 14 to 122°F / -10 to 50°C
Storage Temperature -4 to 140°F / -20 to 60°C
Dimensions 2.2 x 5.5 x 1.0" / 57 x 140 x 26 mm
Weight 4.9 oz / 140 g without batteries
