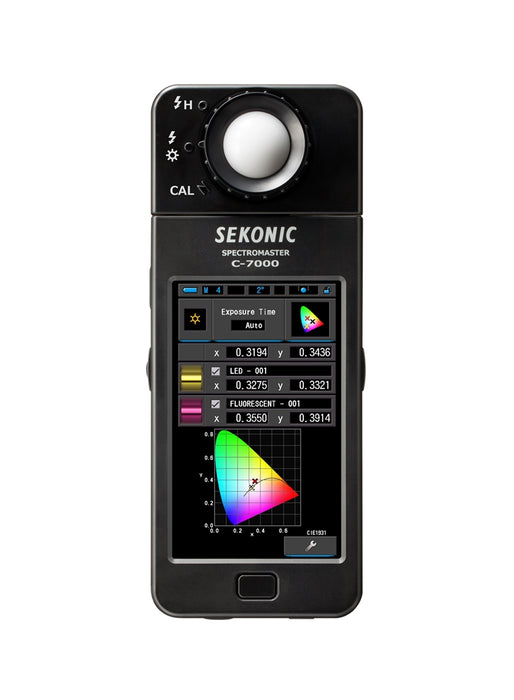

Sekonic Spectrometer C-7000 Color Meter
The C-7000 Spectrometer is a portable handheld spectrometer, designed especially for industrial use. Utilizing Sekonic’s CMOS linear image sensor design and large touch-screen color display, the C-7000 can measure and accurately describe LED, HMI, fluorescent, as well as natural light and electronic flash.
The C-7000’s Utility software displays memorized data in several ways and outputs spectral data in 1nm/5nm (nanometer) increments in CSV format. The C-7000 is an important measuring tool for quality control in lamp manufacturing, medical facilities, educational / office safety and health standards, agricultural lighting / design and many more industrial uses.
Highlights:
- Measures all Forms of Continuous Light & Flash
- 4.3" Color Touchscreen LCD
- Reads Photosynthetic Photon Flux Density
- Multiple Informational Display Screens
- CMOS Linear Image Sensor
Features:
- Measures LED, HMI, Fluorescent, Tungsten, Natural Light and Flash, from 380 to 780nm
- Wide measurement range of Color Temperature (1,563 to 100,000K) and illuminance (1 to 200,000lx in ambient light, 20 to 20,500lx・s in flash light)
- Conforms to Class A of JIS C 1609-1: 2006, and DIN 5032 Part 7 Class C as Illuminance meter class
- Text Mode with more measurement for Industrial use such as Tcp, ⊿uv, XYZ, λd, λp, Pe
- Spectrum Mode / Spectrum Comparison Mode
- PPFD (Photosynthetic Photon Flux Density) Measurement
- Expanded Color Rendering Properties (CRI/CRI Comparison, SSI, TLCI, TLMF, TM-30-18) *
- CIE1931 (CIE1964) Chromaticity Coodinates and CIE1931 (CIE1964) Comparison Mode
- CIE1976 Chromaticity Coodinates and CIE1976 Comparison Mode
- 2°or 10° field of view is selectable
- Single / Continuous measurement *
- Exposure time (Shutter speed) is selectable
- Up to 999 measurements can be stored in memory
- User-friendly design: 270 degrees swivel head, dark calibration without a cap, large 4.3” color touch panel LCD and Customize function
- C-7000 Utility offers easy setting, updating firmware of the meter, and outputting the various graphics and csv data
- 1nm / 5nm increment spectrum output in CSV format by Utility
- SDK (Software Development Kit) for remote control is available
Sensor:
CMOS Linear Image Sensor
Dimensions:
7.2 x 2.87 x 1.06" (L x W x H)
Product SKU:
401-710
In The Box:
Sekonic Spectrometer C-7000 Color Meter
USB Mini-B Cable
Strap
Soft Case
CD-ROM with Operating Manual and C-7000 Series Utility
Limited 1-Year Warranty with 2-Year Extension upon Online Registration (US only)
Note: 2x AA Batteries are sold separately.
Glazer's SKU | 10450 |
---|---|
Manufacturer | Sekonic |
MFG SKU | 401-710 |
Product Specs | - |
