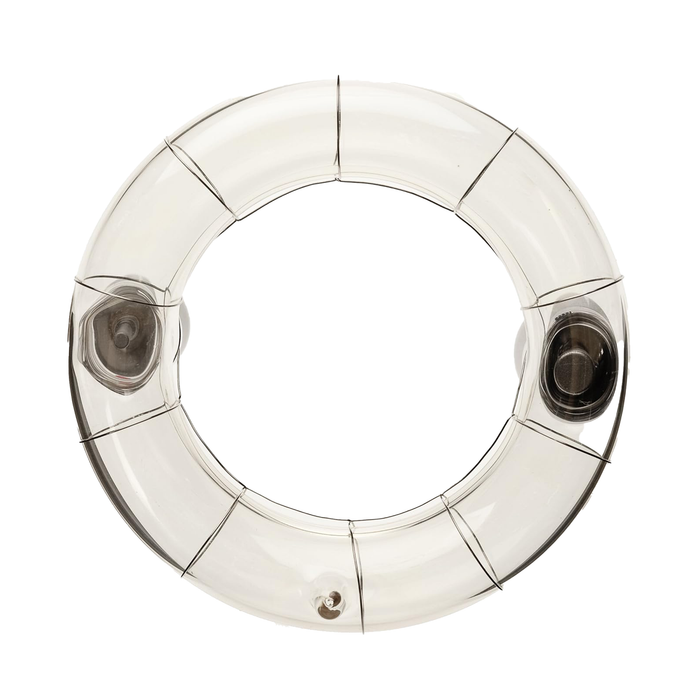

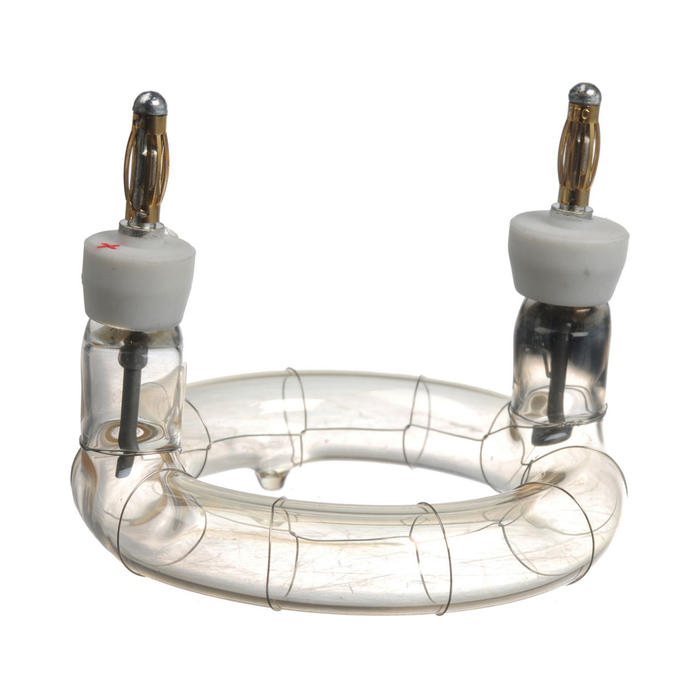

Elinchrom Flashtube 250/500w/s for BXRi & Quadra A Flash Heads
This Elinchrom Flashtube (250/500 W/S) is designed for the BXRi and Quadra A Flash Heads, allowing for a unique super short flash duration of up to 1/6000 sec. It is a user-replaceable and UV twin-electrode flashtube, perfect for professional photographers seeking high-quality lighting options.
Features:
-
User replaceable
- UV coated
- Plug-in A Flashtube
- Compatible with Ranger Quadra A-Head and BXRi 250/500
Compatible With:
Monolights:
- Elinchrom BRX 250
- Elinchrom BRX 500
- Elinchrom BXRi 250
- Elinchrom BXRi 500
Other:
- Elinchrom Ranger Quadra A Head
- Elinchrom Ranger Quadra Hybrid A
Flashtube Replacement:
Most Elinchrom flash heads have plug-in flashtubes, making it easy to change flashtube yourself.
- Switch the unit OFF
- Remove the mains cable
- Take the unit from its stand and lay it horizontally on a rigid surface.
- It will need to be held firmly whilst removing and replacing the flashtube.
- Allow the flashtube and modeling lamp to cool down and wait for the unit to discharge for 30 minutes.
- Carefully remove and store the modeling lamp. They can be very hot.
- Pull the flashtube firmly out of the terminals.
- If the tube is broken, use security gloves to avoid cutting yourself and use an insulated tool to pull out the electrodes.
- Never touch the metal electrodes and ensure that the unit has been disconnected from the mains for 30 minutes.
- Take the new flashtube.
- Insulated tissues or security gloves MUST BE USED.
- Any contact with your fingers on the tube can cause dark markings on the tube when used.
- Check that the tube is correctly aligned (central) and that the trigger contact is gripping the tube.
- Re-connect and test the unit as usual.
- Always use a protective glove to remove the flashtube.
Product SKU:
EL24000
In The Box:
Elinchrom Flashtube 250/500w/s for BXRi & Quadra A Flash Heads
