Portkeys PT6 5.2" 4K HDMI Touchscreen Monitor with 3D LUT Support

Portkeys PT6 5.2" 4K HDMI Touchscreen Monitor with 3D LUT Support

by Portkeys
$0.00 - $0.00
$0.00
$169.00
$169.00 - $169.00
$169.00
SKU 90172
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .
The PT6 is a compact, 5.2" touchscreen monitor that supports the DCI-P3 wide color gamut and offers a host of imaging tools like focus peaking, image cropping, and anamorphic output. It features up to 4K30 HDMI input and 1080p60 output, UI output, and a stretch function for vertical monitoring.

Features:
  • 5.2-inch 600nit 100% of DCI-P3 Color Gamut IPS screen
  • 4K HDMI 30p Input
  • 1080P60 HDMI Output
  • Peaking Frame, Wireframe Protection, Image Crop

Key Functions:

  • HDMI UI Output
  • 3D LUT Output
  • 100% of DCI-P3 IPS Anti-fingerprint screen
  • Stretch things when shooting vertically Output
  • Anamorphic lens calibration Output
  • Image Brightness, Tint, Contrast Adjustment Output
  • Optional function Output

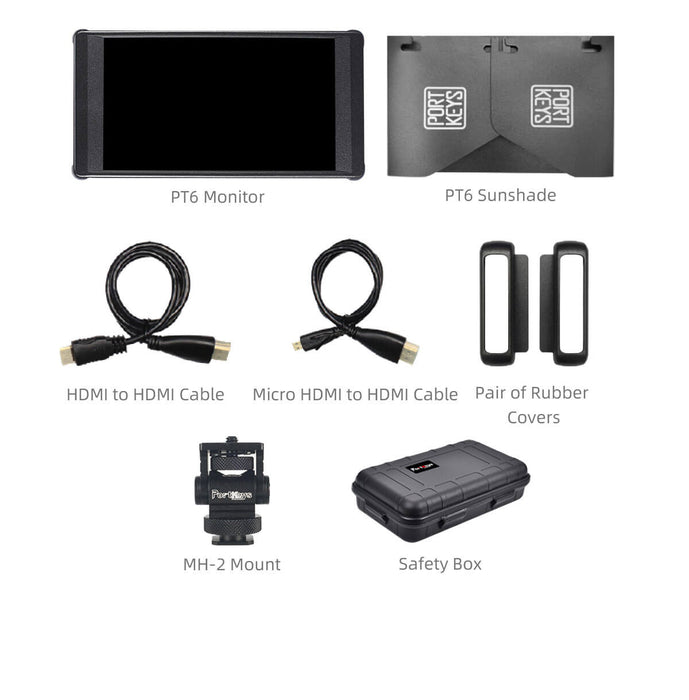

In The Box:
1 x Portkeys PT6 5.2" 4K HDMI Touchscreen Monitor with 3D LUT Support
1 x PT6 Sunshade
1 x HDMI to HDMI Cable
1 x Micro HDMI to HDMI Cable
1 x Pair of Rubber Covers
1 x MH-2 Mount
1 x Safety Box
Glazer's SKU 90172
Manufacturer Portkeys
MFG SKU PKS1006
Product Specs

Display Specifications:

Panel TypeIPS-Type LCD
Display Size5.2" / 13.2 cm
Resolution1920 x 1080
Aspect Ratio16:9
Viewing AngleHorizontal: 178°
Vertical: 178°
TouchscreenYes
Maximum Brightness1500 cd/m2
Contrast Ratio600:1
Bit Depth / Color Support10-Bit (1.07 Billion Colors)
HDR CompatibilityYes
Pixels Per Inch (ppi)423 ppi
Color Gamut100% DCI-P3
100% Rec. 709
Real-Time LUT MonitoringSDR, HDR
Image ControlsAnamorphic De-Squeeze, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, H/V Delay, Histogram, Image Flip, OSD Flip, Pixel Zoom, R/G/B/Chroma Only, RGB Parade, Scaling, Screen Markers, Underscan, Vectorscope, Waveform, Zebra

Inputs / Outputs:

Video I/O1 x HDMI Input
1 x HDMI Output
Embedded AudioHDMI
Audio I/O1 x 1/8" / 3.5 mm Headphone Output
Built-In SpeakerNone
Power I/O1 x Barrel (24 VDC) Input
Other I/O1 x USB-A 2.0 Input
Media/Memory Card SlotNone
Wi-FiNone
App CompatibleNo

Format Support:

Video Format

HDMI
4096×2160p@24Hz

3840×2160p@23.97Hz,24Hz,25Hz,29.97Hz,30HZ

1920×1080p@23.97Hz,24Hz,25Hz,29.97HZ,30Hz,50Hz,59.94Hz,60HZ

1920×1080psf@23.97Hz,24Hz,25Hz,29.97Hz,30Hz

1920×1080@50Hz,59.94Hz,60Hz

1280×720p@50Hz,59.94Hz,60HZ

720×576p@50HZ

720×576i@50Hz

720×480p@50Hz,59.94Hz,60HZ

720×480@50Hz,59.94Hz,60HZ

Video Input/Output

Input Interface: 4K 30p

Output Interface: 1080P 60p

Gamma CurveHDR-HLG

Power:

DC Input Power7 to 24 VDC
Battery Type (1x)Canon LP-E6
Sony NP-F970/F960/F750/F550
Power Consumption6 W (Maximum)
Mounting1 x 1/4"-20 Female
DC Input Power7 to 24 VDC

Software Function:

Software Function3D LUT*
Luma Waveform
Anamorphic*
Peaking
Cross Hair
Grids
Backlight
Image Brightness*
Sharpness*
Vertical Extension*
New Peaking
Luma Histogram*
ARRI False Color
Guides
Check Field*
Touch Screen
Display Flip
Contrast*
Tint*
Audio Meters
Battery (Level) Display
Peaking Frame
RGB Waveform
False Color
Zebra
HLG*
Custom RGB
Osd Flip
Chroma*
Color Temperature
Rectangle Crop*
*The shortcut function in this color can be HDMI output.

General:

Material of ConstructionPlastic, Polycarbonate
Dimensions5.9 x 3.1 x 0.3" / 150.7 x 77.8 x 8.5 mm
Weight6.0 oz / 170 g

Packaging Info:

Package Weight1.15 lb
Box Dimensions (LxWxH)8.5 x 5.6 x 2.4"
