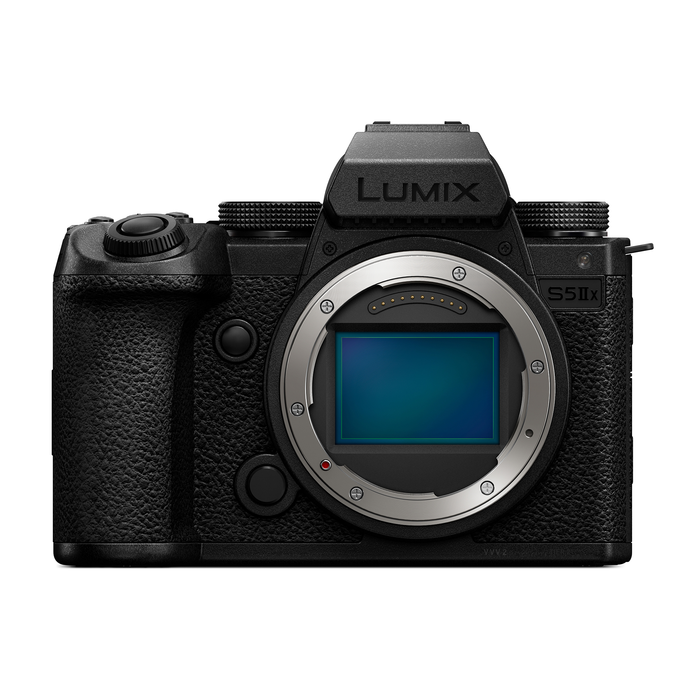

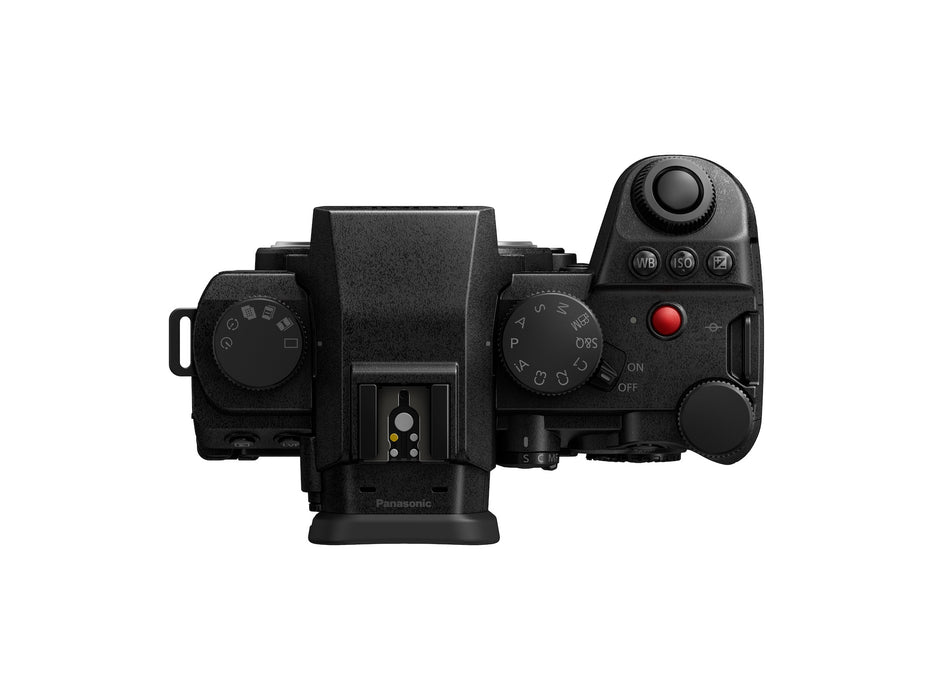

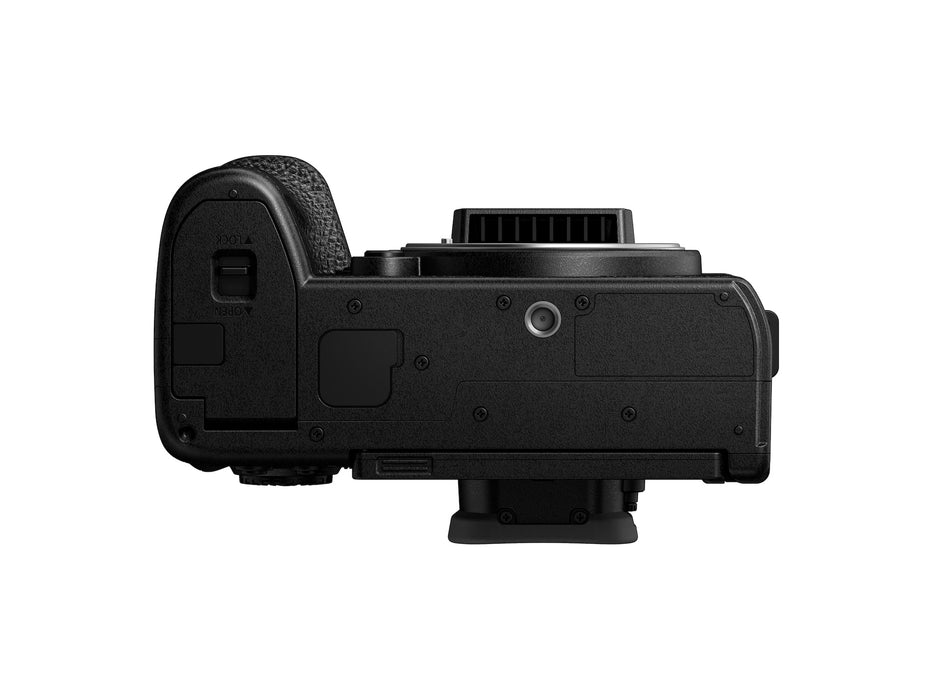

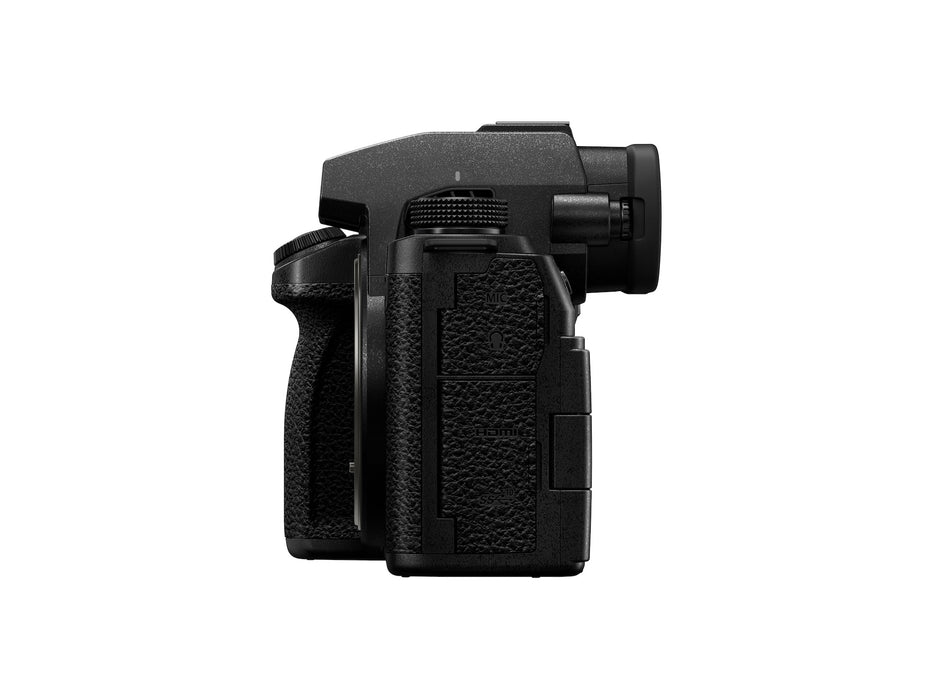

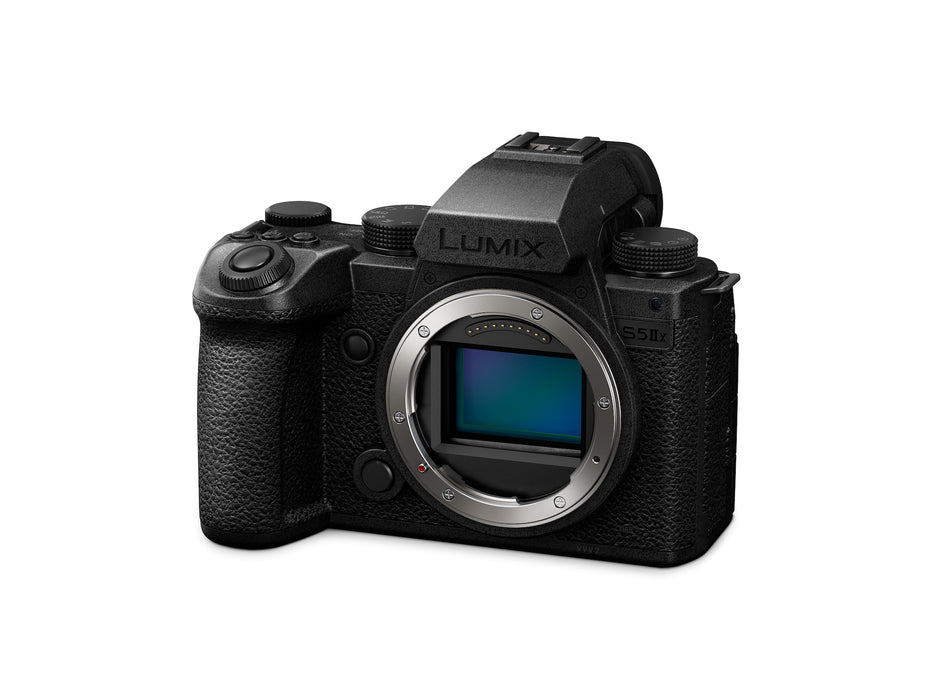

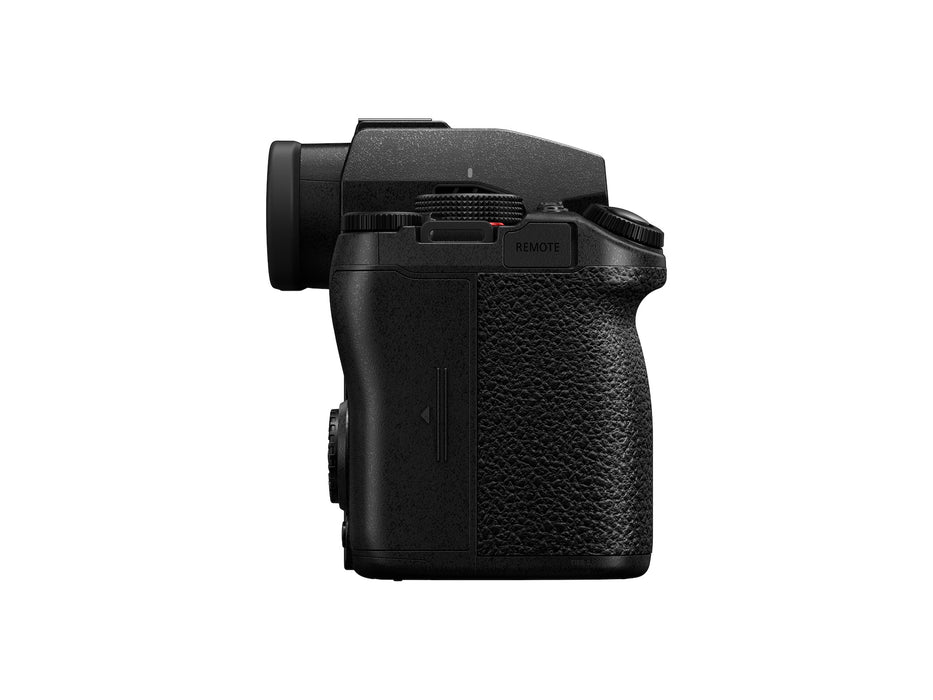

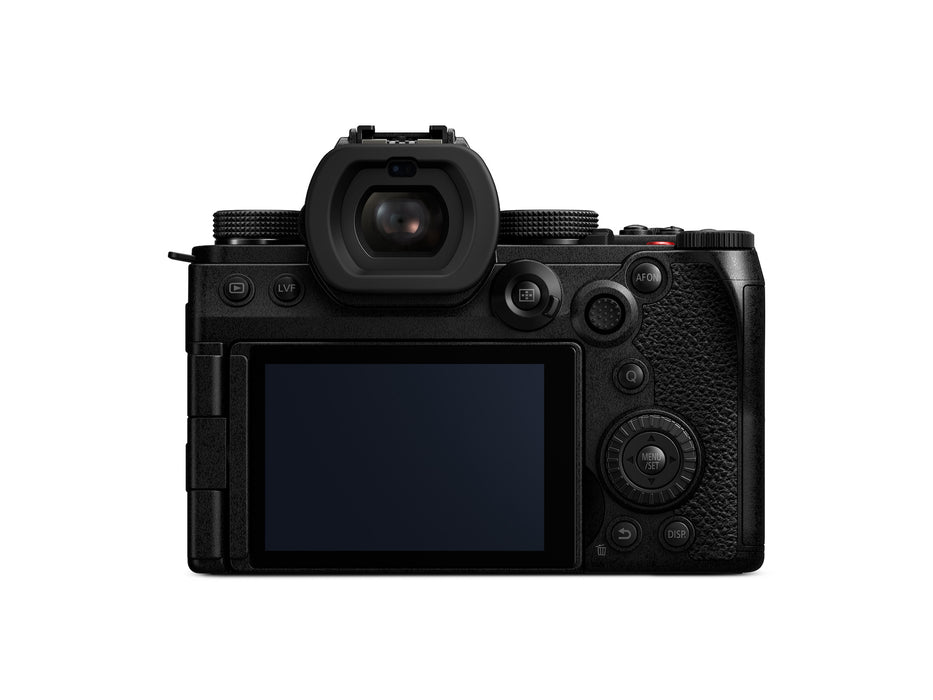

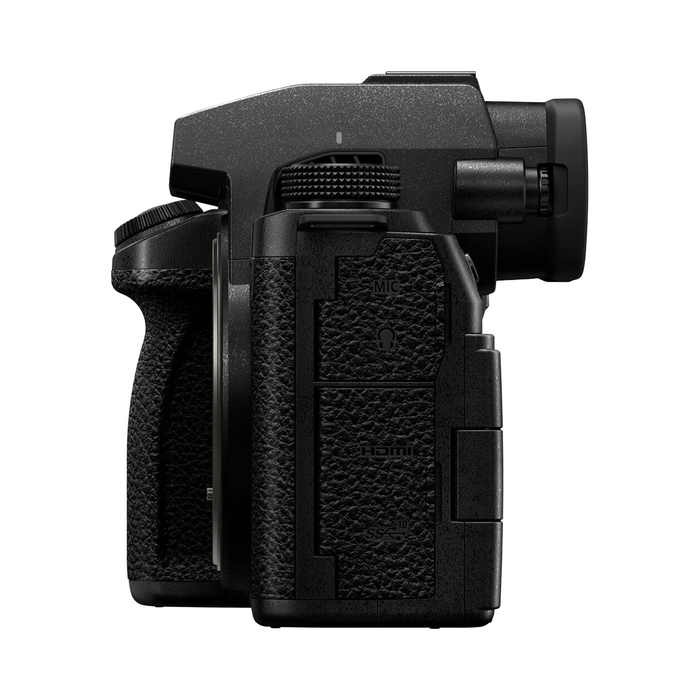

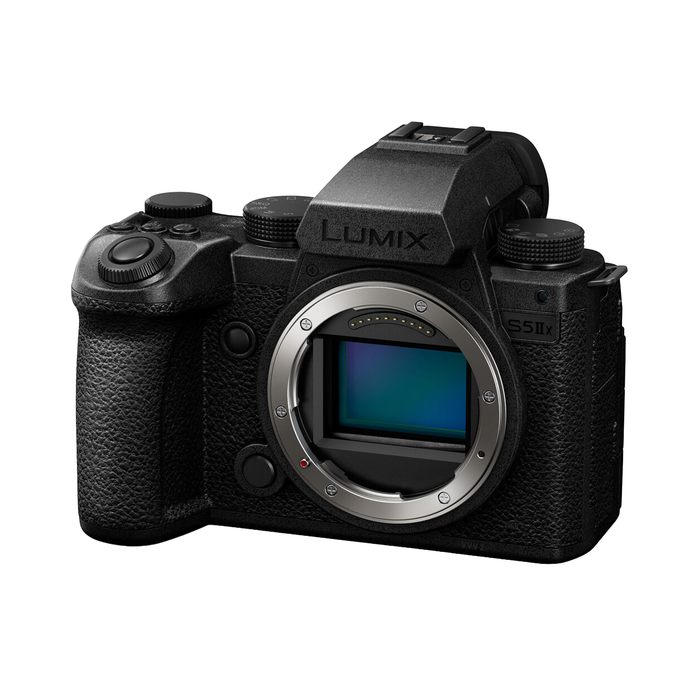

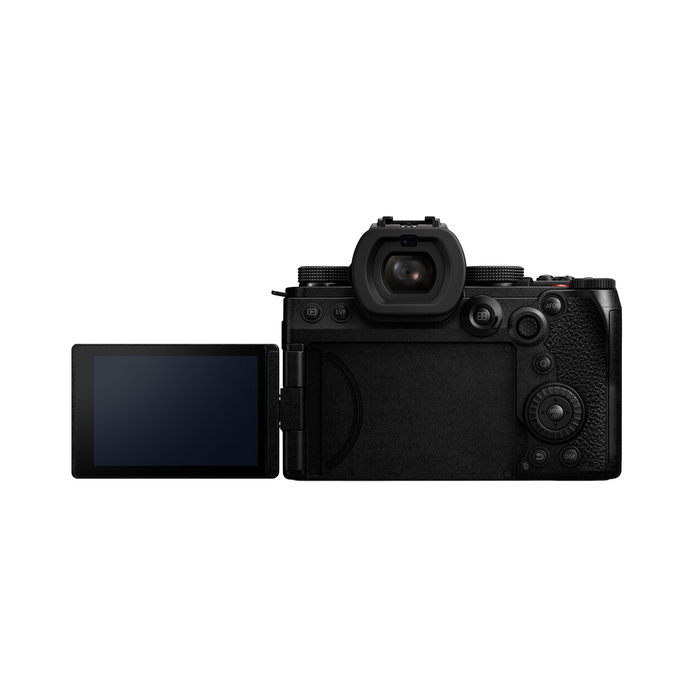

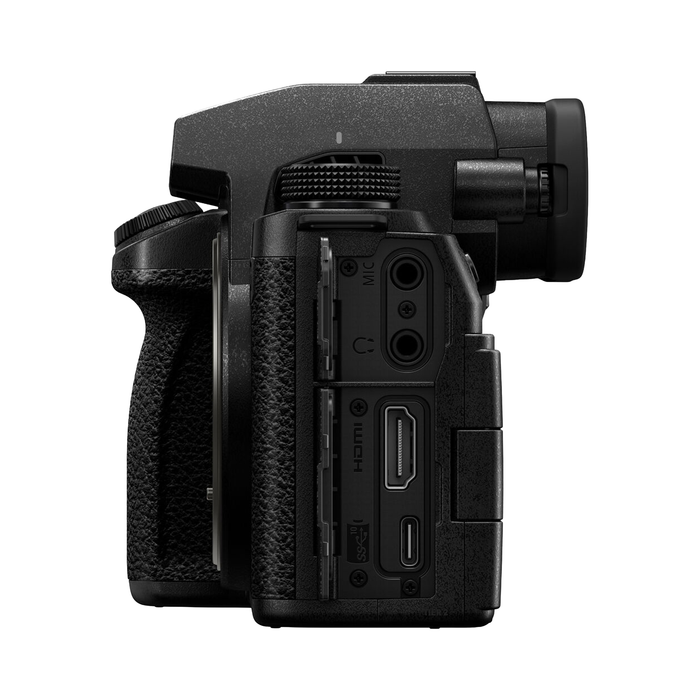

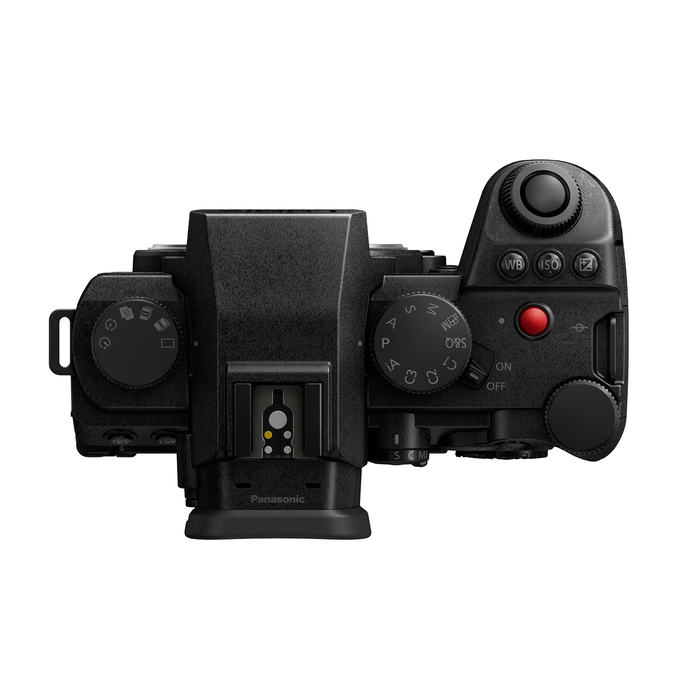

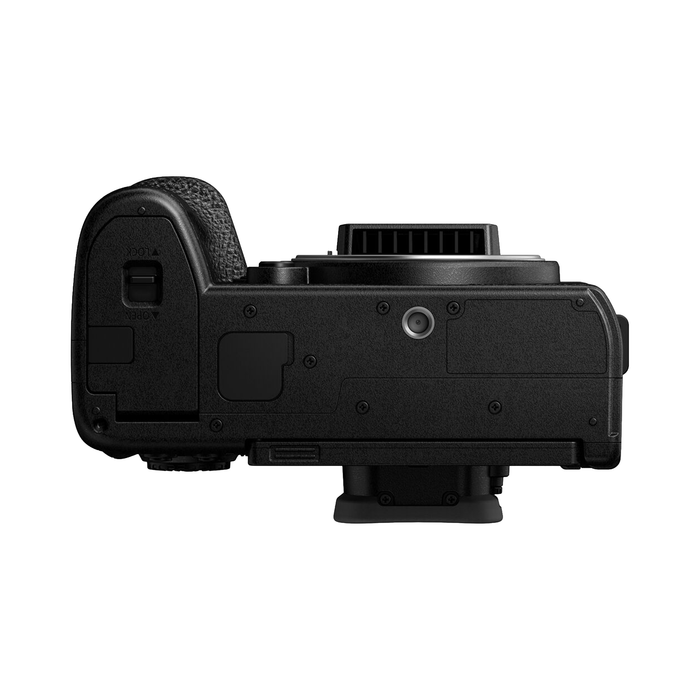

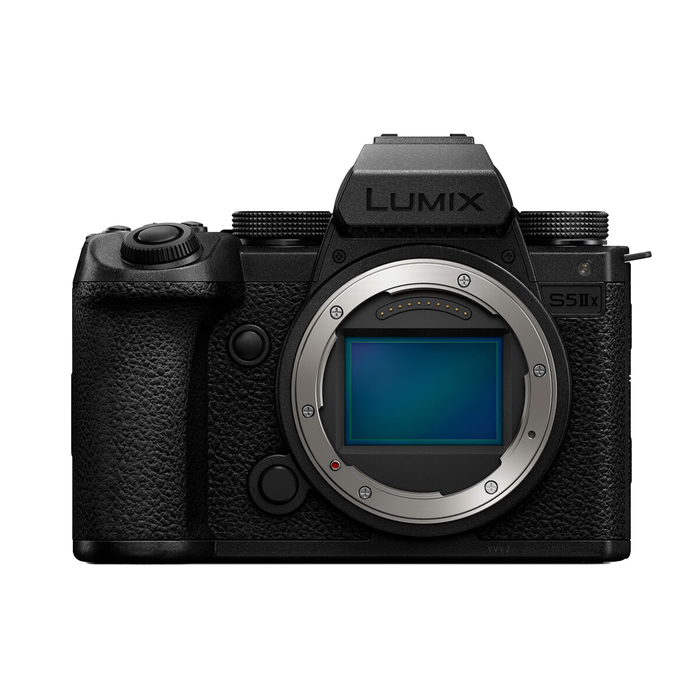

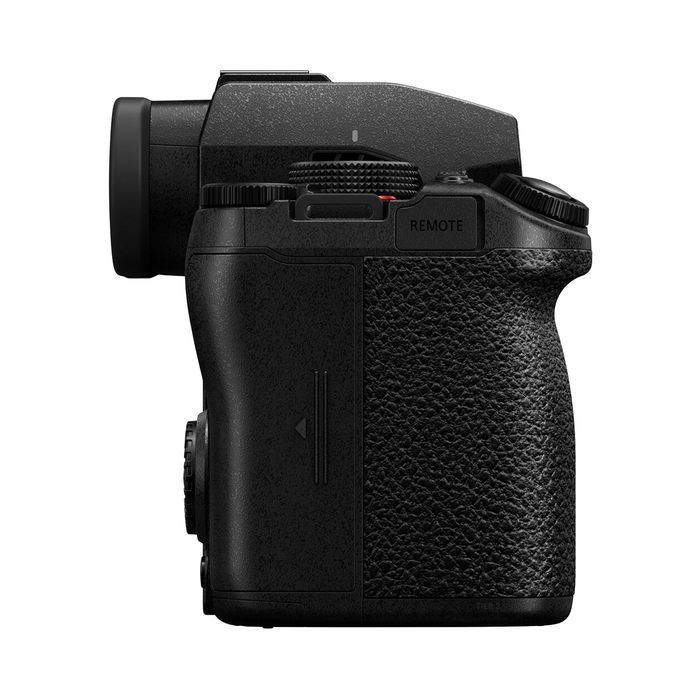

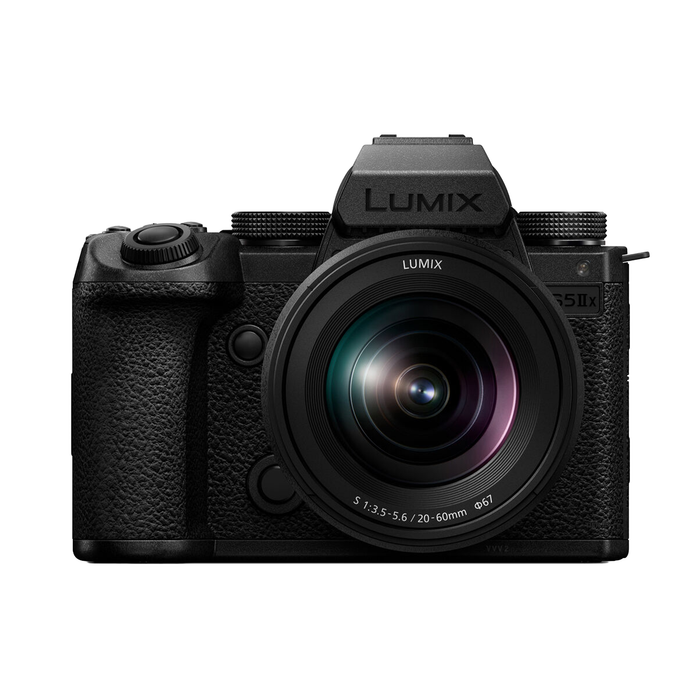

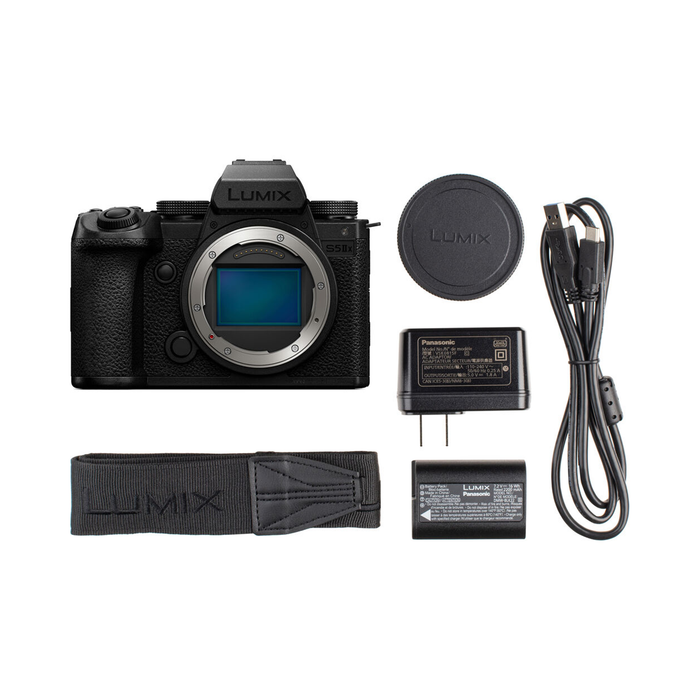

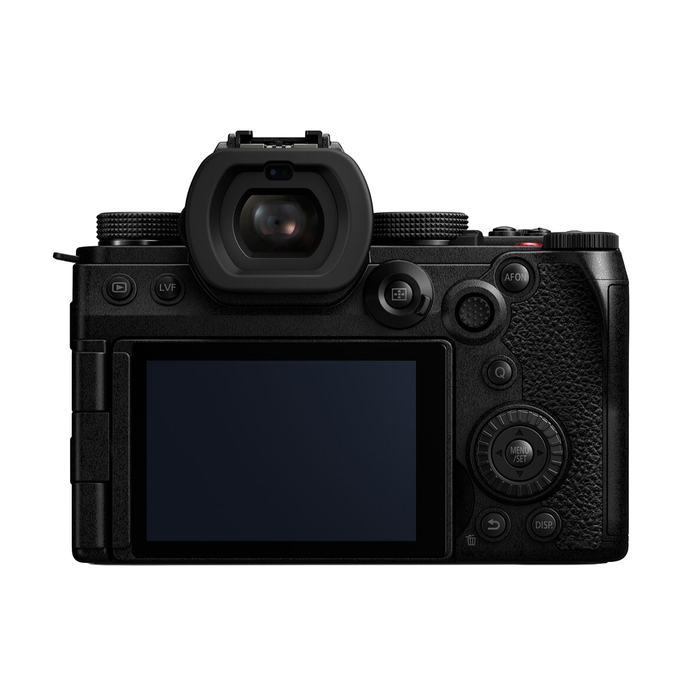

Panasonic Lumix S5 IIX Mirrorless Camera

Original price $2,199.99
Original price $2,199.99 - Original price $2,199.99
Original price $2,199.99
Current price $1,999.99
$1,999.99 - $1,999.99
Current price $1,999.99
SKU 88537
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .

Offering fast, accurate phase hybrid autofocus, the LUMIX S5IIX Mirrorless Camera is designed to deliver excellent performance in both photo and video. The 24.2-megapixel 35mm full-frame CMOS sensor complies with PDAF (Phase Detection Auto-Focus) with 5-axis Dual I.S. 2 image stabilization and an imaging engine that's been developed to achieve high resolution, natural description, and approximately 2x higher-speed signal procession for high bit-rate video recording. With the high dynamic range and broad colors of a 14+ stop V-Log/V-Gamut capture, and an advanced heat dispersion mechanism for unlimited video recording and livestreaming, the S5IIX is developed to meet the demands of ambitious creators with an assertive shooting style. With 5.8K Pro-Res, Pro-Res internal, RAW over HDMI, Wireless/Wired IP streaming.

Features:

  • 24.2-Megapixel 35mm Full-Frame CMOS Sensor: Developed to achieve high resolution, natural description, and approximately 2x higher-speed signal processing, powered by L² Technology
  • Fast, Accurate Phase Hybrid Autofocus: Advanced subject detection and metering technologies capture the target subject in focus even in adverse lighting conditions; once locked on the subject, it keeps tracking even with multiple moving objects
  • Powerful Image Stabilization: LUMIX newly developed Active I.S., which supports walking shots, to further enhance image stabilization in video recording
  • Expressive Video Functionality: 14+ stop V-Log/V-Gamut capture delivers a high dynamic range and broad colors; in-camera photo and video color grading; 5.8K Pro-Res, Pro-Res internal, RAW over HDMI, Wireless/Wired IP streaming
  • Unlimited Video Recording and Livestreaming: Heat dispersion mechanism combines a small fan and high-efficiency heat sink to achieve unlimited video recording and livestreaming while keeping the camera size compact
Glazer's SKU 88537
Manufacturer Panasonic
MFG SKU DC-S5M2XBODY
Product Specs

Image Sensor

Type 35mm full-frame (35.6mm x 23.8mm) CMOS sensor
Camera effective pixels / Total pixels24.20 megapixels / 25.28 megapixels
AR (Anti Reflection) coatingYES
Aspect ratio / Color filter3:2 / Primary color filter
Dust reduction systemImage sensor shift type



Latitude14+ Stops (V-Log)



Still Image



Recording file formatJPEG (DCF, Exif 2.31), RAW
Aspect ratio4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1
File size (Pixels)When using full-frame lenses3:26000x4000(L) / 4272x2848(M) / 3024x2016(S) / 12000x8000(XL)* / 8496x5664(LL)* *High Resolution mode.
4:35328x4000(L) / 3792x2848(M) / 2688x2016(S) / 10656x8000(XL)* / 7552x5664(LL)* *High Resolution mode.
16:96000x3368(L) / 4272x2400(M) / 3024x1704(S) / 12000x6736(XL)* / 8496x4784(LL)* *High Resolution mode.
1:14000x4000(L) / 2848x2848(M) / 2016x2016(S) / 8000x8000(XL)* / 5664x5664(LL)* *High Resolution mode.
65:246000x2208(L)
2:16000x3000(L)
When using APS-C/Super 35mm lenses3:23984x2656(L) / 2880x1920(M) / 2064x1376(S)
4:33536x2656(L) / 2560x1920(M) / 1840x1376(S)
16:93984x2240(L) / 2880x1624(M) / 1920x1080(S)
1:12656x2656(L) / 1920x1920(M) / 1376x1376(S)
Image qualityRAW / RAW+Fine / RAW+Standard / Fine / Standard (High Resolution mode: Combined / RAW / RAW+Fine / Fine)
Color spacesRGB, AdobeRGB



Motion Picture



Recording file formatMOV: H.264/MPEG-4 AVC, H.265/HEVC, Apple ProRes
MP4: H.264/MPEG-4 AVC, H.265/HEVC
Audio formatMOV: LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**)
MP4: AAC (2ch 48kHz/16-bit)
*When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately).
System frequency59.94Hz / 50.00Hz / 24.00Hz
Image area of videoFull / APS-C / PIXEL/PIXEL
MOV (*1) (*2)

*HLG is selectable.
59.94HzFULL[6K] 5952x3968 (3:2)29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[6K] 5952x3136 (17:9)29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[5.9K] 5888x3312 (16:9)29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[C4K] 4096x216029.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[4K] 3840x216029.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[FHD] 1920x1080119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
APS-C / PIXEL/PIXEL[C4K] 4096x216059.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*External USB-SSD recording.
[4K] 3840x216059.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*External USB-SSD recording.
[3.3K] 3328x2496 (4:3)47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*External USB-SSD recording.
[FHD] 1920x1080119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*When Image Area of Video is set to APS-C.
50.00HzFULL[6K] 5952x3968 (3:2)25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[6K] 5952x3136 (17:9)25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[5.9K] 5888x3312 (16:9)25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[C4K] 4096x216025.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[4K] 3840x216025.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[FHD] 1920x1080100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
50.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
APS-C / PIXEL/PIXEL[C4K] 4096x216050.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*External USB-SSD recording.
[4K] 3840x216050.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*External USB-SSD recording.
[3.3K] 3328x2496 (4:3)50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*External USB-SSD recording.
[FHD] 1920x1080100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*When Image Area of Video is set to APS-C.
24.00HzFULL[6K] 5952x3968 (3:2)24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[6K] 5952x3136 (17:9)24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[5.9K] 5888x3312 (16:9)24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[C4K] 4096x216024.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[4K] 3840x216024.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[FHD] 1920x108048.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
APS-C / PIXEL/PIXEL[C4K] 4096x216048.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*External USB-SSD recording.
[4K] 3840x216048.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*External USB-SSD recording.
[3.3K] 3328x2496 (4:3)48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*External USB-SSD recording.
[FHD] 1920x108048.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
ProRes (*1) (*2)59.94HzFULL[5.8K] 5776x3056 (17:9)29.97p, 1.9Gbps (ProRes 422 HQ) / 1.3Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
23.98p, 1.6Gbps (ProRes 422 HQ) / 1.0Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
*External USB-SSD recording.
[C4K] 4096x216029.97p, 972Mbps (ProRes 422 HQ) / 648Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
23.98p, 778Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
*External USB-SSD recording.
[FHD] 1920x108059.94p, 454Mbps (ProRes 422 HQ) / 302Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
29.97p, 227Mbps (ProRes 422 HQ) / 151Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
23.98p, 181Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
APS-C / PIXEL/PIXEL[C4K] 4096x216059.94p, 1.9Gbps (ProRes 422 HQ) / 1.3Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
29.97p, 972Mbps (ProRes 422 HQ) / 648Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
23.98p, 778Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
*External USB-SSD recording.
[3.3K] 3328x2496 (4:3)29.97p, 913Mbps (ProRes 422 HQ) / 609Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
23.98p, 730Mbps (ProRes 422 HQ) / 487Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
*External USB-SSD recording.
[FHD] 1920x108059.94p, 454Mbps (ProRes 422 HQ) / 302Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
29.97p, 227Mbps (ProRes 422 HQ) / 151Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
23.98p, 181Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
50.00HzFULL[5.8K] 5776x3056 (17:9)25.00p, 1.6Gbps (ProRes 422 HQ) / 1.1Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
*External USB-SSD recording.
[C4K] 4096x216025.00p, 811Mbps (ProRes 422 HQ) / 541Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
*External USB-SSD recording.
[FHD] 1920x108050.00p, 378Mbps (ProRes 422 HQ) / 252Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
25.00p, 189Mbps (ProRes 422 HQ) / 126Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
APS-C / PIXEL/PIXEL[C4K] 4096x216050.00p, 1.6Gbps (ProRes 422 HQ) / 1.1Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
25.00p, 811Mbps (ProRes 422 HQ) / 541Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
*External USB-SSD recording.
[3.3K] 3328x2496 (4:3)50.00p, 1.5Gbps (ProRes 422 HQ) / 1.0Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
25.00p, 761Mbps (ProRes 422 HQ) / 508Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
*External USB-SSD recording.
[FHD] 1920x108050.00p, 378Mbps (ProRes 422 HQ) / 252Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
25.00p, 189Mbps (ProRes 422 HQ) / 126Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
24.00HzFULL[5.8K] 5776x3056 (17:9)24.00p, 1.6Gbps (ProRes 422 HQ) / 1.0Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
*External USB-SSD recording.
[C4K] 4096x216024.00p, 779Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
*External USB-SSD recording.
[FHD] 1920x108024.00p, 182Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
APS-C / PIXEL/PIXEL[C4K] 4096x216024.00p, 779Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
*External USB-SSD recording.
[3.3K] 3328x2496 (4:3)24.00p, 731Mbps (ProRes 422 HQ) / 487Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
*External USB-SSD recording.
[FHD] 1920x108024.00p, 182Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
MP4 (*1)59.94HzFULL[4K] 3840x216029.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x108059.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
APS-C / PIXEL/PIXEL[4K] 3840x216059.94p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x108059.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
50.00HzFULL[4K] 3840x216025.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x108050.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
APS-C / PIXEL/PIXEL[4K] 3840x216050.00p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x108050.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
24.00HzFULL-
APS-C / PIXEL/PIXEL-



Slow & Quick



MOV (*1)59.94HzFULL[FHD] 1920x108059.94p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
59.94p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
29.97p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
23.98p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*Angle of view narrows if you select a frame rate with a number of frames 151 or more.
**External USB-SSD recording.
APS-C[C4K] 4096x216029.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*External USB-SSD recording.
[4K] 3840x216029.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*External USB-SSD recording.
[FHD] 1920x108059.94p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
59.94p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
29.97p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
23.98p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*Angle of view narrows if you select a frame rate with a number of frames 151 or more.
**External USB-SSD recording.
50.00HzFULL[FHD] 1920x108050.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
50.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
25.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
25.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*Angle of view narrows if you select a frame rate with a number of frames 151 or more.
**External USB-SSD recording.
APS-C[C4K] 4096x216025.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
25.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*External USB-SSD recording.
[4K] 3840x216025.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
25.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*External USB-SSD recording.
[FHD] 1920x108050.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
50.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
25.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
25.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*Angle of view narrows if you select a frame rate with a number of frames 151 or more.
**External USB-SSD recording.
24.00HzFULL[FHD] 1920x108024.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
24.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*Angle of view narrows if you select a frame rate with a number of frames 151 or more.
**External USB-SSD recording.
APS-C[C4K] 4096x216024.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
24.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*External USB-SSD recording.
[4K] 3840x216024.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
24.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*External USB-SSD recording.
[FHD] 1920x108024.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
24.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*Angle of view narrows if you select a frame rate with a number of frames 151 or more.
**External USB-SSD recording.



EXTERNAL USB-SSD RECORDINGYes (ON / OFF)



HDMI Raw Data Output



Compatible external devicesATOMOS HDMI field monitor/recorder "Ninja V+"
*Selectable recording mode depends on the firmware version of ATOMOS Ninja V+.
*Please refer to the ATOMOS website for the information on the corresponding firmware version of ATOMOS Ninja V+.
*All functions may not be available depending on the situation.
Rec quality59.94HzFULL[5.9K] 5888x3312 (16:9)29.97p, 12-bit (LPCM)
23.98p, 12-bit (LPCM)
APS-C[4.1K] 4128x2176 (17:9)59.94p, 12-bit (LPCM)
29.97p, 12-bit (LPCM)
23.98p, 12-bit (LPCM)
[3.5K] 3536x2656 (4:3)29.97p, 12-bit (LPCM)
23.98p, 12-bit (LPCM)
50.00HzFULL[5.9K] 5888x3312 (16:9)25.00p, 12-bit (LPCM)
APS-C[4.1K] 4128x2176 (17:9)50.00p, 12-bit (LPCM)
25.00p, 12-bit (LPCM)
[3.5K] 3536x2656 (4:3)50.00p, 12-bit (LPCM)
25.00p, 12-bit (LPCM)
Audio formatLPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**)
*When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately).



Streaming



Wi-FiProtocolRTMP / RTMPS
59.94Hz[FHD] 1920x108059.94p, 16Mbps* / 8Mbps (H.264) *Not selectable when RTMPS is set.
29.97p, 6Mbps / 3Mbps (H.264)
[HD] 1280x72059.94p, 6Mbps (H.264)
29.97p, 4Mbps (H.264)
50.00Hz[FHD] 1920x108050.00p, 16Mbps* / 8Mbps (H.264) *Not selectable when RTMPS is set.
25.00p, 6Mbps / 3Mbps (H.264)
[HD] 1280x72050.00p, 6Mbps (H.264)
25.00p, 4Mbps (H.264)
USB TetheringProtocolRTMP / RTMPS
59.94Hz[4K] 3840x216029.97p, 12.5Mbps (H.264)
[FHD] 1920x108059.94p, 16Mbps / 8Mbps (H.264)
29.97p, 6Mbps / 3Mbps (H.264)
[HD] 1280x72059.94p, 6Mbps (H.264)
29.97p, 4Mbps (H.264)
50.00Hz[4K] 3840x216025.00, 12.5Mbps (H.264)
[FHD] 1920x108050.00p, 16Mbps / 8Mbps (H.264)
25.00p, 6Mbps / 3Mbps (H.264)
[HD] 1280x72050.00p, 6Mbps (H.264)
25.00p, 4Mbps (H.264)
Wired LANProtocolRTP / RTSP
59.94Hz[4K] 3840x216059.94p, 50Mbps / 25Mbps (H.265)*
59.94p, 50Mbps / 25Mbps (H.264)*
29.97p, 25Mbps / 12.5Mbps (H.265)
29.97p, 25Mbps / 12.5Mbps (H.264)
*When Image Area of Video is set to APS-C or PIXEL/PIXEL.
[FHD] 1920x108059.94p, 20Mbps / 16Mbps (H.265)
59.94p, 16Mbps / 8Mbps (H.264)
29.97p, 12Mbps / 6Mbps (H.265)
29.97p, 6Mbps / 3Mbps (H.264)
[HD] 1280x72059.94p, 6Mbps (H.264)
29.97p, 4Mbps (H.264)
50.00Hz[4K] 3840x216050.00p, 50Mbps / 25Mbps (H.265)*
50.00p, 50Mbps / 25Mbps (H.264)*
25.00p, 25Mbps / 12.5Mbps (H.265)
25.00p, 25Mbps / 12.5Mbps (H.264)
*When Image Area of Video is set to APS-C or PIXEL/PIXEL.
[FHD] 1920x108050.00p, 20Mbps / 16Mbps (H.265)
50.00p, 16Mbps / 8Mbps (H.264)
25.00p, 12Mbps / 6Mbps (H.265)
25.00p, 6Mbps / 3Mbps (H.264)
[HD] 1280x72050.00p, 6Mbps (H.264)
25.00p, 4Mbps (H.264)



Viewfinder



TypeOLED Live View Finder
PixelsApprox. 3.68 million dots
Field of view / MagnificationApprox. 100% / Approx. 0.78x with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 3:2
Eye point / Diopter adjustmentApprox. 21 mm at infinity; -1.0 m-1 / -4.0 - +2.0 (dpt)
Eye sensorYes
Display speed120fps / 60fps



Rear Monitor



TypeTFT LCD monitor with static touch control
Monitor sizeFree-angle, 3.0-inch (7.6cm), 3:2 aspect
PixelsApprox. 1.84 million dots
Field of viewApprox. 100%



Focus



TypePhase Detection AF system / Contrast AF system
DFD technologyYes
Focus modeAFS (Single) / AFC (Continuous) / MF
AF modeTracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint
*Automatic Detection can be turned ON to switch between Human/ Face/Eye/ Animal+Human. Except when Pinpoint is set.
AF detective rangeEV -6 - 18 (F1.4, ISO100 equivalent, AFS)
AF custom settingAF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
AF assist lightYes
AF lockSet the Fn button in custom menu to AF lock
Focus ring controlNonlinear / Linear (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum)
OthersAF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, 1-Area AF Moving Speed, AF Micro Adjustment, Continuous AF (during motion picture recording), Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, Shutter AF, Half Press Shutter, Quick AF, Eye Sensor AF, Loop Focus Frame, Enlarged Live Display (Video), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resum



Exposure Control



Light metering system1,728-zone multi-pattern sensing system
Light metering modeMultiple / Center Weighted / Spot / Highlight Weighted
Metering rangeEV0-18 (F2.0 lens, ISO100 equivalent)
Mode dialProgram AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Creative Video (P/A/S/M)* / Slow&Quick / Custom 1, 2, 3 / Intelligent Auto
*The same exposure operations as P/A/S/M mode is available.
Exposure compensation1/3 EV step ±5EV (±3EV for motion picture)
ISO sensitivity (Standard output sensitivity)[Normal]
Auto / 50* / 100-51200 / 102400* / 204800* (1/3 or 1 EV step) *Extended ISO

[V-Log]
Auto / 320* / 640-51200 (1/3 or 1 EV step) *Extended ISO

[HLG]
Auto / 400-51200 / 102400* / 204800* (1/3 or 1 EV step) *Extended ISO
Dual Native ISO[Normal]
Native ISO: 100, 640
Auto: Auto / 50* / 100-51200 / 102400* / 204800* *Extended ISO
Low: Auto / 50* / 100-800 *Extended ISO
High: Auto / 320* / 640-51200 / 102400* / 204800* *Extended ISO

[V-Log]
Native ISO: 640, 4000
Auto: Auto / 320* / 640-51200 *Extended ISO
Low: Auto / 320* / 640-5000 *Extended ISO
High: Auto / 2000* / 4000-51200 *Extended ISO

[HLG]
Native ISO: 400, 2500
Auto: Auto / 400-51200 / 102400* / 204800* *Extended ISO
Low: Auto / 400-3200
High: Auto / 2500-51200 / 102400* / 204800* *Extended ISO

[Cinelike D2 / Cinelike V2]
Native ISO: 200, 1250
Auto: Auto / 100* / 200-51200 / 102400* / 204800* *Extended ISO
Low: Auto /100* / 200-1600 *Extended ISO
High: Auto / 640* / 1250-51200 / 102400* / 204800* *Extended ISO
AE lockSet the Fn button in custom menu to AE lock





Image Stabiliaztion SystemB.I.S. (5-axis / 5-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm when S-R2060 is used.]
Dual I.S. 2 (6.5-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used.]



White Balance



White balanceAWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
White balance adjustmentBlue/Amber bias, Magenta/Green bias
Color temperature setting2500-10000K in 100K



SHUTTERTypeFocal-plane shutter
Shutter speedStill image: Bulb (Max. 30 minutes), 1/8,000 - 60
Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
Electronic shutter: Bulb (Max. 60 sec), 1/8,000 - 60
Motion picture: 1/16,000 - 1/25
Creative Video M mode / MF mode: 1/16,000 - 1/2
Self timer10sec, 3 images / 2sec / 10sec / Custom Time
Remote controlRemote control by DMW-RS2 (sold separately)
Silent mode / Shutter typeYes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)
BRACKETAE bracket3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
Aperture bracket3, 5 or all positions
Focus bracket1 to 999 images, focus steps can be set in 10 levels
White balance bracket3 images in blue/amber axis or in magenta/green axis, color temperature setting
BURST SHOOTINGBurst speedMechanical shutter /
Electronic front curtain shutter
H: 9 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View)
M: 5 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
L: 2 frames/sec (AFS/AFC/MF) (with Live View)
Electronic shutterSH30: 30 frames/sec (AFS/AFC/MF)
H: 9 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View)
M: 5 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
L: 2 frames/sec (AFS/AFC/MF) (with Live View)
Number of recordable imagesH/M/L*
RAW+JPEG: More than 200 images
RAW: More than 200 images
JPEG: More than 300 images
*Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.
*When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)".

SH
RAW / RAW+JPEG / JPEG: 200 images



Color Setting



Photo StylePhoto StyleStandard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log / REAL TIME LUT / Like2100 (HLG) / Like2100 (HLG) Full Range* / My Photo Style 1-4 (5-10)*
*Set to ON from Show/Hide Photo Style to select.
Picture adjustmentContrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / ISO / WB / LUT
*Adjustable settings vary depending on the Photo Style mode.
FilterExpressive / Retro / Old Days / High Key / Low Key / Sepia / Cross Process / Bleach Bypass
LUT LibraryVlog_709 / Set 1-10
*REAL TIME LUT in Photo Style, Apply LUT in Fn button, Apply LUT in RAW Processing, LUT View Assist in V-Log View Assist, LUT can be applied from these settings.



VERTICAL POSITION INFORMATIONStill image / Motion picture (ON/OFF)
LEVEL GAUGEYes
FUNCTION BUTTONRECExposure Comp. / Dual Native ISO / Sensitivity / White Balance / Photo Style / Apply LUT / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Color Shading Compensation / Filter Effect / One Push AE / Touch AE / AWB Lock / Exposure Mode / Synchro Scan / AF Mode / AF Detection Setting / Detecting Subject / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Limiter / Focus Limiter Range Set / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / Focus Area Set / Enlarged Live Display (Video) / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode Setting / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Rec. File Format / Rec Quality / Rec Quality (My List) / Slow & Quick Setting / Time Code Display / Audio Information / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Quality / Sound Rec Level Limiter / 4ch Mic Input / XLR Mic Adaptor Setting / Sound Monitoring Channel / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Live Cropping / Q.MENU / Rec/Playback Switch / Video Record / Video Record (Creative Video) / LVF/Monitor Switch / Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Video-Priority Display / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control / AF Micro Adjustment / Lens Information / Destination Card Slot / Wi-Fi / Fan Mode / Save to Custom Mode / No Setting / Off (Disable Press and Hold) / Restore to Default
PLAYMagnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Video Record (Creative Video) / Night Mode / Card Slot Change / Sound Monitoring Channel(Play) / Wi-Fi / Fan Mode / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / No Setting / Off (Disable Press and Hold) / Restore to Default
OSD LANGUAGEPlease refer to "OSD" Sheet
TC IN/OUTCount upRec Run / Free Run
Time code modeDrop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.)
HDMI time code outputON / OFF
FANAuto1 / Auto2 / Fast / Normal / Slow* / OFF**
*Not selectable when the resolution is higher than C4K, or the frame rate is higher than 60p.
**OFF can be set when in iA/P/A/S/M mode.
WIRELESSWi-Fi2.4GHz bands (STA/AP) (IEEE802.11b/g/n)
5GHz bands (STA) (IEEE 802.11a/n/ac)
Security: WPA/WPA2/WPA3
Please refer to "Wi-Fi" Sheet
BluetoothBluetooth® v5.0 (Bluetooth Low Energy (BLE))
DUST AND SPLASH RESISTANT*Yes.
*Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.



Motion Picture Function

Time lapse shotYes
Stop motion animationYes
Live croppingYes (Supports cropping from 5.9K (FULL) 30p/25p/24p video to 4K/FHD sizes)
SS/Gain operationShutter Duration/ISO / Angle/ISO / Shutter Duration/dB
Luminance level8-bit: 0-255 / 16-235 / 16-255
10-bit: 0-1023 / 64-940 / 64-1023
Synchro scanYes
Master pedestal level31 steps
Color bars / 1kHz test toneYes (SMPTE / EBU / ARIB) / Yes
LUT view assistSupported file types: .vlt, .cube
Monitor / HDMI
HLG view assistMonitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF)
Anamorphic desqueeze display2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
Wave form monitor / VectorscopeSelectable
Knee controlYes (in Like709 mode)
Red REC frame indicatorON / OFF



Interface



USBUSB Type-C (SuperSpeed USB 10Gbps (USB 3.2 Gen2))
HDMI (*2)HDMIHDMI TypeA
Audio: ON / OFF, MP4: 2ch, MOV: 2ch (When [4ch Mic Input] is set to OFF.), 4ch (When [4ch Mic Input] is set to ON.)
Monitor-through4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
Playback59.94Hz: C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p* / 480p*
50.00Hz: C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p* / 576p*
24.00Hz: C4K/24p / 4K/24p / 1080p
*Only for playback.
Remote inputφ2.5mm
AudioBuild-in microphoneStereo
Wind Noise Canceller: OFF / Standard / High
External microphone / External audio device inputφ3.5mm for external microphone / external audio device
MIC (Plug-in Power) / MIC / LINE
Wind Cut: OFF / Low / Standard / High *When attaching 3.5mm microphone (sold separately).
Special Mic: Stereo / Shotgun *When attaching DMW-MS2 (sold separately).
XLR microphoneYes with DMW-XLR1 (sold separately)
4ch mic inputYes with DMW-XLR1 (sold separately)
SpeakerMonaural
Headphone outputφ3.5mm
SD card slotSlot 1, Slot 2
SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
*Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.



Power

BatteryLi-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
USB power supply, USB power charging, USB power delivery
Battery life (CIPA standard)Approx. 370 images, 1,250 images (Power Save LVF mode*) with S-R2060
Approx. 370 images, 1,200 images (Power Save LVF mode*) with S-S50
*Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
Continuous recordable time (Motion picture) (*1)MP4 [4K/60p]: Approx. 90 min (APS-C), MP4 [FHD/60p]: Approx. 130 min (FULL) *When using S-R2060 / S-S50. When the battery is fully charged.
Actual recordable time (Motion picture) (*1)MP4 [4K/60p]: Approx. 45 min (APS-C), MP4 [FHD/60p]: Approx. 65 min (FULL) *When using S-R2060 / S-S50. When the battery is fully charged.
Battery gripDMW-BGS5 (sold separately)



DIMENSIONS / WEIGHTDimensions (W x H x D)Approx. 134.3 x 102.3 x 90.1 mm / 5.29 x 4.03 x 3.55 inch (Body only, excluding protrusions)
Approx. 134.3 x 102.3 x 157.0 mm / 5.29 x 4.03 x 6.19 inch (with S-R2060, excluding protrusions)
Approx. 134.3 x 102.3 x 151.8 mm / 5.29 x 4.03 x 5.98 inch (with S-S50, excluding protrusions)
WeightApprox. 740g / 1.64 lb (Body, Hot Shoe Cover, Battery, SD Memory Card x 1) (excluding body cap)
Approx. 657g / 1.45 lb (Body, Hot Shoe Cover) (excluding body cap)
OPERATING ENVIRONMENTOperating temperature (*3)0℃ to 40℃ (32℉ to 104℉)
Operating humidity10%RH to 80%RH
(*1) About motion picture recording

- The cards that can be used for recording vary depending on the motion pictures bit rate and format type.
Motion pictures with 72Mbps or less: External USB-SSD, SD memory card with SD Speed Class with Class 10 or Video Speed Class 10 or higher
Motion pictures with 200Mbps or less: External USB-SSD, SD memory card with UHS-I / UHS-II UHS Speed Class 3 (U3) or Video Speed Class 30 or higher
Motion pictures with 400Mbps or less: External USB-SSD, SD memory card with Video Speed Class 60 or higher
Motion pictures with 600Mbps or less: External USB-SSD, SD memory card with Video Speed Class 90
Motion pictures with 800Mbps or more or ProRes: External USB-SSD

- A new file will be created to continue recording if the continuous recording time exceeds the following conditions.
Motion pictures with less than 72Mbps: 30 minutes
Motion pictures with 72Mbps or more: 3 hours 4 minutes

- A new file will be created to continue recording if the file size exceeds the following conditions.
[MP4] in [FHD]: 4GB
[MP4] in [4K]: 96GB
[MOV] in 600Mbps or less: 192GB
[MOV] in 800Mbps: 640GB
[ProRes] in [5.7K]: 640GB

- If the resolution is higher than C4K, the frame rate is higher than 60p or set to ProRes, the camera may stop the recording to protect itself. Wait until the camera cools down.

(*2) High-res audio is selectable only when attaching Φ3.5mm microphone or DMW-XLR1 (sold separately).
(*3) About AF
- Automatic Detection is not available for High Frame Rate video shooting above 60p (100p or 120p).
- Tracking and Automatic Detection are not available when using HDMI cable or USB connection cable for High Frame Rate video shooting (100p or 120p) above 60p.

(*4) To output motion pictures with 4K or higher, use a Premium High Speed HDMI cable (Type A - Type A plug).
