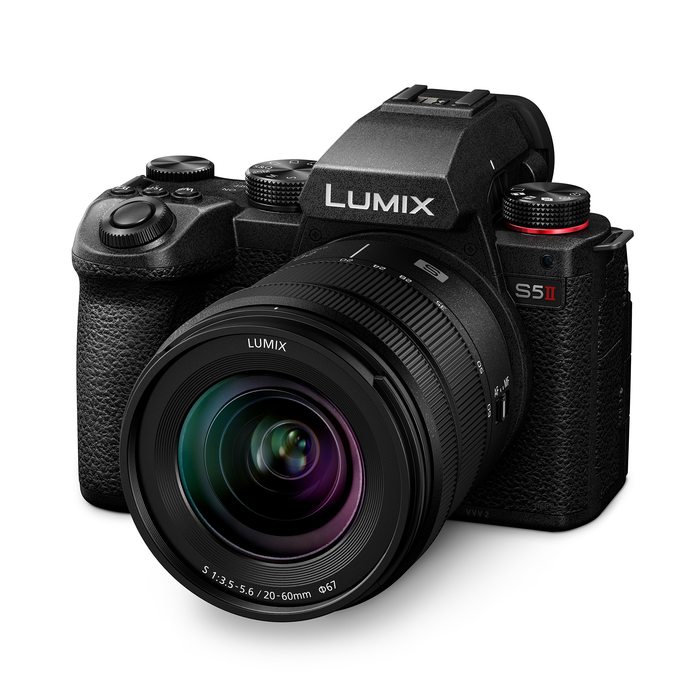

Panasonic Lumix S5 II Mirrorless Camera with 20-60mm Lens

Name: Panasonic Lumix S5 II Mirrorless Camera with 20-60mm Lens
Brand: Panasonic
SKU: 88530
Price: 1799.99 USD
Availability: InStock

by Panasonic

$2,299.99

$2,299.99 - $2,299.99

$2,299.99

$1,799.99

$1,799.99 - $1,799.99

$1,799.99

SKU 88530

Minimum quantity allowed is .

Maximum quantity allowed is .

The product can be bought in quantity increments of .

Description
Additional Information

Offering fast, accurate phase hybrid autofocus, the Panasonic LUMIX S5II Mirrorless Camera is designed to deliver excellent performance in both photo and video. The 24.2-megapixel 35mm full-frame CMOS sensor complies with PDAF (Phase Detection Auto-Focus) with 5-axis Dual I.S. 2 image stabilization and an imaging engine that's been developed to achieve high resolution, natural description, and approximately 2x higher-speed signal procession for high bit-rate video recording. With the high dynamic range and broad colors of a 14+ stop V-Log/V-Gamut capture, and an advanced heat dispersion mechanism for unlimited video recording and livestreaming, the S5II is developed to meet the demands of ambitious creators with an assertive shooting style.

Features:

24.2-Megapixel 35mm Full-Frame CMOS Sensor: Developed to achieve high resolution, natural description, and approximately 2x higher-speed signal processing, powered by L² Technology
Fast, Accurate Phase Hybrid Autofocus: Advanced subject detection and metering technologies capture the target subject in focus even in adverse lighting conditions; once locked on the subject, it keeps tracking even with multiple moving objects
Powerful Image Stabilization: LUMIX newly developed Active I.S., which supports walking shots, to further enhance image stabilization in video recording
Expressive Video Functionality: 14+ stop V-Log/V-Gamut capture delivers a high dynamic range and broad colors, plus a REAL TIME LUT function is provided to enable in-camera photo and video color grading, with LUT6K 30p Open Gate unlimited recording
Unlimited Video Recording: Heat dispersion mechanism combines a small fan and high-efficiency heat sink to achieve unlimited video recording while keeping the camera size compact

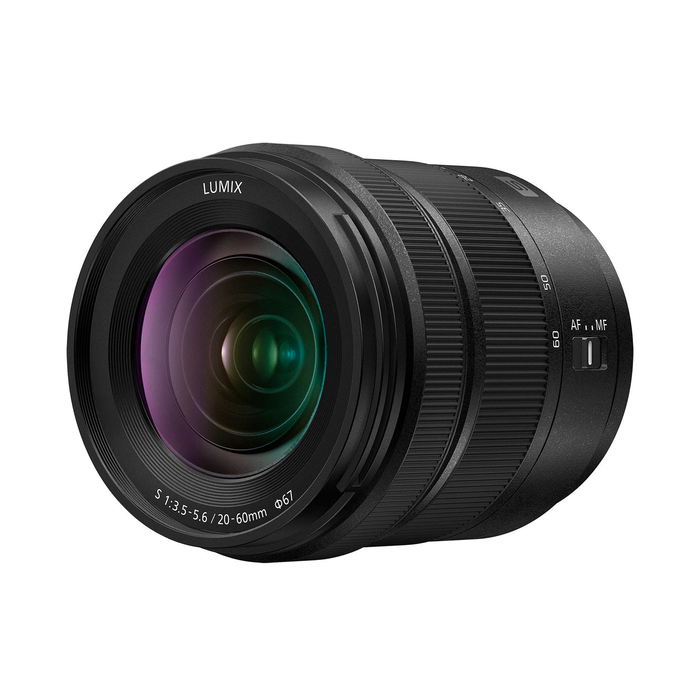

The LUMIX S 20-60mm F3.5-5.6 is a compact, lightweight standard zoom lens in a L-mount/full-frame format. Covering from ultra wide 20mm to standard 60mm focal length, it supports versatile shooting opportunities from landscapes to snapshots. Wide view angle makes it easier to shoot indoors where room space is limited and minimum focusing distance of 5.9-inch (maximum magnification 0.43x) supports close-up photography.

FEATURES:

Versatile Focal Length: Standard zoom lens covering ultra wide 20mm to standard 60mm in a compact, lightweight body, with compatibility for 67mm threaded filters.
Close up Capability: Enables close-up shooting with minimum focusing distance of 5.9inch
Video Support: Excels in video recording performance with smooth exposure changes and suppressed focus breathing
Rugged Design: Dust/splash/freeze-resistant design withstands heavy field use under harsh conditions

Glazer's SKU

88530

Manufacturer

Panasonic

MFG SKU

DC-S5M2KK

Product Specs

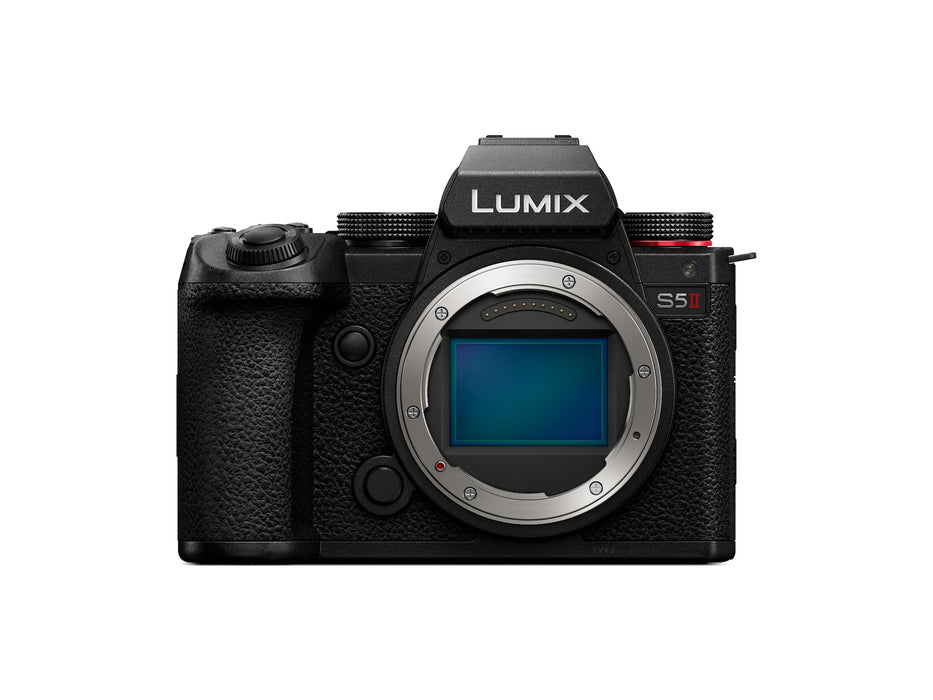

Image Sensor

Type	Digital Single Lens Mirrorless camera
Lens mount	L-Mount
Type	35mm full-frame (35.6mm x 23.8mm) CMOS sensor
Camera effective pixels / Total pixels	24.20 megapixels / 25.28 megapixels
AR (Anti Reflection) coating	YES
Aspect ratio / Color filter	3:2 / Primary color filter
Dust reduction system	Image sensor shift type

Latitude

14+ Stops (V-Log)

Still Image

Recording file format			JPEG (DCF, Exif 2.31), RAW
Aspect ratio			4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1
File size (Pixels)	When using full-frame lenses	3:2	6000x4000(L) / 4272x2848(M) / 3024x2016(S) / 12000x8000(XL)* / 8496x5664(LL)* *High Resolution mode.
		4:3	5328x4000(L) / 3792x2848(M) / 2688x2016(S) / 10656x8000(XL)* / 7552x5664(LL)* *High Resolution mode.
		16:9	6000x3368(L) / 4272x2400(M) / 3024x1704(S) / 12000x6736(XL)* / 8496x4784(LL)* *High Resolution mode.
		1:1	4000x4000(L) / 2848x2848(M) / 2016x2016(S) / 8000x8000(XL)* / 5664x5664(LL)* *High Resolution mode.
		65:24	6000x2208(L)
		2:1	6000x3000(L)
	When using APS-C/Super 35mm lenses	3:2	3984x2656(L) / 2880x1920(M) / 2064x1376(S)
		4:3	3536x2656(L) / 2560x1920(M) / 1840x1376(S)
		16:9	3984x2240(L) / 2880x1624(M) / 1920x1080(S)
		1:1	2656x2656(L) / 1920x1920(M) / 1376x1376(S)
Image quality			RAW / RAW+Fine / RAW+Standard / Fine / Standard (High Resolution mode: Combined / RAW / RAW+Fine / Fine)
Color space			sRGB, AdobeRGB

Motion Picture

Recording file format			MOV: H.264/MPEG-4 AVC, H.265/HEVC MP4: H.264/MPEG-4 AVC, H.265/HEVC
Audio format			MOV: LPCM (2ch 48kHz/24-bit, 96kHz/24-bit) (4ch 48kHz/24-bit, 96kHz/24-bit) MP4: AAC (2ch 48kHz/16-bit) When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately).
System frequency			59.94Hz / 50.00Hz / 24.00Hz
Image area of video			Full / APS-C / PIXEL/PIXEL
*MOV (1) (2)* *HLG is selectable.	59.94Hz	FULL	[6K] 5952x3968 (3:2)	29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[6K] 5952x3136 (17:9)	29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[5.9K] 5888x3312 (16:9)	29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[C4K] 4096x2160	29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[4K] 3840x2160	29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[FHD] 1920x1080	119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
		APS-C / PIXEL/PIXEL	[C4K] 4096x2160	59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[4K] 3840x2160	59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[3.3K] 3328x2496 (4:3)	47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[FHD] 1920x1080	119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)* 119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *When Image Area of Video is set to APS-C.
	50.00Hz	FULL	[6K] 5952x3968 (3:2)	25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[6K] 5952x3136 (17:9)	25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[5.9K] 5888x3312 (16:9)	25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[C4K] 4096x2160	25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[4K] 3840x2160	25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[FHD] 1920x1080	100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
		APS-C / PIXEL/PIXEL	[C4K] 4096x2160	50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[4K] 3840x2160	50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[3.3K] 3328x2496 (4:3)	50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[FHD] 1920x1080	100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)* 100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *When Image Area of Video is set to APS-C.
	24.00Hz	FULL	[6K] 5952x3968 (3:2)	24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[6K] 5952x3136 (17:9)	24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[5.9K] 5888x3312 (16:9)	24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[C4K] 4096x2160	24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[4K] 3840x2160	24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[FHD] 1920x1080	48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
		APS-C / PIXEL/PIXEL	[C4K] 4096x2160	48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[4K] 3840x2160	48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[3.3K] 3328x2496 (4:3)	48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[FHD] 1920x1080	48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*MP4 (1)**	59.94Hz	FULL	[4K] 3840x2160	29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) HLG is selectable. 23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) *HLG is selectable. 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
		FULL	[FHD] 1920x1080	59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
		APS-C / PIXEL/PIXEL	[4K] 3840x2160	59.94p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) HLG is selectable. 29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) HLG is selectable. 23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) *HLG is selectable. 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
		APS-C / PIXEL/PIXEL	[FHD] 1920x1080	59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
	50.00Hz	FULL	[4K] 3840x2160	25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
		FULL	[FHD] 1920x1080	50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
		APS-C / PIXEL/PIXEL	[4K] 3840x2160	50.00p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) HLG is selectable. 25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) *HLG is selectable. 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
		APS-C / PIXEL/PIXEL	[FHD] 1920x1080	50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
	24.00Hz	FULL	-
	24.00Hz	APS-C / PIXEL/PIXEL	-

Slow & Quick

*MOV (1)**	59.94Hz	FULL	[FHD] 1920x1080	59.94p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) Angle of view narrows if you select a frame rate with a number of frames 151 or more.
		APS-C	[C4K] 4096x2160	29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[4K] 3840x2160	29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[FHD] 1920x1080	59.94p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) Angle of view narrows if you select a frame rate with a number of frames 151 or more.
	50.00Hz	FULL	[FHD] 1920x1080	50.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 25.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
		APS-C	[C4K] 4096x2160	25.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[4K] 3840x2160	25.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[FHD] 1920x1080	50.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 25.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
	24.00Hz	FULL	[FHD] 1920x1080	24.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) Angle of view narrows if you select a frame rate with a number of frames 151 or more.
		APS-C	[C4K] 4096x2160	24.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[4K] 3840x2160	24.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[FHD] 1920x1080	24.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) Angle of view narrows if you select a frame rate with a number of frames 151 or more.

Viewfinder

Type	OLED Live View Finder
Pixels	Approx. 3.68 million dots
Field of view / Magnification	Approx. 100% / Approx. 0.78x with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 3:2
Eye point / Diopter adjustment	Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +2.0 (dpt)
Eye sensor	Yes
Display speed	120fps / 60fps

Rear Monitor

Type			TFT LCD monitor with static touch control
Monitor size			Free-angle, 3.0-inch (7.6cm), 3:2 aspect
Pixels			Approx. 1.84 million dots
Field of view			Approx. 100%

Focus

Type			Phase Detection AF system / Contrast AF system
DFD technology			Yes
Focus mode			AFS (Single) / AFC (Continuous) / MF
AF mode			Tracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint *Automatic Detection can be turned ON to switch between Human/ Face/Eye/ Animal+Human. Except when Pinpoint is set.
AF detective range			EV -6 - 18 (F1.4, ISO100 equivalent, AFS)
AF custom setting			AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
AF assist light			Yes
AF lock			Set the Fn button in custom menu to AF lock
Focus ring control			Nonlinear / Linear (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum)
Others			AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, 1-Area AF Moving Speed, AF Micro Adjustment, Continuous AF (during motion picture recording), Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, Shutter AF, Half Press Shutter, Quick AF, Eye Sensor AF, Loop Focus Frame, Enlarged Live Display (Video), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resum

Exposure Control

Light metering system			1,728-zone multi-pattern sensing system
Light metering mode			Multiple / Center Weighted / Spot / Highlight Weighted
Metering range			EV0-18 (F2.0 lens, ISO100 equivalent)
Mode dial			Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Creative Video (P/A/S/M)* / Slow&Quick / Custom 1, 2, 3 / Intelligent Auto *The same exposure operations as P/A/S/M mode is available.
Exposure compensation			1/3 EV step ±5EV (±3EV for motion picture)
ISO sensitivity (Standard output sensitivity)			[Normal] Auto / 50* / 100-51200 / 102400* / 204800* (1/3 or 1 EV step) Extended ISO [V-Log] Auto / 320 / 640-51200 (1/3 or 1 EV step) Extended ISO [HLG] Auto / 400-51200 / 102400 / 204800* (1/3 or 1 EV step) *Extended ISO
Dual Native ISO			[Normal] Native ISO: 100, 640 Auto: Auto / 50* / 100-51200 / 102400* / 204800* Extended ISO Low: Auto / 50 / 100-800 Extended ISO High: Auto / 320 / 640-51200 / 102400* / 204800* Extended ISO [V-Log] Native ISO: 640, 4000 Auto: Auto / 320 / 640-51200 Extended ISO Low: Auto / 320 / 640-5000 Extended ISO High: Auto / 2000 / 4000-51200 Extended ISO [HLG] Native ISO: 400, 2500 Auto: Auto / 400-51200 / 102400 / 204800* Extended ISO Low: Auto / 400-3200 High: Auto / 2500-51200 / 102400 / 204800* Extended ISO [Cinelike D2 / Cinelike V2] Native ISO: 200, 1250 Auto: Auto / 100 / 200-51200 / 102400* / 204800* Extended ISO Low: Auto /100 / 200-1600 Extended ISO High: Auto / 640 / 1250-51200 / 102400* / 204800* *Extended ISO
AE lock			Set the Fn button in custom menu to AE lock

Image Stabilization System

'B.I.S. (5-axis / 5-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm when S-R2060 is used.] Dual I.S. 2 (6.5-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used.]

White Balance

White balance			AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
White balance adjustment			Blue/Amber bias, Magenta/Green bias
Color temperature setting			2500-10000K in 100K

Shutter

Type			Focal-plane shutter
Shutter speed			Still image: Bulb (Max. 30 minutes), 1/8,000 - 60 Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60 Electronic shutter: Bulb (Max. 60 sec), 1/8,000 - 60 Motion picture: 1/16,000 - 1/25 Creative Video M mode / MF mode: 1/16,000 - 1/2
Self timer			10sec, 3 images / 2sec / 10sec / Custom Time
Remote control			Remote control by DMW-RS2 (sold separately)
Silent mode / Shutter type			Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)

Bracket

AE bracket			3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
Aperture bracket			3, 5 or all positions
Focus bracket			1 to 999 images, focus steps can be set in 10 levels
White balance bracket			3 images in blue/amber axis or in magenta/green axis, color temperature setting

Burst Shooting

Burst speed	Mechanical shutter / Electronic front curtain shutter	H: 9 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View) M: 5 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View) L: 2 frames/sec (AFS/AFC/MF) (with Live View)
	Electronic shutter	SH30: 30 frames/sec (AFS/AFC/MF) H: 9 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View) M: 5 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View) L: 2 frames/sec (AFS/AFC/MF) (with Live View)
Number of recordable images		H/M/L* RAW+JPEG: More than 200 images RAW: More than 200 images JPEG: More than 300 images Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic. When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)". SH RAW / RAW+JPEG / JPEG: 200 images

Color Setting

Photo Style	Photo Style	Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log / REAL TIME LUT / Like2100 (HLG) / Like2100 (HLG) Full Range* / My Photo Style 1-4 (5-10)* *Set to ON from Show/Hide Photo Style to select.
	Picture adjustment	Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / ISO / WB / LUT *Adjustable settings vary depending on the Photo Style mode.
Filter		Expressive / Retro / Old Days / High Key / Low Key / Sepia / Cross Process / Bleach Bypass
LUT Library		Vlog_709 / Set 1-10 *REAL TIME LUT in Photo Style, Apply LUT in Fn button, Apply LUT in RAW Processing, LUT View Assist in V-Log View Assist, LUT can be applied from these settings.

Motion Picture Function

Time lapse shot			Yes
Stop motion animation			Yes
Live cropping			Yes (Supports cropping from 5.9K (FULL) 30p/25p/24p video to 4K/FHD sizes)
SS/Gain operation			Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
Luminance level			8-bit: 0-255 / 16-235 / 16-255 10-bit: 0‒1023 / 64‒940 / 64‒1023
Synchro scan			Yes
Master pedestal level			31 steps
Color bars / 1kHz test tone			Yes (SMPTE / EBU / ARIB) / Yes
LUT view assist			Supported file types: .vlt, .cube Monitor / HDMI
HLG view assist			Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF)
Anamorphic desqueeze display			2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
Wave form monitor / Vectorscope			Selectable
Knee control			Yes (in Like709 mode)
Red REC frame indicator			ON / OFF

VERTICAL POSITION INFORMATION			Still image / Motion picture (ON/OFF)
LEVEL GAUGE			Yes
FUNCTION BUTTON	REC		Exposure Comp. / Dual Native ISO / Sensitivity / White Balance / Photo Style / Apply LUT / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Color Shading Compensation / Filter Effect / One Push AE / Touch AE / AWB Lock / Exposure Mode / Synchro Scan / AF Mode / AF Detection Setting / Detecting Subject / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Limiter / Focus Limiter Range Set / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / Focus Area Set / Enlarged Live Display (Video) / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode Setting / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Rec. File Format / Rec Quality / Rec Quality (My List) / Slow & Quick Setting / Time Code Display / Audio Information / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Quality / Sound Rec Level Limiter / 4ch Mic Input / XLR Mic Adaptor Setting / Sound Monitoring Channel / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Live Cropping / Q.MENU / Rec/Playback Switch / Video Record / Video Record (Creative Video) / LVF/Monitor Switch / Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Video-Priority Display / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control / AF Micro Adjustment / Lens Information / Destination Card Slot / Wi-Fi / Fan Mode / Save to Custom Mode / No Setting / Off (Disable Press and Hold) / Restore to Default
	PLAY		Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Video Record (Creative Video) / Night Mode / Card Slot Change / Sound Monitoring Channel(Play) / Wi-Fi / Fan Mode / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / No Setting / Off (Disable Press and Hold) / Restore to Default
OSD LANGUAGE			Please refer to "OSD" Sheet
INTERFACE	USB		USB Type-C (SuperSpeed USB 10Gbps (USB 3.2 Gen2))
	*HDMI (2)**	HDMI	HDMI TypeA Audio: ON / OFF, MP4: 2ch, MOV: 2ch (When [4ch Mic Input] is set to OFF.), 4ch (When [4ch Mic Input] is set to ON.)
		Monitor-through	4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].) 4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
		Playback	59.94Hz: C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p* / 480p* 50.00Hz: C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p* / 576p* 24.00Hz: C4K/24p / 4K/24p / 1080p *Only for playback.
	Remote input		φ2.5mm
	Audio	Build-in microphone	Stereo Wind Noise Canceller: OFF / Standard / High
		External microphone / External audio device input	φ3.5mm for external microphone / external audio device MIC (Plug-in Power) / MIC / LINE Wind Cut: OFF / Low / Standard / High When attaching 3.5mm microphone (sold separately). Special Mic: Stereo / Shotgun When attaching DMW-MS2 (sold separately).
		XLR microphone	Yes with DMW-XLR1 (sold separately)
		4ch mic input	Yes with DMW-XLR1 (sold separately)
		Speaker	Monaural
		Headphone output	φ3.5mm
	SD card slot		Slot 1, Slot 2 SD Memory Card / SDHC Memory Card* / SDXC Memory Card* *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
TC IN/OUT	Count up		Rec Run / Free Run
	Time code mode		Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.)
	HDMI time code output		ON / OFF
FAN			Auto1 / Auto2 / Fast / Normal / Slow* / OFF** Not selectable when the resolution is higher than C4K, or the frame rate is higher than 60p. *OFF can be set when in iA/P/A/S/M mode.
WIRELESS	Wi-Fi		2.4GHz bands (STA/AP) (IEEE802.11b/g/n) 5GHz bands (STA) (IEEE 802.11a/n/ac) Security: WPA/WPA2/WPA3 Please refer to "Wi-Fi" Sheet
	Bluetooth		Bluetooth® v5.0 (Bluetooth Low Energy (BLE))
DUST AND SPLASH RESISTANT*			Yes. *Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.
POWER	Battery		Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled) USB power supply, USB power charging, USB power delivery
	Battery life (CIPA standard)		Approx. 370 images, 1,250 images (Power Save LVF mode) with S-R2060 Approx. 370 images, 1,200 images (Power Save LVF mode) with S-S50 *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
	*Continuous recordable time (Motion picture) (1)**		MP4 [4K/60p]: Approx. 90 min (APS-C), MP4 [FHD/60p]: Approx. 130 min (FULL) *When using S-R2060 / S-S50. When the battery is fully charged.
	*Actual recordable time (Motion picture) (1)**		MP4 [4K/60p]: Approx. 45 min (APS-C), MP4 [FHD/60p]: Approx. 65 min (FULL) *When using S-R2060 / S-S50. When the battery is fully charged.
	Battery grip		DMW-BGS5 (sold separately)
DIMENSIONS / WEIGHT	Dimensions (W x H x D)		Approx. 134.3 x 102.3 x 90.1 mm / 5.29 x 4.03 x 3.55 inch (Body only, excluding protrusions) Approx. 134.3 x 102.3 x 157.0 mm / 5.29 x 4.03 x 6.19 inch (with S-R2060, excluding protrusions) Approx. 134.3 x 102.3 x 151.8 mm / 5.29 x 4.03 x 5.98 inch (with S-S50, excluding protrusions)
	Weight		Approx. 740g / 1.64 lb (Body, Hot Shoe Cover, Battery, SD Memory Card x 1) (excluding body cap) Approx. 657g / 1.45 lb (Body, Hot Shoe Cover) (excluding body cap)
