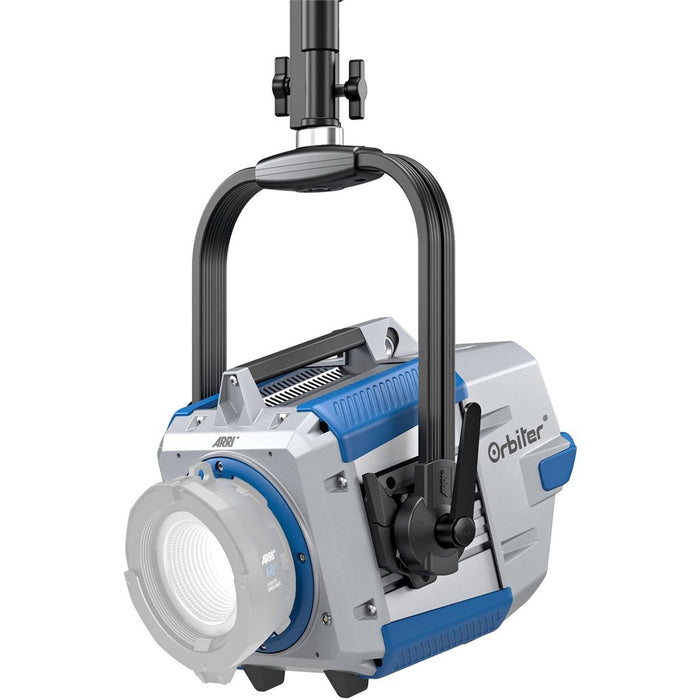

ARRI Orbiter LED Light with Open Face without Lens, Yoke & Cable - Blue/Silver

by ARRI
$6,300.00
SKU 65676
  • Description
  • Additional Information
Orbiter (no Yoke Or Power)

What's new?

Everything.
Orbiter is an ultra-bright, tunable, and directional LED fixture from ARRI. All systems in Orbiter are completely new and designed with versatility in mind.

Changeable Optics
Changeable optics is the core innovation in Orbiter. With a wide variety of optics to choose from, Orbiter transforms into the perfect light for your application without sacrificing beam, output, or color quality. The Quick Lighting Mount (QLM) in Orbiter allows for optics with vastly different properties to be connected to the fixture.

Open Face

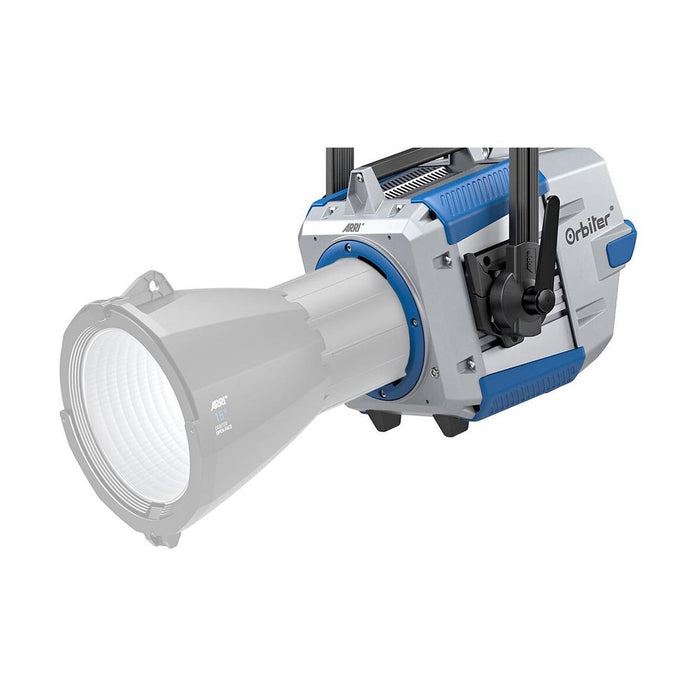

The open face optics produce a high-output, directional beam of light in several different beam angles including 15 Degree , 30 Degree , and 60 Degree . Perfect for throwing light long distances or providing a broad swath of light.

Projection
The high-quality projection optics contain high-end lenses that provide even illumination and color across the entire beam field for superior results. The fixed beam angles available are 15 Degree , 25 Degree , 35 Degree (wider angles may be added in the future). The zoom projection optics allow for flexibility in all kinds of applications.

Dome
The dome optics are fabric spheres available in three different diameters - small (approx. 0.25 m), medium (approx. 0.5 m) and large (approx. 0.9 m). The dome emits omnidirectional light, great for illuminating a large area with a beautiful, soft quality of light.

Light Banks
The light bank adapter creates a direct mounting point for Chimera and DoPchoice products. With easy attachment and no additional optical elements needed, the light bank adapter allows for a controlled soft light with amazing output.

Say hello to ARRI Spectra

Six-Color Light Engine
Including a red, green, blue, amber, cyan, and lime LED, the ARRI Spectra six-color light engine translates into a wider color gamut, more accurate colors, and most importantly, higher color rendition across the entire CCT range.

Wide Gamut
Hues are precisely reproduced and the increased gamut allows for 15% more color possibilities when compared to previous ARRI light engines.

Ultra-High Color Rendering
Orbiter has a larger CCT range of 2,000 to 20,000 K with ultra-high color rendition across all color temperatures. Skin tones look amazing and natural.

Compact Light Engine
Cutting-edge LEDs that have never been used before in a luminaire and their arrangement creates a homogeneous color beam field with amazing brightness.

Color Sensor Mode
The new Color Sensor Mode in Orbiter will read the ambient color surrounding the fixture and reproduce the color with great accuracy. There are two measurement types: continuous and momentary. Continuous will constantly measure the ambient color and update the light output accordingly. Momentary will only take one measurement of the ambient color with the press of a button. This new color mode is perfect in situations where the light is changing. Orbiter can automatically adjust for color changes without any interaction.

Sheer Output
Orbiter is an extremely bright and powerful, directional LED fixture with an output similar to that of the corresponding HMI systems. Orbiter's high, yet tunable, ARRI Spectra light engine output can create hard shadows with defined edges. This revolutionary light engine is 76 times smaller than the L10's light engine but produces the same power draw and greater output. A dense arrangement of over 190 LEDs gives Orbiter a point source-like aperture while maintaining full-color tunability with a new six-color LED mixture. These cutting-edge LEDs have never been used before in a luminaire and the arrangement creates a homogeneous color-beam field with amazing brightness.

Technology Unleashed
A new era of digital lighting is truly upon us. Orbiter is the most technologically advanced luminaire ever to be created for image capture while maintaining superior color fidelity. With state-of-the-art electronics, Orbiter is able to perform more tasks than previous luminaires.

Electronics
Orbiter's processor is four times faster than the SkyPanel with 125 times more memory, setting the stage for extensive software features and updates in the future.

Dimming
Using a combination of three dimming techniques, Orbiter's cutting-edge electronics provide smooth dimming down to zero without color changes or jumps.

Power
Orbiter includes a lightweight internal power supply and a 3-pin XLR battery input for 48 V batteries.

Weatherproof
All of this technology comes in a weatherproof housing which means Orbiter can be used outdoors in rain, snow, and other inclement weather.

Powerful Software
Orbiter is able to take advantage of over five years of software development for the SkyPanel. Orbiter's new software called LiOS (Lighting Operating System) includes all the innovative and groundbreaking features from SkyPanel plus others, making Orbiter one of the most fully-featured luminaires on the market.

8 Color Modes
LiOS' eight-color modes are available including CCT, HSI, individual color, x/y coordinates, gel, source matching, lighting effects, and the new color sensor mode which measures ambient light and recreates it through Orbiter's output.

Operational Modes
Orbiter offers three operational modes to optimize the fixture's performance for different applications. High color rendering mode provides the best color quality possible, high output mode generates the best brightness with slightly lower color rendition, while low noise mode creates a balance for quiet operation with decent output.

Additional Features
Other new features in LiOS include simplified DMX modes, optics recognition, multi-language support, custom boot screen, and many more still to come.

Removable Control Panel
Redesigned from the ground up, the Orbiter control panel is an evolutionary step in light fixture control. Including a 4" full-color display, quick navigation buttons, and integrated sensors, the Orbiter control panel allows for easy use with a graphic user interface. Simplified menu structure and reimagined user interfaces provide one-glance operational views and uncluttered screens. This intuitive design makes changing colors or finding a setting easier than ever before while still maintaining the powerful features Orbiter has to offer. In addition, the control panel is removable and can be used handheld with the aid of a 5 or 15 m (16.4 or 49.2 ft) control panel cable.

Connectivity: Ready for today, prepared for tomorrow
Communication to and from a luminaire is crucial to create robust networks and dynamic control. Orbiter includes a full suite of input and output connectors which enable communication to the fixture in whatever way is required. With all these connectivity interfaces, Orbiter is not only ready for today's state-of-the-art communication but is also prepared for whatever the future might bring.

Full Suite of Sensors
A digital light of the future requires data. Orbiter is aware of the world around it with a variety of sensors that allow for advanced operations, smart automations, and a stream of metadata. All these sensors make for a better user experience and increased control over the fixture. Available data improve workflow also in post-production and service.

Color Sensor
Orbiter includes an integrated color sensor for measuring and matching the ambient light.

3-Axis Accelerometer
A 3-axis accelerometer allows for sensing the pan, tilt, and roll of the fixture. This data will provide future meta data for special effects work or optimizing fixture performance.

Magnetometer
A magnetometer gives Orbiter's heading based on the direction the fixture is pointing in the real world.

Ambient Light Sensor
An ambient light sensor located on the control panel will automatically dim the brightness of the control panel display based on surrounding light intensity.

Heat Sensors
Heat sensors located throughout the interior of the Orbiter will keep the LEDs and electronics at exactly the right temperature.

Large Range of Applications
Orbiter's wide range of optics and features allows the fixture to be used in a great variety of applications without compromising quality. Markets such as film and television production, broadcast, theater and live entertainment, and even still photography are just some examples of environments where Orbiter excels.

Motion Picture
Orbiter's amazing output and versatility makes it the perfect directional light fixture for motion picture use. The ability to throw light long distances with open face or projection optics while at the same time being able to serve as a soft light brings the flexibility needed on today's fast paced film sets. Given its sleek ergonomics and intuitive user interface, the new control panel enables easy handling and control of the luminaire on the fly. The software features and connectivity make Orbiter the ultimate companion for dynamic lighting setups.

Theater & Live Entertainment
The projection optic is the key feature for the theater and live entertainment market. With incredible output that is significantly brighter than comparable products, Orbiter incorporates all the elements needed for theater or live productions. The pristine beam quality creates a precise circle of light that can be shaped with gobos, cutters, and an iris. The ARRI Spectra light engine generates superior white light and a vast amount of saturated or merely tinted colors.

Glazer's SKU 65676
Manufacturer ARRI
MFG SKU L1.0033520
Product Specs
Light Fixture
Color Temperature 2000 to 20,000K
Color Modes Full RGB Tuning
Color Accuracy Standard CRI 98
TLCI 95
Dimming Yes, 0 to 100% (Continuous)
Display LCD
Housing Material Aluminum
Number of LEDs 190 (RGB)
Expected Lamp Life 50000 Hours (L70)
Connectors
Power Input Connector 3-Pin XLR, powerCON
DMX Connector 5-Pin XLR, RJ45
Service Connector USB Type-A
Lens
Reflector Mount ARRI QLM
Mounting
Yoke Mount ARRI Quick Release
Remote Operation
Remote Control Type DMX, Wired Remote
Power
AC Input Power 100 to 260 VAC, 50 / 60 Hz
Power Source AC Adapter, External Battery
Max Power Consumption 500 W
Power Pass-Thru Yes
Cable
Cable Type None
Physical
Operating Temperature -4 to 113°F / -20 to 45°C
Protection Class I
