Laird HD-BNC M - Standard BNC M 1'

by LAIRD
Original price $29.99 - Original price $29.99
Original price
$29.99
$29.99 - $29.99
Current price $29.99
SKU 56251
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .

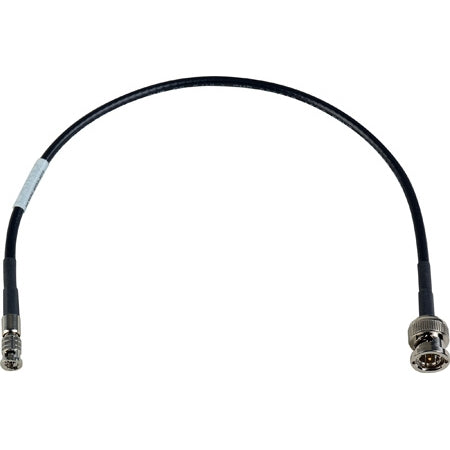

Laird Hd-bnc M - Std Bnc M 1'

The Laird HDBNC4855 Series of low profile coax HD-BNC to BNC male adapter cables are designed for transmitting high resolution uncompressed 12G-SDI / 4K UHD video signals. Ideal for high density jackfields, routers and signal distribution systems where RF performance is critical. The HD-BNC utilizes a bayonet style mating analogous to traditional BNCs for a reliable coupling.

These Laird cables are built with Belden low loss 4855R coax rated for 12G-SDI runs up to 150 feet. The cable's new braid design, silver-plated copper conductor, and a new polyethylene formula are all design features that contribute to significant RL improvement and an 8 dB improvement on cable attenuation compared to existing coaxes. Fully compatible with SMPTE ST-2082-1 and ST-2081-1 standards.

Glazer's SKU 56251
Manufacturer LAIRD
MFG SKU HDBNC4855-B01
Product Specs
  • Belden 12G SDI Mini-RG59 Coax Cable with PVC Jacket Compatible with 12GSDI single link format devices Nominal Impedance: 75& Omega; Conductor: Silver Plated Copper Insulation: Gas Injected Foam HDPE Outer Shield: Duofoil bonded to the Core + Tinned Copper Braid Shield Conductor DC Resistance: 19.700 DCR@20°C(Ohm/1000ft) Outer Shield Resistance: 3.900 DCR@20°C(Ohm/1000ft) Nominal Inductance: .107 ΜH/ft Nominal Capacitance Conductor to Shield: 16.3 pF/ft Transmission Distance: 12G signals up to 149 feet, 6G up to 215 feet, and 3G up to 310 feet
    Amphenol Connectors
  • Meet SMPTE Standards for 12G-SDI
  • Durability: 500 Cycles
