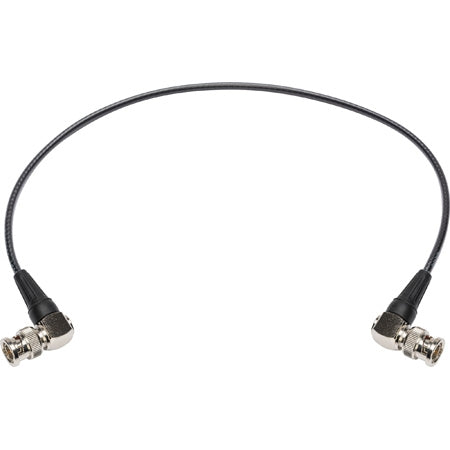

Laird Mini-RG59 12G-SDI/4K UHD Right Angle BNC to Right Angle BNC Single Link Cable - Black

by LAIRD
Original price $49.95 - Original price $49.95
Original price
$49.95
$49.95 - $49.95
Current price $49.95
SKU 56258
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .
Laird 4855r Rt Angle Bnc 18"

Laird BNC cables break the 12GHz 4K UHD coax barrier! These next-gen RG59 BNC cables are designed to handle 12GHz 4K UHD signals up to 150 feet (3G-SDI up to 310 Feet) and provide the critical link between your switchers, cameras and other 4K video gear. Right-angle BNC connectors save space and relieve strain. Hand crafted assemblies featuring 4855R 4K Ultra-High-Definition Mini-RG59 coaxial cable for 12G-SDI, these cables the simple choice when setting up your studio backbone and infrastructure.

Why run dual link and quad link cables when one will do the job! Laird's BNC cables are ready to meet today's high bandwidth 12G-SDI signal / data serial interface requirements. The 4855 Series is the 12G-SDI equivalent of Belden's famous 1855 cable. It features a silver-plated copper center conductor and a low-profile diameter of less than 1/8" making it the ideal choice for patch bays and OB trucks. Custom lengths are always available.

Features:

Designed for UHD and 4K Video Transport
23AWG Mini Coax Cable & Convenient Right-Angle Connectors
12 GHz, 4K UHD Precision 75-Ohm Video Cable
Optimized Transmission Distance for UHDTV
Transmits up to 150 ft/45m
Return Loss: Guarantees -15 dB RL from 4.5 to 12GHz
Meets ST-2082-1, ST-2081-1, and SMPTE 424M Standards

Glazer's SKU 56258
Manufacturer LAIRD
MFG SKU 4855R-BA-BA-18I
Product Specs

Specifications:

Belden 12G SDI Coax Cable with PVC Jacket
Compatible with 12GSDI single link format devices
Nominal Impedance: 75& Omega;
Conductor: Silver Plated Copper
Insulation: Gas Injected Foam HDPE
Outer Shield: Duofoil bonded to the Core + Tinned Copper Braid Shield
Conductor DC Resistance: 19.700 DCR@20°C(Ohm/1000ft)
Outer Shield Resistance: 3.900 DCR@20°C(Ohm/1000ft)
Nominal Inductance: .107 ?H/ft
Nominal Capacitance Conductor to Shield: 16.3 pF/ft
Transmission Distance: 12G signals up to 149 feet, 6G up to 215 feet, and 3G up to 310 feet
