Laird Digital Cinema Belden 4794R 12G-SDI/4K UHD Single Link BNC Low-Loss Broadcast Coax Cable, 6'

Original price $44.95 - Original price $44.95
Original price
$44.95
$44.95 - $44.95
Current price $44.95
SKU 5583
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .

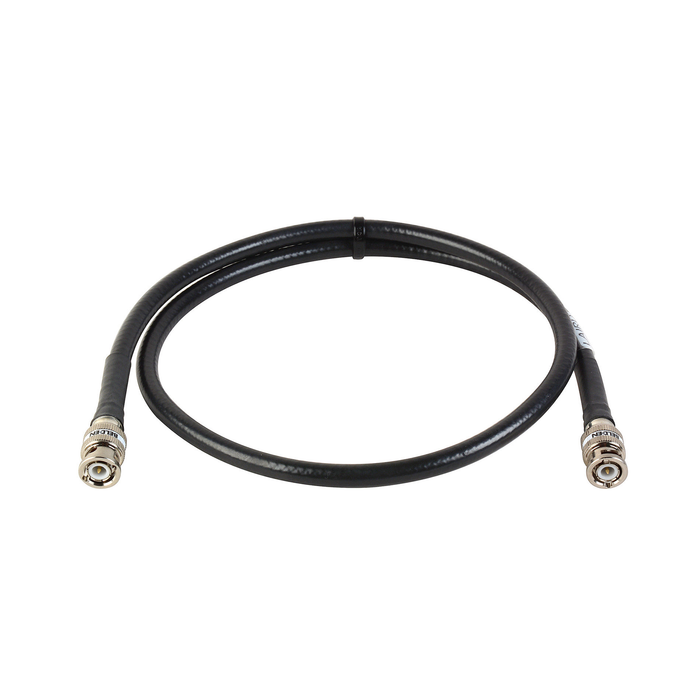

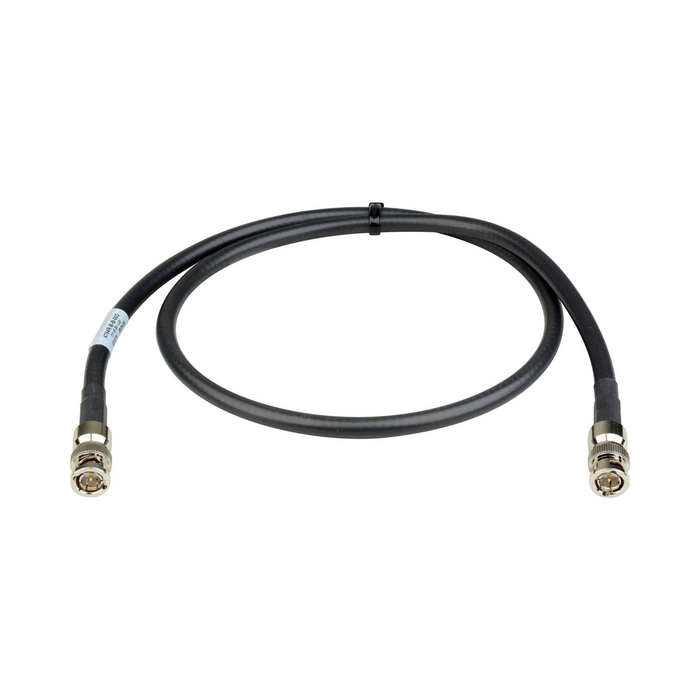

Laird Digital Cinema Belden 4794R 12G-SDI/4K UHD Single Link BNC Low-Loss Broadcast Coax Cable

Just when the broadcast industry thought long distance 12G-SDI over coax would never be possible, Laird and Belden have teamed up to deliver once again. Laird introduces the gold standard next-gen BNC cable designed to handle long distance 12GHz 4K UHD signals. The critical missing link between your switchers, cameras and other 4K video gear is found with these hand crafted Belden cables featuring 4794R coaxial cable. Sending 12G-SDI over 300 foot distances is easily achieved making these cables the simple choice when setting up your studio backbone and infrastructure. Why run dual link and quad link cables when one will do the job! These Belden 4794R BNC cables are ready to meet today's high bandwidth 12G-SDI signal / data serial interface requirements. Custom lengths are always available.

12G-SDI Maximum Distance

Laird Certifies this cable to work at a Max Transmission Distance of 225 Feet for 12G-SDI even though Belden may show this distance as 321 Feet. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.

Highlights:

  • 12GHz, 4K UHD Signal Transmission
  • Durable 16AWG, Precision Coax Cable Superior Pull Strength for Secure Connections
  • Maximize Broadcast Signal Integrity

Features:

  • Belden Precision Coax Cable
  • Belden Certified Max Transmission Distance: 321 Feet for 12G/4K
  • Laird Certified Max Transmission Distance: 225 Feet for 12G/4K
  • Meets: SMPTE ST 259, ST 292, ST 424, ST 425, ST 2081-1, ST 2082-1 Standards

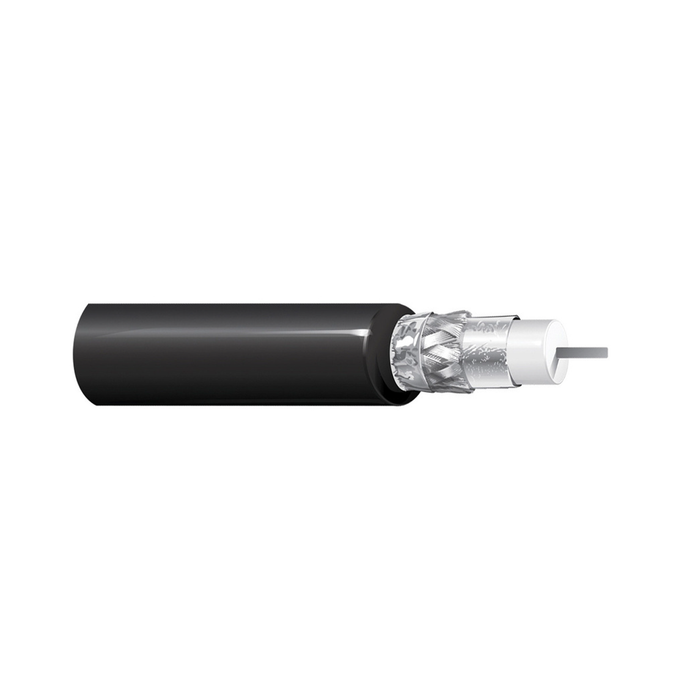

  • Low-Loss Serial Digital 16AWG Cable with PVC Jacket
  • Gas-injected Foamed HD Polyethylene Insulation
  • Silver-plated Copper Conductor
  • Tinned Copper Braid Shield
  • Impedance: 75Ω
  • Transmission Distance: 12G signals up to 321 feet, 6G up to 471 feet, and 3G up to 686 feet

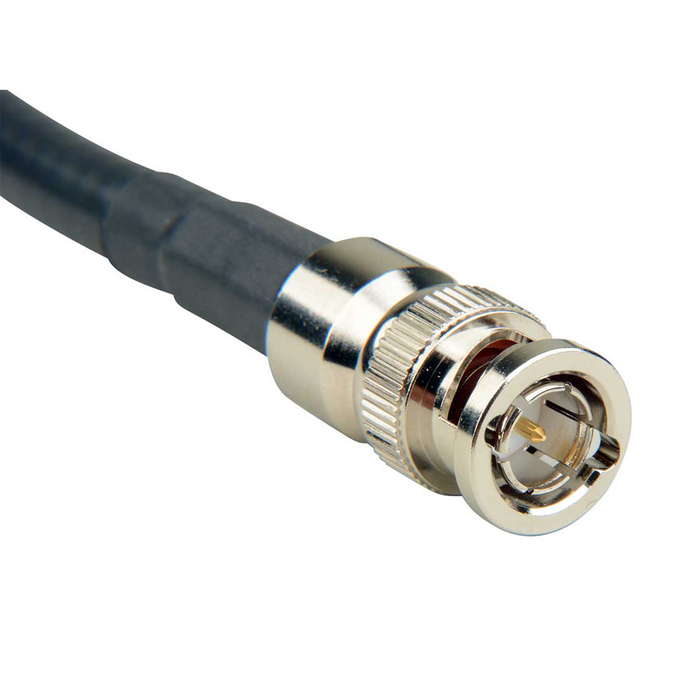

  • Amphenol Connectors
  • Meet SMPTE Standards for 12G-SDI Bayonet Lock
  • Durability: 500 Cycles

Size:

6'

Product SKU:

4794R-B-B-006

In The Box:

Laird Digital Cinema Belden 4794R 12G-SDI/4K UHD Single Link BNC Low-Loss Broadcast Coax Cable, 6'
Limited 1-Year Manufacturer Warranty





** Laird certified lengths are defined as max transmission where signal integrity remains 100% functional without any CRC errors, your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues- however when CRC errors are present there could be drops in audio, video, meta and ancillary data. In most circumstances, video integrity remains intact at OEM distance **

Glazer's SKU 5583
Manufacturer Laird Digital Cinema
MFG SKU 4794R-B-B-006
