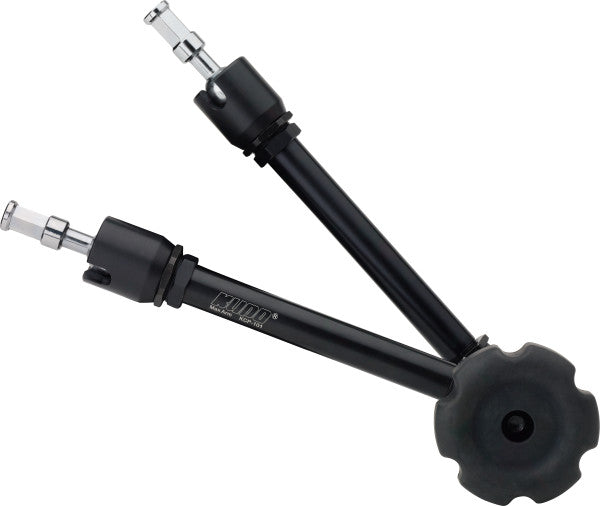

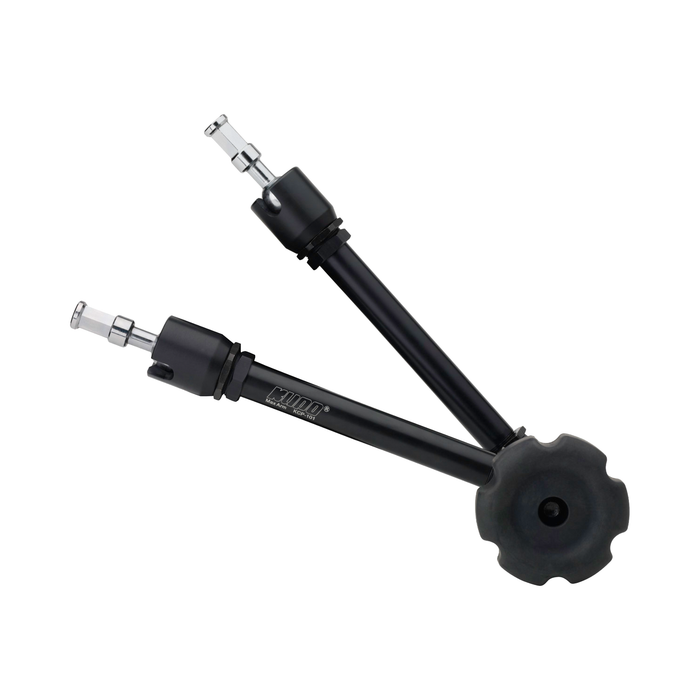

Kupo Max Arm with Hand Wheel

Kupo Max Arm with Hand Wheel

The Max Arm is an adjustable arm that allows you to position a camera lighting fixture or accessory in any position within seconds! The two 5/8" (16mm) studs at either end are attached to ball joints that rotate 360 degrees plus a cut-out in the sleeve surrounding the ball allows the stud to be bent 90 degrees. One stud is tapped to receive a 3/8"-16 thread while the other is tapped to receive a 1/4"-20 thread. Each stud has six milled flat surfaces so whatever you mount on the Max Arm will not rotate. The central elbow rotates 360 degrees for infinite adjustability. The Max Arm is equipped with user-replaceable special friction discs with anti-slip rosettes prevent unwanted movement. The large rubberized hand wheel slowly increases tension until all three joints lock at once making precise positioning a breeze. Supports loads of up to 8.8 lbs (4 Kg) Black Aluminum Finish

Design:

• Dual 5/8" (16mm) baby studs with 3/8"-16 and 1/4"-20 female threads
• 360-degree rotating ball joints at both ends plus 90-degree bend capability
• Central elbow rotates 360 degrees for infinite adjustability
• Six milled flat surfaces on each stud prevent unwanted rotation of mounted equipment
• Large rubberized hand wheel for simultaneous locking of all three joints
• User-replaceable friction discs with anti-slip rosettes for secure hold

Features:

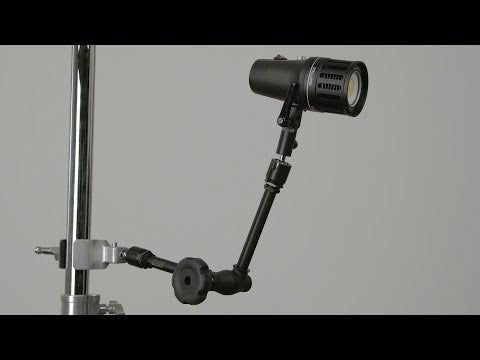

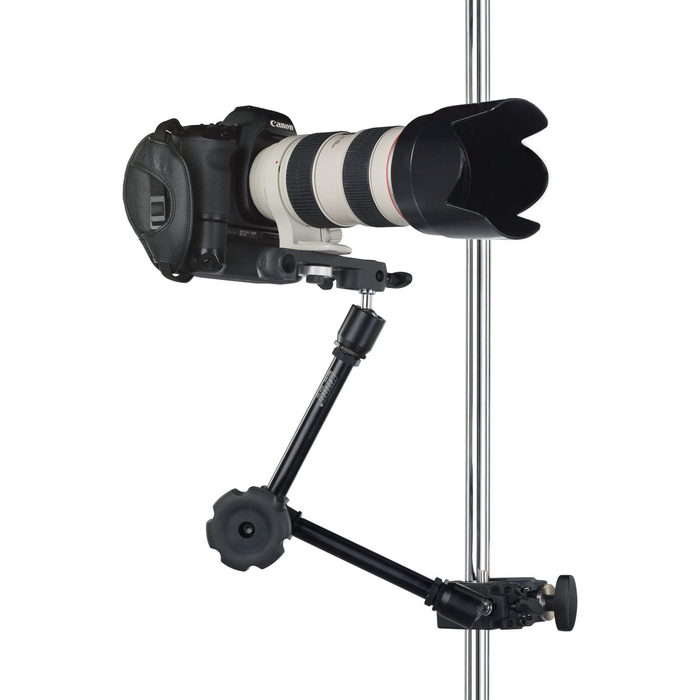

• Adjustable arm allows positioning a camera lighting fixture or accessory within seconds
• Large rubberized hand wheel allows joins to lock at same time for precise positioning
• Six milled flat surfaces for secure mounting

Maximum Payload Capacity:

8.82 lbs

Compatible With:

Devices:

• Camera, lighting fixtures, or accessories
• 3/8"-16 and 1/4"-20 female thread mounts

Dimensions:

Maximum Extension Height: 20.87"
Minimum Extension Height: 10"
Overall LxWxH: 10-20.8 x 5.5 x 3.12"

Weight:

2.54 lbs

Materials:

Aluminum, Steel, Thermoplastic Rosettes

Manufacturer SKU:

KG100911

In The Box:

Kupo Max Arm with Hand Wheel
Limited 2-Year Manufacturer Warranty
