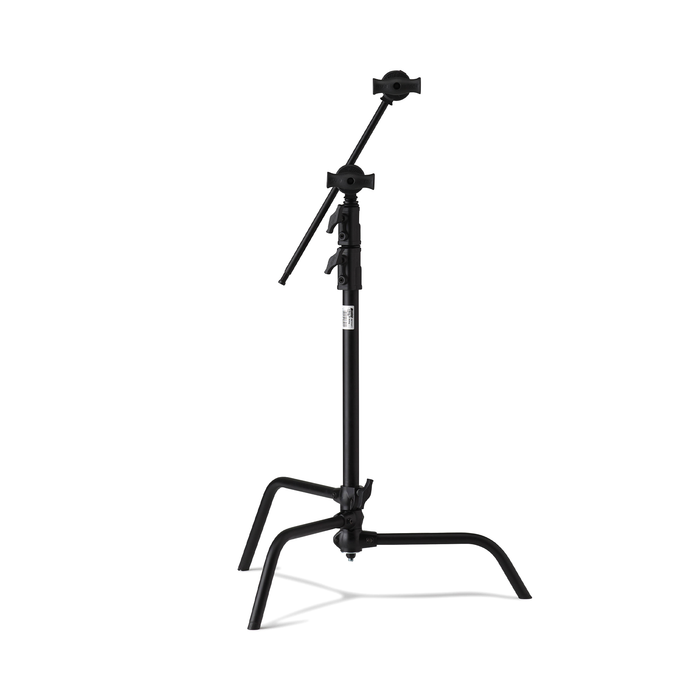

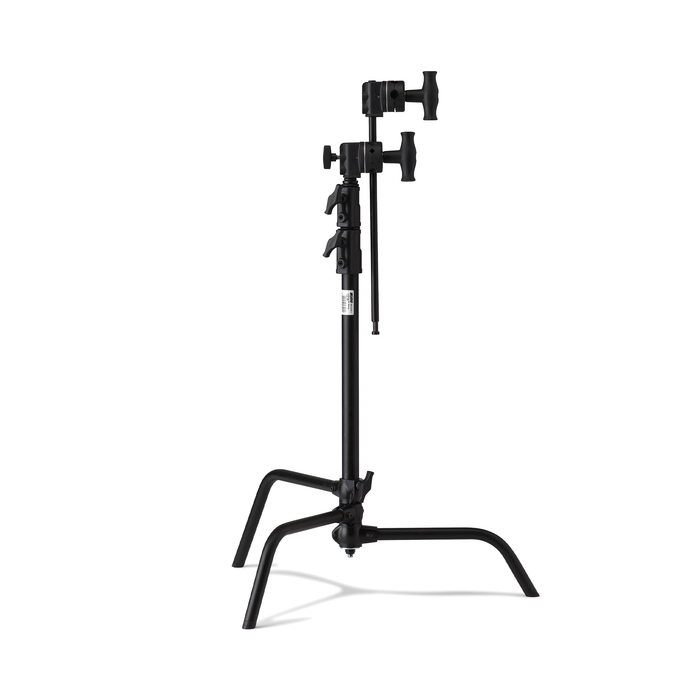

Kupo 20" Master C-Stand with Removable Turtle Base, Grip Head & Arm with Hex Stud Kit, 5.6'
The Kupo Master C Stand with Turtle Base features a unique innovation in the world of C Stands that enables the still or moving image-maker of any skill level to open and collapse the legs of the base in under two seconds!
The Master C Stand is outfitted with a patented spring ring locking system that removes all tension from the legs so that gravity can do the work for you.
A turtle base is an industry term where the riser section can be quickly removed from the base for easy transportation and the base can be used with a stand adapter for a low mounting position.
The 20" Grip Arm with Hex Stud is a 2- 1/2" grip head mounted on the end of a 20" piece of steel tubing 5/8" (16mm) in diameter and finished with a faceted hex stud to keep lighting fixtures in position when they are placed on the end of the arm. The surface of the tubing is painstakingly machined to create a rough texture to ensure a non-slip surface.
The 2-1/2" grip head consists of a pair of rotating aluminum discs attached to a 5/8" (16 mm) receiver. The discs have four different sized V shaped jaws to accept any accessory with a 5/8", 1/2", 3/8", or 1/4" mounting stud or tubing. The V shaped jaws have teeth that grab whatever is mounted between the plates securely. The 2-1/2" grip head features an oversized ergonomic T handle and dedicated roller bearings designed for maximum torque.
Design:
- 2 risers
- 3 sections
- 20" Master C-Stand column with removable turtle base
- 2.5" grip head with rotating aluminum discs
- 20" grip arm with 5/8" hex stud
- Patented spring ring locking system
- Four V-shaped jaws accept 5/8", ½", 3/8", and ¼" mounting studs
- Oversized ergonomic T-handle with dedicated roller bearings
- Machined non-slip surface on grip arm tubing
- Captive locking T-knobs on column
- Fixed baby 5/8" (16 mm) stand adapter
- Welded adapter type
- Non-cushioned design
Features:
- Includes 20" Master C-Stand with Turtle Base, One 2.5" Grip Head, and One 20" Grip Arm with a 5/8" hex stud to keep lighting fixtures securely in position
- Unique Patented innovative spring ring locking system allowing for easy set-up and take down.
- Opens and collapses in under two seconds
- Base is five times stronger than aluminum
- Easily remove the column and attach to the Kupo Runway Base to create a strong sturdy and safe rolling stand.
- Fitted with captive locking t-knobs on the column.
Maximum Payload Capacity:
22.05 lbs
Compatible With:
Optional Accessories (Sold Separately):
Dimensions:
Maximum Extension Height: 67.7" (5.6')
Minimum Extension Height: 36.4" (3')
Riser 1 Diameter: 1.38"
Riser 2 Diameter: 1.18"
Riser 3 Diameter: 0.98"
Footprint Diameter: 37.4" (3.1')
Closed Length: 36.6" (3.05')
LxWxH: 28.74 x 16.54 x 2.36""
Weight:
16.24 lbs
Materials:
Steel, Aluminum
Manufacturer SKU:
KS704611
In The Box:
Kupo 20" Master C-Stand with Turtle Base - Chrome
Kupo 2.5" Grip Head - Chrome
Kupo 20" Grip Arm with 5/8" Hex Stud - Chrome
Limited 2-Year Manufacturer Warranty
