Matthews Gobo Plate Baby Pin

Matthews Gobo Plate Baby Pin

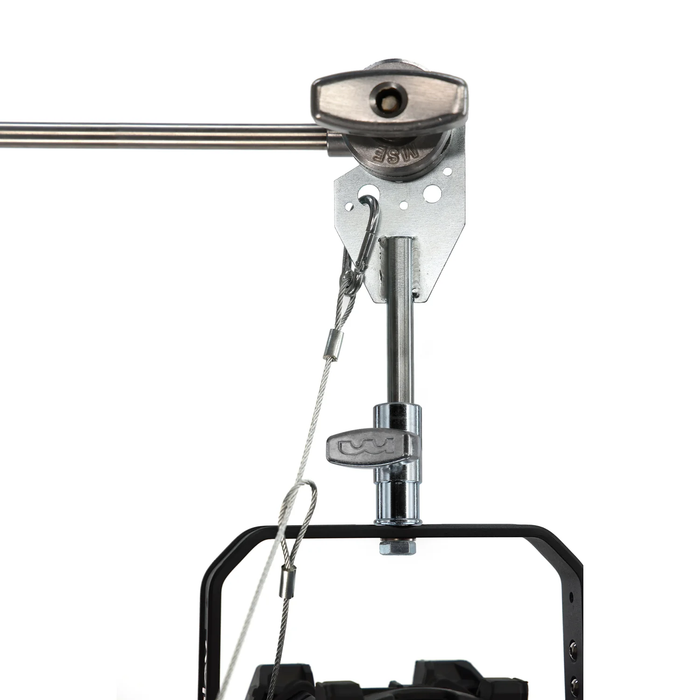

Matthews Studio Equipment, Inc. adds to the Gobo Plate line with another clever product featuring the industry standard 5/8" pin debuted by Matthews decades ago. Gobo Plate Baby Pin is designed to mount onto standard 2.5" Grip heads; bolt onto Cheeseplates; and screw or nail onto set walls, Apple Boxes, lumber and beams; with its well-thought-out Gobo Plate bracket. Add an industry standard 5/8" Baby Pin wherever it's needed, whether supporting a lighting unit or a grip modifier, or simply trying to join gear in unconventional angles.

Design:

• 5/8" stud top mount (knurled pin)
• Gobo plate bottom mount
• T-slot with V-centering
• Multiple cutouts in 1/2", 3/8", and 1/4" diameters
• Safety hole with carabiner attachment


Features:

• T-slot with V centering quickly secures grip head mounting
• Two each 1/2"diameter, three each 3/8" diameter, and six each 1/4" diameter spaced circular  cutouts allow mounting to heads, lumber, beams, set walls, and more
• Safety hole on baby pin allows mounted units to be secured

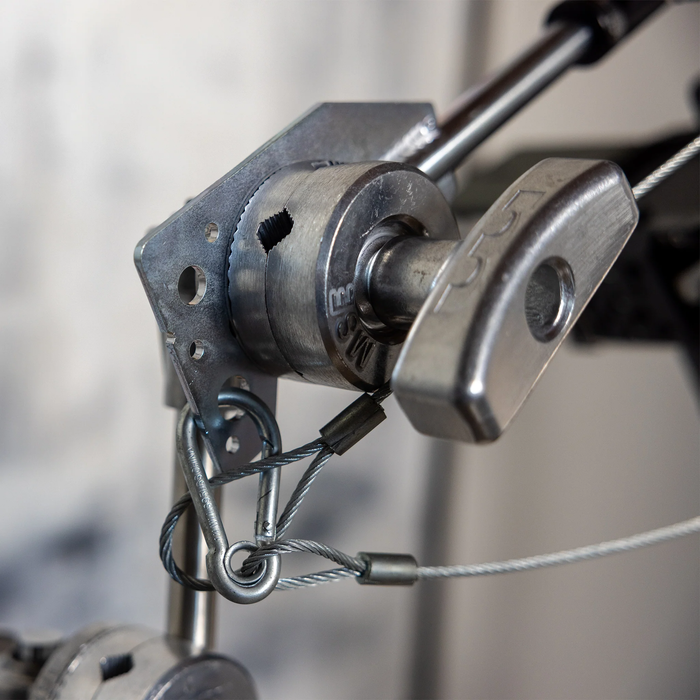

• Carabiner hole placement prevents plate from coming out of grip head as well as allowing plate to  be safely tethered when rigged
• Pin finds center when used with a grip head as a drop down
• Knurled baby pin ensures whatever is being mounted stays put

Compatible With:

Optional Accessories/Mounts (Sold Separately):

• Mini Grip Head 350584


Dimensions:

9.5 x 3 x 0.6"

Weight:

0.82 lbs

Materials:

• Machined out of a Single Sheet of 1/8" Thick Steel with a Welded Baby Pin

• Clear Zinc Coating
• Steel

Manufacturer SKU:

30026

In The Box:

Matthews Gobo Plate Baby Pin
Limited 1-Year Manufacturer Warranty
