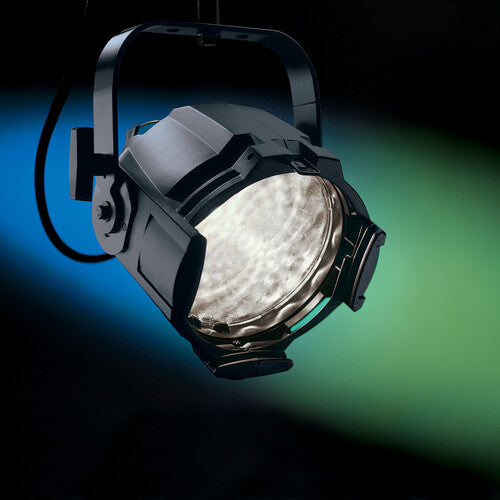

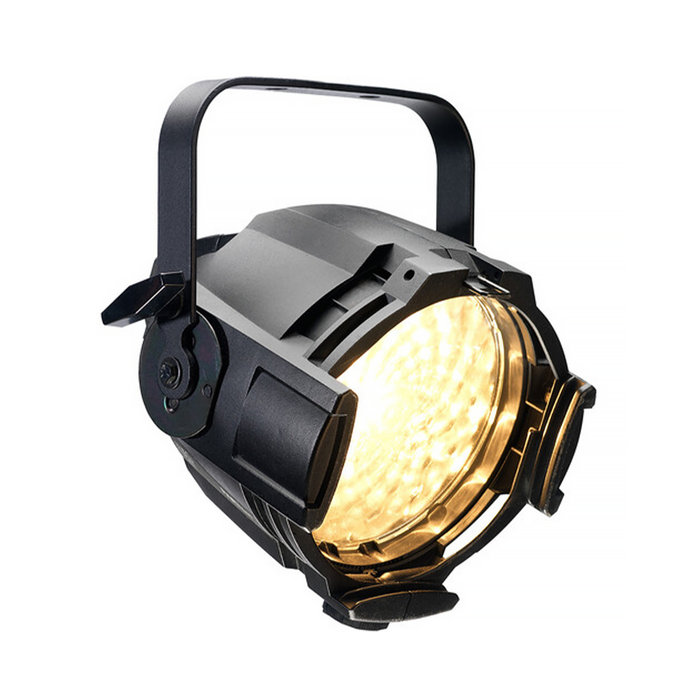

ETC Source Four 750W PARNel with 15A Twist-Lock

The ETC Source Four 750 Watt PARNel combines the soft edged floodlight beam of a PAR with the built-in focusing knob of a fresnel fixture. Featuring a patented wave-lens design and easy focusing knob, the PARNel lets you quickly access a range of 25-45° with a smooth, soft, symmetrical field that may be spotted or flooded as needed. This fixture is available in Black with a connector.

When fitted with a 750 watt HPL bulb (available separately), the PARNel will provide a beam of 109 footcandles, 16.4 ft in diameter, from a distance of 40 ft at full spot. At full flood, it will throw a beam of 69 footcandles 19.5 ft in diameter from 25 ft.

Compact, efficient fixture
Combined with reductions in power and cable requirements, Source Four PARNels are perfect for touring.

Extraordinary brightness
EA (Enhanced Aluminum), die-cast, faceted reflector, super-efficient HPL lamp

Fresnel-style focusing
25 - 45° variable field focus with smooth adjustment knob

Versatile
Gel frame holders with 2 accessory slots

Safe
UL and cUL listed, sealed reflector housing

Features:

• Spot and Flood Capability
• PARNel Source Four  Parnel
• ETC Source Four PARNel are supplied with a color frame and 3’ (96cm) lead as standard
• Grounded, 20 amp, twistlock connector


Technical Specs:
Rating: 375, 575, 750 Watts
Socket (Lampholder):  G9.5, heat-sink ceramic 2-pin
Lens (Condenser): 1 Fixed Clear Wave, 1 Rotating Stippled borosilicate
Reflector (Mirror): Modified Parabolic, Multi-faceted Enhanced Aluminum
Mounting Hole: in Yoke for C- Clamp or Floor Mount
Yoke Steel, with 2 mounting positions, positive locking clutch
Cable: 3' Fiberglass, Pigtail
Focusing Thermally: insulated knob
Weight: 8 lb (3.6 kg)
Dimensions: 10.75 x 11 x 10.25" (27 x 28 x 26 cm)

Additional Specs:
Physical

• Rugged die–cast aluminum construction
• High–impact, thermally insulated precision focus knob
• Sealed reflector housing
• Reflector temperature control through integral heat sink fins
• Gel frame holders with two accessory slots
• Top–mounted, gel–frame retainer
• Steel yoke with two mounting positions
• Positive locking yoke clutch
• UL and cUL Listed

Electrical:

• 115-240V, 50/60Hz
• High–temperature three-conductor 36” leads in a glass fiber outer sleeve
• Supports ETC Dimmer Doubling™ technology

Lamp:

• HPL – compact tungsten filament contained in a krypton/ xenon-filled quartz envelope (see table for suitable lamp types)
• 750W maximum
• Patented filament geometry makes for extremely efficient light collection and transmission
• Integral die–cast aluminum heat sink lamp base

Lenses:

• Patented wave lens system
• Two heat resistant borosilicate glass lenses
• One fixed wave clear lens and one rotatable wave stippled lens installed
• Tool free front lens changing
• Thermally insulated lens ring

Optical:

• Integral 24° – 47° spot to flood adjustment
• Modified parabolic and multifaceted reflector
• Computer designed reflector facets molded directly into heat sink casting, finished with an enhanced aluminum deposition process, and polished for maximum reflectance

In The Box:
1 x ETC Source Four 750W PARNel with 15A Twist-Lock (Black, 115-240V)
1 x ETC Color Frame for 5 Degree Source Four Par - White
1 x AC Cable (3')
