Core SWX Battery Plate for Sony PXW-FX9 (V-Mount)

SKU 61837
  • Description
  • Additional Information
Coreswx V-mount Bracet F/ Fx9

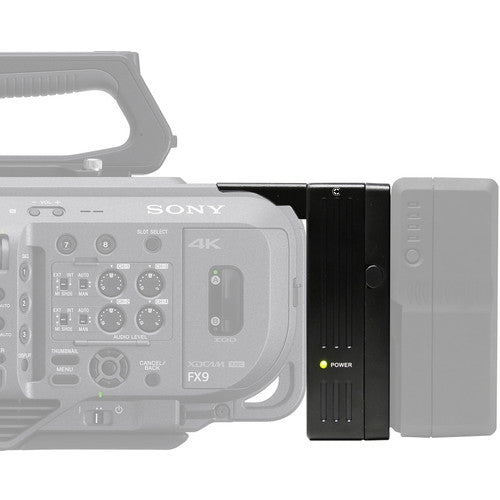

The CXV-FX9 mounts directly to the back of the Sony PXW-FX9, as an alternative power option to the Sony XDCA-FX9. The milled aluminum product inserts into the battery slot of the camera and also attaches into the top of the camera(with included screw hardware) to provide a secure platform for mounting v-mount batteries directly onto the FX9 camera. It has a 19.5v DC output with a visual low battery warning LED and a 4-pin XLR DC input for hotswapping between external and on-board power. In addition, it’s equipped with two powertaps to power additional accessories and three 1/4-20 threads on the top to attach accessories. A USB firmware update port on the rear ensures future compatibility with camera firmware updates.

A BP-U30 or BP-U35 battery pack fits inside of the battery cavity on the camera, allowing the user to hotswap batteries. Once the v-mount on-board pack dies, it will automatically pull power from the BP-U30 and you will see the battery indication on the viewfinder change. To make it easier to take the CXV-FX9 plate on-and-off, M4-8mm thumbscrews can be purchased separately.

Glazer's SKU 61837
Manufacturer Core SWX
Product Specs
Input Voltage 11.9 to 16.8 VDC
Output Voltage 19.5 VDC (DC Jack)
Camera Power Method Connector
Connectors 1 x DC Jack
1 x 4-Pin XLR
Battery Plate Type V-Mount
Number of Battery Bays 1
Material of Construction Aluminum
Indicator LED
Dimensions 5.4 x 3.35 x 3.7" / 13.72 x 8.51 x 9.4 cm
Weight 1.2 lb / 0.54 kg
