Full HD touchscreen monitor with DCI-P3 Color and 1800nits brightness. Access internal camera settings via included camera control software installation.
The Cine 7 RED RCP2 Kit includes our Cine 7 monitor, RED EXT Camera Control Cable, SmallHD Cleaning Cloth, Micro Lemo Adaptor, and Camera Control software for RED® KOMODO and DSMC3 cameras.

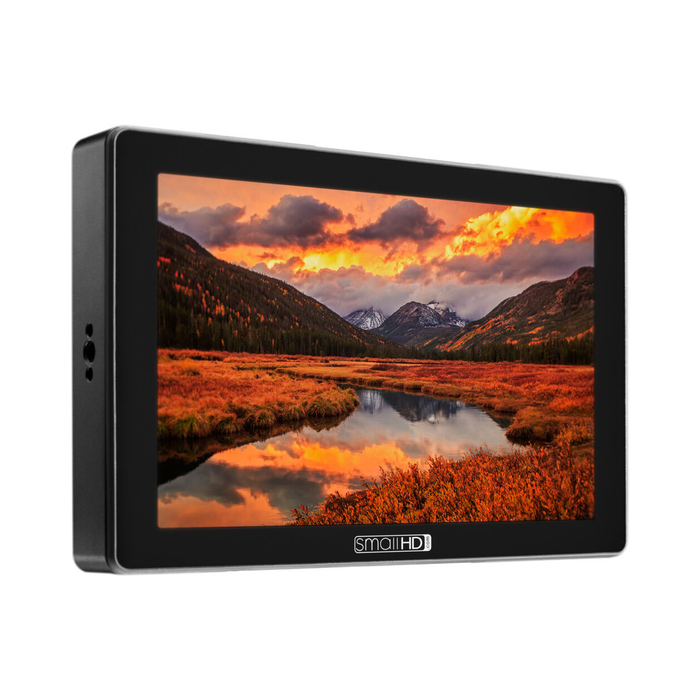

Cine 7 Monitor

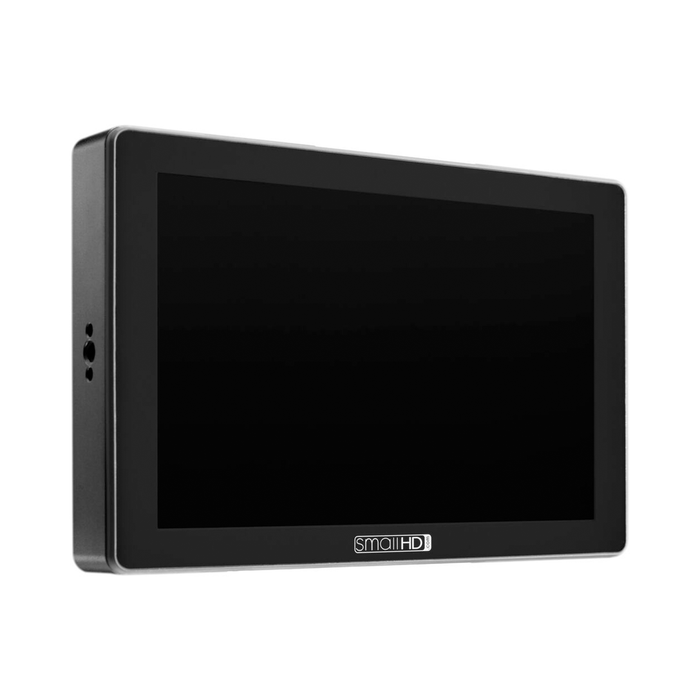

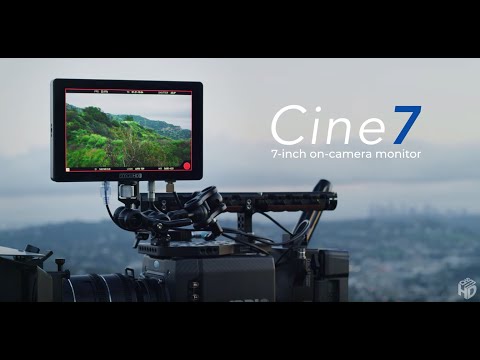

Cine 7 is the ultimate 7” on-camera HD monitor for cinematographers, offering a color accurate wide-gamut display, cinema camera control, and 4K and HDR compatibility. View your production in full sunlight thanks to 1800 nits of brightness and save your favorite tools, functions, and setting pages in one tap with PageOS 4.

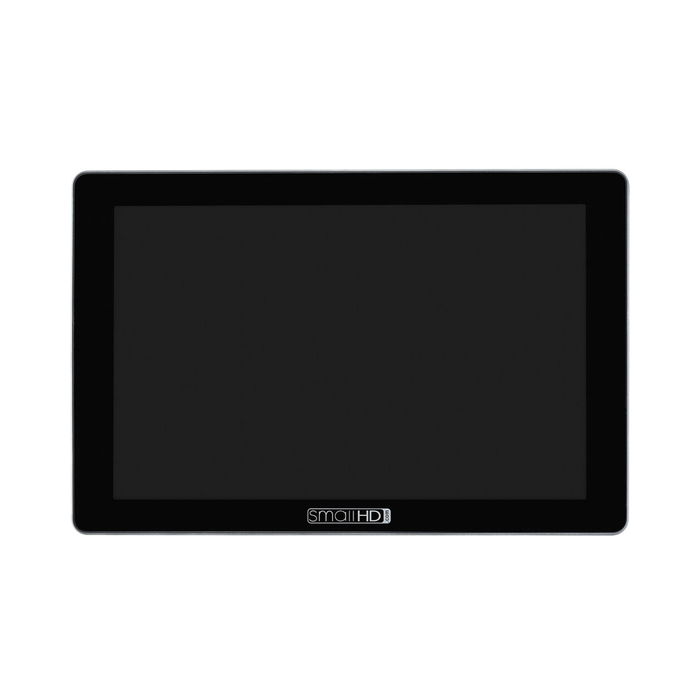

The Full HD 7-inch IPS LCD display with 1920x1200 resolution ensures a clear look at your production, while 10-bit color processing in 100% DCI-P3 offers color accuracy. This guarantees the image on screen reflects what’s being captured by the camera. No matter the time of day, environment, or sunlight, you’ll get a clear, glare-free view of your monitor thanks to 1800 nits of brightness.

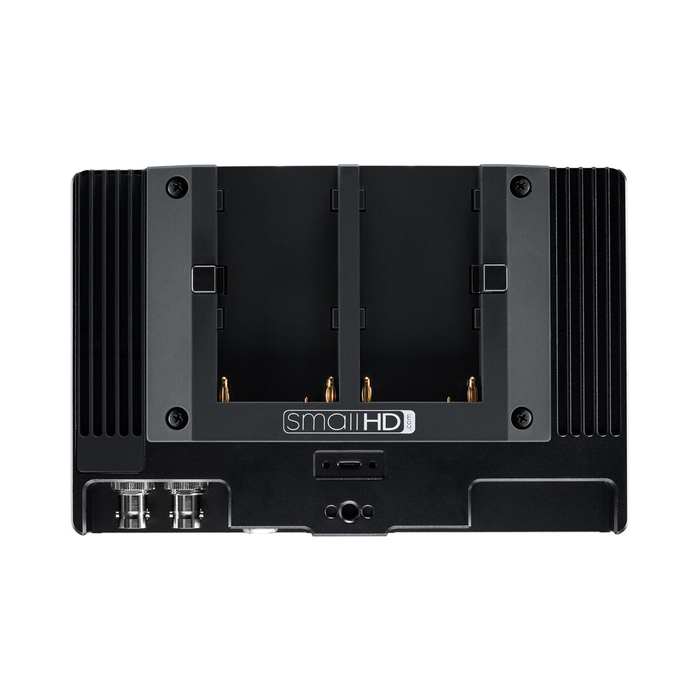

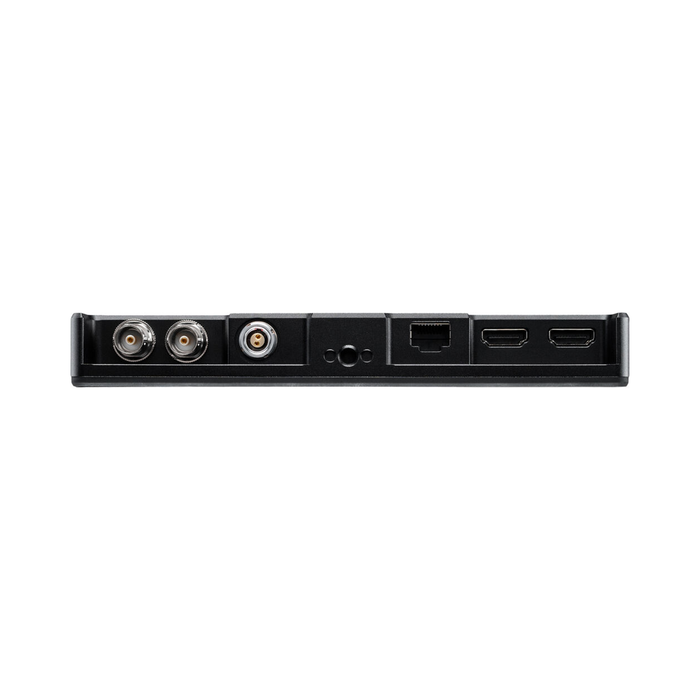

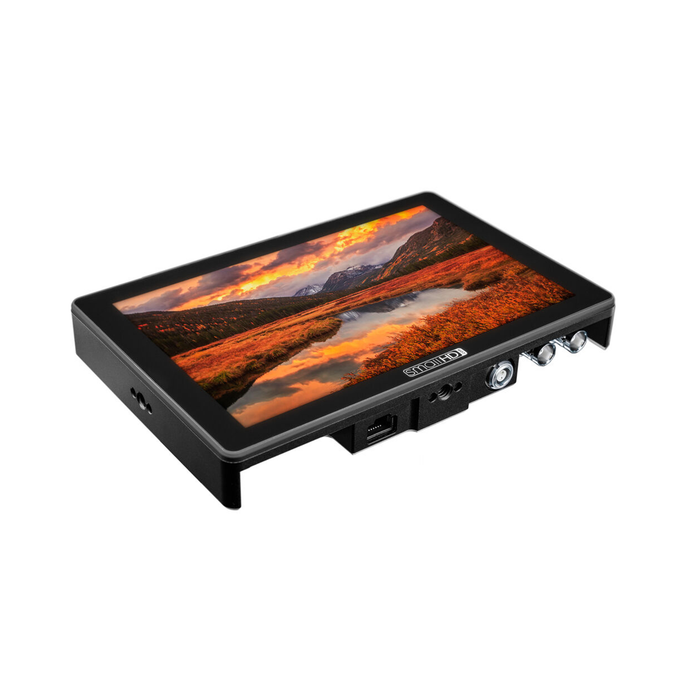

The Cine 7 features two 3G SDI inputs, with the second input doubling as a loop out, an HDMI input with an HDMI loop through, a Sony L-Series dual battery bracket, and the option to add on a Gold Mount or V-Mount battery plate attachment.
With the power of SmallHD PageOS software, build customized Page Profiles, and utilize all of the dependable SmallHD features such as personalized frame guides, Focus & Exposure Assist, high-resolution 3D LUT overlays, histogram, vectorscope, waveform, and more.
Camera Control for RED RCP2 Cameras (Software Only, KOMODO, DSMC3)

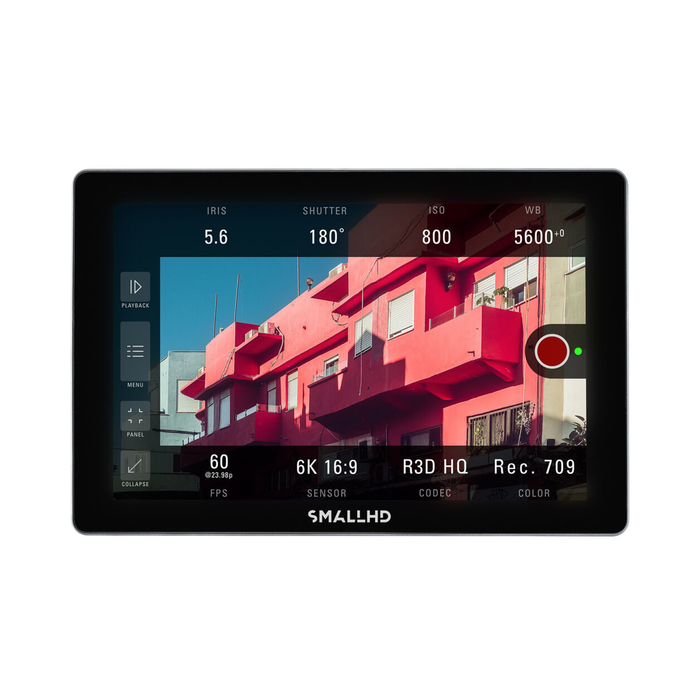

This Software License is a digital download that allows you to unlock access to camera control for RED KOMODO and RED V-RAPTOR (DSMC3) cameras via a software activation code. Tap into the internal camera settings with intuitive touchscreen configuration tools.
RED EXT 9-pin to SmallHD 5-pin USB Camera-Control Cable
5-pin to 9-pin camera control cable. Compatible with Focus Pro monitors, for access to RED KOMODO.
SmallHD Cleaning Cloth
SmallHD Cleaning Cloth, made from a non-abrasive material, is a safe option for cleaning glass surfaces and coatings on a monitor or camera. It measures approximately 7 x 7" and is easily stored in a bag or pocket when not in use.
Micro USB to 5-pin Lemo Adapter
Micro USB to 5-pin Lemo Adapter used for installing Camera Control for RED & KOMODO* to SmallHD Smart 7 monitors.
Disclaimer: Once any camera control is registered in your SmallHD monitor, it can not be removed or transferred to a different monitor
Features:
- 7" 1920 x 1200 Touchscreen Display
- RED RCP2 Camera Control Upgrade
- Micro-USB to 5-Pin Adapter & Cable
- Microfiber Cleaning Cloth
- L-Series Battery Plate
- 1800 cd/m², 10-Bit IPS LCD Panel
RED Control Features:
- Run/stop
- Color controls
- Exposure controls
- Status
- Color temperature
- Video format
- Playback
- Shutter
- Menu control
Compatible With:
- Cine 7
- Battery Bracket (Smart 7 Monitor Series)
- RED CTRL 4-pin to SmallHD 5-pin USB Cable
- RED EXT 9-pin to SmallHD 5-pin USB Camera-Control Cable (18in/45cm)
- Smart 7 Sunhood
- Back Cover Plate (Smart 7 Monitor Series)
- UltraClear Screen Protector (Smart 7 Monitor Series)
- Micro USB to 5-pin Adapter
- Sony L Series Battery Bracket (Smart 7 Monitor Series)
- Back Cover Plate (Smart 7 Monitor Series)
- D-Tap to 2pin Power Cable 36in
Specifications:
Model: 16-0710-R2
Display: 7-inch touchscreen, 1920x1200, 323 PPI
Input: SDI, HDMI, Micro USB
Output: SDI, HDMI 2.0 , 3-pin Stereo Headphone Jack, Camera Control
Power Input: 2mm barrel connector (DC 10-34v),Sony L-Series dual battery bracket
Product SKU:
16-0710-R2
In The Box:
SmallHD Cine 7 RED RCP2 Monitor Kit for KOMODO & DSMC3
Cine 7
RED EXT 9-pin to SmallHD 5-pin USB Camera-Control Cable (18in/45cm)
SmallHD Cleaning Cloth
Micro USB to 5-pin Adapter
Camera Control for RED RCP2 Cameras (Software Only, KOMODO-X, KOMODO, DSMC3)
Note: Batteries are sold separately.
