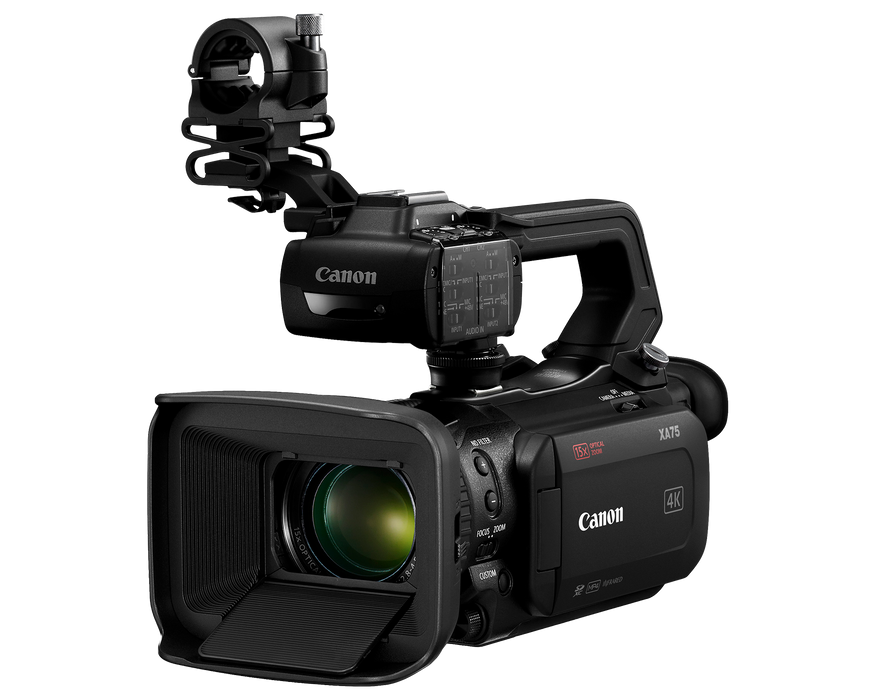

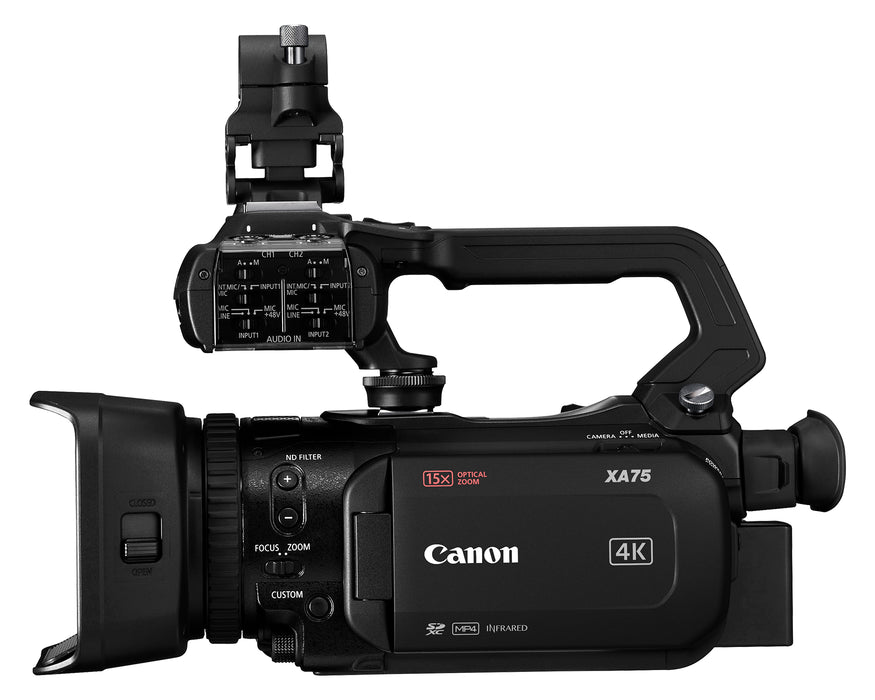

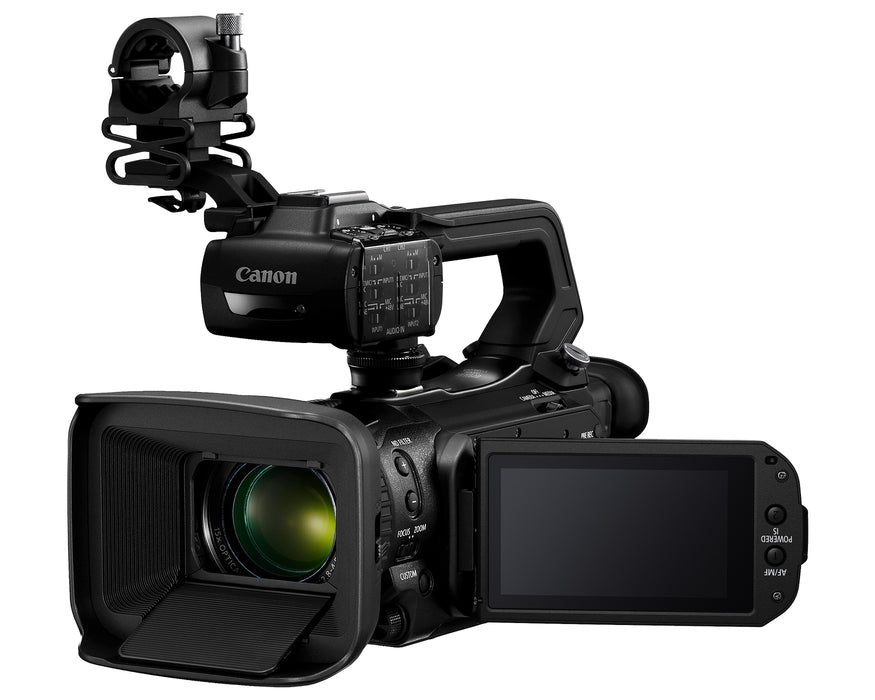

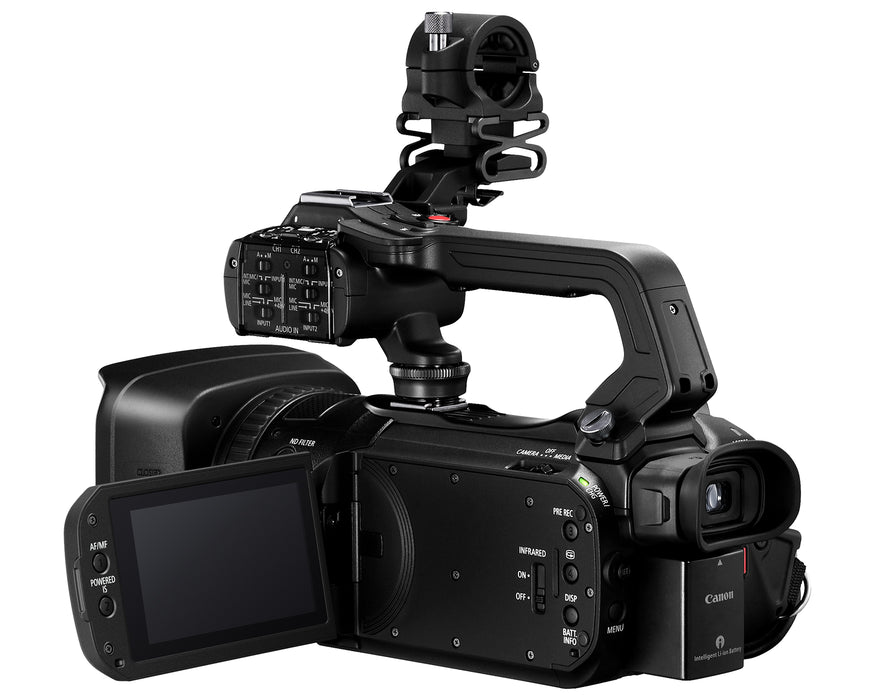

The Canon XA70 Professional UHD 4K30 Camcorder is a compact and lightweight camcorder that captures stunning 4K UHD and superior Full HD images thanks to a 1.0-inch CMOS 4K sensor and DIGIC DV6 image processor. The camera delivers outstanding oversampled HD, Dual Pixel CMOS AF, a 15x optical zoom lens and HD live-streaming with UVC via a USB-C connection to a PC or Mac. Capture footage for recording or sharing later in either XF-AVC or MP4 formats.
Features:
1" CMOS Sensor, DIG!C DV 6 Processor
Up to UHD 4K30 Video Recording
Mini-HDMI and 3G-SDI Outputs
Integrated 15x Optical Zoom Lens
Dual XLR and Mic/Line Audio Input
USB Type-C Output with UVC Support
5-Axis Optical Image Stabilization
Dual-Pixel CMOS Autofocus Feature
Dual SD Relay and Simultaneous Recording
3.5" Touchscreen LCD, Tiltable OLED EVF
Shoot, record, document, stream Shoot high quality 4K UHD video with the compact XA70. The camera delivers outstanding oversampled HD, Dual Pixel CMOS AF, a 15x optical zoom lens and HD live-streaming with UVC1 via a USB-C connection to a PC or Mac. Capture footage for recording or sharing later in either XF-AVC or MP4 formats.
Compact Professional 4K UHD Camcorder Capture stunning 4K UHD and Full HD images thanks to a 1.0-inch Type CMOS 4K sensor and DIGIC DV6 image processor. Oversampled HD delivers Full HD images from the 4K sensor.
On-Screen Display (OSD) “Time Stamp” Recording New to XA-Series cameras, the OSD recording embeds date, time, timecode and other data into your original camera files effectively “time stamping” the information into each frame of video, a requirement for legal and law enforcement videographers.

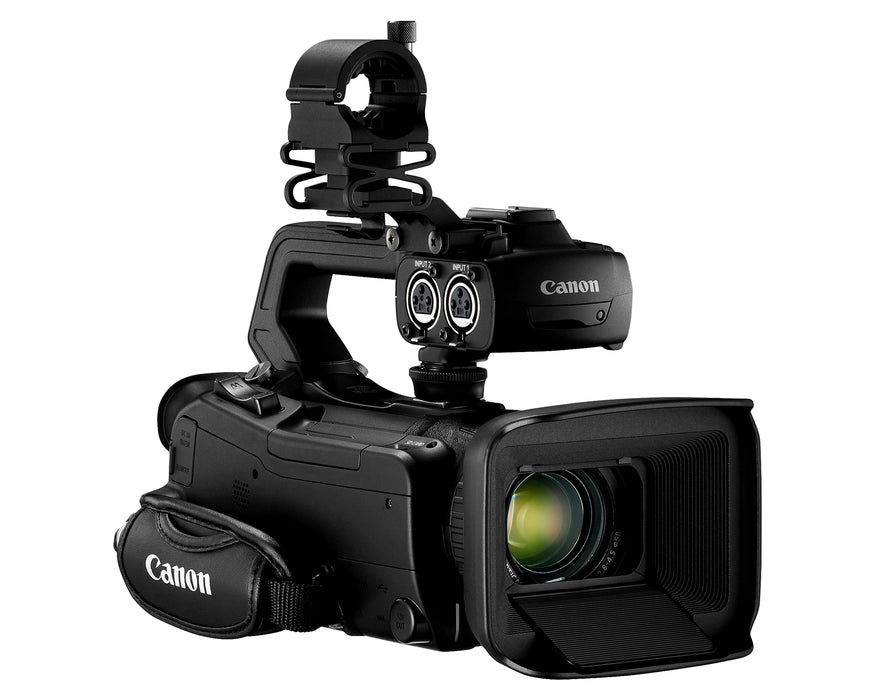

Professional Audio Controls Two XLR terminals on a detachable handle plus 4-channel linear PCM bring a suite of pro audio options.
4K 15x Optical Zoom Lens The XA70's lens covers a 25.5 – 382mm (35mm equivalent) range. Digital zoom boosts the 15x optical zoom to 600x magnification. To minimize camera shake, the camera provides Canon’s Dynamic IS 5-axis image stabilization.
UVC Live-streaming Stream HD video directly from the camera via UVC to a PC or Mac computer. USB-C cable required to connect to PC or Mac (Optional USB Cables IFC-400U, or IFC-150AB III not included). Audio output through USB is not supported.
Fast, Precise Focusing with Face Detection Adjustable focusing speeds and advanced Dual Pixel CMOS AF give fast and precise focusing. Use the ultra-bright 3.5-inch LCD display to set focus by touching the AF point required. Face Detection AF and Face Tracking are available while Manual Focus is set via the focus/zoom ring.
XF-AVC and MP4 for Flexible Recording Choose from XF-AVC or MP4 recording formats. Record XF-AVC 4K UHD 160Mbps at 30P/24P and Full HD 45Mbps at 60P/60i/30P/24P. For smaller files, record MP4 in 4K 150Mbps at 30P/24P and Full HD 35Mbps or 17Mbps at 60P/30/24P.
Professional Input and Output Output options include simultaneous backup and relay recording via dual SD cards and Infrared mode. Record Slow Motion in 0.4x Full HD or Fast Motion in 4K/Full HD up to 1200x. Color match with other Canon cameras using the custom picture menu.
Two XLR terminals on a detachable handle plus 4-channel linear PCM bring pro audio options.
Technical Specs:
Sensor:
Sensor Size:
1"
Effective Pixels:
Approx. 8.29 million (total pixels: 13.40 million)
Lens:
Magnification, Focal Length:
15x optical zoom, 25.5 - 382.5 mm f/2.8-4.5 (4K UHD with is OFF/Standard is ON)
ND Filter:
3 stops (switchable)
ImageStabilizer:
Optical + electronic correction
Focus:
Focus:
Dual Pixel CMOS AF, Contrast AF
Infrared camera supported:
Infrared camera supported:
Yes
Monitor:
Monitor:
3.5-inch (approx. 2.76 million dots), LCD, Capacitive touch panel
EVF:
EVF:
0.36-inch (approx. 1.77 million dots), OLED, articulating
Yes: 3840 x 2160 | 29.97p / 23.98p 1920 x 1080 | 59.94p / 29.97p / 23.98p 1280 x 720 | 59.94p
Audio:
During MP4 recording: AAC 2ch, LPCM 4ch During XF-AVC recording: LPCM 4ch
Slow and Fast (S&F) Motion Recording:
x0.4 and up (60 fps/Full HD 29.97p playback)
Color Sample/Bit Depth:
4:2:0 8 bit
Recording Media:
Recording Media:
SD card (UHS-I U3 support) x 2 slots
Professional use terminals:
SDI terminal:
Yes (3G-SDI)
XLR terminal:
Yes x2
Other Terminals:
Other Terminals:
HDMI, separate headphone jack, UVC (USB Type-C), DC IN (USB Type-C), remote and MIC terminal (supports plug-in power)
Detachable handle:
Detachable handle:
Yes
Wi-Fi:
Wi-Fi:
No
Wired LAN:
Wired LAN:
No
Battery:
Battery Info:
Required, included
Battery Material:
Lithium ion
Battery Type:
Non-universal
Battery Quantity:
1
Battery Included:
BP-820
Power Consumption:
Approx. 5.3W
General:
Dimensions:
Approx. 4.3 x 3.6 x 8.4" (110 x 91 x 214mm)
Weight:
Body only:Approx. 2.2 lbs (990g)
Lens hood, mic holder unit, handle unit, BP-820 and memory card (1 pc) included: Approx. 3.2 lbs. / 1460 g
In The Box: 1 x Canon XA75 Professional UHD 4K30 Camcorder 1 x Canon BP-820 Lithium-Ion Battery Pack 1 x Canon PD-E1 USB Power Adapter with AC Cable 1 x Lens Cap 1 x Lens Hood with Lens Barrier 1 x Handle Unit 1 x Microphone Holder Unit
