The Canon XA65 Professional UHD 4K Camcorder is a compact and lightweight camcorder that captures stunning 4K UHD and Full HD images thanks to a 4K 1/2.3” type CMOS sensor and DIGIC DV6 image processor. Equipped with OSD “Time Stamp” recording, UVClive-streaming, oversampled HD processing, advanced autofocus, and a Canon 20x optical zoom lens, the XA65 is a complete camera that captures footage in either XF-AVC or MP4 formats.
Features:
1/2.3" CMOS Sensor, DIG!C DV 6 Processor
Up to UHD 4K30 Video Recording
Mini-HDMI and 3G-SDI Outputs
Integrated 20x Optical Zoom Lens
USB Type-C Output with UVC Support
Infrared, Optical Image Stabilization
3.5" Touchscreen LCD, Tiltable OLED EVF
Record 4K in XF-AVC and MP4 Formats
Dual SD Relay and Simultaneous Recording
Dual XLR and Mic/Line Audio Input
Shoot, record, document, stream Shoot high quality 4K UHD video with the compact XA75. The camera delivers outstanding oversampled HD, Dual Pixel CMOS AF, a 15x optical zoom lens and HD live-streaming with UVC via a USB-C connection to a PC or Mac. Capture footage for recording or sharing later in either XF-AVC or MP4 formats.
Compact Professional 4K UHD Camcorder Capture stunning 4K UHD and Full HD images thanks to a 1.0-inch Type CMOS 4K sensor and DIGIC DV6 image processor. Oversampled HD delivers Full HD images from the 4K sensor.
On-Screen Display (OSD) “Time Stamp” Recording New to XA-Series cameras, the OSD recording embeds date, time, timecode and other data into your original camera files effectively “time stamping” the information into each frame of video, a requirement for legal and law enforcement videographers.
4K 15x Optical Zoom Lens The XA75's lens covers a 25.5 – 382mm (35mm equivalent) range. Digital zoom boosts the 15x optical zoom to 600x magnification. To minimize camera shake, the camera provides Canon’s Dynamic IS 5-axis image stabilization.
UVC Live-streaming Stream HD video directly from the camera via UVC to a PC or Mac computer. USB-C cable required to connect to PC or Mac (Optional USB Cables IFC-400U, or IFC-150AB III not included). Audio output through USB is not supported.
Fast, Precise Focusing with Face Detection Adjustable focusing speeds and advanced Dual Pixel CMOS AF give fast and precise focusing. Use the ultra-bright 3.5-inch LCD display to set focus by touching the AF point required. Face Detection AF and Face Tracking are available while Manual Focus is set via the focus/zoom ring.
XF-AVC and MP4 for Flexible Recording Choose from XF-AVC or MP4 recording formats. Record XF-AVC 4K UHD 160Mbps at 30P/24P and Full HD 45Mbps at 60P/60i/30P/24P. For smaller files, record MP4 in 4K 150Mbps at 30P/24P and Full HD 35Mbps or 17Mbps at 60P/30/24P.
Professional Input and Output Output options include 3G-SDI, simultaneous backup and relay recording via dual SD cards and Infrared mode. Record Slow Motion in 0.4x Full HD or Fast Motion in 4K/Full HD up to 1200x. Color match with other Canon cameras using the custom picture menu.

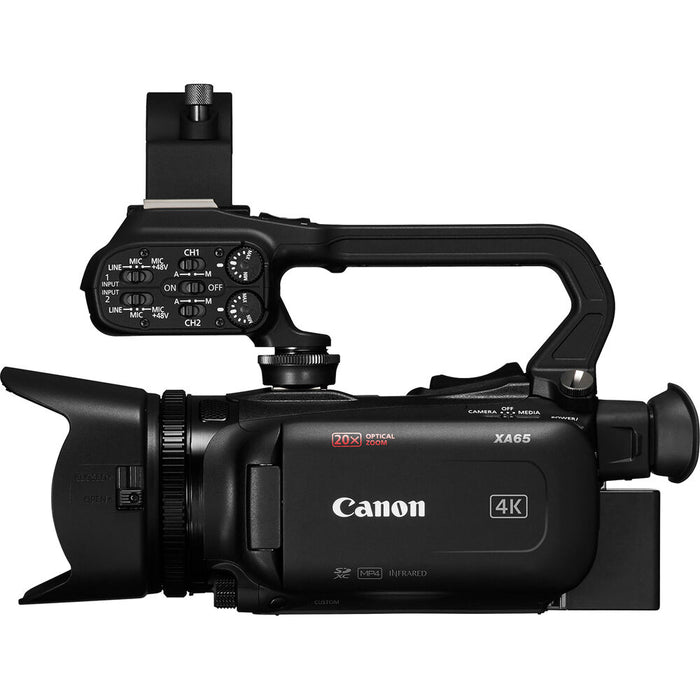

Two XLR terminals on a detachable handle plus 4-channel linear PCM bring pro audio options.
Technical Specs:
Sensor:
Sensor:
1/2.3" 4K UHD CMOS sensor
Lens:
Zooming ratio, focal length:
35mm camera equivalent: 20x optical zoom, approx. 29.3 - 601mm (4K UHD IS off/standard IS on)/approx. 30.5 - 627mm (Full HD IS off/standard IS on)
Aperture:
8 blades
ImageStabilizer:
Optical + electronic correction
Infrared camera supported:
Infrared camera supported:
Yes
Monitor:
Monitor:
3.5-inch (approx. 2.76 million dots), LCD, Capacitive touch panel
EVF:
EVF:
0.36-inch (approx. 1.77 million dots), OLED, tiltable
Looks:
Looks:
Standard
Movie Recording:
MXF:
Yes (XF-AVC)
AVCHD:
No
MP4:
Yes
LPCM:
4ch audio YES (not available during 720 recording)
Simultaneous Recording:
Double recording
OSD Recording:
Yes
Slow and Fast (S&F) Motion Recording:
Yes
Cinema-look filters:
No
Recording Media:
Bulit-in Memory:
No
Memory Card:
SD card (2 slots)
Professional use terminals:
SDI terminal:
Yes (3G-SDI)
GENLOCK, TC:
No
XLR terminal (Input 1, Input 2):
Yes
Other Terminals:
Other Terminals:
HDMI, separate headphones, USB (USB Type-C), DC IN (USB Type-C), remote and MIC terminal (supports plug-in power)
Lens hood, mic holder unit, handle unit, BP-820 and memory card (1 pc) included: Approx. 2.51 lbs. / 1140 g
In The Box: 1 x Canon XA65 Professional UHD 4K Camcorder 1 x Canon BP-820 Lithium-Ion Battery Pack 1 x Canon PD-E1 USB Power Adapter with AC Cable 1 x Lens Cap 1 x Lens Hood with Lens Barrier 1 x Handle Unit 1 x Microphone Holder Unit
