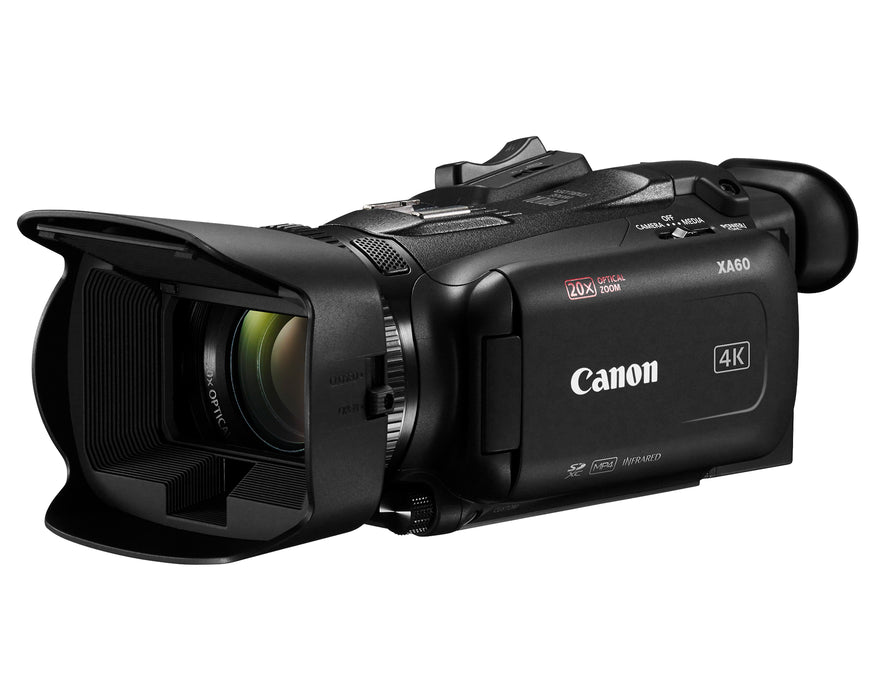

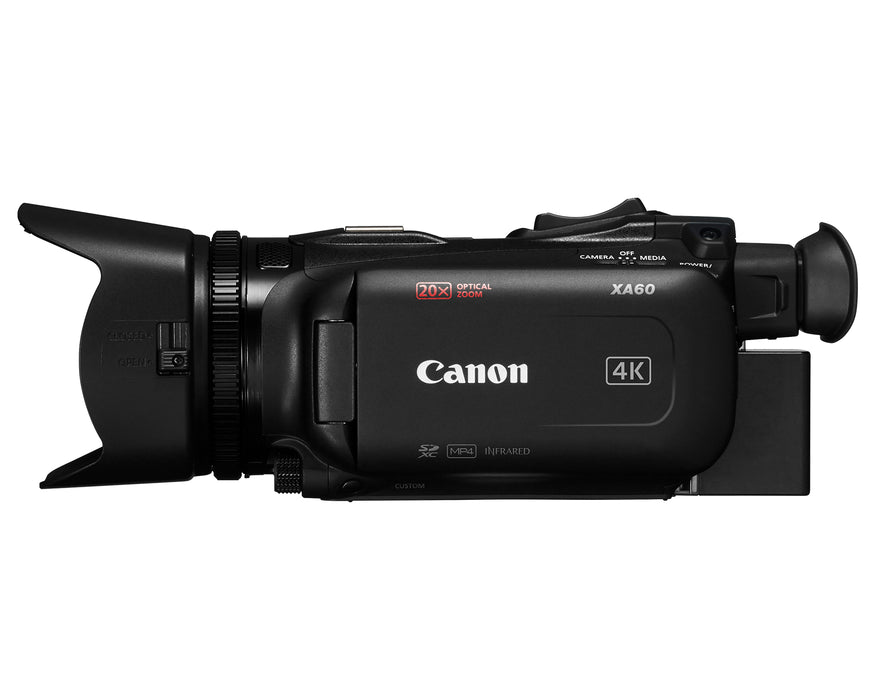

Canon XA60 Professional UHD 4K Camcorder

by Canon
Original price $0.00 - Original price $0.00
Original price $0.00
$1,799.00
$1,799.00 - $1,799.00
Current price $1,799.00
SKU 86414
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .
The Canon XA60 Professional UHD 4K Camcorder is a compact and lightweight camcorder that captures stunning 4K UHD and oversampled Full HD images thanks to a 4K 1/2.3” type CMOS sensor and DIGIC DV6 image processor. Equipped with OSD “Time Stamp” recording, UVC live-streaming, oversampled HD processing, advanced autofocus, and a Canon 20x optical zoom lens, the XA60 is a complete camera that captures footage in either XF-AVC or MP4 formats.

Features:
  • 1/2.3" CMOS Sensor, DIG!C DV 6 Processor
  • Up to UHD 4K30 Video Recording
  • Mini-HDMI Video Output
  • Integrated 20x Optical Zoom Lens
  • USB Type-C Output with UVC Support
  • Infrared, Optical Image Stabilization
  • 3.5" Touchscreen LCD, Tiltable OLED EVF
  • Record 4K in XF-AVC and MP4 Formats
  • Dual SD Relay and Simultaneous Recording
  • Dual XLR and Mic/Line Audio Input

Shoot, record, document, stream
Shoot high quality 4K UHD video with the compact XA60. The camera delivers outstanding oversampled HD, advanced autofocus, a Canon 20x optical zoom lens, HD livestreaming with UVC via a USB-C connection to a PC or Mac and can capture footage for recording or sharing later in either XF-AVC or MP4 formats.

Compact Professional 4K UHD Camcorder

Capture stunning 4K UHD and Full HD images thanks to a 4K 1/2.3" type CMOS sensor and DIGIC DV6 image processor. Oversampled HD delivers Full HD images from the 4K sensor.

On-Screen Display (OSD) “Time Stamp” Recording
New to XA-Series cameras, the OSD recording embeds date, time, timecode and other data into your original camera files effectively “time stamping” the information into each frame of video, a requirement for legal and law enforcement videographers.

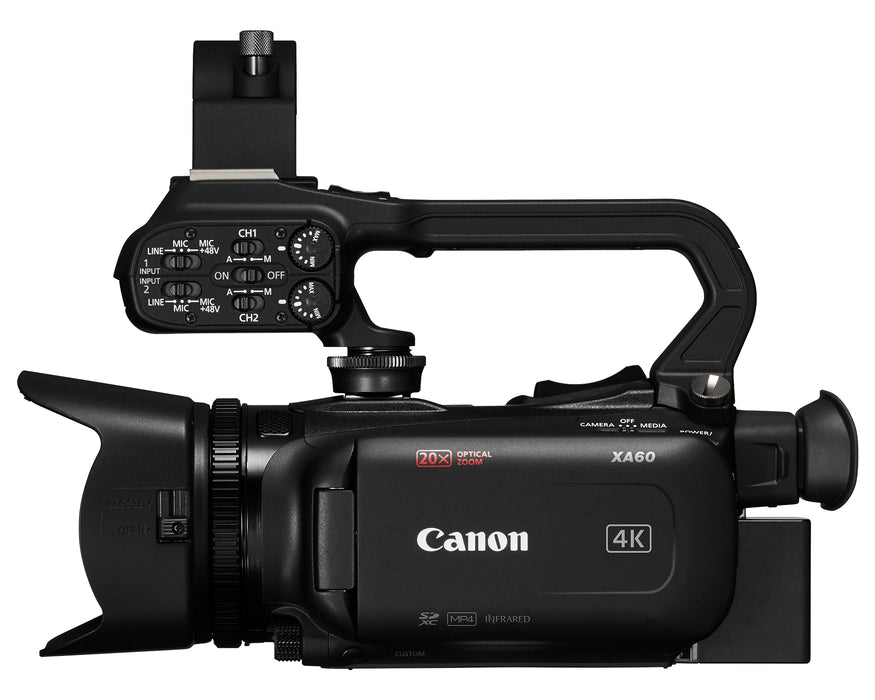

Professional Audio Controls
Two XLR terminals on a detachable handle plus 4-channel linear PCM bring a suite of pro audio options.

4K 20x Optical Zoom Lens
The XA60's lens covers a 29.3 – 601mm (35mm equivalent) range. Digital zoom boosts the 20x optical zoom to 800x magnification. To minimize camera shake, the camera provides Canon’s Dynamic IS 5-axis image stabilization.

UVC Live-streaming
Stream HD video directly from the camera via UVC to a PC or Mac computer.
USB-C cable required to connect to PC or Mac (Optional USB Cables IFC-400U, or IFC-150AB III not included). Audio output through USB is not supported.

Fast, Precise Focusing with Face Detection
Adjustable focusing speeds and advanced Dual Pixel CMOS AF give fast and precise focusing. Use the ultra-bright 3.5-inch LCD display to set focus by touching the AF point required. Face Detection AF and Face Tracking are available while Manual Focus is set via the focus/zoom ring.

XF-AVC and MP4 for Flexible Recording
Choose from XF-AVC or MP4 recording formats. Record XF-AVC 4K UHD 160Mbps at 30P/24P and Full HD 45Mbps at 60P/60i/30P/24P. For smaller files, record MP4 in 4K 150Mbps at 30P/24P and Full HD 35Mbps or 17Mbps at 60P/30/24P.

Professional Input and Output
Output options include simultaneous backup and relay recording via dual SD cards and Infrared mode. Record Slow Motion in 0.4x Full HD or Fast Motion in 4K/Full HD up to 1200x. Color match with other Canon cameras using the custom picture menu.


Technical Specs:

Sensor:

Sensor: 1/2.3" 4K UHD CMOS sensor



Lens:

Zooming ratio, focal length: 35mm camera equivalent: 20x optical zoom, approx. 29.3 - 601mm (4K UHD IS off/standard IS on)/approx. 30.5 - 627mm (Full HD IS off/standard IS on)
Aperture: 8 blades
Image Stabilizer: Optical + electronic correction



Infrared camera supported:

Infrared camera supported:
Yes



Monitor:

Monitor: 3.5-inch (approx. 2.76 million dots), LCD, Capacitive touch panel


EVF:

EVF: 0.36-inch (approx. 1.77 million dots), OLED, tiltable


Looks:

Looks: Standard



Movie Recording:

MXF: Yes (XF-AVC)
AVCHD: No
MP4: Yes
LPCM: 4ch audio YES (not available during 720 recording)
Simultaneous Recording: Double recording
OSD Recording: Yes
Slow and Fast (S&F) Motion Recording: Yes
Cinema-look filters: No



Recording Media:

Bulit-in Memory: No
Memory Card: SD card (2 slots)



Professional use terminals:

SDI terminal: No
GENLOCK, TC: No
XLR terminal (Input 1, Input 2): Yes



Other Terminals:

Other Terminals: HDMI, separate headphones, USB (USB Type-C), DC IN (USB Type-C), remote and MIC terminal (supports plug-in power)



Accessory shoe:

Accessory shoe: Handle unit: Cold shoe



Detachable handle:

Detachable handle:
Yes (XLR terminal, built-in infrared light, mic holder, cold shoe, zoom lever, trigger, tally lamp)



Wi-Fi:

Wi-Fi: No



GPS:

GPS: No (Accessories supported)



Lens hood with barrier:

Lens hood with barrier:
Yes



Battery:

Battery Info: Required, included
Battery Material: Lithium ion
Battery Type: Non-universal
Battery Quantity: 1



 General:

Dimensions: Approx. 4.3 x 3.3 x 7.2" (109 x 84 x 182mm)
Weight: Body only: Approx. 1.63 lbs (740g)

Lens hood, mic holder unit, handle unit, BP-820 and memory card (1 pc) included: Approx. 2.50 lbs. / 1135 g



In The Box:
1 x Canon XA60 Professional UHD 4K Camcorder
1 x Canon BP-820 Lithium-Ion Battery Pack
1 x Canon PD-E1 USB Power Adapter with AC Cable
1 x Lens Cap
1 x Lens Hood with Lens Barrier
1 x Handle Unit
1 x Microphone Holder Unit

Glazer's SKU 86414
Manufacturer Canon
MFG SKU 5733C002
