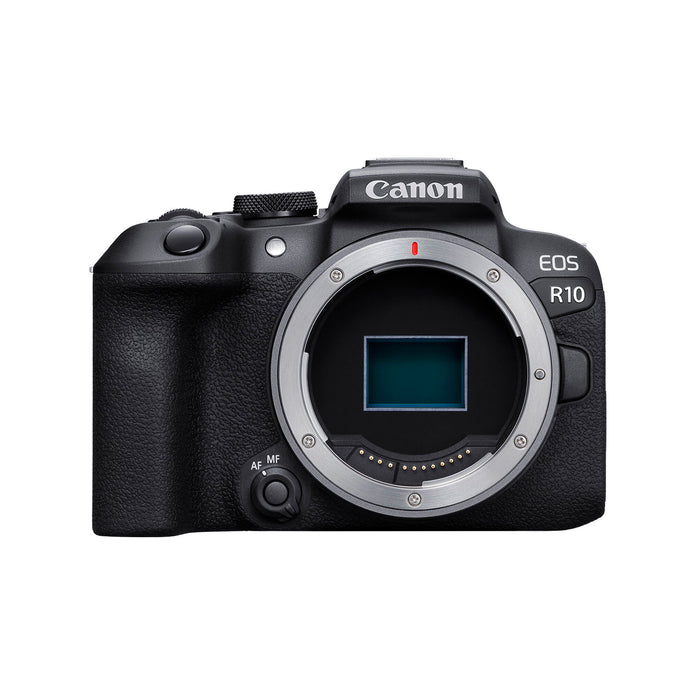

The Canon EOS R10 is perfect for content creators looking to take their creativity to the next level. Featuring a high-speed shooting 15 FPS mechanical shutter1,2, a 24.2 Megapixel CMOS (APS-C) sensor, and lightning fast autofocus, the EOS R10 camera brings some of the best features from the growing EOS R Series to a sleek, lightweight design.
Features:
24.2 Megapixels APS-C CMOS Sensor
15 FPS Mechanical, 23 FPS Electronic
4K30 10-Bit Video, HDR PQ
1.04m-Dot Vari-Angle Touchscreen LCD
1x UHS-II (supported)
No “IBIS” (in-body Image Stabilization)
Capture sharp photos and video Offering high sensitivity, nuanced image quality, and fast overall performance, a 24.2 Megapixel CMOS (APS-C) sensor delivers stunning resolution to fast-action photos taken day or night. Plus, the efficient DIGIC X advanced image processor powers 4K video capture and reduces noise, so you can continuously shoot without worrying about capturing the shot.
Full features, sleek design The easy-to-carry EOS R10 packs advanced features into a lightweight, compact design. Pair with a Canon RF-S/RF lens (or EF/EF-S lens using the Mount Adapter EF-EOS R*) for a high-performance setup that fits easily and comfortably in your hand.
Capture fast-moving subjects in brilliant detail With a high-speed shooting 15 FPS mechanical shutter1,2, the EOS R10 can capture the perfect moment between your subject’s movement. This is ideal for dynamic action photos such as sports, animals, cars - or life just as it happens.
Smart, speedy autofocus Canon's Dual Pixel CMOS AF technology with people, animal3, and vehicle subject detection lets you keep your eye on the action while it keeps your subject in crystal clear focus.
Record each clip over 30 minutes Set up your video without worrying about it stopping after 30-minutes.4
Optimized for Video Get professional-grade 4K video on-the-go with Movie Servo AF, an autofocus system that includes subject detection and subject tracking for quicker shooting and a stronger focus.
Compatibility with full range of Canon RF-S, RF, EF, EF-S mounts* Backwards compatible, future proof. Enjoy full compatibility with Canon’s legendary line up of lens past, present and future.
* Optional Mount Adapter EF-EOS R is required when using EF/EF-S lenses with an EOS R series camera. 1. Continuous shooting speed may be slower due to factors such as anti-flicker shooting, aperture value, or battery life. 2. Not available when Dual Pixel RAW is enabled. 3. Effectiveness varies depending on the subject. In some cases, dogs, cats or birds may not be detected, while some animals other than dogs, cats or birds may be detected. 4. Video may stop due to battery level, card capacity, or internal temperature.
• Eye-Fi cards and Multimedia cards (MMC) are not supported.
Compatible Lenses
Canon RF-S/RF lens group (excluding EF, EF-S and EF-M lenses)
When using Mount Adapter EF-EOS R: Canon EF or EF-S lenses (excluding EF-M lenses)
Lens Mount
Canon RF mount
Image Sensor
Type
CMOS sensor (compatible with Dual Pixel CMOS AF)
Effective Pixels
Approx. 24.2 megapixels
Sensor Size
Approx. 22.3 x 14.9 mm
Pixel Size
Approx. 3.72 μm square
Total Pixels
Approx. 25.5 megapixels
Aspect Ratio
3:2 (Horizontal: Vertical)
Color Filter System
RGB primary color filters
Low Pass Filter
Installed in front of the image sensor, non-detachable
Dust Deletion Feature
(1) Self Cleaning Sensor Unit
• Removes dust adhering to the low-pass filter.
• At power off only / Enable / Disable. Performed automatically (taking about approx. 2 sec. as indicated on the screen) or manually (taking about approx. 7 sec. as indicated on the screen).
• After manually activated cleaning, the camera will automatically restart (Power OFF to ON).
• When [Multi Shot Noise Reduction], [Multiple exposures], or [HDR mode] is set, [Clean now] and [Clean manually] cannot be selected.
(2) Dust Delete Data acquisition and appending
• The coordinates of the dust adhering to the low-pass filter are detected by a test shot and
appended to subsequent images.
• The dust coordinate data appended to the image is used by the EOS Canon Digital Professional Software to automatically erase the dust spots.
• Not available in focus bracketing, RAW burst mode, or multiple-exposure
shooting.
(3) Manual cleaning (by hand)
Recording Sensor
Recording Format
Compliant to Design rule for Camera File system 2.0 and Exif 2.31*.
Values for Recording Pixels are rounded to the nearest 100,000th.
RAW/C-RAW images are generated at 3:2, with information added about the specified aspect ratio, and JPEG images are generated at the specified aspect ratio.
These aspect ratios (M / S1 / S2) and pixel counts also apply to resizing.
* Indicate an inexact proportion.
File Numbering
The following file numbers can be set:
File numbering methods
a. Continuous numbering
i. The numbering of captured images continues even after you replace the card.
b. Auto reset
i. When you replace the card, the numbering will be reset to start from 0001. If the new SD card already contains images, the numbering will continue from the last recorded image in the card.
RAW + JPEG / HEIF
Simultaneous Recording
Simultaneous recording of any combination of RAW/C-RAW and JPEG/HEIF image-recording quality is
Color Space
Selectable between sRGB and Adobe RGB
Picture Style
(1) Auto
(2) Standard
(3) Portrait
(4) Landscape
(5) Fine Detail
(6) Neutral
(7) Faithful
(8) Monochrome
(9) User Defined 1–3
White Balance
Settings
(1) Auto (Ambience priority/White priority)
(2) Daylight
(3) Shade
(4) Cloudy1
(5) Tungsten light
(6) White fluorescent light
(7) Flash
(8) Custom2 (Custom WB)
(9) Color temperature
1 Effective also in twilight and sunset.
2 Setting method options include [Custom White Balance] and [Shoot to set WB].
Auto White Balance
Option between ambience priority and white priority settings.
White Balance Shift
Blue/amber bias: ±9 levels
Magenta/green bias: ±9 levels
Corrected in reference to the current WB mode’s color temperature
Viewfinder
Type
OLED color electronic viewfinder; approx. 2.36 million dots resolution
Coverage
Approx. 100% vertically and horizontally relative to the shooting image area (with image quality L, at approx. 22mm eyepoint).
Magnification / Angle of View
Approx. 0.95x / Approx. 28 degrees (with 3:2 display, a 50mm lens at infinity, -1 m-1)
Eye Point
Approx. 22mm (at -1 m-1 from the eyepiece lens end)
Dioptric Adjustment Range
Approx. -3.0 to + 1.0 m-1 (dpt)
Autofocus
Focus Method
Dual Pixel CMOS AF
Number of AF zones available for
Automatic Selection
AF area: Horizontal: Approx. 100% x Vertical: Approx. 100%*
Stills: Max. 651 zones (31 x 21)
Movies: Max. 527 zones (31 x 17)
AF Working Range
EV -4 to 20 (f/1.2 lens*, center AF point, One-Shot AF, at room temperature, ISO 100)
* Except RF lenses with a Defocus Smoothing (DS) coating.
Focusing brightness range
(in movie recording)
Full HD 29.97fps : EV -3.5 to 20
With an f/1.2 lens*, center AF point, One-Shot AF,at room temperature, ISO 100
* Except RF lenses with a Defocus Smoothing (DS) coating.
AF Methods
Whole area AF Spot AF 1-point AF
Expand AF Area Expand AF Area (Above, below, left and right, around) Expand AF Area: Around Flexible Zone AF 1,2,3
Subject to Detect
People, Animals, Vehicles, No Priority
* Available with [AF Area] set to Whole area AF
Focus mode switch
AF / MF
Applies when an RF or RF-S lens without a focus mode switch is attached.
When lenses with a focus mode switch are attached, the setting on the lens takes precedence.
Electronic Shutter Up to 23 fps at 24.2 MP for up to 70 Frames (JPEG) / 43 Frames (Raw) Mechanical Shutter Up to 15 fps at 24.2 MP for up to 460 Frames (JPEG) / 157 Frames (Raw)
Interval Recording
Yes
Self-Timer
2/10-Second Delay
Still Image Capture
Aspect Ratio
1:1, 3:2, 4:3, 16:9
Image File Format
C-RAW, HEIF, JPEG, Raw
Internal Video Capture
Recording Modes
H.265/MP4 4:2:2 10-Bit UHD 4K (3840 x 2160) up to 59.94p Full HD (1920 x 1080) up to 119.88p H.264/MP4 4:2:0 8-Bit UHD 4K (3840 x 2160) up to 59.94p Full HD (1920 x 1080) up to 119.88p
Gamma Curve
HDR-PQ
Built-In Microphone Type
Stereo
Audio Recording
MP4: 2-Channel AAC Audio
External Video Capture
IP Streaming
Yes
Interface
Media/Memory Card Slot
Single Slot: SD/SDHC/SDXC (UHS-II)
Video I/O
1 x Micro-HDMI Output
Audio I/O
1 x 1/8" / 3.5 mm TRS Stereo Microphone Output
Other I/O
1 x USB Type-C (USB 2.0) Input/Output
Wireless
2.4 GHz Wi-Fi (802.11b/g) Bluetooth
Global Positioning (GPS, GLONASS, etc.)
None
Monitor
Size
3.0"
Resolution
1,040,000 Dot
Display Type
Free-Angle Tilting Touchscreen LCD
Viewfinder
Type
Built-In Electronic (OLED)
Resolution
2,360,000 Dot
Eye Point
22 mm
Coverage
100%
Magnification
Approx. 0.95x
Diopter Adjustment
-3 to +1
Focus
Focus Type
Auto and Manual Focus
Focus Mode
Continuous-Servo AF, Manual Focus, Single-Servo AF
Autofocus Points
Photo, Video Phase Detection: 651
Autofocus Sensitivity
-4 to +20 EV
Built-In Flash
E-TTL balance
Ambience priority, standard, flash priority
Compatible E-TTL Speedlites
Canon EX- and EL-series Speedlites
E-TTL II Flash
Metering
(1) Evaluative (Face Priority)
(2) Evaluative
(3) Average
Slow Sync (P/AV modes)
Mechanical Shutter: 1/200-30 sec. auto 1/200-1/60 sec. atuo 1/200 sec. (fixed)
Electronic 1st curtain 1/250-30 sec. auto 1/250-1/60 sec. auto 1/250 sec. (fixed)
Flash Function Menu
Provided for EX- and EL-series Speedlites
Flash Exposure Compensation
±3 stops in 1/3- or 1/2-stop increments
Continuous flash control
1. E-TTL each shot
2. E-TTL 1st shot
Environmental
Focus Type
Auto and Manual Focus
Focus Mode
Continuous-Servo AF, Manual Focus, Single-Servo AF
Autofocus Points
Photo, Video Phase Detection: 651
Autofocus Sensitivity
-4 to +20 EV
General
Battery Type
1 x LP-E17 Rechargeable Lithium-Ion
Tripod Mounting Thread
1 x 1/4"-20 Female (Bottom)
Dimensions (W x H x D)
4.8 x 3.5 x 3.3" / 122.5 x 87.8 x 83.4 mm
Weight
13.5 oz / 382.2 g (Body Only) 15.1 oz / 429.2 g (Body with Battery and Memory)
