Add a Blackmagic Design Viewfinder
The Blackmagic URSA Broadcast G2 has 2 different viewfinder options, depending on how you need to use the camera. The standard Blackmagic URSA Viewfinder is a conventional viewfinder that’s perfect for production and ENG use and is designed to use on the camera when shoulder mounted or on a tripod. It has a high resolution OLED display and glass optics, so you get an extremely high quality image. The Blackmagic URSA Studio Viewfinder G2 is based on a large 7 inch display and is perfect for tripod mounted studio camera use. It totally transforms the camera into a true studio camera! The studio viewfinder also includes a large tally light and easy to access controls. It's even fully adjustable!
Blackmagic URSA Viewfinder
The Perfect Production Camera!
If your project calls for a lot of over the shoulder or handheld shooting, you’ll want to add the Blackmagic URSA Viewfinder. You get a high resolution 1920 x 1080 color display that lets you get incredibly accurate focus and the screen is so sharp it’s just like using an optical viewfinder on a traditional film camera. The viewfinder can be adjusted for either left or right eye use. Installation is simple, and you only need to mount it and plug in the SDI and power connections to the side of URSA Broadcast. It’s so comfortable when using the camera shoulder mounted. The viewfinder also includes a sensor to turn off the screen when you’re not using it to extend the life of the OLED screen.

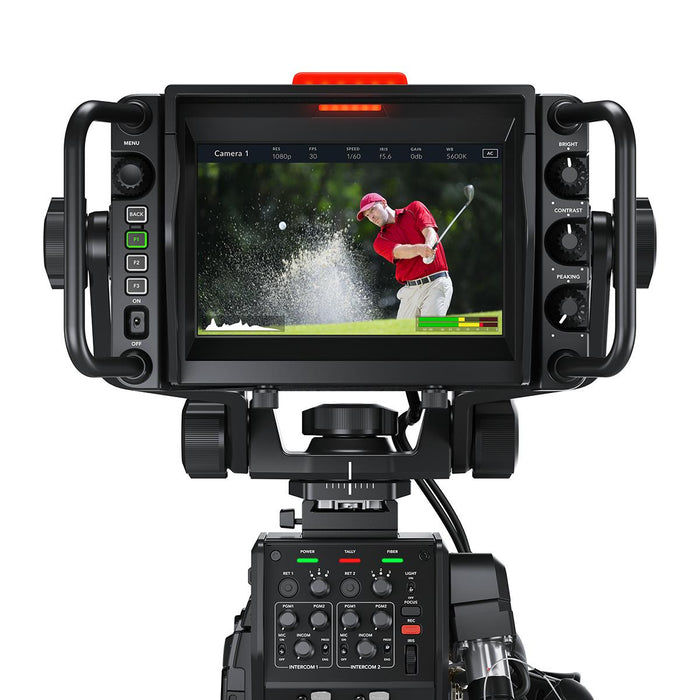

Blackmagic URSA Studio Viewfinder G2
The Perfect Studio Camera!
If you add the Blackmagic URSA Studio Viewfinder G2, you can turn an URSA Broadcast G2 into a professional studio camera. URSA Broadcast G2 has a digital film sensor and built in color corrector, so you get better image quality than a traditional studio camera. Plus you can add the Blackmagic Studio Fiber Converter to connect the camera with SMPTE fiber while adding additional studio camera controls to the rear of the camera. URSA Broadcast has a B4 lens mount, so it handles both ENG lenses as well as large "box" style broadcast lenses, for par focal focus and amazing zoom range. It even works with the Blackmagic Focus and Zoom demands to control B4 lenses while using the camera with two hands.
Big Bright Adjustable Display
The Blackmagic URSA Studio Viewfinder G2 mounts using a standard V-Lock mount, so it’s easy to attach it to the top of your camera. It can mount to the top of the camera body, or the top of the SMPTE fiber converter if you have one installed on the camera. It features a bright 7" display with grip handles so it’s very easy to position it independently of the camera, even while your camera is on air. The mount allows the viewfinder to be tilted up and down and rotated sideways. Then you can adjust the lock knobs to vary the amount of tension on the viewfinder adjustments. There's also a metal sunshade for use when in bright outdoor locations and the sunshade can be removed quickly when not needed.
Physical Viewfinder Controls
The URSA Studio Viewfinder G2 features physical controls for adjusting framing and focus features. The menu dial allows you to scroll through menus and change settings as needed. However the most exciting controls are the 3 knobs on the right side of the viewfinder, which give you smooth control of the LCD brightness and contrast, as well as directly adjustable focus peaking control. The focus peaking control allows you to constantly adjust peaking to make focus easy at the zoom setting you are using. Plus, there are 3 customizable function buttons you can program to control features such as zebra, false color, focus peaking, luminance waveform, LUTs and more!
Large Bright Tally Light
The back of the Blackmagic URSA Studio Viewfinder G2 features a large tally light that illuminates red for on-air, green for preview, and orange for ISO recording. As the director cuts between cameras on the ATEM switcher, tally information is sent back to the camera over SDI so the light is lit when the camera is on the air. You only need to set the correct camera number in the URSA Broadcast G2 menus! The tally light is very large so it’s easy to see when the presenter is a long distance from the camera. Plus, the Blackmagic URSA Studio Viewfinder G2 also includes clip-on number decals that insert into the tally light, so each camera is clearly numbered and easy for presenters to see.
Activate Tally Light via SDI Control
The big bright tally light on the top of the viewfinder is one of the features that can be controlled over the SDI video connection. The Blackmagic SDI Camera Control Protocol takes advantage of blanking space in the SDI data stream to add talkback, tally and other camera control information direct to the camera via the program return feed. This also works with the viewfinder as it has the same control sent to it from the camera via its SDI input. The Blackmagic control protocol is an open standard and is documented in the ATEM switcher manual. That means anyone can create custom solutions for Blackmagic cameras, switchers and Blackmagic URSA Studio Viewfinder.
- Integrated V-Lock mounting plate for quick setup
- Super bright 2,000 nit, 7" display
- Detachable metal sunshade
- Large grip handles and variable tension pivot points
- Physical dials, knobs and customizable function buttons
In The Box:
1 x Blackmagic Design 7" URSA Studio Viewfinder G2
1 x Sun Hood
