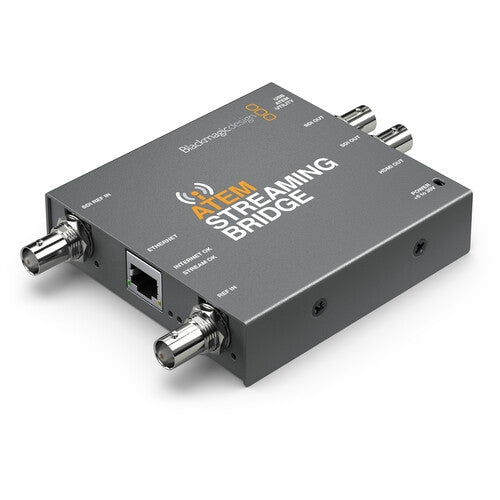

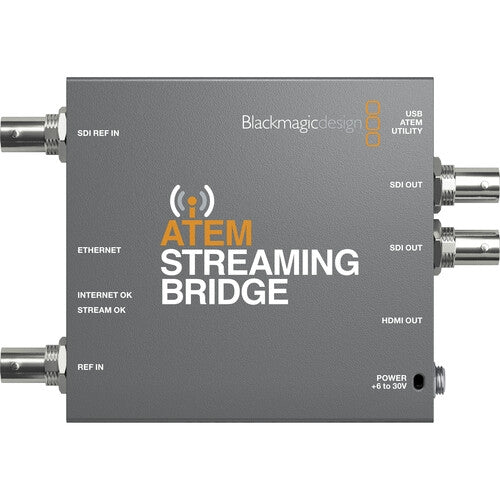

Blackmagic Design ATEM Streaming Bridge for ATEM Mini Pro Streaming Switchers

Blackmagic Design ATEM Streaming Bridge for ATEM Mini Pro Streaming Switchers

by Blackmagic Design
$259.00 - $259.00
$259.00
$259.00 - $259.00
$259.00
SKU 62530
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .
Bm Atem Streaming Bridge

The Blackmagic Design ATEM Streaming Bridge for ATEM Mini Pro Streaming Switchers allows you to convert the IP signal from any ATEM Mini Pro unit into SDI and HDMI video. It features two SDI outputs and a single HDMI output and supports resolutions up to 1080p60. You can connect the Streaming Bridge directly to the streaming output of your ATEM Mini Pro, and it will provide SDI and HDMI output for use in broadcast environments, or directly to a monitor. You can also connect the streaming bridge to the same LAN that an ATEM Mini Pro is connected to, and the devices will find each other allowing you to easily stream across the network.

The downloadable software enables you control the decoding settings as well as set an IP address to the device and save that information to your computer. That information can be emailed to any computer connected to an ATEM Mini Pro, and this allows the ATEM Mini Pro to locate and stream to the Streaming Bridge connected to the internet.

Glazer's SKU 62530
Manufacturer Blackmagic Design
MFG SKU SWATEMMINISBPR
Product Specs
Input
Audio Input Connectors None
Output
Video Output Connectors 2 x BNC (3G-SDI / HD-SDI)
1 x HDMI (HDMI 1.4)
Output Video Format HDMI
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
SDI (10-Bit 4:2:2 YUV)
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
Audio Output Connectors None
Standards
Video Standard Compliance SMPTE 259M/292M/296M/424M-B/425M-A/425M-B
Connectivity
Other I/O 1 x RJ45
2 x BNC Reference
Expansion Slots None
IP Streaming
Video IP Decoding H.264: 1920 x 1080
Power
Power Connector 1 x Barrel (6 to 30 VDC) Input
Power Consumption Device: 6 W
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Humidity 0 to 90% (Recommended)
General
Certifications CE, FCC, Kcc, as per Manufacturer
Dimensions 5.28 x 3.63 x 0.9" / 13.41 x 9.22 x 2.29 cm
Weight 8.1 oz / 230 g
Warranty Length Limited 1-Year Warranty
