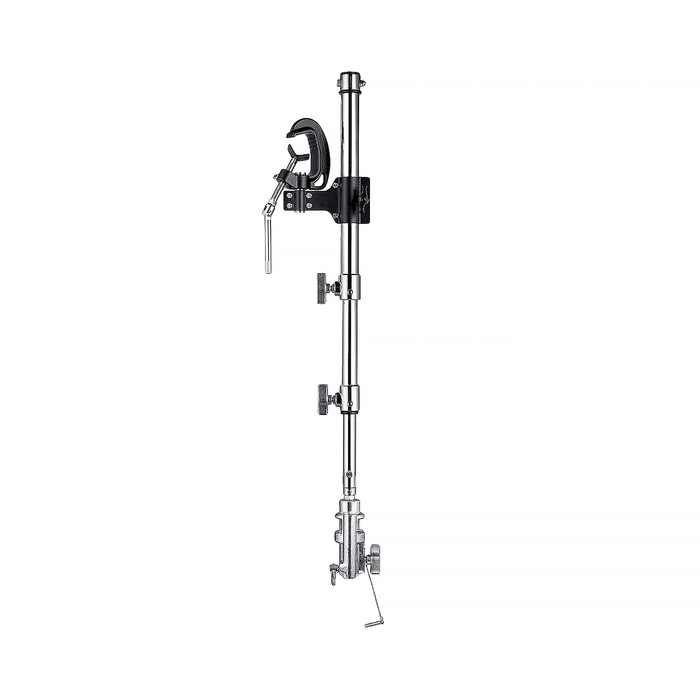

Avenger Telescopic Hanger with Universal Head
The Avenger C888UH offset telescopic hanger with universal (combo) head is a 3 section compact hanger, with a double riser extension. This compact telescopic hanger has a minimum length of 29.9" and can extend as along as 63.4". The junior receiver will hold capacities up to 40 kg/88 lb. while the retractable 16 mm/ 5/8 in pin can hold a capacity up to 22 lb. The offset swivel grid clamp attaches to pipes, truss or grids and is also used to control the extension of the first section of the hanger. The clamping range is 10 to 55 mm/0.4 to 2.16". One safety cable with locking pin is included to add extra security for the inserted junior pins which mount into the receiver.
Design:
- 3-section compact telescopic design with double riser extension
- Junior receiver
- Retractable 16 mm (5/8") pin
- Offset swivel grid clamp for pipes, truss, and grid attachment
- Safety cable with locking pin
- Universal (combo) head compatibility
Features:
- Ideal for suspending light fixtures or other items overhead
- 161 cm/63.4" long; Junior receiver Load capacity: 40 kg/88 lbs
- Universal head with 28 mm/ 1 1/8" socket & 16 mm/ 1 1/8" pin
- Tommy bar on offset grid clamp included: No tools required
- Grid/Pipe clamp works on diameters Ø 10-55 mm/0.39-2.16"
- Designed & made in Italy
Maximum Payload Capacity:
88 lbs (Junior Receiver)
22 lb (5/8" Stud/Pin)
Compatible With:
Recommended Optional Accessories (Sold Separately):
- C155 Avenger Safety Cable, 100cm/39.4'' Rigging w/Screw Lock Ø4mm
- C1575B Avenger Super Clamp T-Knob Black, 0.51 to 2.17in
- C210 Avenger Baby Pipe Clamp with 16mm/ 5/8in Pin & Tommy Bar
- C150 Avenger Swiveling Junior C-Clamp 28mm/1 1/8" Gravity Cast
- C100 Avenger Junior Pipe Clamp 28mm/1 1/8" w/Tommy Bar 20-55mm
- C338 Avenger Quick Action Baby Clamp, w/ 16mm/ 5/8" Pin
- C339UH Grab Clamp With Universal Head
- C461-1 Avenger Eye Coupler LP Clamp w/28mm/1 1/8'' Spigot, Ø48-52mm
- C465-1 Avenger Eye Coupler Clamp LP w/Jr. Receiver, Ø48-52mm
- C345-1 Avenger Barrel Clamp, Silver w/Wingnut, Ø42-52mm/1.65-2.04"
- C345K-1 Avenger Barrel Clamp, Silver w/T-Knob Ø42-52mm/1.65-2.04"
Dimensions:
Maximum Height: 63.39"
Closed Length: 29.92"
Clamping Range: 0.4–2.16"
Weight:
12.35 lbs
Materials:
Chrome-Plated Steel Construction
Manufacturer SKU:
C888UH
In The Box:
Manfrotto C888UH Avenger Telescopic Hanger with Universal Head 30-63.4"
Limited 2-Year Manufacturer Warranty
