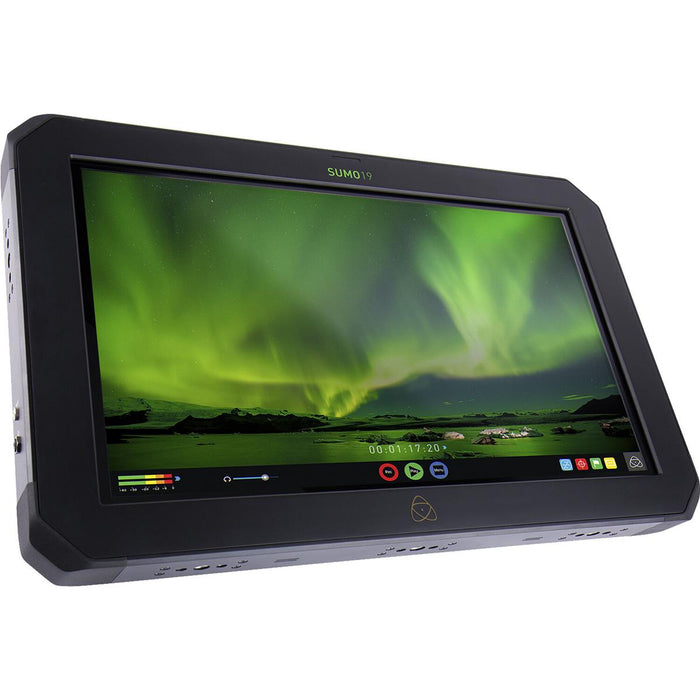

Atomos Sumo 19" SE HDR Cinema Monitor-Recorder-Switcher

The Atomos Sumo 19" SE HDR Cinema Monitor-Recorder-Switcher has an upgraded 19" 1920 x 1080 QLED touchscreen display and 1200 cd/m² brightness with 4K recording, monitoring, and switching capabilities.

Features:

• 1920x1080 QLED 1200nit HDR Touchscreen
• Live Switch Program Out
• HDMI 2.0 & 12G-SDI Inputs/Outputs
• 4x ISO+Program Record
• HDR Mode with 10-Stop Dynamic Range
• ProRes RAW Support (Up to 6K)
• Quad-HD Live Switching and 5-Ch Recording
• Two XLR Inputs with +48V
• 10-Bit 422 ProRes/DNxHR Encoding
• 19" Quantum Dot OLED display with 2000 cd/sq. m Brightness

Proven Reliable

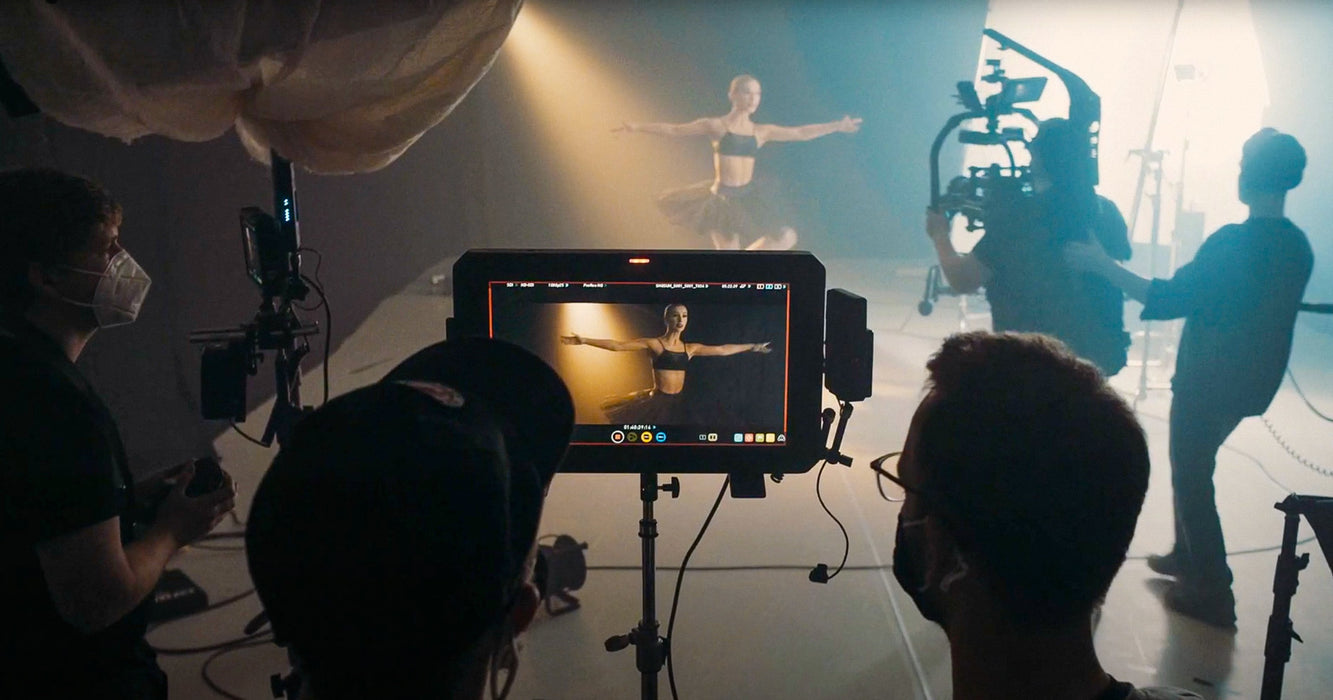

With a bright (1200nit), HDR touchscreen covering the DCI-P3 (P3) Color Gamut, the ability to record Apple ProResRAW up to 6Kp30, and a rugged and versatile design, the SUMO 19SE is the perfect addition to an on-set video village. With four independent inputs it can also be be used to switch and record each ISO stream up to 1080p60 and has full-sized XLR connectors for professional audio workflows.

Record up to 6Kp30 ProRes RAW
Unlock the true potential of SDI RAW cinema cameras with the Sumo 19SE. Preserve the pristine quality of the data from the camera sensor by recording in Apple ProRes RAW at up to 6Kp30, 4Kp60 DCI/UHD, and 2Kp240 DCI/HD, or record in CinemaDNG at up to 4Kp30 DCI. Sumo 19SE is compatible with the Sony FS series cameras, Canon C300MKII/C500, Panasonic EVA-1/Varicam LT, and more.

10-bit ProRes and DNx up to 4Kp60
Video from any camera or digital video source can be captured via SDI or HDMI. Record up to 10-bit 4:2:2 in Apple ProRes or Avid DNxHR codecs at 4Kp60. With support for multiple inputs via SDI, the SUMO 19SE provides the ability to record up to 4 x inputs and also supports ProRes LT and DNxHD 36 for extended recording times.

High-bright & HDR Monitoring
With 1200nit brightness, 19-inch, 1920 x 1080, and 10-bit processing all built into a rugged enclosure, the SUMO 19SE is at home in any location. SDI and HDMI i/o supports a wide range of inputs and provides signal cross conversion with 4K>HD down conversion options.

Live Quad-channel HD Switching & Recording
Record up to four 1080p60 streams simultaneously (via 3G SDI Level A Only) as separate ISOs, as well as a fifth “program” channel of your switched feed, whilst cueing and switching in real-time. Display the resulting mixed output (via HDMI or SDI) live on set or use an HDMI to USB capture device to output the switched feed for live streaming. Switching is asynchronous, eliminating the need for expensive locked sources and allowing the use of more affordable cameras that do not support timecode/genlock inputs.

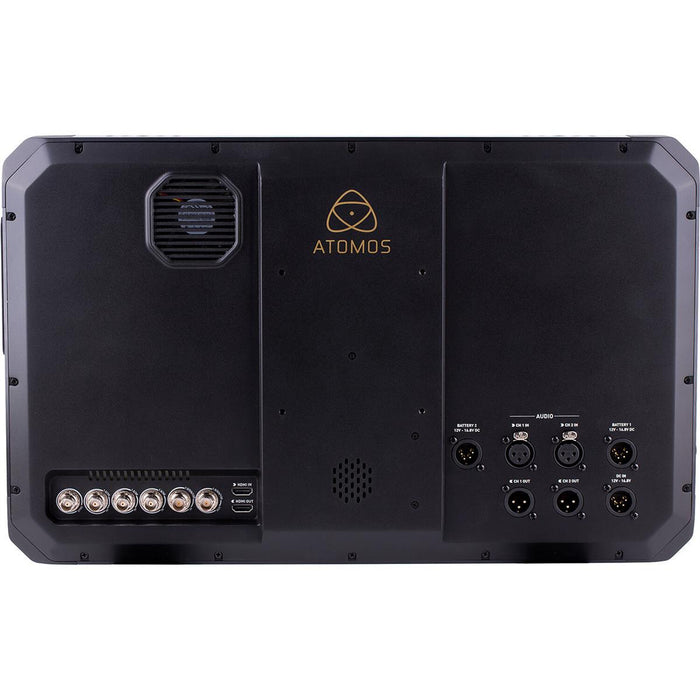

Two stereo balanced XLR inputs with 48V
The full-size XLR connectors with 48V phantom power allow you to connect two external microphones with balanced analog audio recording and monitoring. The SUMO 19SE also has dedicated meters, gain controls, and adjustments for frame delay on each channel. Mic or line-level audio can be seamlessly synchronized with embedded audio from HDMI and SDI sources.

Technical Specs:

Physical Specifications Dimensions (W x H x D mm) 310mm / 12.2" x 504 mm / 19.8" x 63mm / 2.5" Weight 6.2kg / 13.7lb Mount points Top: 4 x 1/4' 20, 2 x 3/8", Bottom: 6 x 1/4' 20, 3 x 3/8" Right: 4 x 1/4' 20, 2 x 3/8", Left: 2 x 1/4' 20, 1 x 3/8" VESA mount 100 x 100 Environmental Ambient operating temperature Up to 40 Degrees Celsius Construction and Control Cooling Actively controlled fan and Heat Sink Tally light Rear and front Multi-function button Power / lock Screen Touch Screen Yes Power Input voltage DC 12-16.8v Operating power 75W Compatible batteries V-Lock / Anton Bauer Gold Mount via XLR terminal, (optional mounting plates available), 95Wh+ recommended. Battery voltage 14.4V nominal Battery Run time (Record) Depends on Watt Hours specification of battery used Battery Run time (Monitor only) Depends on Watt Hours specification of battery used Continuous power Dual Battery input via dedicated 4 pin XLR DC in connector 1 x 4 pin XLR (12-16.8V) Dtap Via optional D-Tap to 4 Pin XLR cable.  Display Touchscreen SuperAtom IPS panel (capacitive touch) Size 19" Resolution 1920 x 1080 PPI 120 Bit depth 10Bit (8+2 FRC) Backlight Type Optically bonded quantum dot Brightness (cdm2 / nits) 1200nit (+/- 10% @ center) Aspect ratio 16:9 Image Display De-interlace mode Yes Color Gamut DCI P3 Calibration support Atomos Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus Color Pipeline Gamma Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 /LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic V-log, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm F log, PQ (HDR10), HLG, Nikon N-Log Gamut BT2020, DCI P3, DCI P3+, DCI p3 65, Sony SGamut / SGamut3 / SGamut3.cine, Canon Cinema, Panasonic V Gamut, Arri Alexa Wide Gamut, Rec709, JVC LS300, F-Gamut, Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut 3D LUT Display .Cube format 3D LUT Output Loop out 3DLUT 50/50 Yes Monitoring Modes Native/ 709 / HLG / PQ / 3D LUT HDR output Conversion HDR to HLG / PQ Color Management Calibration Atomos Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus Display Controls Backlight, Lift, Gamma, Gain AtomHDR Built in Technical Log to HDR EOTF 3D LUTs Display, monitor and output, Record, Load via SSD Legalize Full to Legal conversion available on Input Video Input HDMI 1 x HDMI (2.0) 4K p60 HDMI RAW No - HDMI Video only SDI 4 x 3G SDI, with 2 x 12G SDI backwards compatible, auto detection SDI RAW Apple ProRes RAW up to 6Kp30 Bit Depth 8/10Bit Video / RAW up to 12Bit Video Chroma Subsampling YCbCr 422 HDR Yes with Auto detection Metadata SDI File Name from Arri, RED. RAW - white balance, Exposure index, Shutter speed/angle, Iris F stop, ISO, Gamma, gamut File Naming Standard S/S/T & Rolling Via SDI Red, Arri Video Output HDMI 1 x HDMI (2.0) 4K p60 SDI loop out 1 x 12G SDI Backwards compatible, Auto detection. Level A and B selectable SDI Play out 1 x 12G SDI Backwards compatible, Auto detection. Level A and B selectable Video Chroma Subsampling 422 Bit Depth 10Bit Video / 12Bit RAW Web Streaming USB UVC Optional via ZATO Connect / USB Stick Video Signal Conversion HDMI to SDI Yes SDI to HDMI Yes - Video and RAW Audio In/Out Audio Quality 24-Bit / 48kHz Audio Codec PCM HDMI 8ch 24Bit, input dependent SDI 12ch 24Bit, input dependent Analogue Audio in 2 x XLR Analogue Audio Out 2 x XLR Speakers 2 x 5w Headphone out 3.5mm 2ch. Timecode / Sync Embedded SDI and HDMI Time of day Yes, Time and Date LTC LTC via BNC input in Record mode Genlock Genlock in Playback mode Resolution and Frame Rates (Record, Monitor & Playback) 4k DCI up to 4Kp60 4k UHD up to 4Kp60 2K DCI 2046 x 1080 up to 2Kp60 FHD 1920 x 1080 Progressive up to 1080p120 FHD 1920 x 1080 PsF Pull down FHD 1920 x 1080 Interlaced 1080i50 / 1080i60 1280 x 720p 60p 6K RAW up to 6Kp30 Via SDI 4K RAW up to 4Kp60 via SDI 2K RAW up to 2Kp240 via SDI Recording CODEC CDNG For SDI RAW inputs Only Apple ProRes RAW ProRes RAW, ProRes RAW HQ up to 12bit 6Kp30 / 4Kp60 Apple ProRes Apple ProRes HQ / 422 / LT up to 4Kp60 Avid DNxHD up to 1080p60 Avid DNxHR up to 4Kp60 Playback Playlist Yes, Create custom play lists from full or sub clips Loop Yes, with user customizable in / out markers CDNG No Apple ProRes Raw Yes, recorded clips with linear PCM Apple ProRes HQ / 422 / LT - Yes with linear PCM Avid DNx DNxHR / DNxHD - Yes with linear PCM Monitoring SDR Native, 709, LUT HDR HLG, PQ Rec2020 De-Interlace Selectable mode Recording functions Pre-roll record Yes (HD 8s, 4K 2s) - Not available in RAW ISO Record 4 x ISO up to 1080p 60 (3G SDI Level A ONLY) Switched Program Record Yes Up to 1080p 60 Timelapse Yes Multi Input / Switching SDI A/B toggle Yes, supports up to 12G SDI per input Dual Input display Via Multi ISO input mode Multiple SDI input Up to 4 x up to 1080p 60 (3G SDI Level A ONLY) Multiview Display Via Multi ISO input mode Input transitions Auto or manual XML transition Input Switching Yes Supported media Master Caddy I No SSDmini Yes (AtomX SSDmini handle required) CFast II Not supported File System ExFAT Interface SATA 3 Master Caddy III Yes On screen tools Waveform 3 sizes RGB parade 3 sizes Vector scope 2 size / Position 1 x Zoom Yes. 1:1 Pixel mapping for 4K 2 x Zoom Yes Focus peaking Colour selected / threshold setting / colour/ Mono / edges only False colour Yes, with IRE scale Zebra Yes, customisable Isolate color channel Blue only Cine Frame Guides 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3 Social Frame guides 9:16, 1:1, 1.91:1, 4:5 Safe areas SMPTE frame size – Action and Safe Grid markers 9 grid Anamorphic desqueeze Display 1.25x, 1.33x, 1.5x, 1.8x and 2x Display Flip Vertical False Color Yes, with IRE scale Onboard Signal Processing 4K UHD Downscale for HD Loop out - 4K UHD to FHD DCI Crop Loop out - 17:9 to 16:9 Crop I > P 60i > 24p (3:2 pulldown) PSF > P 24/25/30pSF > 24/25/30p (2:2 pulldown) Remote control HDMI Auto HDMI Trigger, Supported Protocols - Canon, Sony, Atomos Open Standard SDI SDI trigger, camera selectable Serial 2.5mm Jack LANC control and calibration via optional USB to serial cable Cut & Tag FCP XML Cut tag EDL and Multicam with transitions in FCP XML Supported Applications XML Apple Final Cut Pro Apple ProRes RAW Apple Final Cut Pro, Adobe Premiere, Avid Media Composer, Grass Valley Edius, ASSIMILATE SCRATCH Video Codecs All applications with support for Apple ProRes and Avid DNX in .MOV wrapper What’s in the box Accessories included SUMO 19SE unit, 1x Master Caddy II, 1x BattWing mounting bracket with 4x screws, 2x Desktop Feet with 4x 1/4” Mounting screws, AC power supply Optional extras Sunhood, UltraSync One, HDMI cables, USB to serial cable Warranty Standard 1 Year Extended 3 Years Target use / User Cinema Yes Director Monitor Yes Mixer/Swircher/ProAV Yes Rack/OB Yes DIT/Video Village Yes Pro Video Yes Editor/Colorist Yes

Recording media compatibility:

• Please refer to the Atomos website for compatibility. Most drives mentioned in the search results are standard SATA SSDs. Before use, insert them into our Master Caddy 2’s for a secure fit across all of our monitor recorders.
• For any of the CFast 2.0 cards on the list, using the additional AtomX CFast Adapter is required.


In the box:
1x Atomos Sumo 19" SE HDR Cinema Monitor-Recorder-Switcher
1x Master Caddy II Case
1x AC Power Supply
1x BattWing Mounting Bracket with 4x Screws
2x Desktop Feet with 4x 1/4" Mounting Screws
