Amaran F22c 200W RGBWW Flexible LED Mat, V-Mount - 2x2'

by Aputure
Original price $0.00 - Original price $0.00
Original price $0.00
$899.00 - $899.00
Current price $899.00
SKU 84165
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .

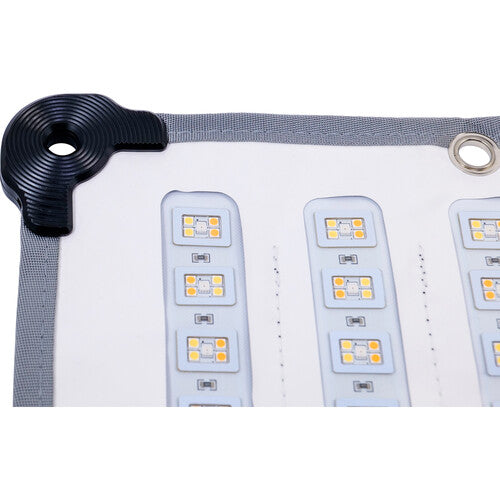

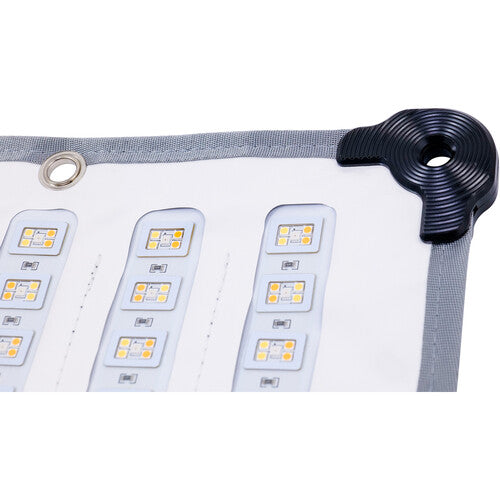

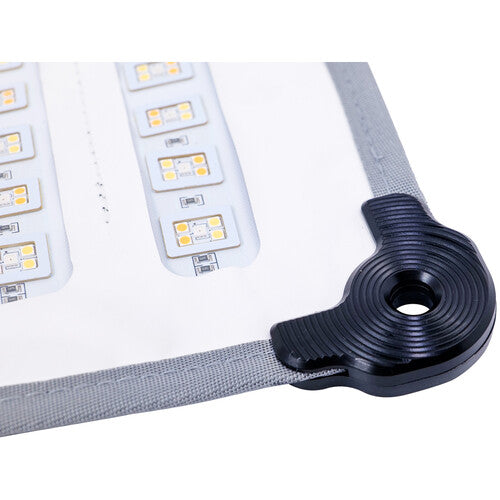

The Amaran F22c 200W RGBWW Flexible LED Mat is a high-output, full-color flexible LED mat that offers superb performance and versatility for a variety of users -from filmmakers to videographers, content creators, and even photographers. With 200W of output power, this ultra-lightweight 2'x2' fixture is capable of outputting 6,420+ lux at 1 meter (5600K),surpassing anything else in its class.

  • 200W Output 2x2' RGBWW Flexible LED Mat
  • 240W Max Power Draw
  • 6,420+ lux @ 1 meter (5600K)
  • HSI Full Color Control
  • Tunable CCT from 2,500K to 7,500K
  • Tunable Green-Magenta Adjustment (Plus/Minus Green)
  • Stepless Dimming from 0 to 100%
  • SidusLink App Control
  • 3 Meter Head Cable Extension
  • DMX Control via USB-C to 5-Pin DMX512 In & Out Adapter (Sold Separately)
  • 46 Color Gel Presets
  • 4 User-Configurable Preset Buttons
  • 15 Built-in Lighting FX: Paparazzi, Lightning, TV, Candle, Fire, Strobe, Explosion, Faulty Bulb, Pulsing, Welding, Cop Car, Color Chase, etc.
  • Frequency Selection:Tune Out Flicker, Up to +2000Hz Adjustment
  • Easy Mounting AC Power Supply with Included Battery Bracket
  • Multiple DC Power Solutions: 14.4V/26/28.8V/48V (3-Pin XLR)
  • Lantern Accessory with Light Control Skirt (Sold Separately)

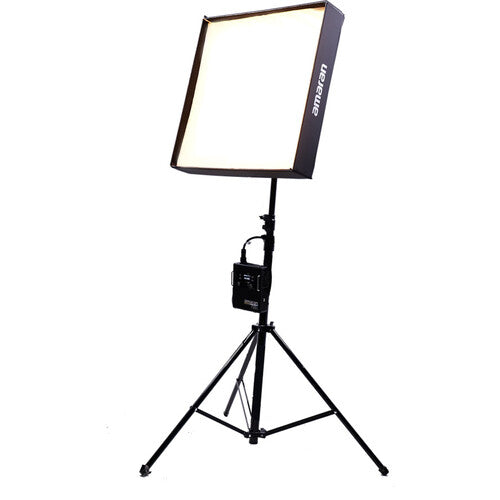

Install the included foldable softbox and instantly turn this flexible mat into an ultra-thin soft light that will make any subject shine with stellar CRI and TLCI scores of 95+and 97+. And with stepless dimming from 0 to 100%, you can achieve the perfect light level every time. The F22c features RGBWW LEDs for complete color control, as well as tunable CCT from 2,500K to 7,500K, providing endless possibilities for creative lighting decisions through 360 Degree HSI control, 46 color gel presets, or even up to 15 unique lighting effects. Additionally, with the F22c's SidusLink app control, you can be sure to always dial in your lighting design.

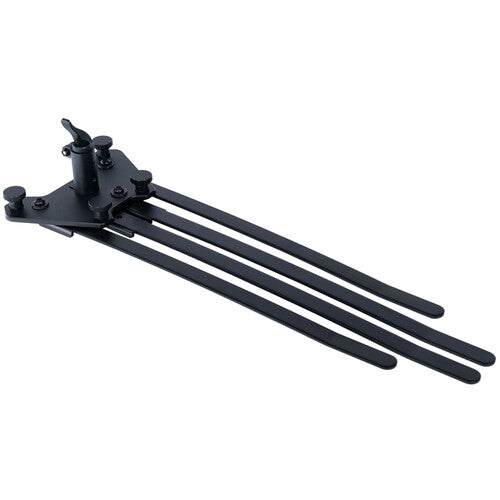

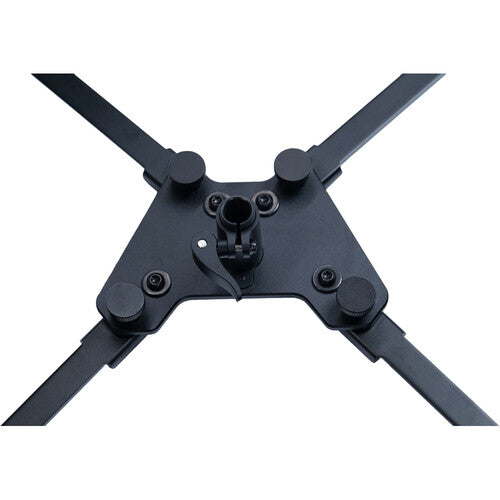

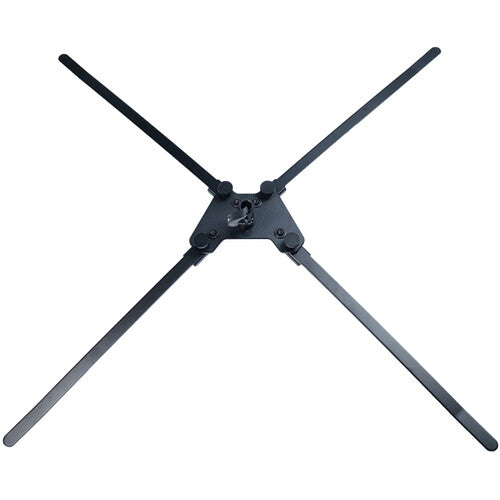

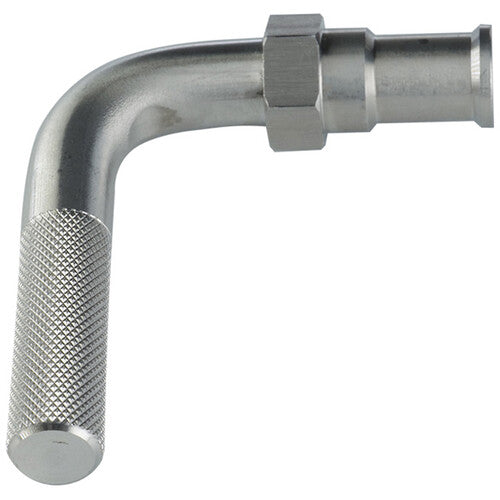

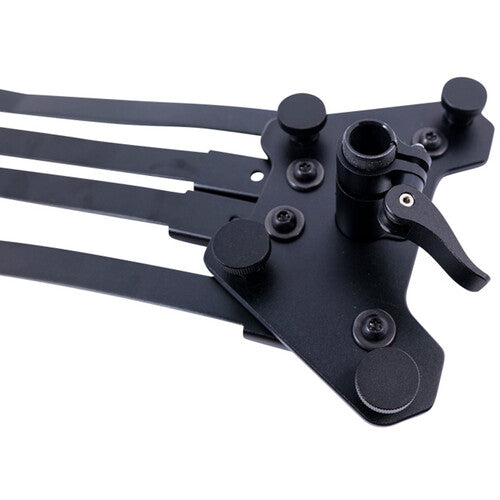

Building the F22c is quick and convenient with the compact, folding X-Frame that stretches out the F22c into a rigid panel. This frame can be attached directly to a C-Stand grip head using the Straight Baby Pin adapter or onto any standard light stand with the included Right Angle Baby Pin and tilting stand mount, providing an ideal option for all types of filmmakers and creators.

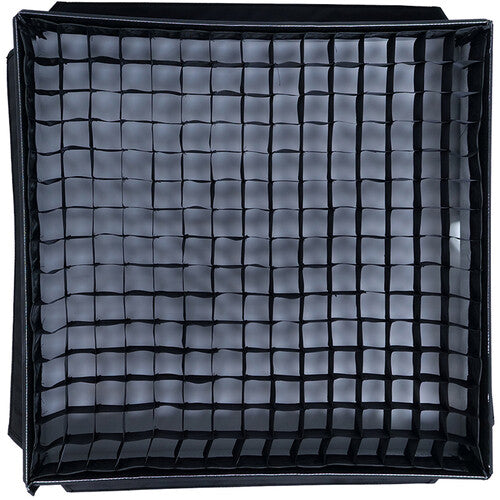

Attach the included softbox, one of two strengths of diffusion, and the fabric grid using the integrated hook-and-loop fabric to further finesse your lighting design and add a beautifully controlled soft light to your scene.

You can also swap out the softboxfor an Amaran F22 lantern modifier, allowing you to replicate a volumetric lantern or pancake light with an ultra-light full-color fixture.

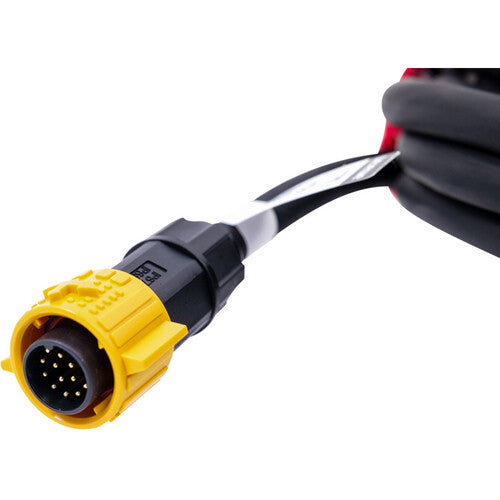

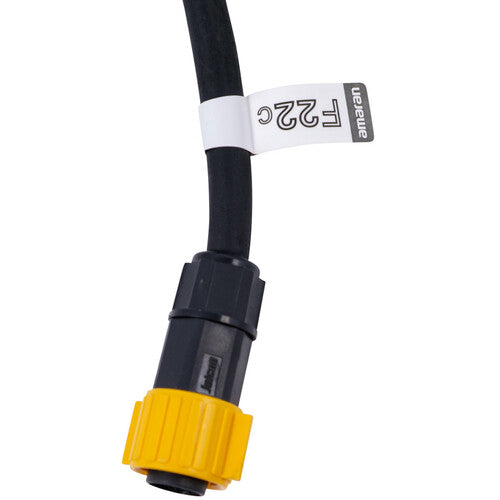

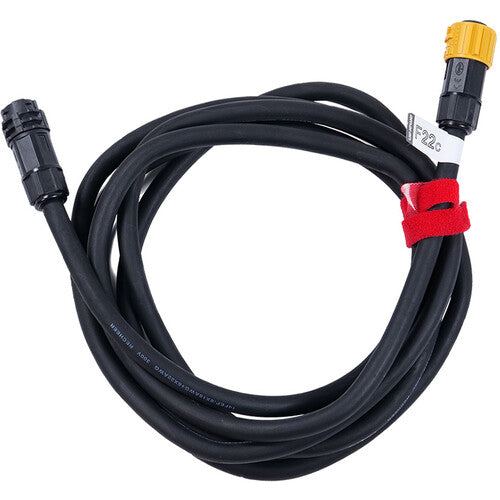

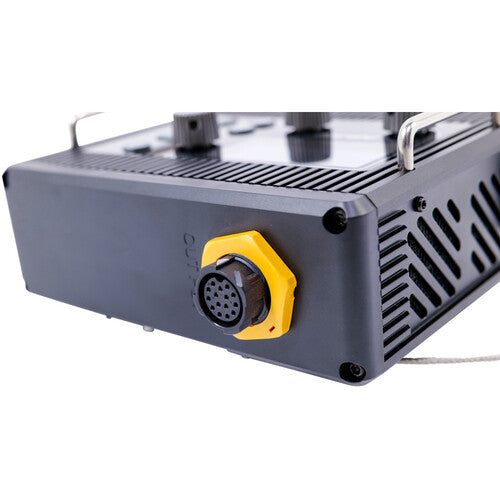

With an integrated 3-meter longhead cable and the included 3-meter long extension, the F22c can reach out 6 meters away from its compact control box. Engineered from the ground up for the perfect balance of size, weight, and intensity, the F22c's LED and heat dissipation design results in a heavy-weight punch from a flexible feather-weight design.

Each control box is also outfitted with a multi-voltage battery plate so you can use a capable 14.4V battery to achieve half power, ormax out the intensity with full power when using compatible 26V or 28.8V batteries. You can also achieve full output when using the AC power supply, each of which comes with a specially designed battery plate bracket for a seamless user experience. And when combined with the F22c's soft carrying case, the F22c becomes a portable light that you can take anywhere for any production.

The SidusLink app unlocks tools unique to the Aputure and Amaran ecosystems, such as Source Match, Color Picker, and Custom FX, all from your phone or tablet. And unique to the newest fixtures in the Amaran product line, you can control the F22c using DMX with a special USB-C to 5-Pin DMX512 In & Out Adapter Cable, granting professional-level control to your new favorite flex light.

The Amaran F22c is ideal for content creators, indie filmmakers, and videographers who need a versatile and literally flexible lighting solution. The RGBWW flexible panel gives users full control over the output and can easily add a splash of color to their scene.

The natural design of the flex light results in a medium-sized source with ample surface area for an innately soft light while still producing enough intensity to impact the scene. Users who want a 200W chipset in a traditional 2' x 2' form factor but still need output need look no further than the F22c, which outpaces all other 2' x 2' full-color light mats.

Users who need a compact and portable design will appreciate the single multi-voltage V-Mount battery plate that allows for full output without the need for a dual plate system, and allows them to use fewer, higher voltage batteries. And when combined with the long head cable and optional lantern accessory, users can extend the fixture out as a portable & mobile follow-light.

Aputure& Amaran's ecosystem and SidusLink App integration also make the Amaran F22c perfect for users who prefer to adjust their lights remotely so they can spend more time behind or in front of their camera. With the Source Match, Color Picker, and Gel control functions, choosing the perfect color for the scene has never been easier. Even users who need DMX control can use the F22c with the USB-C to DMX512 Adapter cable for professional-level control.

As an ultra-light, ultra-thin fabric light, the F22c is compatible with a wide variety of use cases and excels in on-the-go travel and tight spaces. And as a large, soft light that can fold compactly, it is the perfect close-up key light.

Technical Specs:

Product Specs

CCT: 2500K ~ 7500K
CRI: ≥95
TLCI: ≥97
CQS: ≥96
TM-30 RF (Average): 94
TM-30 RG (Average): 102
SSI (Tungsten): ≥83
SSI (D56): ≥73
Color Chipset: Red, Green, Blue, Warm White, Cool White
Beam Angle     (Half-Peak Angle): Control Grid: 45 Degree
Max Power Output: <=200W
Max Power Consumption: <=240W
Operating Current: 5A
Operating Voltage: AC Power Supply: 48V DC
3-Pin XLR DC: 48V/5A DC
V-Mount Battery
Half Output: 12 - 16.8V (14.4V/10A); 22V - 33.6V (26V/6A, 28.8V/5A)
Full Output: 22V - 33.6V (26V/11A, 28.8V/10A)
DC Input: 48V 3-Pin XLR
AC Power Cable: IEC C13 AC Power Cable (4m)
Operating Temperature: -4 Degree F - 113 Degree F (-10 Degree C - 40 Degree C)
Control Methods: On-board, Sidus Link App, DMX via USB-C to 5-Pin DMX512 In & Out Adapter Cable
Connectivity: Bluetooth 5.0 (Sidus Mesh)
Bluetooth Operating Range:  >=262.5' (80m)
Firmware Upgradeable: Sidus Link OTA
Display Type: OLED
Cooling Method: Lamp Head: Passive Cooling
Control Box: Active Cooling
Mounting: Tilting Mounting Support, RightAngle Baby Pin Adapter (16mm), Straight Baby Pin Adapter (16mm)
Estimated LED Lifetime (L70): 50,000 Hours
Estimated Colour Shift Over Lifetime (CCT): 50,000 Hours
Certifications: CE, FCC, cTUVus, KC, NCC, ROHS

Battery Info: Optional, not included
Battery Material: Lithium Ion
Battery Type: Non-universal
Battery Quantity: 1

Fixture No Accessory:  23.6x 23.6x .2" (60x 60x 0.5cm)
Fixture With Soft Box: 24.6 x 24.6 x 4.13" (62.5 x 62.5 x 10.5cm)
Aperture: 20.4x 20" (52x 51cm)
Control Box: 7.4x 5.9x 2.7" (19x 15x 7cm)
Carrying Case: 25.9x 13.7x 4.1" (66x 35x 10.5cm)


Fixture No Accessory:  30.4 oz (861.82g)
Fixture With Soft Box: 6.25 lbs (2.83kg)
Control Grid: 4.16 oz (116g)
Control Box: 2.6 lbs (1.2kg)
Power Supply: 2.4 lbs (1.1kg)
Mounting Bracket: 22.4 oz (635.02g)
Total: 17.45 lbs (7.92kg)

In The Box:
1x Amaran F22c 200W RGBWW Flexible LED Mat

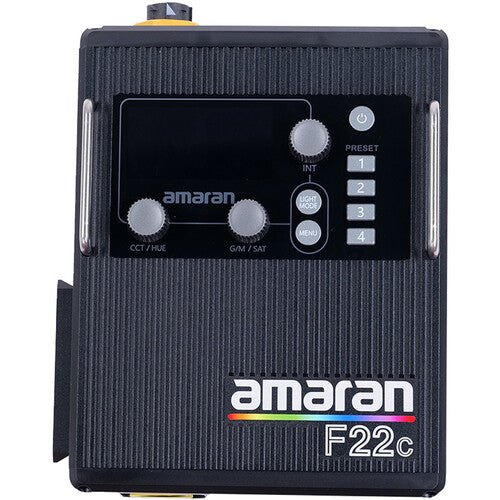

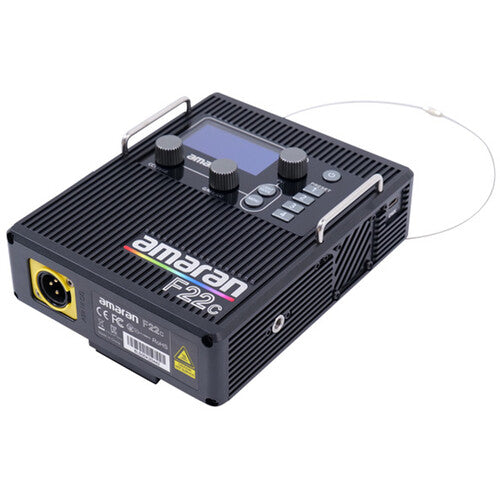

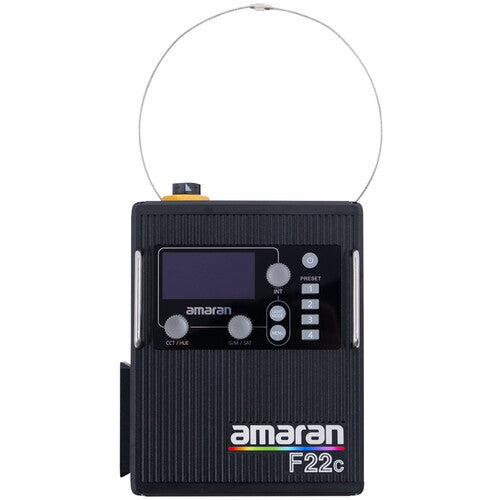

1x Amaran F22c Control Box
1x Amaran F22c Head Cable Extension (3m)
1x Amaran F22 Support Bracket
1x Amaran Flex Light Right Angle Baby Pin Adapter

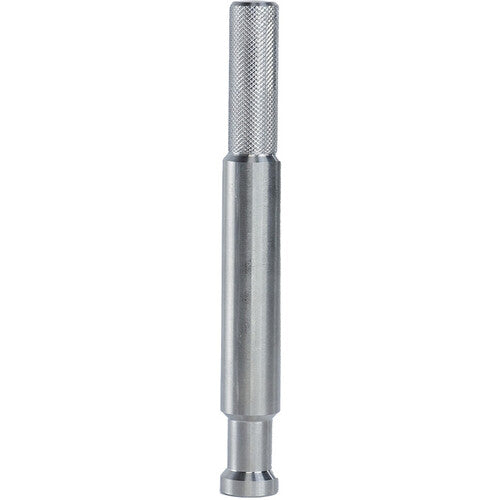

1x Amaran Flex Light Straight Baby Pin Adapter

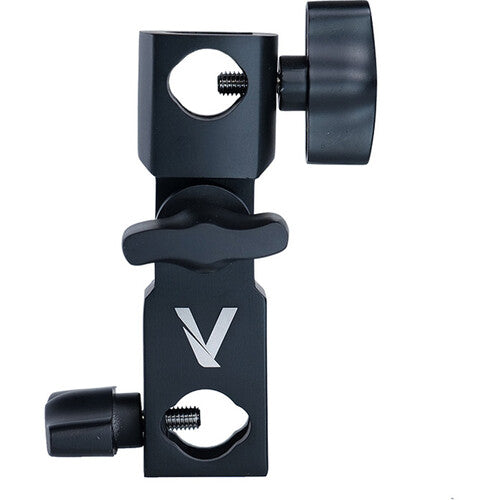

1x Tilting Stand Mount
1x Amaran F22 Softbox Frame
1x Amaran F22 Diffusion Cloth 1 (1/2 Grid Cloth)
1x Amaran F22 Diffusion Cloth 2 (2.5 Stop)

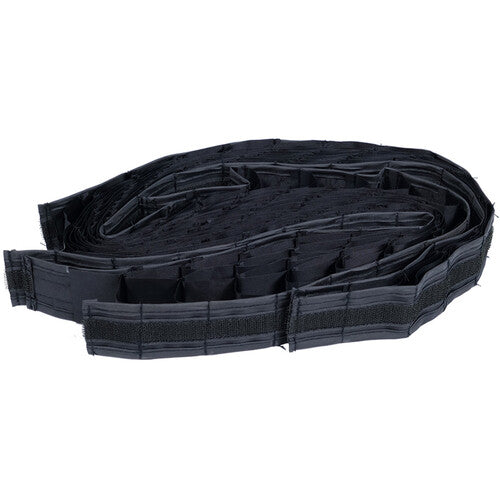

1x Amaran F22 Light Control Grid
1x AC Power Supply

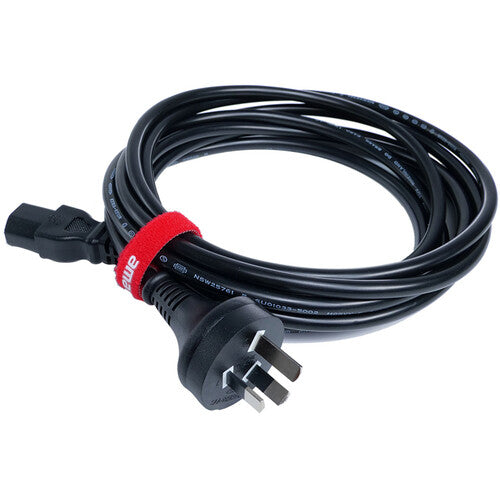

1x AC Power Cable

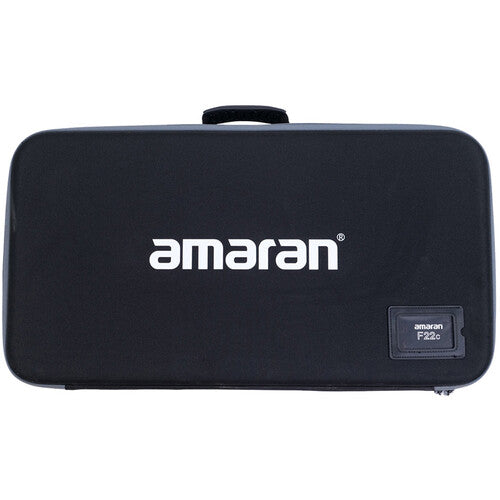

1x Amaran Flex Light Carrying Case
Glazer's SKU 84165
Manufacturer Aputure
MFG SKU AP30235A14
