The

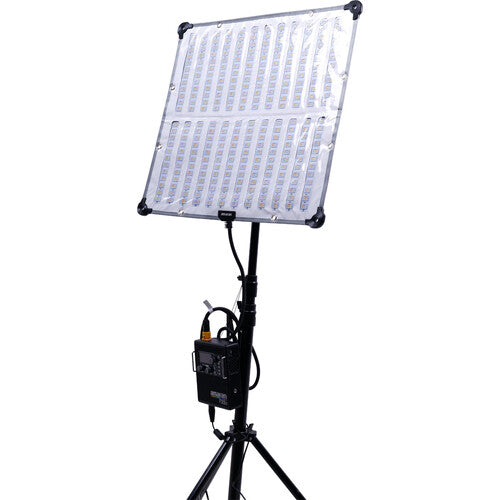

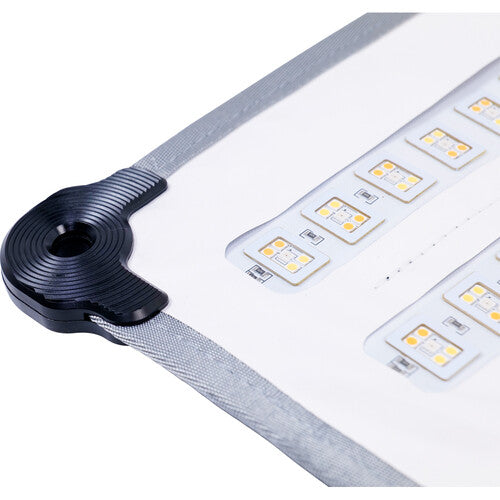

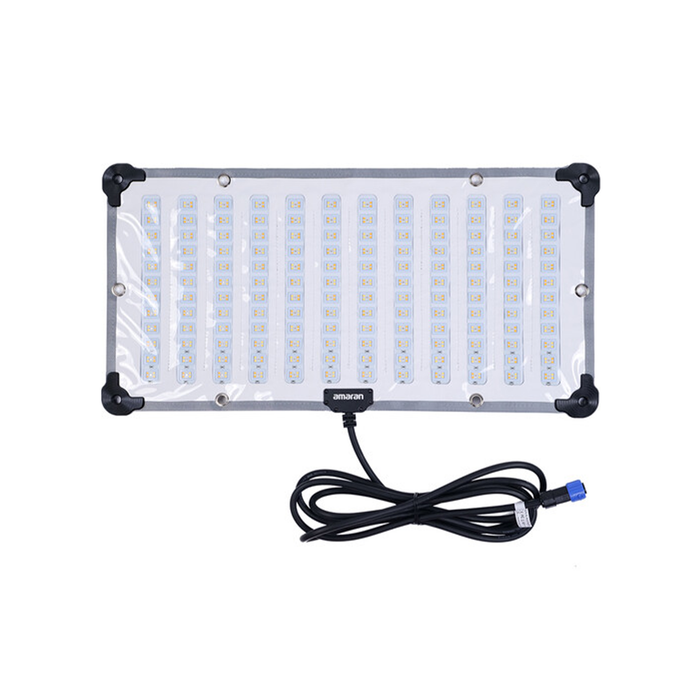

Amaran F21c 100W RGBWW Flexible LED Mat, V-Mount is
a high-output, full-color flexible LED mat that offers superb performance and versatility for a variety of users - from filmmakers to videographers, content creators, and even photographers. With 100W of output power, this ultra-lightweight 2'x1' fixture is capable of outputting 3,360+ lux at 1 meter (5600K) - a top performer in its class.
Features:

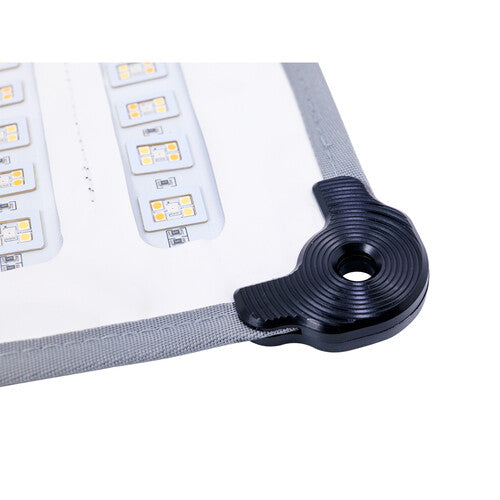

- 100W Output 2’x1’ RGBWW Flexible LED Mat
- 120W Max Power Draw
- 3,360+ lux @ 1 meter (5600K)
- HSI Full Color Control
- Tunable CCT from 2,500K to 7,500K
- Tunable Green-Magenta Adjustment (Plus/Minus Green)
- CRI: 95+, TLCI: 98+, CQS: 96+, SSI (Tungsten): 83+, SSI (D56): 73+
- Stepless Dimming from 0 to 100%
- Sidus Link App Control

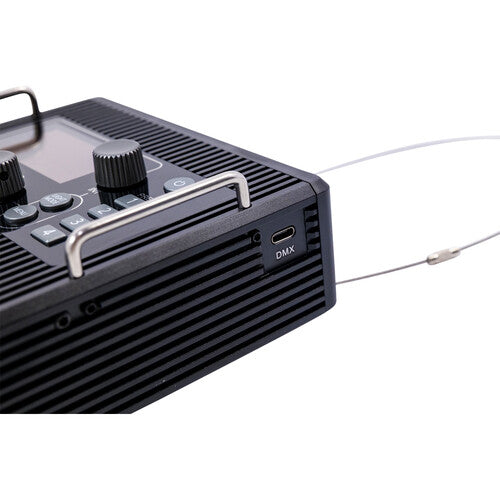

- DMX Control via USB-C to 5-Pin DMX512 In & Out Adapter Cable
- 46 Color Gel Presets
- 4 User-Configurable Preset Buttons
- 15 Built-in Lighting FX: Paparazzi, Lightning, TV, Candle, Fire, Strobe,
- Explosion, Faulty Bulb, Pulsing, Welding, Cop Car, Color Chase, etc.
- Frequency Selection: Tune Out Flicker, Up to +2000Hz Adjustment

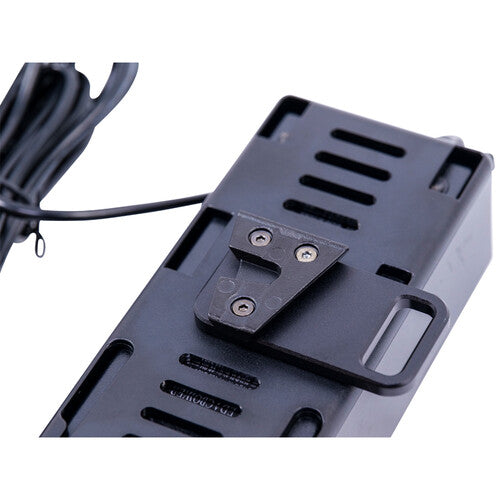

- Easy Mounting AC Power Supply with Included Battery Bracket
- Multiple DC Power Solutions: 14.4V/26/28.8V/48V (3-Pin XLR)
- V-Mount & Gold Mount Versions Available*
- Soft Carrying Case Included
- Operating Temperature: -10°C ~ 40°C / -4°F ~ 113°F
- Lantern Accessory with Light Control Skirt (Sold Separately)
Technical Specs:
Product Specs
| CCT: |
2500K ~ 7500K |
| CRI: |
≥95 |
| TLCI: |
≥98 |
| CQS: |
≥96 |
| TM-30 RF (Average): |
94 |
| TM-30 RG (Average): |
102 |
| SSI (Tungsten): |
≥83 |
| SSI (D56): |
≥73 |
| Color Chipset: |
Red, Green, Blue, Warm White, Cool White |
| Beam Angle (Half-Peak Angle): |
Control Grid: 45 Degree |
| Max Power Output: |
<=100W |
| Max Power Consumption: |
<=120W |
| Operating Current: |
2.5A |
| Operating Voltage: |
AC Power Supply: 48V DC
3-Pin XLR DC: 48V/2.5A DC
V-Mount Battery: 12 - 16.8V (14.4V/10A); 22V - 33.6V (26V/6A, 28.8V/5A) |

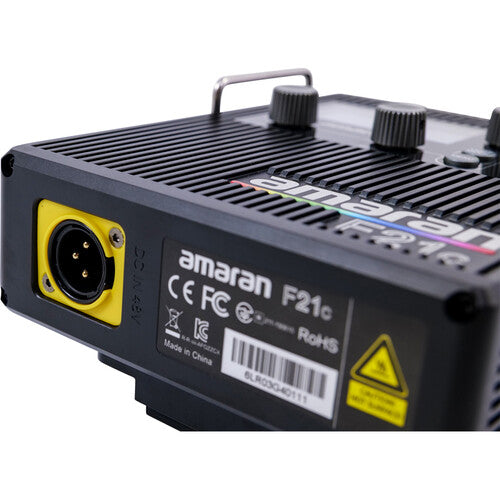

| DC Input: |
48V 3-Pin XLR |
| AC Power Cable: |
IEC C13 AC Power Cable (4m) |
| Operating Temperature: |
-4 Degree F - 113 Degree F (-10 Degree C - 40 Degree C) |
| Control Methods: |
On-board, Sidus Link App, DMX via USB-C to 5-Pin DMX512 In & Out Adapter Cable |
| Connectivity: |
Bluetooth 5.0 (Sidus Mesh) |
| Bluetooth Operating Range: |
>=262.5' (80m) |
| Firmware Upgradeable: |
Sidus Link OTA |
| Display Type: |
OLED |
| Cooling Method: |
Lamp Head: Passive Cooling
Control Box: Passive Cooling
|
| Mounting: |
Tilting Mounting Support, RightAngle Baby Pin Adapter (16mm), Straight Baby Pin Adapter (16mm) |
| Estimated LED Lifetime (L70): |
50,000 Hours |
| Estimated Colour Shift Over Lifetime (CCT): |
2% over 6,000 Hours |
| Certifications: |
CE, FCC, cTUVus, KC, NCC, ROHS |
Battery
| Battery Info: |
Optional, not included |
| Battery Material: |
Lithium Ion |
| Battery Type: |
Non-universal |
| Battery Quantity: |
1 |
Dimensions
| Fixture No Accessory: |
23.6 x 11.8 x 0.2" (60 x 30 x 0.5cm) |

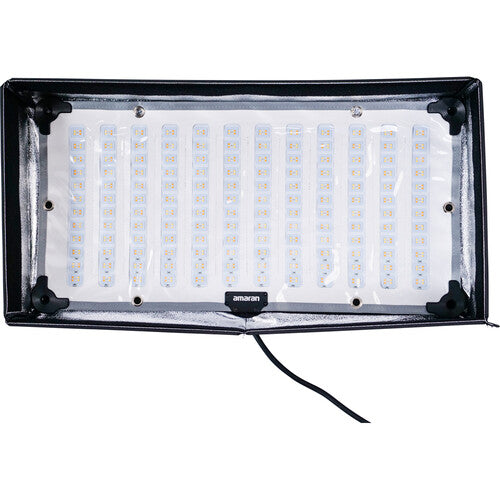

| Fixture With Soft Box: |
24.6 x 12.6 x 4.13" (62.5 x 32 x 10.5cm) |
| Aperture: |
19 x 9" (50 x 23cm) |
| Control Box: |
7.4 x 5.9 x 2.7" (19 x 15 x 7cm) |
| Carrying Case: |
25.9 x 13.7 x 4.1" (66 x 35 x 10.5cm) |
Weight
| Fixture No Accessory: |
14.4 oz (408.23g) |
| Fixture With Soft Box: |
4.37 lbs (1.98kg) |
| Control Grid: |
2.56 oz (72.57g) |
| Control Box: |
2.6 lbs (1.2kg) |
| Power Supply: |
24 oz (680.38g) |
| Mounting Bracket: |
22.4 oz (635.02g) |
| Total: |
14.11 lbs (6.4kg) |

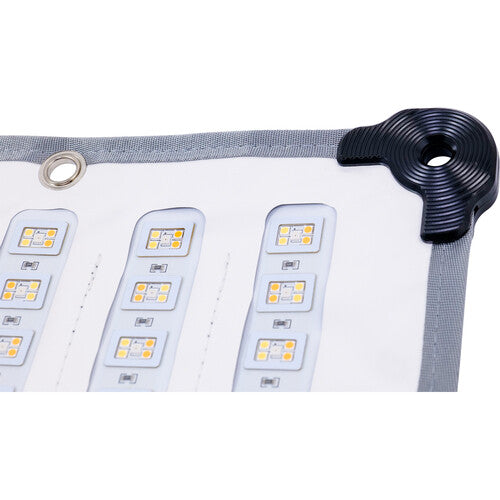

In The Box:1x Amaran F21c RGBWW 2x1 LED Flex Mat
1x

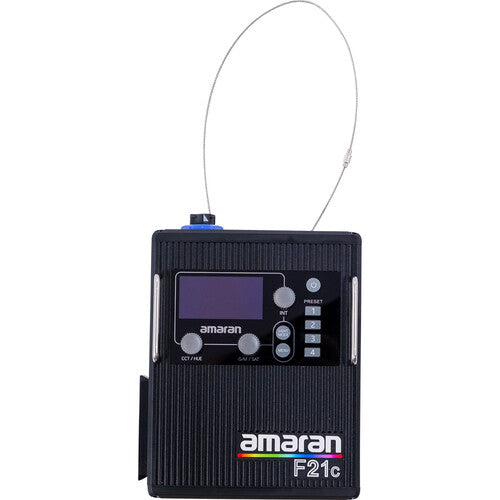

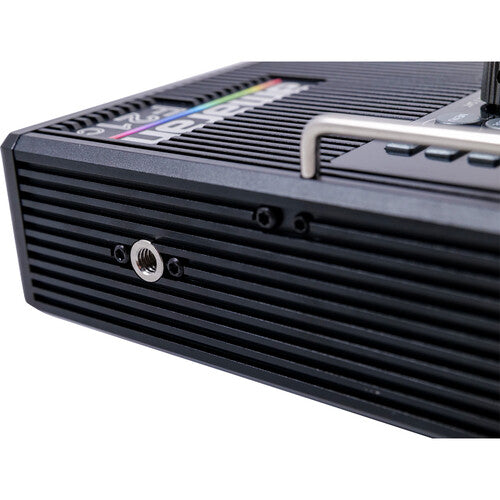

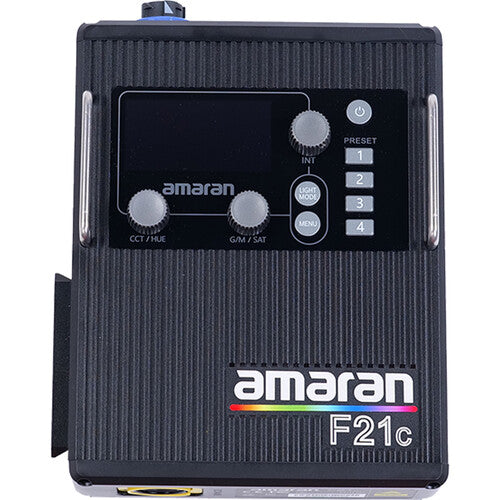

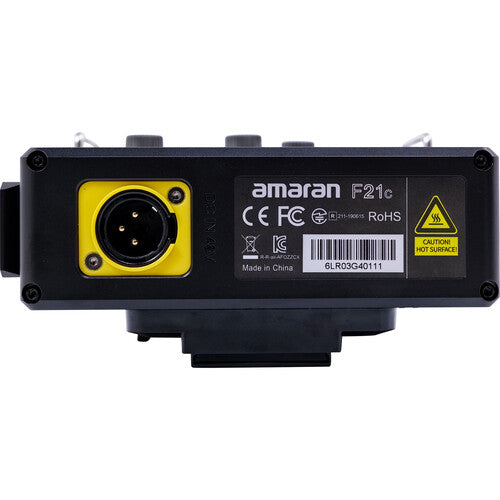

Amaran F21c Control Box
1x

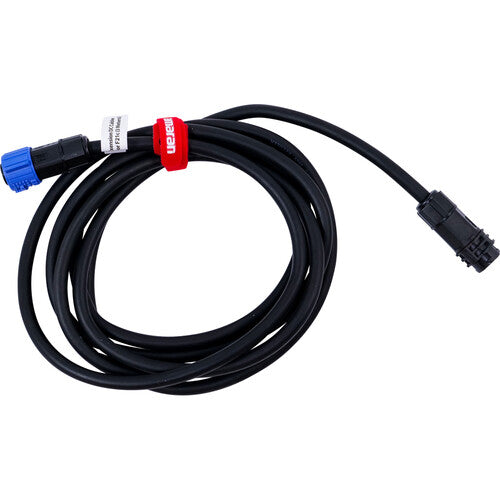

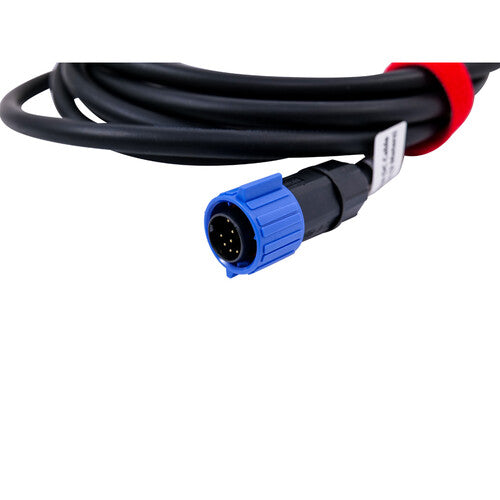

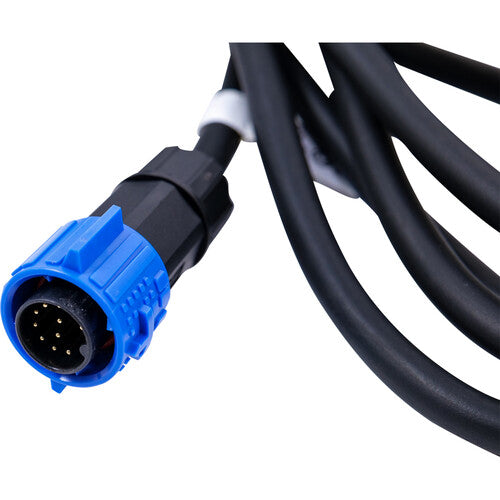

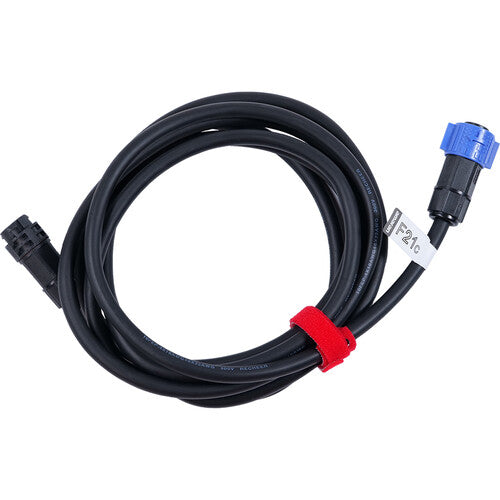

Amaran F21c Head Cable Extension (3m)
1x

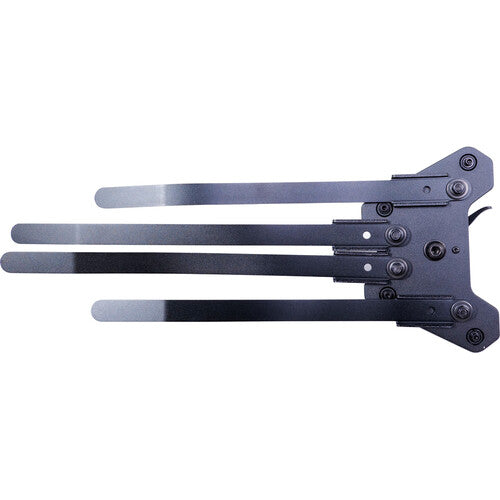

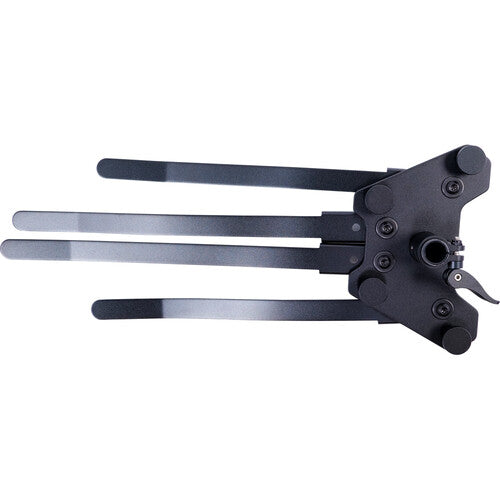

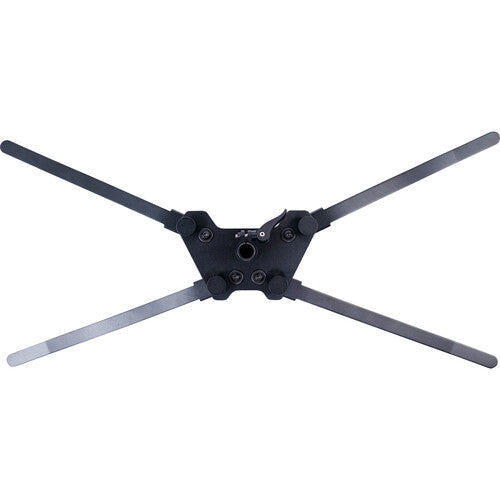

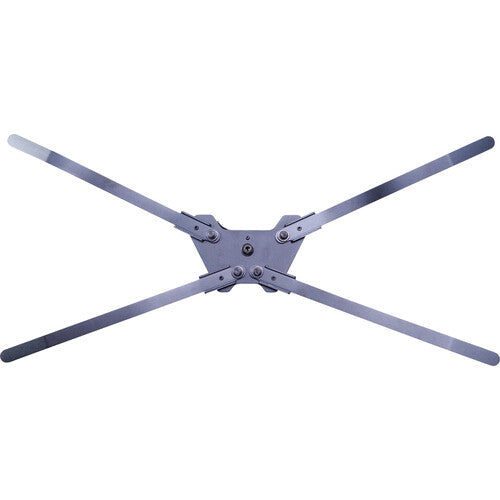

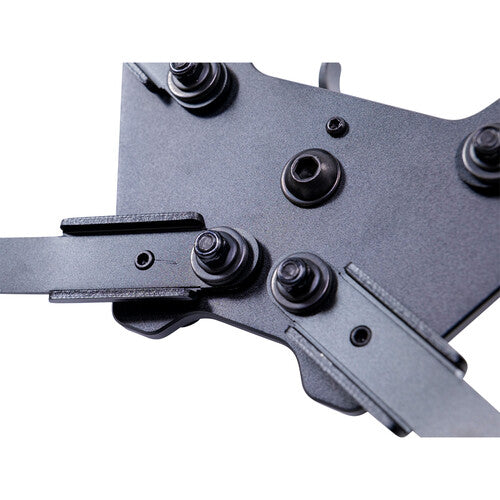

Amaran F21 Support Bracket
1x
Amaran Flex Light Right Angle Baby Pin Adapter
1x
Amaran Flex Light Straight Baby Pin Adapter
1x Tilting Stand Mount
1x

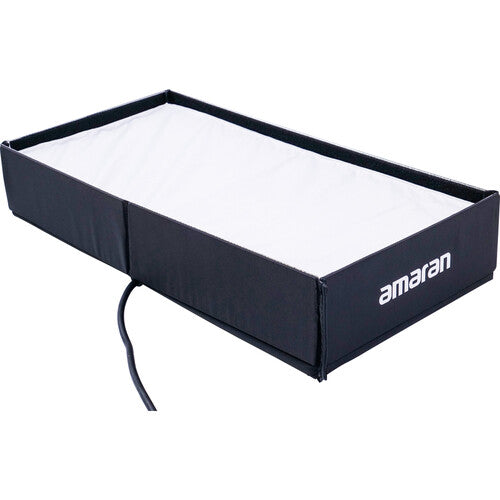

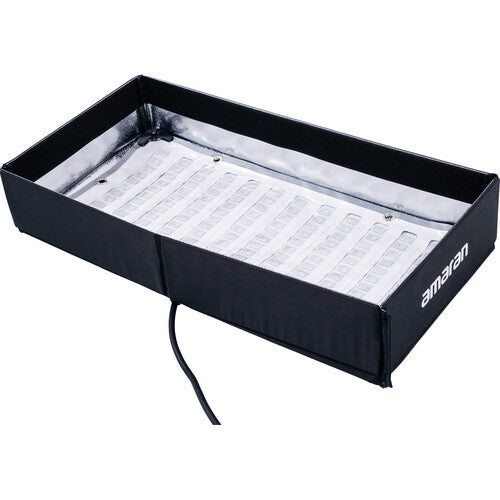

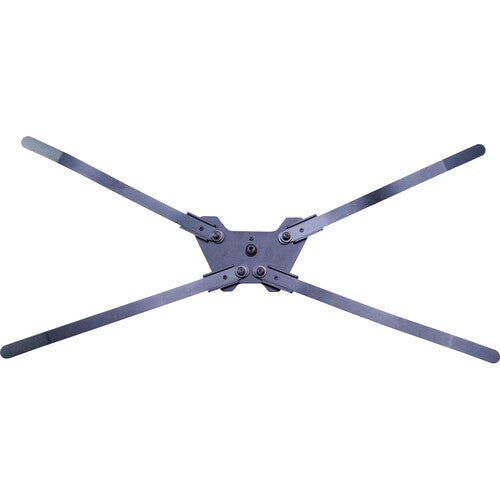

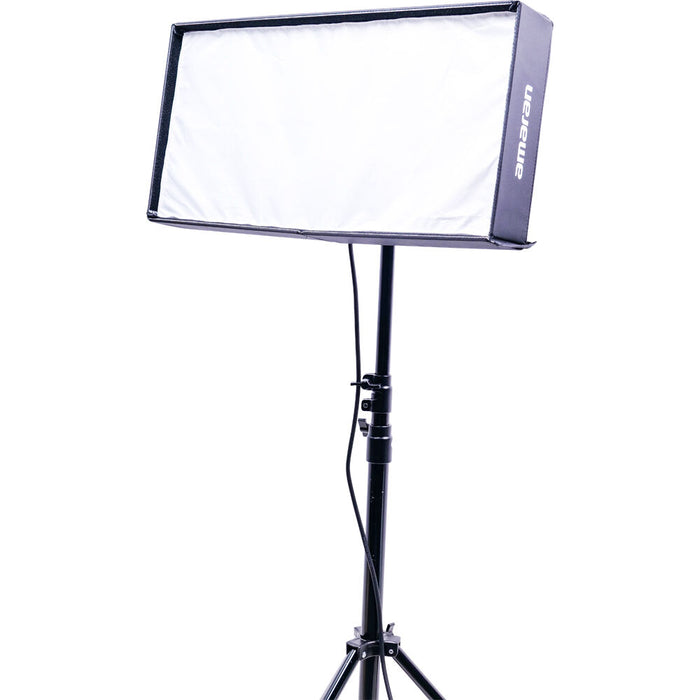

Amaran F21 Soft Box Frame
1x

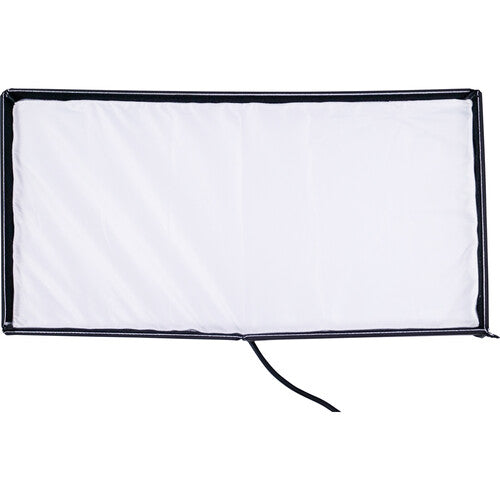

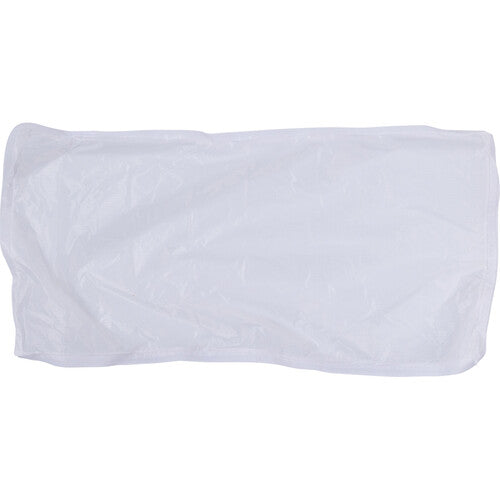

Amaran F21 Diffusion Cloth 1 (1/2 Grid Cloth)
1x
Amaran F21 Diffusion Cloth 2 (2.5 Stop)
1x

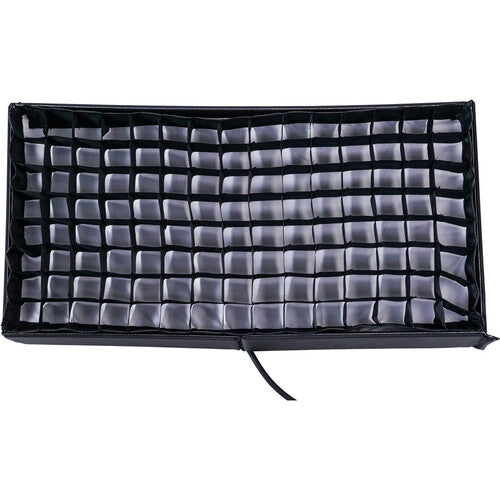

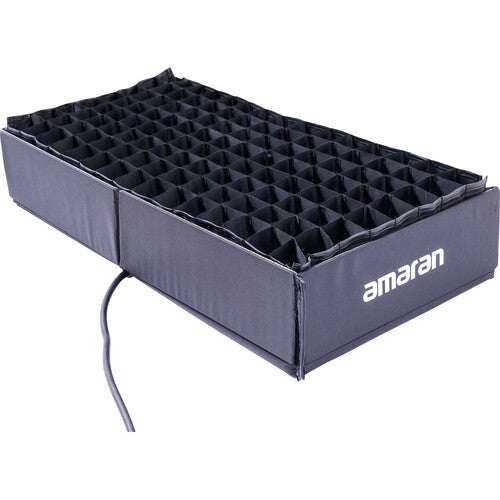

Amaran F21 Light Control Grid

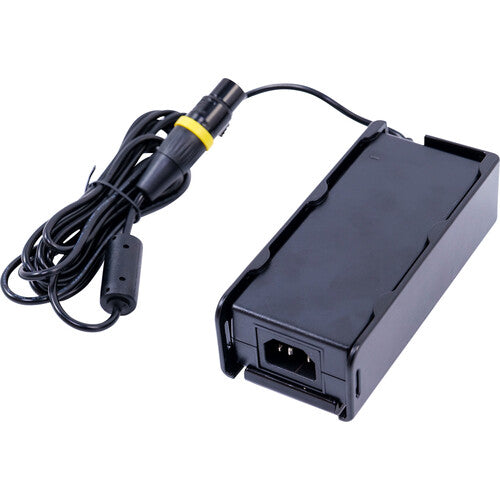

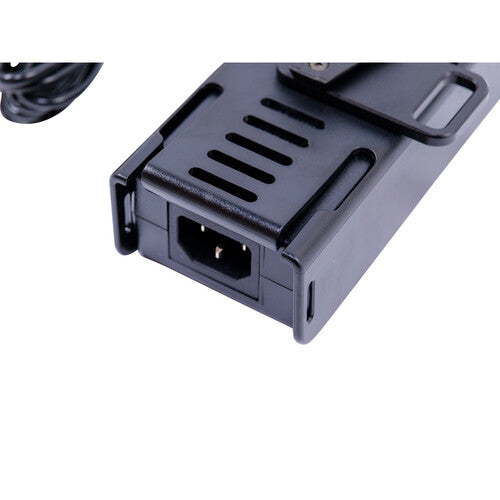

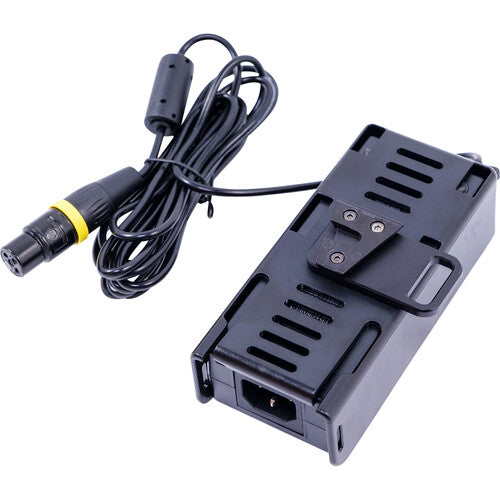

1x AC Power Supply
1x AC Power Cable
1x

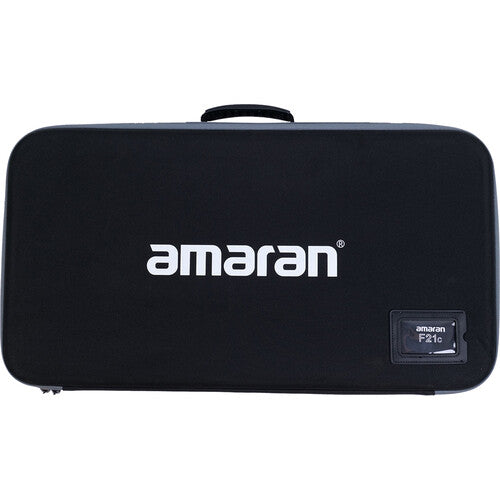

Amaran Flex Light Carrying Case
