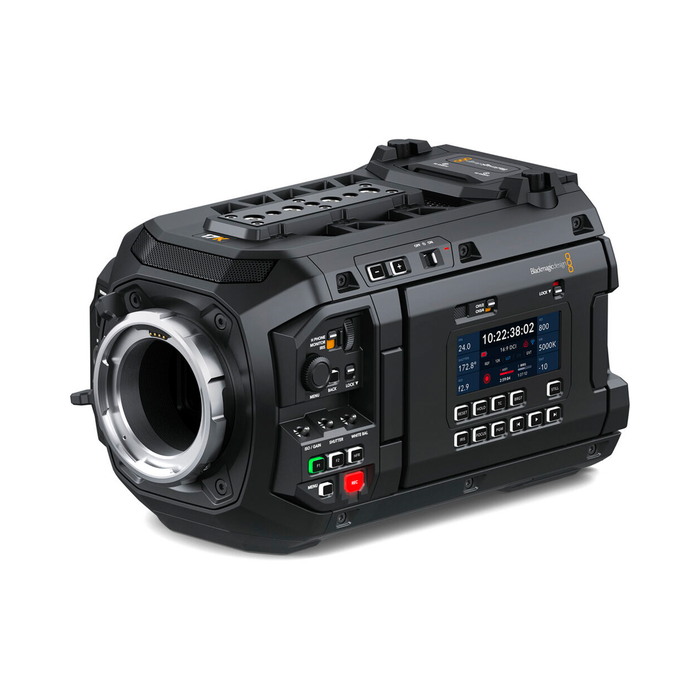

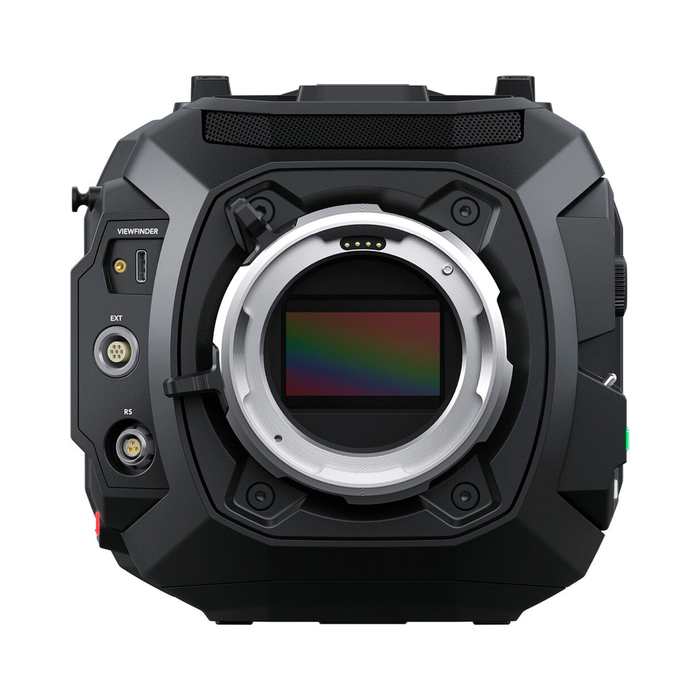

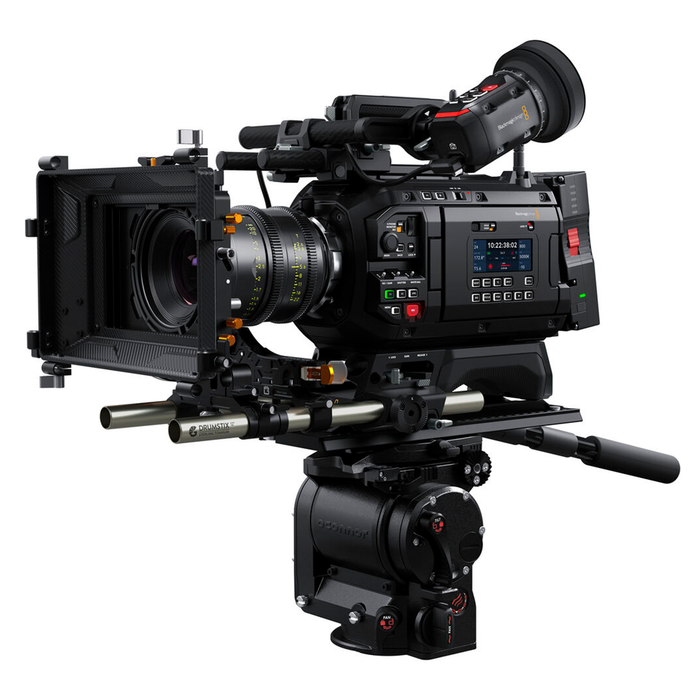

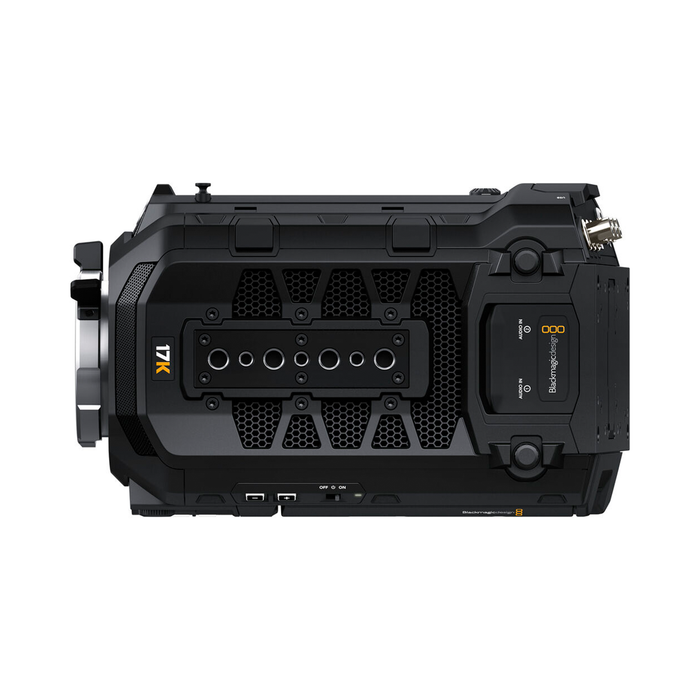

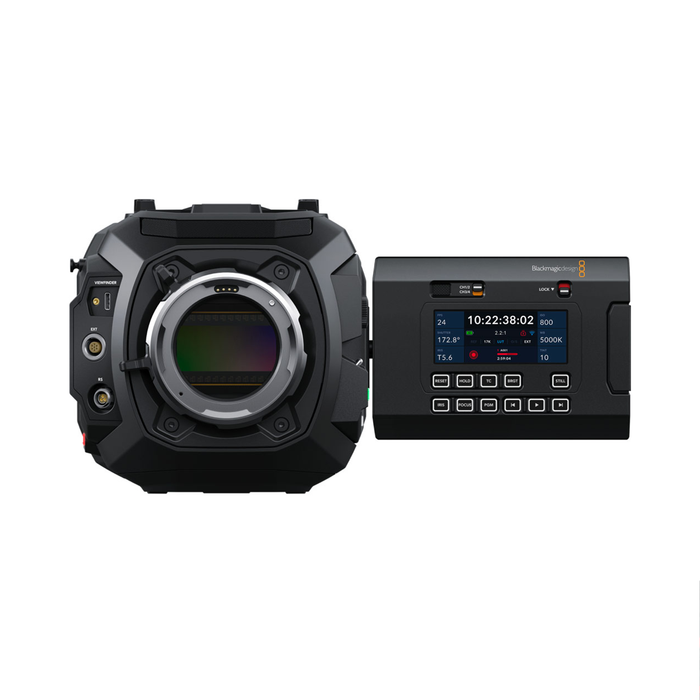

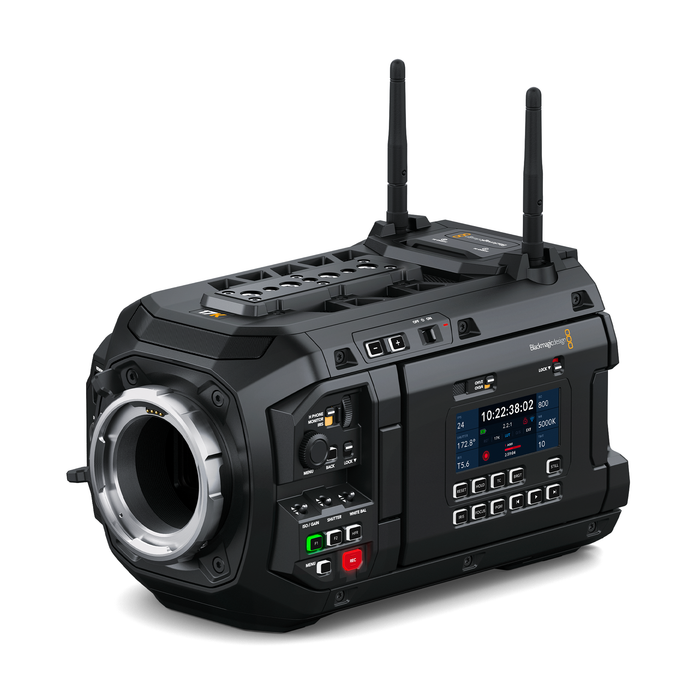

Blackmagic Design URSA Cine 17K 65 Cinema Camera
Blackmagic URSA Cine 17K 65 is a revolution in digital film with an extremely large format 17520 x 8040 65mm RGBW sensor with larger photo-sites for 16 stops of dynamic range. The URSA Cine 17K 65 Body model is ideal when you have existing camera accessories that you want to use to create your own camera rig. It excludes top handle, baseplate, power supply, battery plate and LPL lens mount. It does come with an interchangeable PL lens mount, a dedicated assist station with a second 5″ HDR LCD touchscreen and industry standard Lemo and Fischer connections. Blackmagic URSA Cine 17K 65 Body also includes an 8TB media module, high speed 10G Ethernet and WiFi for fast media upload and syncing to Blackmagic Cloud.
Features:
Effective Sensor Size 50.81 mm x 23.32 mm (65mm Format)
Pixel Pitch 2.9 microns
PL Lens Mount. Interchangeable with optional URSA Cine Mounts, LPL, EF and HC.
Lens Control
Lens data from compatible PL or LPL lenses and control of some PL lenses. Lens control of compatible EF lenses.
Dynamic Range 16 Stops
Shooting Formats
17,520 x 8040 (17K 2.2:1 open gate)
16,128 x 8040 (17K 2:1)
15,360 x 8040 (17K 17:9)
14,304 x 8040 (17K 16:9)
17,520 x 7296 (17K 2.4:1)
12,288 x 8040 (12K 3:2)
12,288 x 6912 (12K 16:9)
12,288 x 6480 (12K 17:9)
12,288 x 5112 (12K 2.4:1)
9648 x 8040 (12K 6:5)
11,680 x 5360 (8K 2.2:1 open gate)
10,752 x 5360 (8K 2:1 full height)
8192 x 5360 (8K 3:2)
8192 x 4608 (8K 16:9)
8192 x 4320 (8K 17:9)
8192 x 3408 (8K 2.4:1)
5840 x 2680 (4K 2.2:1 open gate)
5376 x 2680 (4K 2:1 full height)
4096 x 2680 (4K 3:2)
4096 x 2304 (4K 16:9)
4096 x 2160 (4K 17:9)
4096 x 1704 (4K 2.4:1)
Frame Rates
Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on
resolution selected.
High Speed Frame Rates
17K 2.2:1 open gate up to 60 fps
12K 2.4:1 up to 90fps
8K 2.2:1 open gate up to 100 fps
8K 2.4:1 up to 170 fps
No Built in ND Filters
Focus button turns on peaking, auto focus available using compatible lenses.
Iris Control
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.
Screens
2 x Monitoring Screens
1 x Camera Status Screen
5" Monitoring Screen
1920px x 1080px Monitoring Screen Resolution
1500 nits. Monitoring Screen Brightness
LCD capacitive touchscreen
Metadata Support
Automatically populated lens data from i/Technology with compatible PL, LPL lenses and electronic EF and Hasselblad HC lenses when using optional EF lens mount or HC lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.
Controls
Touchscreen menus on 5 inch screen.
Push buttons for other controls.
7 assignable shortcut keys plus 6 assignable viewfinder shortcut keys on optional URSA Cine EVF.
Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Connections:
-
Total Video Outputs: 2
-
SDI Rates: 1.5G, 3G, 6G, 12G.
-
Analog Audio Inputs: 2 x XLR analog switchable between mic, line and AES audio. Phantom power support.
-
Analog Audio Outputs: 1 x 3.5mm headphone jack
-
Reference Inputs: Tri-Sync/Black Burst and Timecode.
-
Viewfinder: 1 x Viewfinder USB-C with video, power, camera control data and locking connector. Works with URSA Cine EVF and PYXIS Monitor.
-
USB-C Monitor Outputs: 2 x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors.
-
Accessories: 1 x 7-pin Lemo ‘EXT’ for power out, serial communication, and run/stop. 1 x 3-pin Fischer ‘RS’ for power out
and run/stop.
-
Computer Interface: 2 x USB-C side expansion ports for camera accessories. Software updates using side USB-C closer to rear.
-
Ethernet: 1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming.
Compatible With:
Lenses:
- PL Mount Lenses
- Interchangeable with optional URSA Cine Mounts, LPL, EF and HC.
- Lenses and control of some PL lenses.
- Lens control of compatible EF lenses.
Optional Accessories:
- Blackmagic URSA Cine EVF
- Blackmagic PYXIS Monitor
- Blackmagic PYXIS Monitor Kit
- Blackmagic PYXIS Monitor EVF Kit
- Blackmagic URSA Cine Mount PL
- Blackmagic URSA Cine Mount EF (for limited shooting formats)
- Blackmagic URSA Cine Mount HC
- Blackmagic URSA Cine Mount Shims
- Blackmagic URSA Cine Battery Plate B Mnt
- Blackmagic URSA Cine Battery Plate Gold
- Blackmagic URSA Cine Battery Plate VLock
- Blackmagic URSA Cine Baseplate 15
- Blackmagic URSA Cine Baseplate 19
- Blackmagic URSA Cine Handle
- Blackmagic URSA Cine Grips
- Blackmagic URSA Cine 5" LCD Sunshade
- Blackmagic Media Dock
- Blackmagic Media Module 8TB
- ATEM Streaming Bridge
Product SKU:
CINEURSAA17K65BODY
In The Box:
Blackmagic Design URSA Cine 17K 65 Cinema Camera (Body Only)
PL Mount (Preinstalled)
Media Module (8TB)
Wi-Fi Antenna Set
PL Body Cap
DaVinci Resolve Studio License (Download)
Limited 1-Year Manufacturer Warranty
