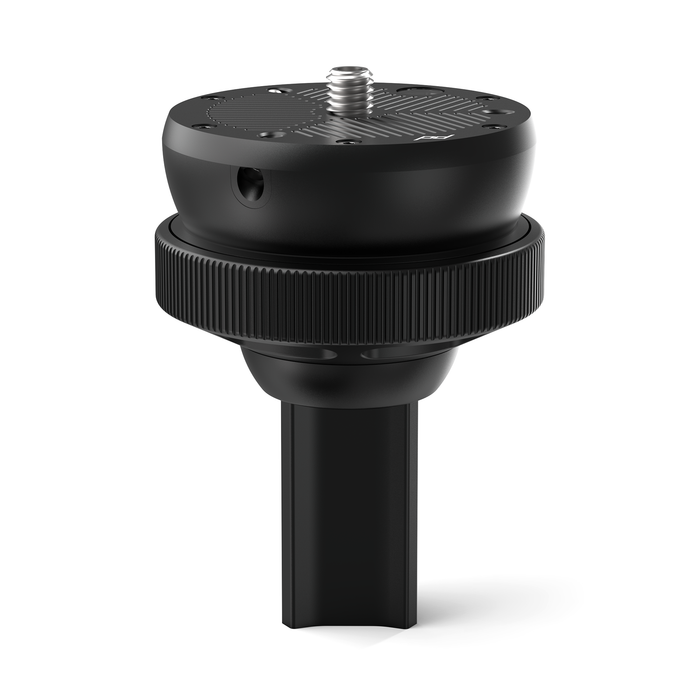

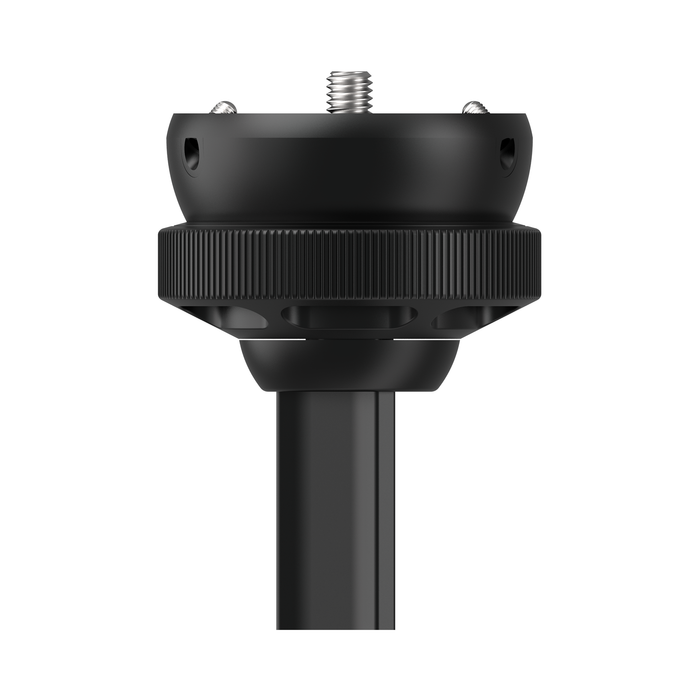

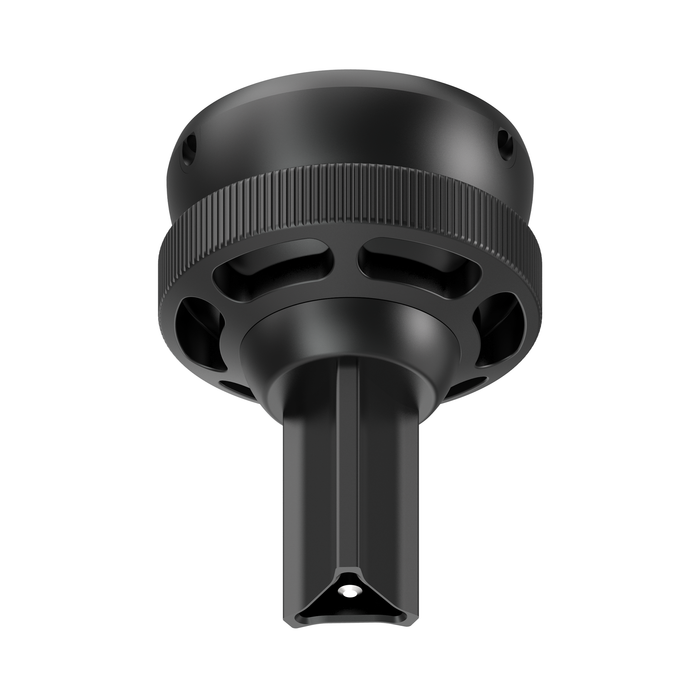

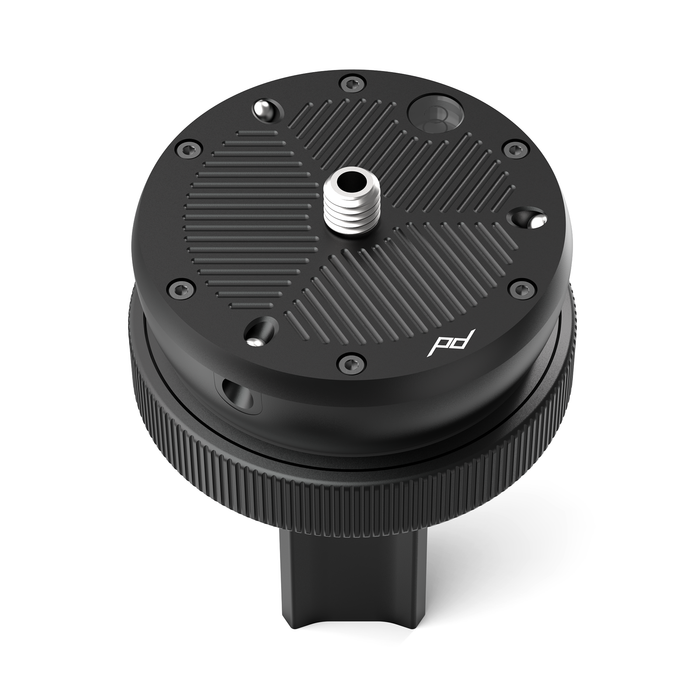

Universal head adapter for Pro/Tall/Lite Tripods

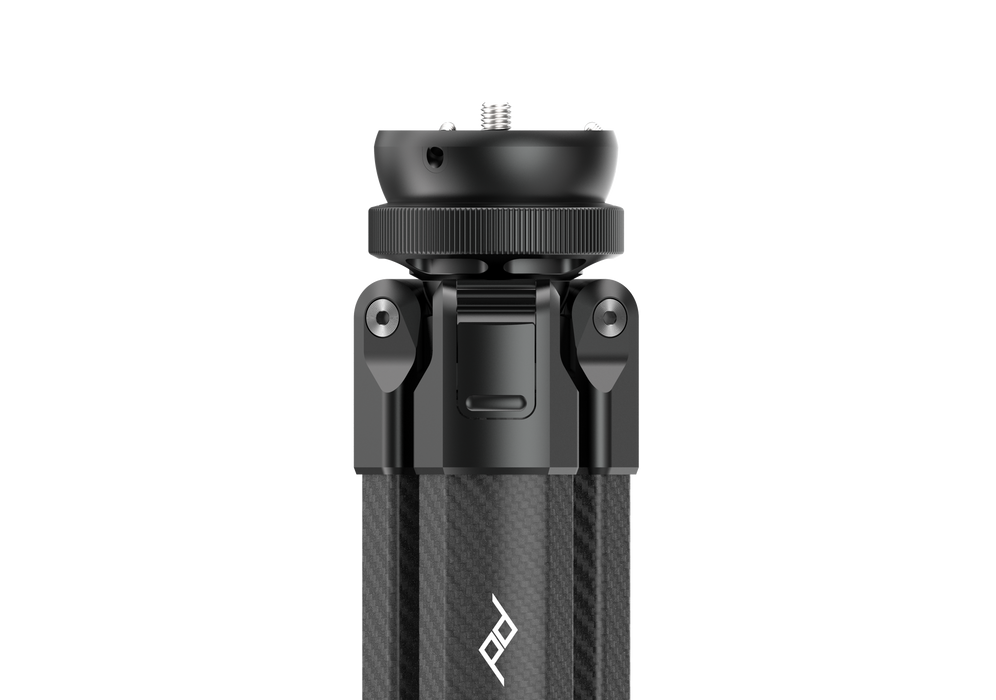

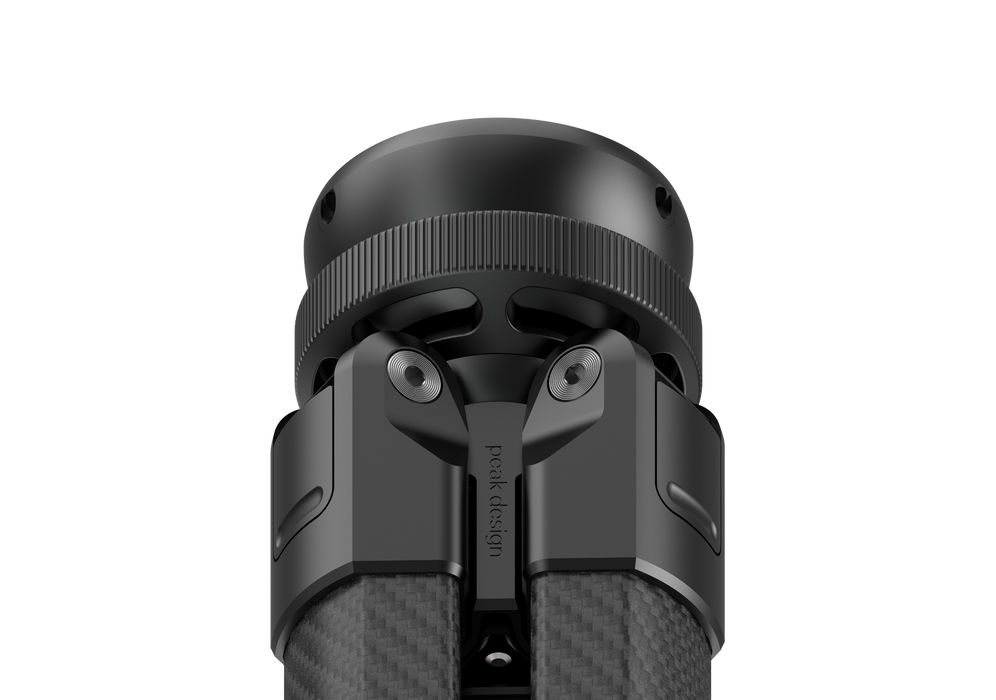

Use your Peak Design Pro, Pro Tall, or Pro Lite Tripod legs with your own 3rd party tripod head and quickly level it on uneven terrain without the need to adjust your legs. Enjoy the specialized functionality of your 3rd party head, and do it with the unbeatable portability, stability, and ease-of-setup of Peak Design's game-changing tripod leg architecture. Ideal for creatives who prefer to shoot with their own pro video head, gimbal head, geared/3-way head, and more. Installing the Pro Leveling Base is quick and easy—for a tool-less install, simply remove the Pro Ball Head and center column, and insert the Pro Leveling Base. If you wish to use the center column, remove the Pro Ball Head with a single hex screw, and install the Pro Leveling Base in its place with the same screw using the tool that comes with our tripod. Then install your 3rd party head onto the 3/8" mount. Provides +/-20 degrees of leveling adjustment in all directions.
Pro Leveling Base works exclusively with the Peak Design Pro, Pro Tall, and Pro Lite Tripods. Not designed for use with Travel Tripod or 3rd party tripods.
Features:
- 40lb weight capacity (same as Pro and Pro Tall Tripods)
- Installs quickly in 2 configurations: with or without center column

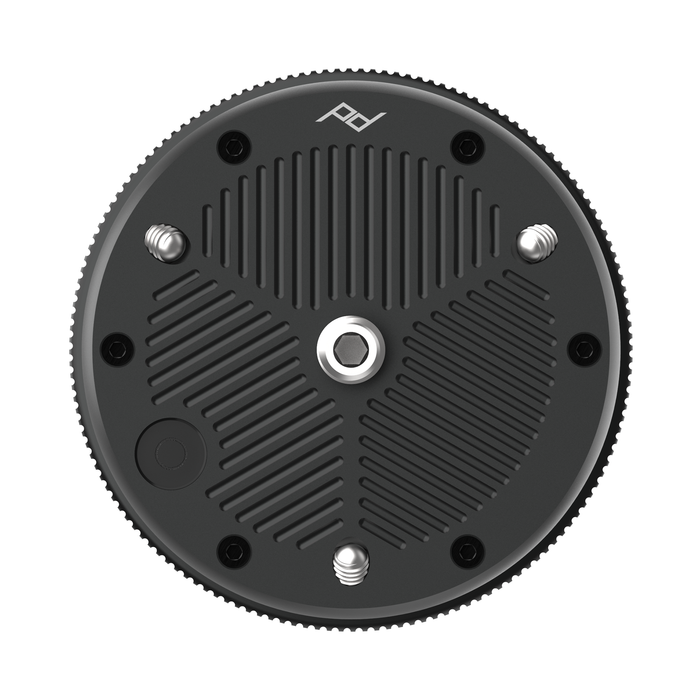

- 3/8" stainless mounting stud accepts nearly all pro tripod heads
- Integrated omnidirectional bubble level

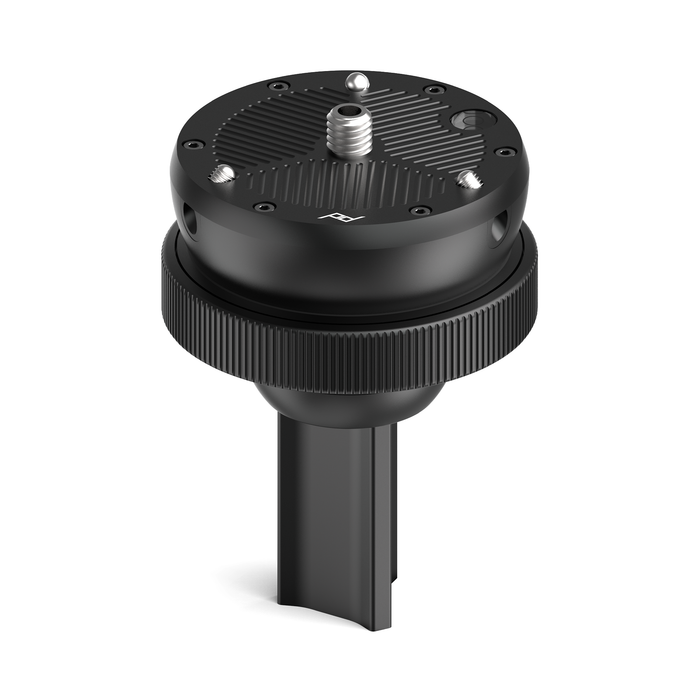

- 3 set screws can be optionally engaged for maximum security
- Smooth, easy-to-operate cinch ring can be easily loosened/tightened with gloves on
- Allows +/
- 20 degrees of leveling compensation in any direction
- Fluid leveling motion enables precision adjustments
Compatible With:
Tripods:

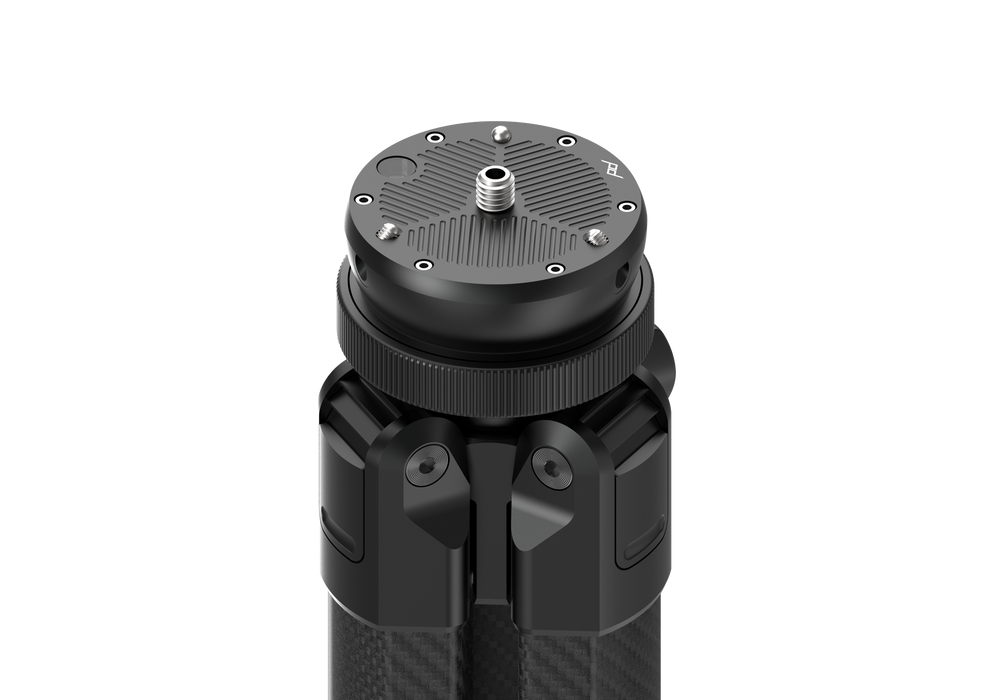

- Use Peak Design Pro, Pro Tall, or Pro Lite Tripod legs with any 3rd party tripod head
Tripod Heads:
- Ideal for use with video heads, gimbal heads, geared/3-way heads, and more
Dimensions:
When not installed: 4.49 x 3.07 x 3.07"
Stack Height (when attached): 2.2"
Weight:
Weight: 0.77 lbs
Weight Capacity: (40lb), same as Pro and Pro Tall Tripods
Materials:
- Machined/anodized recycled aluminum
- Stainless steel hardware
Manufacturer SKU:
PTA-U-PLB-1
In The Box:
Peak Design Pro Leveling Base

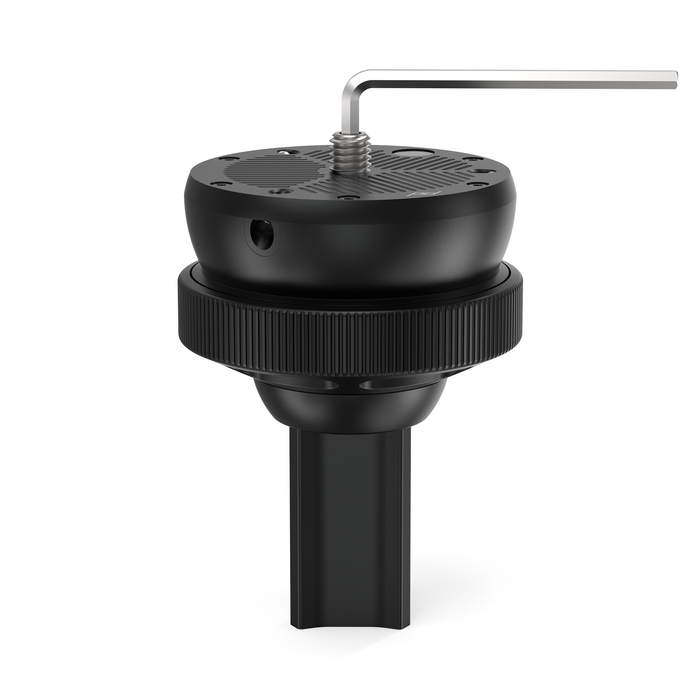

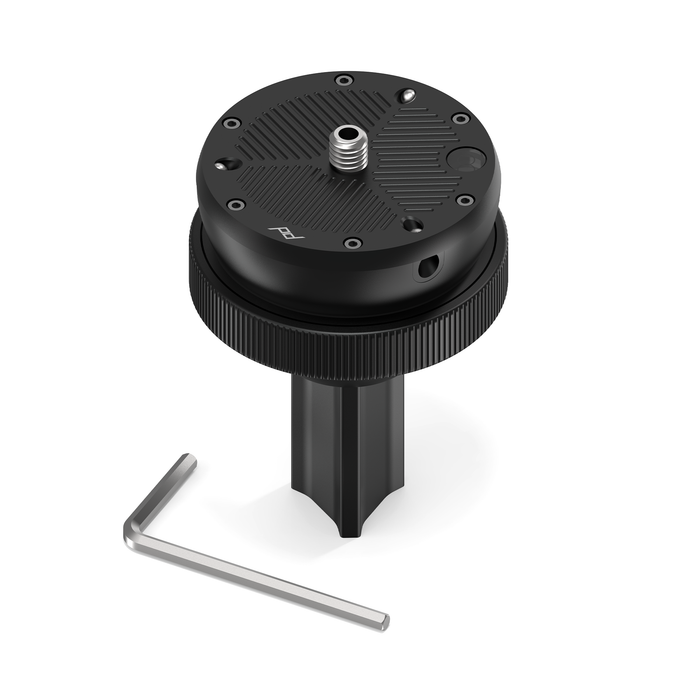

4mm hex wrench
Microfiber pouch (same one as slide)
Limited Lifetime Manufacturer Warranty
