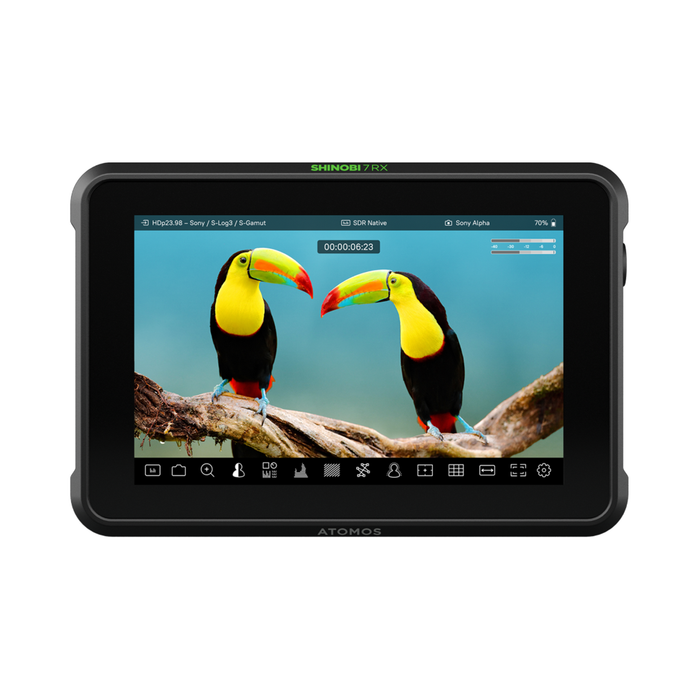

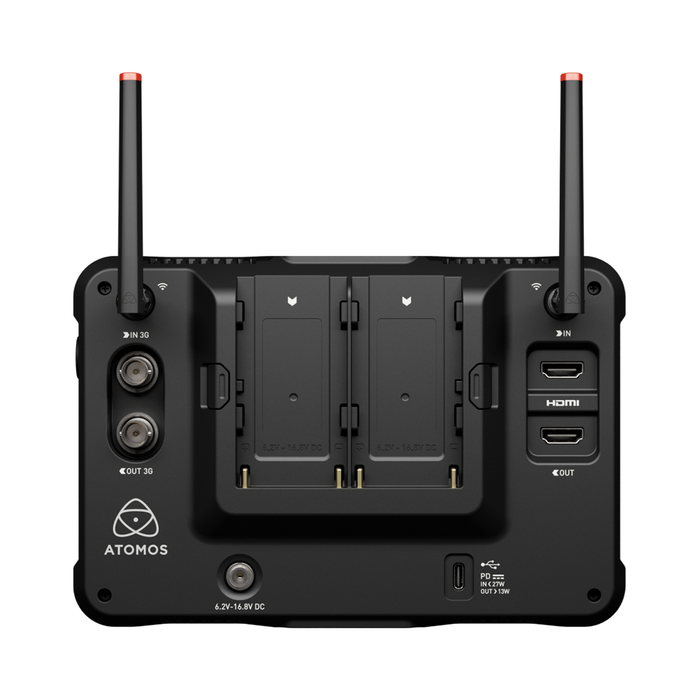

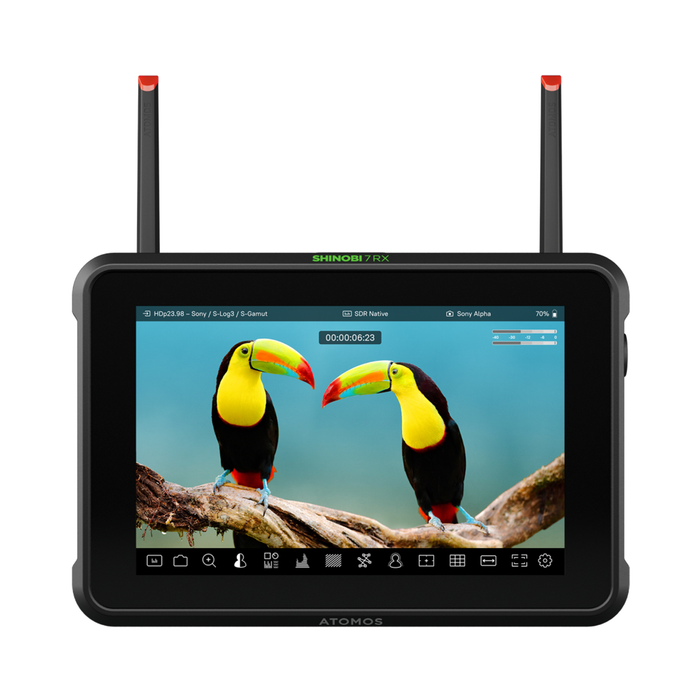

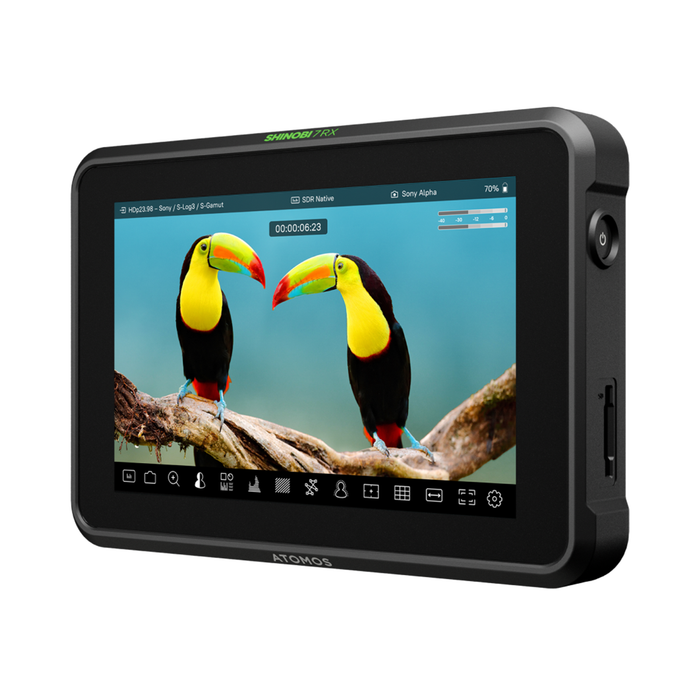

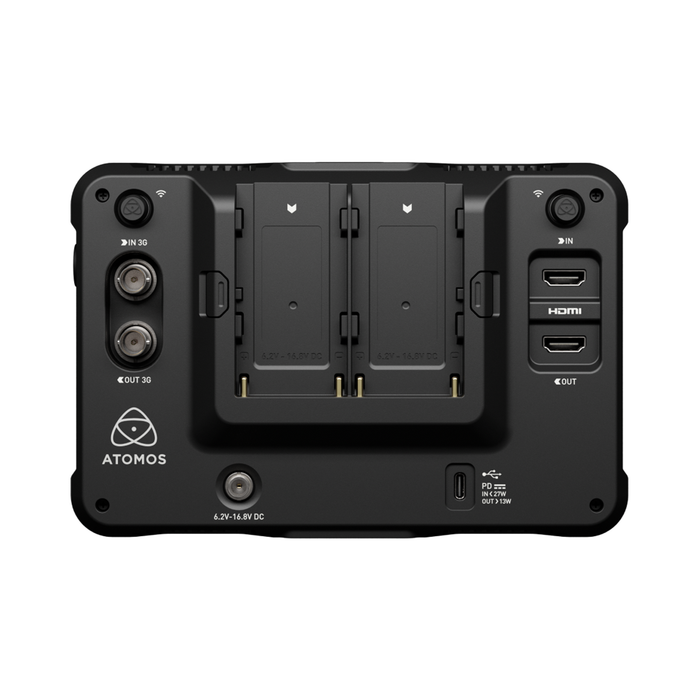

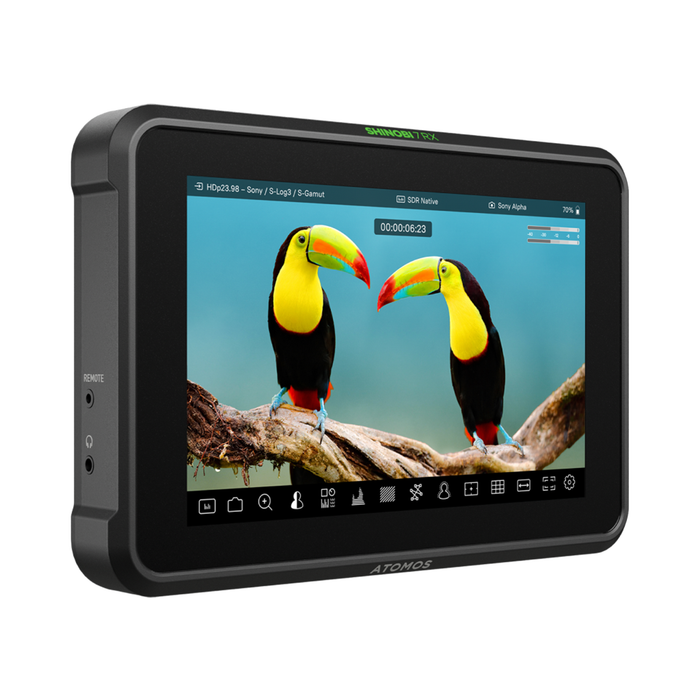

Atomos Shinobi 7 RX 7" HDR Monitor with Camera Control & Wireless Monitoring
Shinobi 7 RX combines a larger 7-inch HDR screen with a calibrated peak brightness of 2200nits and the lightweight monitor-only functions of Shinobi. Can be used in the brightest of environments to monitor signals up to 4Kp60 via HDMI or HDp60 via 3G-SDI. Take control of Canon, Fujifilm, Nikon, Panasonic, and Sony cameras via USB-C, plus Z CAM cameras via optional USB-C to serial cable. The addition of Wi-Fi connectivity provides a stable link between the Shinobi 7 RX and the TX component of Atomos’ TX-RX wireless video system, or a RTSP H.264 stream. An ideal director’s monitor, focus puller’s monitor, program or preview display for video switchers.
Features:
Super-bright, 7-inch HDR screen with a peak brightness of 2200nits
HDMI and 3G-SDI input and output
Camera control over USB-C (same as Shinobi II)*
Touch to focus (same as Shinobi II)*
5G Wi-Fi for low latency (<60ms) receive from Atomos TX or RTSP H.264 stream
Stunning 10+ stops of dynamic range in real-time from Log/PQ/HLG
Built-in 3D LUT box
Supports 8-channel, 24-bit audio input via SDI
Supports on-device calibration (no computer required)
Dual NPF battery slots
*Please refer to Atomos.com for supported camera models
4 modes (color, black & white, outline, edge sharpening) with adjustable outline color & peaking intensity
Atomos False Color
Yes, with scale
Zebra
Adjustable threshold (50% to 105%)
Isolate color channel
Blue Only
Cine Frame Guides
Presets for 2.41, 2.35, 1.91, 1.9, 1.85, 16:9
Social Frame guides
Presets for 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, 3:2
Safe areas
SMPTE safe title area – 93% & 90%
Grid markers
9 grid
Anamorphic desqueeze
2x, 1.8x, 1.79x, 1.65x, 1.6x, 1.5x, 1.33x, 1.25x
Display Flip
Horizontal & vertical
External Device Control
USB-C
Camera control for supported cameras via USB-C. Controllable functions: Record Trigger, White Balance, Shutter Speed, Shutter Angle (if supported by camera), Aperture, ISO, Camera Overlays, Record Indicator, Touch to Focus - see Atomos website for camera model compatibility. USB-C port can also be used with external calibrators (no PC required).
