| Country of Manufacture | China |
| Camera Width (mm) | 136.3 |
| Camera Height (mm) | 92.9 |
| Camera Depth (mm) | 84.6 |
| Camera Minimum Depth (mm) | 42.8 |
| Camera Width (in) | 5.37 |
| Camera Height (in) | 3.66 |
| Camera Depth (in) | 3.33 |
| Camera Minimum Depth (in) | 1.69 |
| Camera Body Weight | Approx. 660g (including battery and memory card) Approx. 579g (excluding battery and memory card) |
| FPS Eligible | Yes |
| Family Type | Hardware |
| Warranty Duration | 365 |
| Number of Effective Pixels | 26.1 million pixels |
| Image Sensor | 23.5mm x 15.6mm (APS-C) X-Trans CMOS 5 HS with primary color filter |
| Sensor Cleaning System | Ultra Sonic Vibration |
| Storage Media | SD Card (-2GB) / SDHC Card (-32GB) / SDXC Card (-2TB) / UHS-I / UHS-II / Video Speed Class V90 / CFexpress Type B Card (-2TB) *Please visit https://fujifilm-x.com/support/compatibility/cameras/ to check memory card compatibility. |
| Still Image File Format - DCF | Compliant with Design rule for Camera File system (DCF2.0) |
| Still Image File Format - JPEG | Exif Ver.2.32*Exif 2.32 is a digital camera file format that contains a variety of shooting information for optimal printing |
| Still Image File Format - TIFF | 8bit / 16bit RGB (In-camera Raw Conversion Only) |
| Number of Recorded Pixels - [L] | [3:2] 6240x4160 [16:9] 6240x3512 [1:1] 4160x4160 |
| Number of Recorded Pixels - [M] | [3:2] 4416x2944 [16:9] 4416x2488 [1:1] 2944x2944 |
| Number of Recorded Pixels - [S] | [3:2] 3120x2080 [16:9] 3120x1760 [1:1] 2080x2080 |
| Number of Recorded Pixels - Vertical Panorama [L] | 9600 x 2160 |
| Number of Recorded Pixels - Horizontal Panorama [M] | 6400 x 1440 |
| Lens Mount | FUJIFILM X Mount |
| Sensitivity Standard Output | STILL: AUTO1/ AUTO2/ AUTO3/ ISO160~12800 (1/3 step) MOVIE: AUTO/ ISO160~12800 (1/3 step) |
| Sensitivity Extended Output | STILL: ISO80/ ISO100/ ISO12800/ ISO25600/ ISO51200 MOVIE: ISO25600 |
| Exposure Control | TTL 256-zone metering/ Multi/ Spot/Average/ Center Weighted |
| Exposure Mode | P (Program AE)/ A (Aperture Priority AE)/ S (Shutter Speed Priority AE)/ M (Manual Exposure) |
| Exposure Compensation | STILL: -5.0EV~+5.0EV (1/3EV step)/ MOVIE: -2.0EV~+2.0EV (1/3EV step) |
| Image Stabilizer Mechanism | Image sensor shift mechanism with 5-axis compensation |
| Image Stabilizer Compensation Effect | Up to 7.0 stops (based on CIPA standard). Pitch/yaw shake only, with XF35mmF1.4 R lens attached. |
| Image Stabilizer Digital Image Stabilization | Yes, movie mode only |
| Image Stabilizer IS MODE BOOST | Yes, movie mode only |
| Shutter Type | Focal Plane Shutter |
| Synchronized Shutter Speed for Flash | Mechanical Shutter: 1/250sec. or slower Electronic Shutter: 1/125sec. or slower |
| Continuous Shooting | Electronic Shutter Approx. 40fps (JPEG: 184 frames ,Compressed RAW: 175 frames, Lossless Compressed RAW 170 frames, Uncompressed RAW: 140 frames) Electronic Shutter Approx. 30fps (JPEG: 1000+ frames ,Compressed RAW: 270 frames, Lossless Compressed RAW 250 frames, Uncompressed RAW: 180 frames) Electronic Shutter Approx. 20fps (JPEG: 1000+ frames ,Compressed RAW: 1000+ frames, Lossless Compressed RAW 1000+frames, Uncompressed RAW: 800 frames) Electronic Shutter Approx. 15fps (JPEG: 1000+ frames ,Compressed RAW: 1000+ frames, Lossless Compressed RAW 1000+frames, Uncompressed RAW: 1000 frames) Mechanical Shutter Approx. 15fps (JPEG: 1000+ frames ,Compressed RAW: 1000+ frames, Lossless Compressed RAW 1000+frames, Uncompressed RAW: 1000 frames) Mechanical Shutter Approx. 10fps (JPEG: 1000+ frames ,Compressed RAW: 1000+ frames, Lossless Compressed RAW 1000+frames, Uncompressed RAW: 1000+frames) Mechanical Shutter Approx. 8.0fps (JPEG: 1000+ frames ,Compressed RAW: 1000+ frames, Lossless Compressed RAW 1000+frames, Uncompressed RAW: 1000+frames) Electronic Shutter Approx. 40fps (While half press 40 frames ,After full press 110 frames, Total 150 frames) Electronic Shutter Approx. 30fps (While half press 30 frames ,After full press 1000+ frames,) Electronic Shutter Approx. 20fps (While half press 20 frames ,After full press 1000+ frames,) Electronic Shutter Approx. 15fps (While half press 15 frames ,After full press 1000+ frames,) No. of recordable frames are calculated based on CFexpress Type B card in a cold start Recordable frames depends on recording media *Speed of continuous shooting depends on shooting environment and shooting frames |
| AE Bracketing | AE Bracketing (Frames: 2, 3, 5, 7, 9 Step: by 1/3EV step, up to ±3EV steps)/Filmsimulation bracketing (Any 3 types of film simulation selectable)/Dynamic Range Bracketing (100%, 200%, 400%)/ISO sensitivity Bracketing (±1/3EV, ±2/3EV, ±1EV)/White Balance Bracketing (±1, ±2, ±3)/Focus Bracketing (AUTO, MANUAL)/Multiple Exposure Yes (Max. 9 frames)Additive, Average, Bright, Dark/HDR Mode (AUTO, 200%, 400%, 800%, 800%+)/Advanced filter Toy camera, Miniature, Pop color, High-key, Low-key, Dynamic tone, Soft focus, Partial color (Red / Orange / Yellow / Green / Blue / Purple) |
| Focus Mode | Single AF/ Continuous AF/ MF |
| Focus Type | Intelligent Hybrid AF (TTL contrast AF / TTL phase detection AF) |
| Focus Low-light Performance | Contrast: -4.0EV Phase Detection: -7.0EV *XF50mmF1.0 attached |
| AF Frame Selection | Single point AF: 13×9/ 25×17 (Changeable size of AF frame) Zone AF: 3×3/ 5×5/ 7×7 from 117 areas on 13×9 grid Wide/Tracking AF AF-S: Wide/ AF-C: Tracking All |
| White Balance | Auto (WHITE PRIORITY, AUTO, AMBIENCE PRIORITY)/ Custom1 - 3/ Color temperature selection (2500K~10000K)/ Preset Daylight, Shade, Fluorescent Light-1, Fluorescent Light-2, Fluorescent Light-3, Incandescent Light, Underwater |
| Self-timer | 10sec./2sec. |
| Interval Timer Shooting | Yes (Setting : Interval, Number of shots, Starting time, Interval timer shooting exposure smoothing) |
| Flash | EF-X8 Guide Number approx. 11 (ISO200・m) / approx. 8 (ISO100・m) |
| Flash Sync Mode | EF-X8: 1st Curtain/ 2nd Curtain Shoe Mount Flash: 1st Curtain/ 2nd Curtain AUTO FP (HSS) Synchronized terminal: 1st Curtain/ 2nd Curtain. |
| Flash Mode | TTL (TTL AUTO / STANDARD / SLOW SYNC. ) / MANUAL / COMMANDER / OFF Shoe Mount Flash TTL (TTL AUTO) / STANDARD / SLOW SYNC. ) / MANUAL / MULTI * When EF-X500 is set/ OFF Synchronized terminal MANUAL |
| Hot Shoe | Yes (Dedicated TTL Flash compatible) |
| Viewfinder EVF | 0.5 inch approx. 5.76 million dots OLED Color Viewfinder Coverage of viewing area vs. capturing area: approx. 100% Eyepoint: approx. 24mm (from the Rear End of the camera's Eyepiece) Diopter adjustment: -5~+3m-1 Magnification: 0.80× with 50mm lens (35mm equivalent) at infinity and Diopter set to -1.0m-1 Diagonal angle of view: approx. 40° (Horizontal angle of view: approx. 32° ) Built-in eye sensor |
| LCD Monitor | 3.0 inch vari-angle Touch Screen Color LCD Monitor Aspect Ratio 3:2 Resolution: Approx. 1.62 million dots |
| Touch Screen Shooting Mode | Shooting, AF, Focus Area, OFF, Double Tap Setting (ON/OFF), Touch Function Setting (ON/OFF), EVF Touch Screen Area Setting |
| Touch Screen Playback Mode | Swipe, Pinch-in / Pinch-out, Double-tap, Drag |
| Sub LCD Monitor | 1.28 inch Monochrome LCD Monitor, Aspect Ratio 1:1, Dots 128x128-dot |
| File format (Movie) | MOV/ Apple ProRes (422, HQ, LT) Audio: Linear PCM/ Stereo Sound (24bit / 48KHz sampling) HEVC/ H.265 Audio: Linear PCM / Stereo sound (24bit / 48KHz sampling) MPEG-4, AVC/ H.264 Audio: Linear PCM / Stereo sound (24bit / 48KHz sampling) MP4, MPEG-4, AVC/ H.264 Audio: AAC |
| Movie Compression | All Intra/Long-GOP |
| File Size / Frame Rate / Recording Time | 6.2K [3:2] - 6240×4160 29.97p/ 25p/ 24p/ 23.98p 720Mbps/ 360Mbps/ 200Mbps/ 100Mbps/ 50Mbps DCI 4K [17:9] - 4096×2160 59.94p/ 50p/ 29.97p/ 25p/ 24p/ 23.98p 720Mbps/ 360Mbps/ 200Mbps/100Mbps/50Mbps 4K [16:9] - 3840×2160 59.94p/ 50p/ 29.97p/ 25p/ 24p/ 23.98p 720Mbps/ 360Mbps/ 200Mbps/ 100Mbps/ 50Mbps Full HD [17:9] - 2048 ×1080 59.94p/ 50p/ 29.97p/ 25p/ 24p/ 23.98p 720Mbps/ 360Mbps/ 200Mbps/ 100Mbps/ 50Mbps Full HD [16:9] - 1920×1080 59.94p/ 50p/ 29.97p/ 25p/ 24p/ 23.98p 720Mbps/ 360Mbps/ 200Mbps/ 100Mbps/ 50Mbps DCI4K High speed rec. [17:9] - 4096x2160 120p/100p 720Mbps(recording)/ 360Mbps(recording)/ 200Mbps(recording) 4K High speed rec. [16:9] - 3840x2160 120p/100p 720Mbps(recording)/ 360Mbps(recording)/ 200Mbps(recording) Full HD High speed rec. [17:9] - 2048x1080 240p/200p/ 120p/ 100p 720Mbps(recording)/ 360Mbps(recording)/ 200Mbps(recording) Full HD High speed rec. [16:9] - 1920x1080 240p/200p/ 120p/ 100p/ 720Mbps(recording)/ 360Mbps(recording)/ 200Mbps(recording) For recording movies, use a CFexpress Type B card or SD memory card with UHS Speed Class 3 or higher. For recording movies in 360Mbps, use a CFexpress Type B card or SD memory card with Video Speed Class 60 or higher. For recording movies in 720Mbps, use a CFexpress Type B card or SD memory card with Video Speed Class 90 or higher. Selectable bitrate will be changed depends on the setting. Apple ProRes codec can be only recorded to CFexpress Type B card Bitrate for Apple ProRes codec is not selectable. *Recording length can shorten depending on the temperature and/or shooting conditions |
| Film Simulation Mode | 19 modes (PROVIA/Standard, Velvia/Vivid, ASTIA/Soft, Classic Chrome, PRO Neg.Hi, PRO Neg.Std, Classic Neg., Nostalgic Neg., ETERNA Cinema, ETERNA BLEACH BYPASS, ACROS, ACROS + Ye Filter, ACROS + R Filter ACROS + G Filter, Black & White, Black & White + Ye Filter, Black & White + R Filter, Black & White + G Filter, Sepia) |
| Clarity setting | ±5 steps |
| Monochromatic Color | Yes |
| HDR Mode | AUTO/200%/400%/800%/800% + |
| Grain Effect | Roughness STRONG, WEAK, OFF, Size LARGE, SMALL |
| Color Chrome Effect | STRONG, WEAK, OFF |
| Color chrome Blue | STRONG, WEAK, OFF |
| Dynamic Range Setting | AUTO, 100%, 200%, 400% ISO restriction (DR100%: No limit, DR200%: ISO320 or more, DR400%: ISO640 or more) |
| Dynamic Range Setting (Movie) | 100%, 200%, 400% ISO restriction (DR100%: No limit, DR200%: ISO320 or more, DR400%: ISO640 or more) |
| Advanced Filter | Toy camera,Miniature,Pop color,High-key,Low-key,Dynamic tone,Soft focus,Partial color (Red / Orange / Yellow / Green / Blue / Purple) |
| Wireless Transmitter Standard | IEEE802.11a/b/g/n/ac (standard wireless protocol) |
| Wireless Transmitter Encryption | WEP/WPA/WPA2 mixed mode |
| Wireless Transmitter Access Mode | Infrastructure |
| Bluetooth® Standard | Bluetooth Ver. 4.2 (Bluetooth low energy) |
| Bluetooth® Operating frequency | 2402〜2480MHz |
| Terminal - Digital Interface | USB Type-C (USB3.2 Gen2x1) |
| Terminal - HDMI Output | HDMI connector (Type A) |

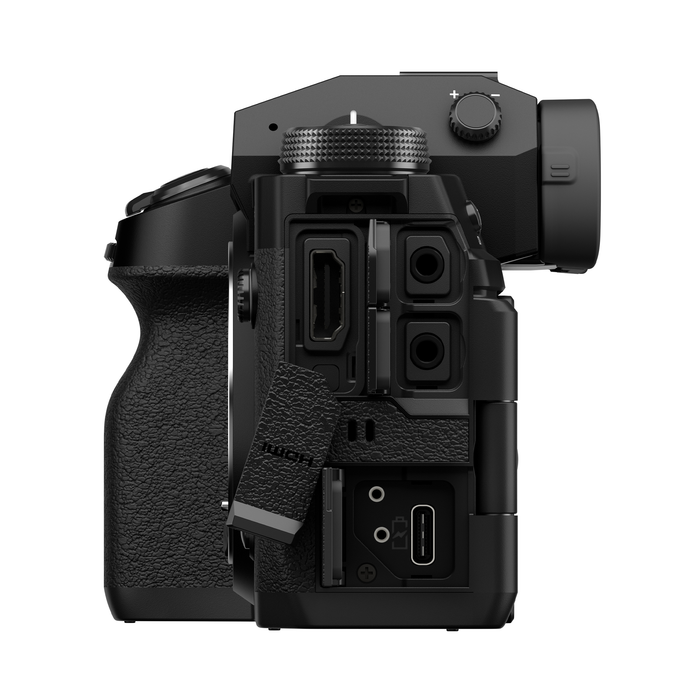

| Terminal - Others | ø3.5mm, stereo mini connector (Microphone), ø3.5mm, stereo mini connector (Headphone), ø2.5mm, Remote Release Connector, Hot shoe, Synchronized terminal |
| Power Supply | NP-W235 Li-ion battery (included) *Approximate number of frames or movie recording time that can be taken with a fully-charged based on CIPA Standard. |
| Battery Life for Still Images | Economy Mode Approx. 720 frames, Normal Mode Approx. 580 frames *When XF35mmF1.4 R is set |
| Actual Battery Life for Movie Capture | 6.2K Approx. 90min. (29.97p),4K Approx. 70min. (59.94p), Approx. 60min (120p),Full HD Approx. 95min. (59.94p) *Face detection is set to OFF |
| Continuance Battery Life for Movie Capture | 6.2K Approx. 120min. (29.97p),4K Approx. 105min. (59.94p),Full HD Approx. 165min. (59.94p) *Face detection is set to OFF |
| Operating Temperature | -10°C-40°C/ 14°F-104°F |
| Operating Humidity | 10% - 80% (no condensation) |
| Start Up Period | Approx. 0.49sec. |
| Camera Item Includes | Li-ion battery NP-W235S AC power adapter AC-5VJ Plug adapter USB cable Shoulder strap Body cap Hot shoe cover File transmitter/vertical battery grip connector cover Memory card slot cover Sync terminal cover Cooling fan connector cover Cable protector |
| Weather Resistant | Yes |
| Image Processing Engine | X-Processor 5 |
