Blackmagic Design Studio Camera 4K Plus

$1,295.00
SKU 81023
  • Description
  • Additional Information

The Blackmagic Studio Camera 4K Plus has been specifically designed as the perfect camera for ATEM Mini. It's the same high quality broadcast camera, but the HDMI centric design removes all the expensive broadcast connections so it's much lower cost. The HDMI is incredibly powerful as it connects video to the ATEM Mini, while at the same time camera control, tally and the remote record trigger is sent to the camera using the same HDMI connection. That makes it very fast to set up for a job.



The Ultimate Self Contained Live Production Camera

While Blackmagic Studio Camera is designed for live production, it’s not limited to use with a live switcher! That’s because it records Blackmagic RAW to USB disks, so it can be used in any situation where you use a tripod! The large 7" viewfinder makes it perfect for work such as chat shows, television production, broadcast news, sports, education, conference presentations and even weddings! The large bright display with side handles, touch screen and physical controls makes it easy to track shots while being comfortable to use for long periods of time. Because it’s so lightweight, it’s perfect when you're constantly changing locations and doing different kinds of work.


Studio Camera 4K Plus
Designed as the perfect studio camera for ATEM Mini, this model has a 4K sensor up to 25,600 ISO, MFT lens mount, HDMI out, 7" LCD with sunshade, built-in color correction and recording to USB disks.

Revolutionary Studio Camera Design
Large broadcasters use expensive studio cameras that are extremely large, so they’re not very portable. The distinctive Blackmagic Studio Camera has all the benefits of a large studio camera because it’s a combination of camera and viewfinder all in a single compact design. It features a lightweight carbon fiber reinforced polycarbonate body with innovative technology in a miniaturized design. The camera is designed for live production so it’s easy to track and frame shots with its large 7" viewfinder. The touchscreen has menus for camera settings, and there's knobs for brightness, contrast and focus peaking. Plus a tripod mount with mounting plate is included for fast setup!

Built In Davinci Resolve Color Corrector
The amazing 4K sensor combined with Blackmagic generation 5 color science gives you the same imaging technology used in digital film cameras. That means you can now use cinematic images for live production! Plus, when combined with the built in DaVinci Resolve primary color corrector you get much better images than simple broadcast cameras. The color corrector can even be controlled from the switcher. With 13 stops of dynamic range, the camera has darker blacks and brighter whites, perfect for color correction. The sensor features a resolution of 4096 x 2160 which is great for both HD and Ultra HD work. Plus, all models support from 23.98 fps up to 60 fps.

Lens Versatility
With the popular MFT lens mount, Blackmagic Studio Cameras are compatible with a wide range of affordable photographic lenses. Photographic lenses are incredible quality because they're designed for use in high resolution photography. Plus, the active lens mount lets you adjust the lens remotely! To eliminate the need to reach around to adjust the lens zoom and focus, the optional focus and zoom demands let you adjust the lens from the tripod handles just like a large studio camera! This means you avoid camera shake when adjusting the lens, so you can track shots and operate the camera without taking your hands off the tripod! It gives you the same feel as an expensive B4 broadcast lens!

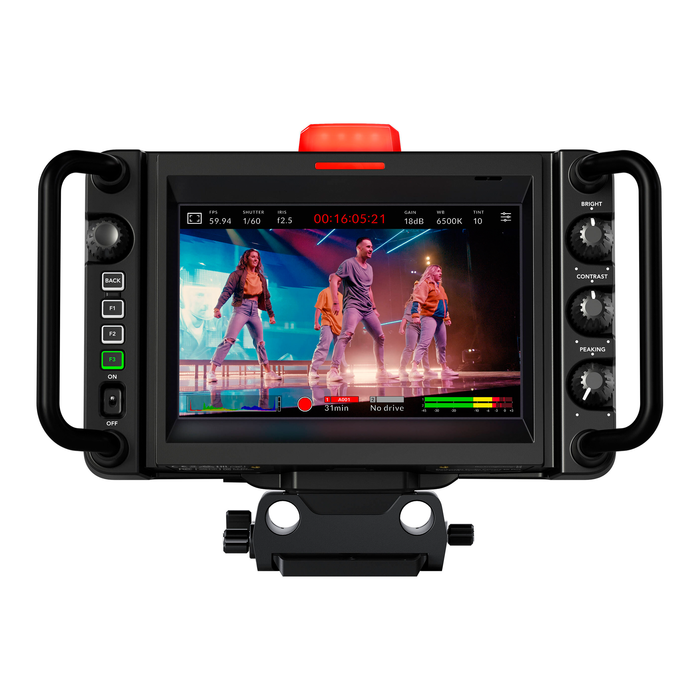

Physical & Touch Screen Controls
Blackmagic Studio Cameras feature physical buttons and knobs as well as controls on the touchscreen. Knobs on the right side of the camera allow adjusting of the brightness, contrast and focus peaking. The focus peaking knob is incredibly useful as it lets you fine tune the detail highlight so you can get perfect focus as you zoom. The 3 function buttons on the left can have functions assigned to them, such as zebra, false color, focus peaking, LUTs and more! Plus you can change the function assigned to each button in the menus. The touchscreen also includes a heads up display with the most important shooting information, as well as menus for all camera settings, LUTs and custom presets.

Blackmagic Design Studio Camera Features

  • HDMI Out: Camera video output works in HD or Ultra HD
  • 12V DC: Power camera using a regular DC power adapter
  • USB-C Expansion: USB-C ports for recording to disks or focus and zoom demands
  • Headphone: Headphone socket supports consumer headphones
  • External Mic: Connect video camera style microphones

What's Included

  • Blackmagic Studio Camera 4K Plus
  • Blackmagic Studio Camera Sun Shade
  • Tripod Mount compatible with 15mm lightweight rails
  • Turret Dust Cap
  • External 12V DC power supply with locking connector and international sockets adapters for most countries.


Glazer's SKU 81023
Manufacturer Blackmagic Design
MFG SKU BMD-CINSTUDMFT/
Product Specs

Imaging

Sensor ResolutionNot Specified by Manufacturer
ISO Sensitivity100 to 25,600
Gain0 to 18 dB
Signal-to-Noise Ratio63 dB



Camera



Lens MountMicro Four Thirds
Built-In ND FilterNone
Built-In Microphone TypeStereo
Broadcast System CompatibilityNTSC, PAL



Interfaces



CCU InterfaceNone
Video I/O1 x HDMI Output
Audio I/O1 x 1/8" / 3.5 mm TRS Stereo Microphone Input
1 x 1/8" / 3.5 mm TRRS Headphone/Mic Input/Output
Other I/O2 x USB Type-C (USB 3.2 / 3.1 Gen 1) Data/Video Input/Output



Recording



Recording ModesDNxHD/ProRes:
3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Raw RecordingBlackmagic RAW
3840 x 2160 at 23.98/24.00/25/29.97/50/59.94/60 fps [26 to 190 Mb/s]
Audio RecordingRaw: 2-Channel 24-Bit 48 kHz LPCM Audio



Display



Display TypeFixed Touchscreen LCD
Size7"
Resolution1920 x 1200



Power

Power I/O1 x Barrel (12 VDC) Input
Power Consumption>46 W



Environmental



Operating Temperature32 to 104°F / 0 to 40°C
Storage Temperature-4 to 113°F / -20 to 45°C
Operating Humidity0 to 90%



General



Accessory Mount2 x 1/4"-20 Female
Tripod Mount3/8"-16 Female

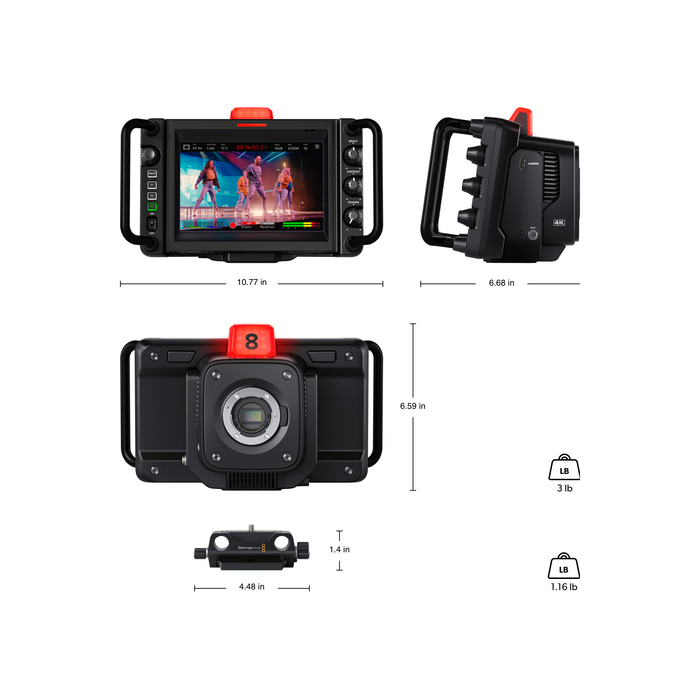

Dimensions (W x H x D)10.77 x 6.68 x 6.59" / 27.36 x 16.97 x 16.74 cm (Without Protrusions)
Weight3.71 lb / 1.68 kg
