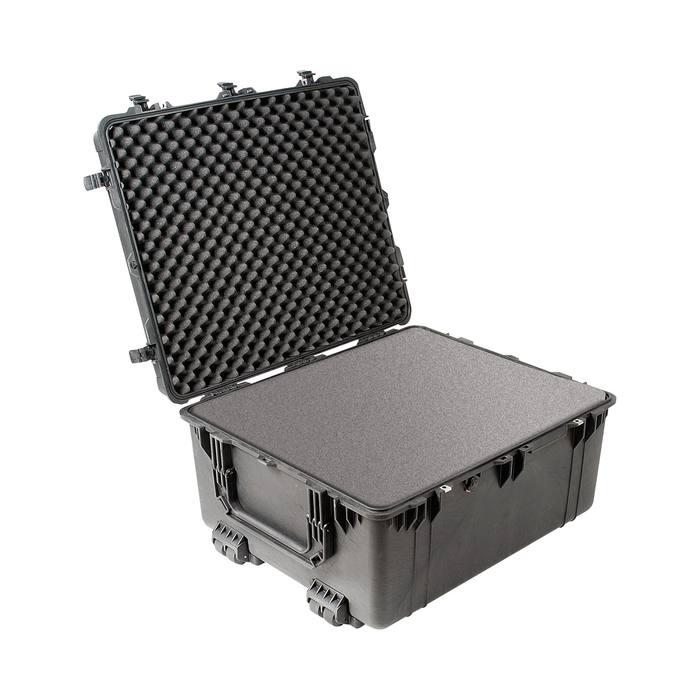

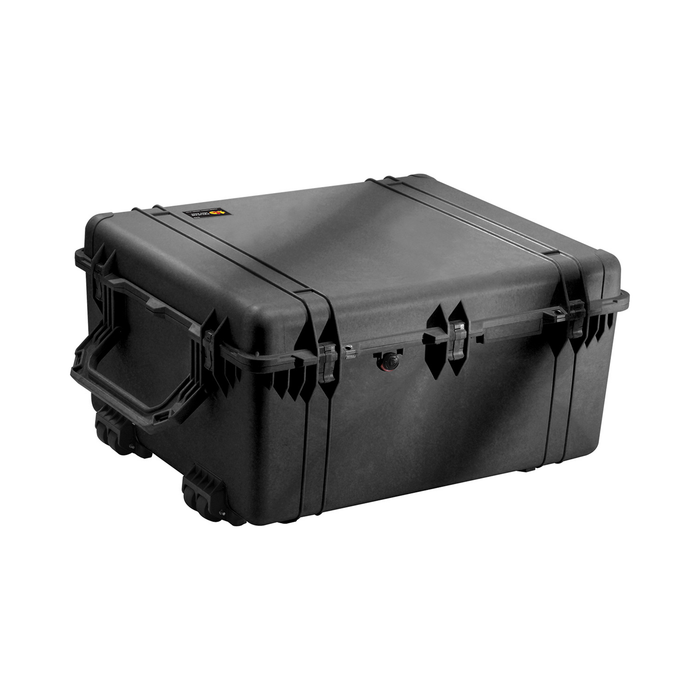

Pelican 1690 Protector Transport Case with Pick-N-Pluck Foam & Lid Foam - Black

Pelican 1690 Protector Transport Case with Pick-N-Pluck Foam & Lid Foam

Sensitive equipment needs protection, and since 1976 the answer has been the Pelican Protector Case. These cases are designed rugged, and travel the harshest environments on earth. Against the extreme cold of the arctic or the heat of battle, Pelican cases have survived.

Made in the USA, these tough cases are designed with an automatic purge valve, that equalizes air pressure, a watertight silicone O-ring lid, over-molded rubber handles and stainless steel hardware.

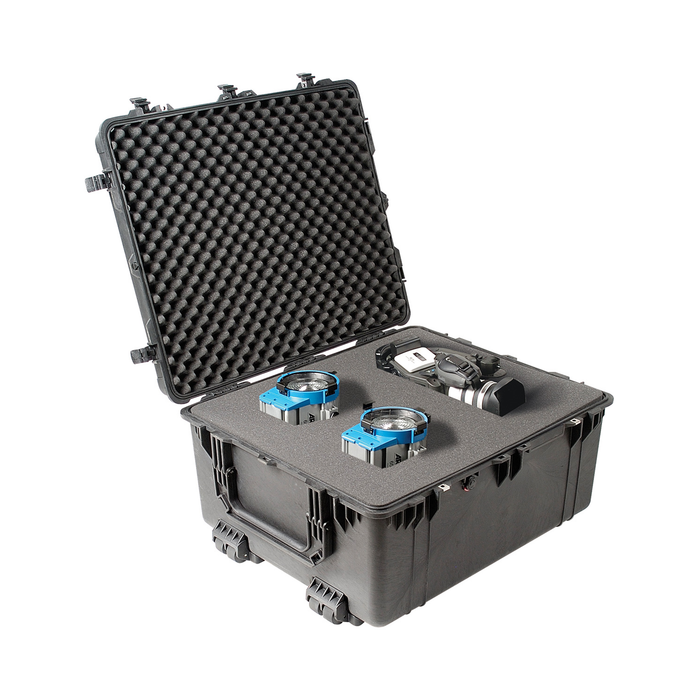

The foam set is an easy do-it-yourself system for customizing the interior of your case. Layers of foam are pre-scored in tiny cubes. Simply lay your equipment on the foam, tape or chalk to mark the foam, and pluck away. Always allow at least one inch of foam between your equipment and the wall of the case.

Features:

• 4 strong polyurethane wheels with stainless steel bearings
• Large 2-person fold down handles
• Watertight, crushproof, and dustproof
• Open cell core with solid wall design - strong, light weight

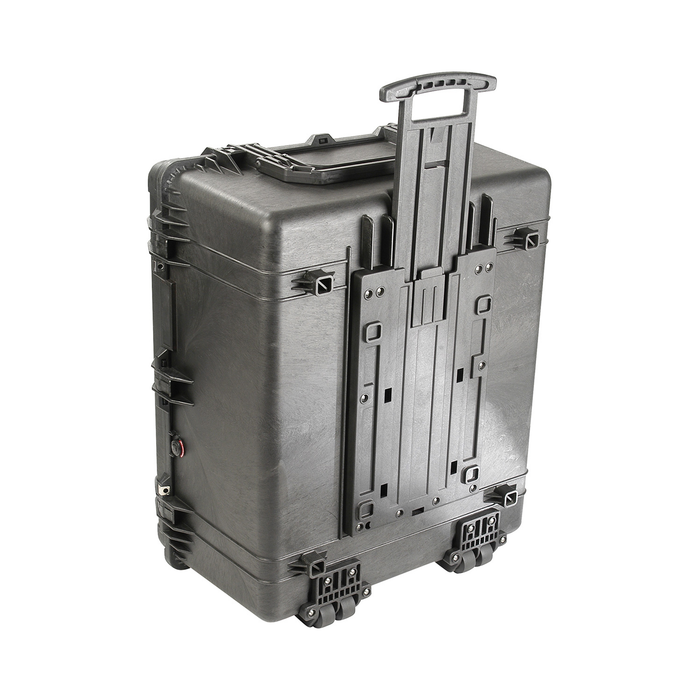

• Retractable extension trolley handle
• 3 level Pick N Pluck with convoluted lid foam
• Easy open double-throw latches
• Stainless steel padlock protectors
• Automatic pressure equalization valve - balances interior pressure, keeps water out
• O-ring seal
• Personalized nameplate service available

Compatible With:

Optional Accessories (Sold Separately):

• Pelican 1691 Foam Set (5-Piece)
• Pelican 1692 Pick N Pluck Sections Only (set of 3)
• Pelican 1699 Lid Organizer
• Pelican 1500D Desiccant Silica Gel
• Pelican 1693 Replacement O-ring
• Pelican 1506TSA TSA Lock
• Pelican Protector Luggage Tag
• Pelican AirTag Tracker Luggage Lock

Dimensions:

Dimensions:

Interior (L×W×D): 30.13 x 25.13 x 15.36"
Exterior (L×W×D): 33.43 x 28.4 x 17.65"

Measurements:

Lid Depth: 2.86"
Bottom Depth: 12.14"
Total Depth: 15"
Int Volume: 6.73  ft³
Padlock Hole Diameter: 0.31"

Weights:

Weight With Foam: 43 lbs
Weight Empty: 34 lbs
Buoyancy: 433 lbs

Materials:

• Body Material: Polypropylene
• Latch Material: ABS
• O-Ring Material: Polymer
• Pins Material: Stainless Steel
• Foam Material: 1.3 lb Polyurethane
• Purge Body Material: ABS
• Purge Vent Material: 3 Micron Hydrophobic Non-Woven

Configurations:

• 1690 Standard
• 1694 With Padded Dividers
• 1690NF No Foam
• 1690WF With Foam

Product SKU:

1690-000-110

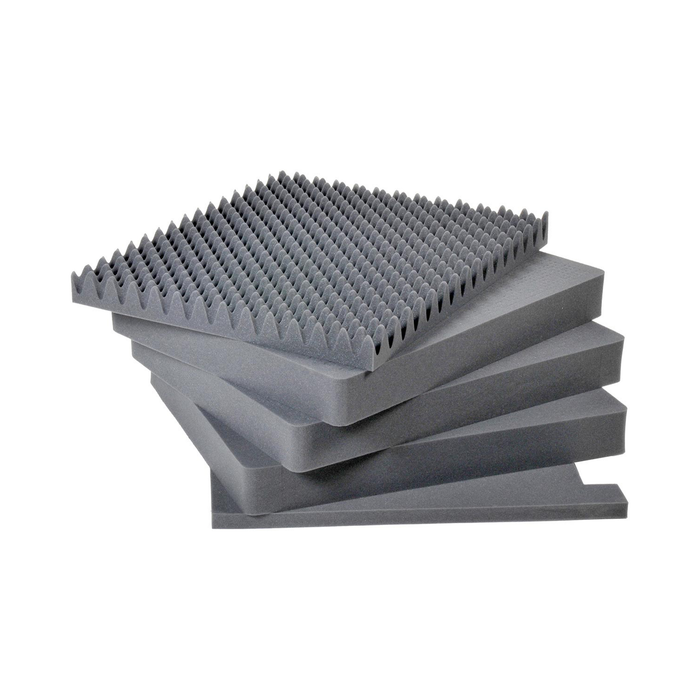

In The Box:

Pelican 1690 Protector Transport Case - Black

Pelican 1691 Foam Set (5-Piece)
Foam Layer 1 (Lid) - 3.13" Convolute
Foam Layer 2 (Base) - 3.62" Pick N Pluck (0.50" x 0.50" Squares)
Foam Layer 3 (Base) - 3.62" Pick N Pluck (0.50" x 0.50" Squares)
Foam Layer 4 (Base) - 3.62" Pick N Pluck (0.50" x 0.50" Squares)
Foam Layer 5 (Base) - 1.25" Solid

Limited Lifetime Manufacturer Warranty
