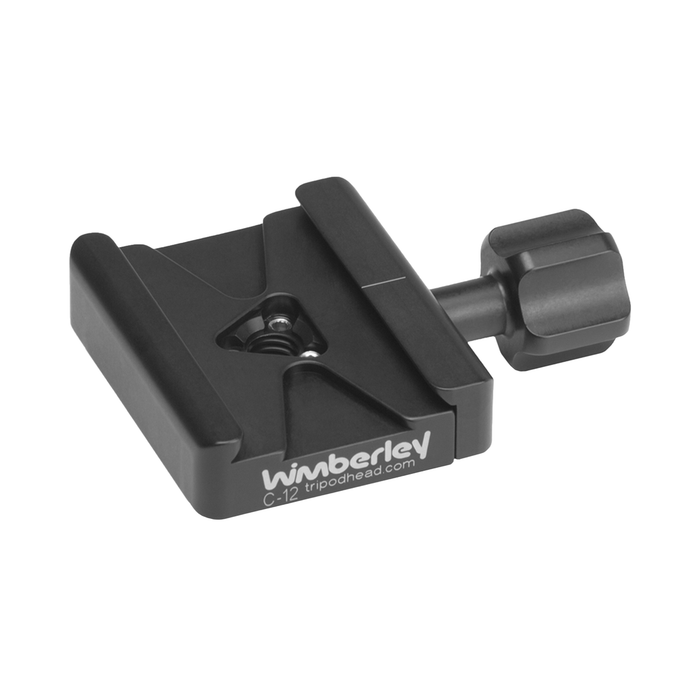

Wimberley C-12 Arca-Swiss Style Quick-Release Clamp
The C-12 is a 2.5" long, Arca-Swiss style quick-release clamp. It is designed to attach to a tripod head, or other piece of camera support equipment (e.g. a ball head, monopod, shoulder stock, etc.), giving you an attachment point for all of your cameras and lenses that have compatible Arca-Swiss style plates attached to them. Quick-release plates are sold separately.
The geometry of the C-12’s central mounting holes, combined with the large selection of fasteners that are included with the clamp allow you to securely attach the clamp to a much wider variety of equipment than any other clamp on the market. It is important that you use the removal and installation instructions on our clamp compatibility section to determine which fasteners are needed for your particular application.
Tongue-in-pocket Design
Our clamps have a unique tongue-in-pocket design that protects internal parts from dust and grit. The tongues are nearly twice as long as those on conventional Arca-Swiss style clamps. This added length counteracts the tendency of the moving jaw of the clamp to hinge backward during clamping, thus keeping the jaws aligned with the geometry of the plate. This eliminates unwanted bending stress on the threaded stud.
Captive Knob
A captive knob is designed in such a way that the user cannot accidentally remove the knob during use. There is a stop screw located on the end of the stud to keep the knob from unscrewing from the threaded stud.
Safety Channels
Two shallow channels extend from the sides of the clamp and stop just short of the central tapped hole. These channels allow greater fore-aft adjustment when using the safety stops on Wimberley quick-release plates.
Features:
- Geometry of the mounting holes allow you to securely attach the clamp to retrofit a variety of ball heads
- Tongue in pocket design, captive knob & safety channel design
-
Replaces the C-10 Clamp
- Made in USA
Compatible With:
Tripod Heads:
- Arca-Swiss B1
- Arca-Swiss Z1
- Cullmann 40200
- Cullmann 40170
- Cullmann 40180
- Cullmann 40190
- Feisol CB-50D
- FLM Centerball 58 FT
- Giottos M-H 1000
- Giottos M-H 1001
- Giottos M-H 1300
- Giottos M-H 1301
- Giottos M-H 2000
- Giottos M-H 3000
- Giottos M-H 3300
- Gitzo 1177M
- Gitzo 1277M
- Gitzo 1278M
- Gitzo 1377M
- Gitzo 1378M
- Gitzo 1780
- Gitzo 2780
- Gitzo 3780
- Linhof Profi II
- Linhof Profi III
- Manfrotto 488
- Manfrotto 468MG
- Manfrotto 468MGRC0
- Manfrotto 468MGRC2
- Manfrotto 468MGRC3
- Manfrotto 468MGRC4
- Manfrotto 468MGRC5
- Manfrotto 488RC0
- Manfrotto 488RC4
- Manfrotto 498
- Manfrotto 490RC4
- Manfrotto Proball 468
- Novoflex Ball 30
- Really Right Stuff BH-40
- Really Right Stuff BH-55 LR
- Vanguard SBH-30
- Vanguard SBH-50
- Vanguard SBH-100
- Vanguard SBH-250
- Vanguard SBH-300
- Feisol CB-70D
- Manfrotto MH055M0-Q5
- Manfrotto MH054M0-Q2
Lens Plates:
- All Arca-Swiss style lens plates
Dimensions:
2.5 x 3.3 x 0.98"
Weight:
0.28 lbs
Materials:
Anodized 6061 Aluminum & Stainless Steel
Product SKU:
C-12
In The Box:
Wimberley C-12 Arca-Swiss Style Quick-Release Clamp
3x Set Screws: M5 x 6mm, pre-installed
1x Reducer Bushing: BS-100, brass
1x Mounting Screw: M6 x 30mm Flat-Head
3x Mounting Screw: M3 x 12mm Hex Screw
1x Mounting Screw: 1/4”-20 x 0.75” Flat-Head
1x Hex Key: 2.5mm
1x Hex Key: 5/32”
Note: Most Gitzo and Manfrotto plates are not Arca-Swiss style and thus are not compatible.
