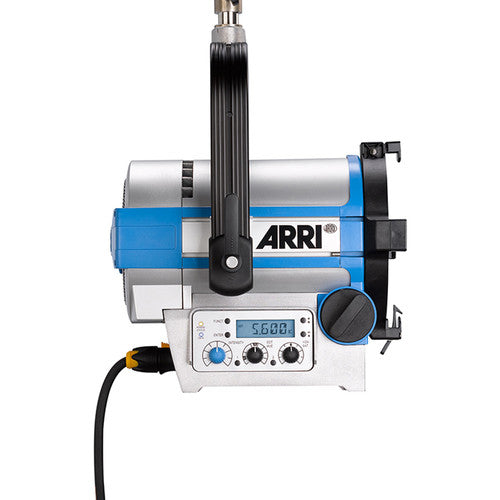

ARRI L5-C 5" LED Fresnel - Silver/Blue, Stand Mount

ARRI L5-C 5" LED Fresnel - Silver/Blue, Stand Mount

by ARRI
Sold Out
$2,880.00 - $2,880.00
$2,880.00
$2,880.00 - $2,880.00
$2,880.00
SKU 11703
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .
L5-c W/110v Edison

Color temperature, tint and hue can be continuously adjusted from 2,800 K to 10,000K, between full plus or minus green and RGBW colors.

The L5 addition to the L-Series perfectly complements the L7, allowing for more mobile lighting and a wider range of power classes for television studios. Its compact size and low weight allow the L5 to be rigged in tight places and hung from low ceilings. The L5 is also ideal for cramped location shoots and interview setups. Low heat allows safer and more comfortable shooting conditions. This versatility and superb light quality make the L5 a highly anticipated addition to the award-winning L-Series family.

New features available on the L5 include a PowerCON power connector and an on-board battery input that permits industry-standard batteries to power the L5 without any sacrifice in terms of features or light output. The resulting increase in portability opens up whole new application areas, giving productions with the L5 the tremendous freedom to move and work fast.

The L5 is approximately 45% brighter than a 300 watt tungsten Fresnel, but only consumes 115 watts. When compared to the L7, the L5 is half the weight and size.

STAND-MOUNT
versions include the following base configuration: 16 mm / 28 mm Combo Pin (Baby 5/8 inch / Junior 1-1/8 inch Combo Pin), Inline Switch, Integrated 5-Pin DMX In and Thru.

HANGING
versions include the following base configuration: 16 mm / 28 mm Combo Pin (Baby 5/8 inch / Junior 1-1/8 inch Combo Pin), 1.5 m (5 ft) Cable with Bare Ends, Integrated 5-Pin DMX In and Thru.

POLE-OPERATED
versions include the following base configuration: Pole Operation for Pan, Tilt and Focus, 16 mm / 28 mm Combo Pin (Baby 5/8 inch / Junior 1-1/8 inch Combo Pin), 1.5 m (5 ft) Cable with Bare Ends, Integrated 5-Pin DMX In and Thru.

Glazer's SKU 11703
Manufacturer ARRI
MFG SKU L0.0001956
Product Specs
Light Source LED
Type 5.39" (137 mm) Fresnel
Beam Angle 14 - 50° (Half peak angle)
Rating 450 W
Color Range Color tunable: 2,800 - 10,000K
Green - Magenta adjustment
Full RGB+W color gamut with hue and saturation control
Tolerance: +/- 100K (nominal), +/- 1/8 Green-Magenta (nominal)
Estimated lifetime color shift over lifetime: < 200 K
Lamp Life 50,000 Hours
CRI 95 (Measured at 3,200 - 6,600K)
Dimming Range 100 - 0%
Operating Voltage 90-250 VAC, 50/60 Hz
22-36 VDC
Power Consumption 115 W Nominal
IP Rating IP20
Cooling Fan
Operating Temperature -4 to 113°F (-20 to +45°C)
Control 5-Pin DMX in and through, on-board controller
Mini-USB: DMX setup, fixture status and firmware upgrade through PC software
Remote Device Management (RDM): DMX setup, hour counter and standard RDM commands
Power Connections powerCON TRUE1 to Edison plug
Tilt +/- 90°
Mount Baby 5/8" (16 mm) / Junior 1 1/8" (28 mm) combo pin
Certification and Compliance CE, GS, FCC, cNRTL, CB, ISO9001:2000
Finish Silver/Blue
Dimensions Full flood position including yoke: 15.5 x 10.9 x 11" (394 x 278 x 280 mm)
Full spot position including yoke: 15.5 x 10.9 x 14.7" (394 x 278 x 373 mm)
Lens diameter: 5.0"
Accessory size: 6.62" (168 mm)
Weight 11.2 lbs (5.1 kg)
